HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115357

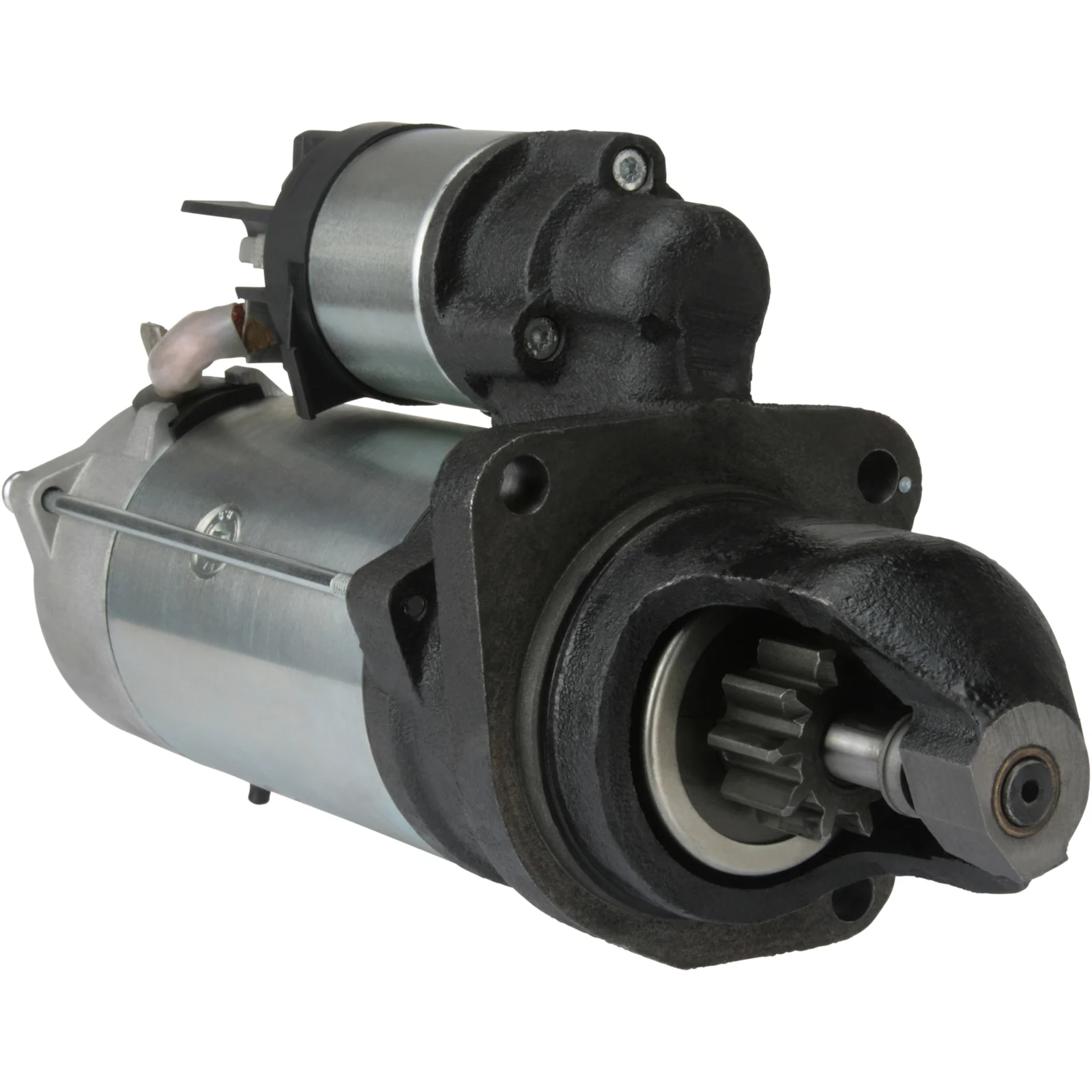

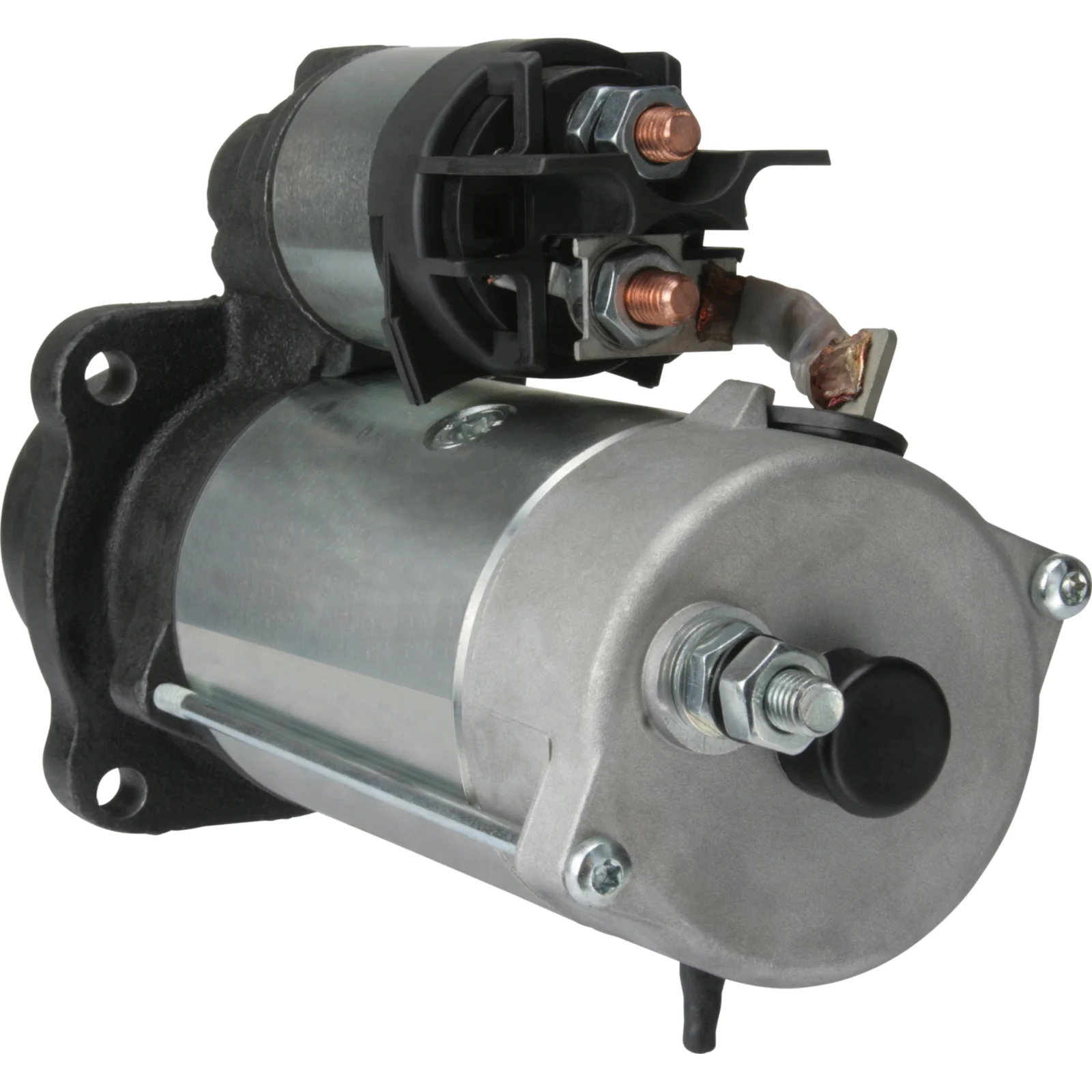

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.2
Mounting flange: 89.00
Drive distance: 49.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / rear: 218.00
Distance / front: 94.50
Number / teeth: 10
B+: M10
Thread length mm: 19.00
Terminal 50: 6.30
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
B-: M10
Total length mm: 345.00
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4116, AZF4228, F032115357, 11.131.433, 11.131.856, 0011230240, 7700076731

  • Normalised article numbler
    azf4116, azf4228, cst21150, drs0269, f032115357, is1133, ms43, s9319s, 33404n, 11131433, 11131856, 0011230240, 570567103, 7700076731
  • Description
    Voltage: 12
    kW: 4.2
    Mounting flange: 89.00
    Drive distance: 49.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / rear: 218.00
    Distance / front: 94.50
    Number / teeth: 10
    B+: M10
    Thread length mm: 19.00
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    B-: M10
    Total length mm: 345.00
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4116, AZF4228, F032115357, 11.131.433, 11.131.856, 0011230240, 7700076731

    • Normalised article numbler
      azf4116, azf4228, cst21150, drs0269, f032115357, is1133, ms43, s9319s, 33404n, 11131433, 11131856, 0011230240, 570567103, 7700076731
