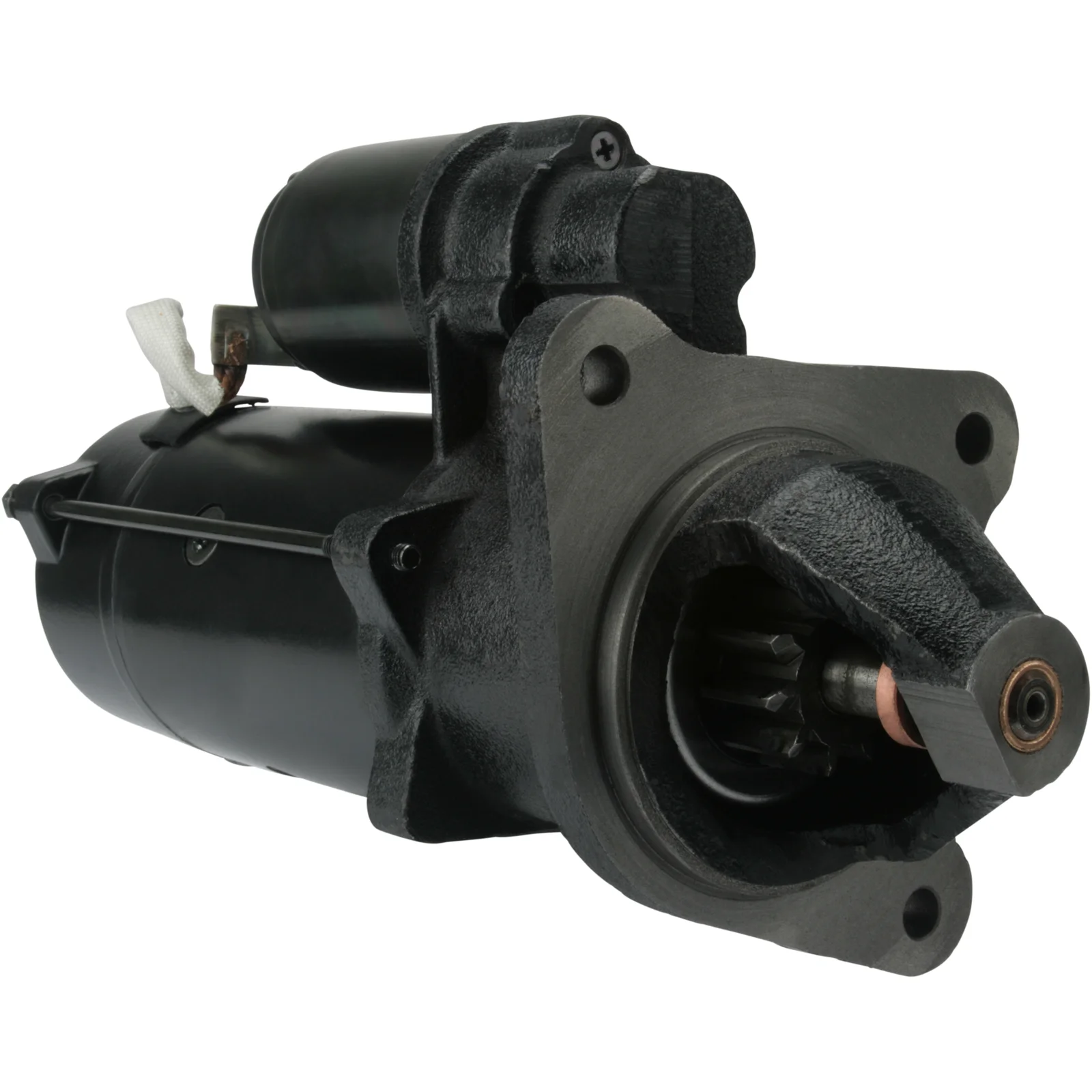

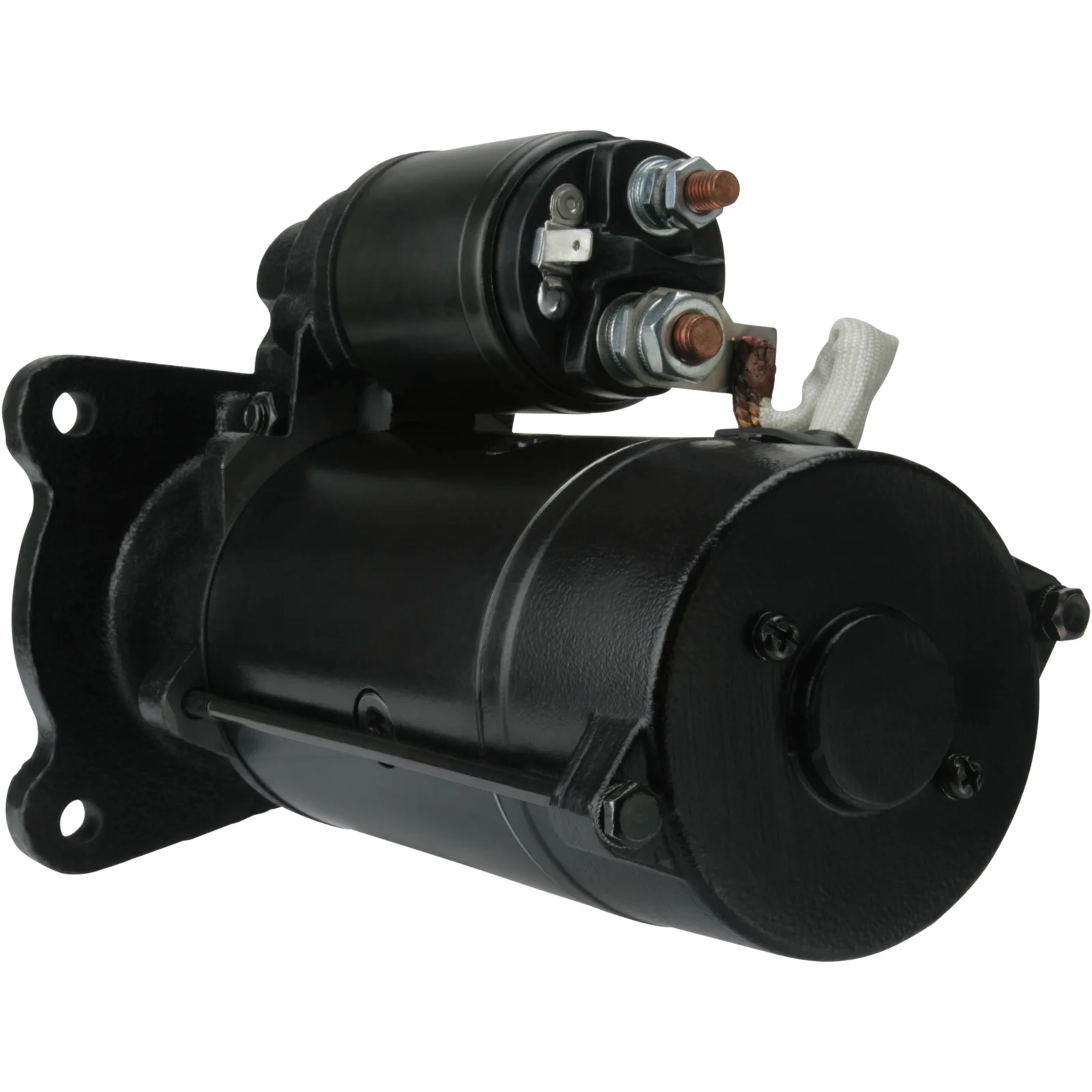

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115391

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.2
Mount. flange: 92.00
Drive distance: 20.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 260.00
Distance / front: 67.00
Number / teeth: 10
B+: M8
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance 2: 146.00
Distance 3: 103.00
Distance mm: 103.00
Rotation: CW
Total length mm: 327.00
Prod. info: BN
Number / mount. holes: 3 (0)

Files

  • Description
    Voltage: 12
    kW: 4.2
    Mount. flange: 92.00
    Drive distance: 20.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 260.00
    Distance / front: 67.00
    Number / teeth: 10
    B+: M8
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 146.00
    Distance 3: 103.00
    Distance mm: 103.00
    Rotation: CW
    Total length mm: 327.00
    Prod. info: BN
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles
