HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115393

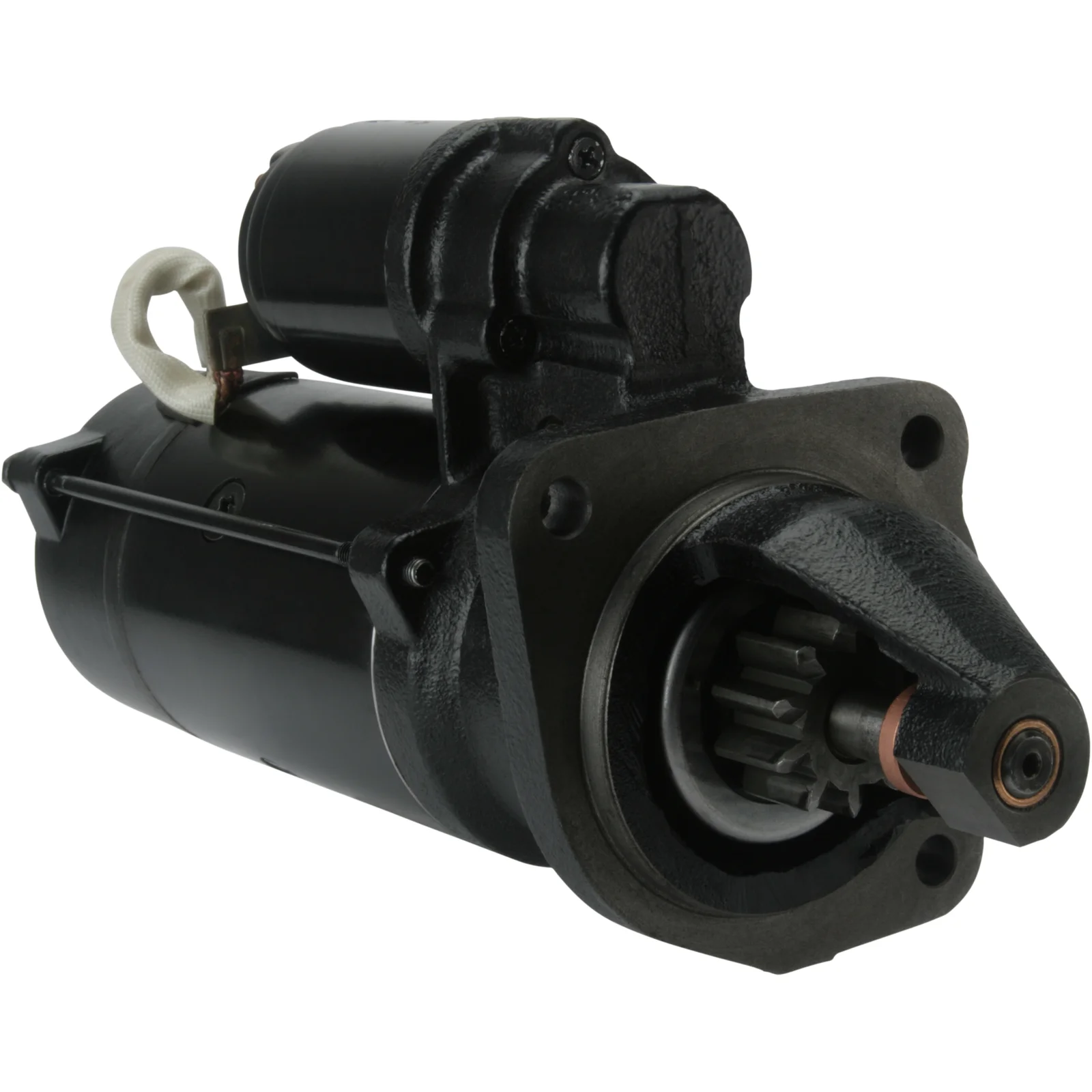

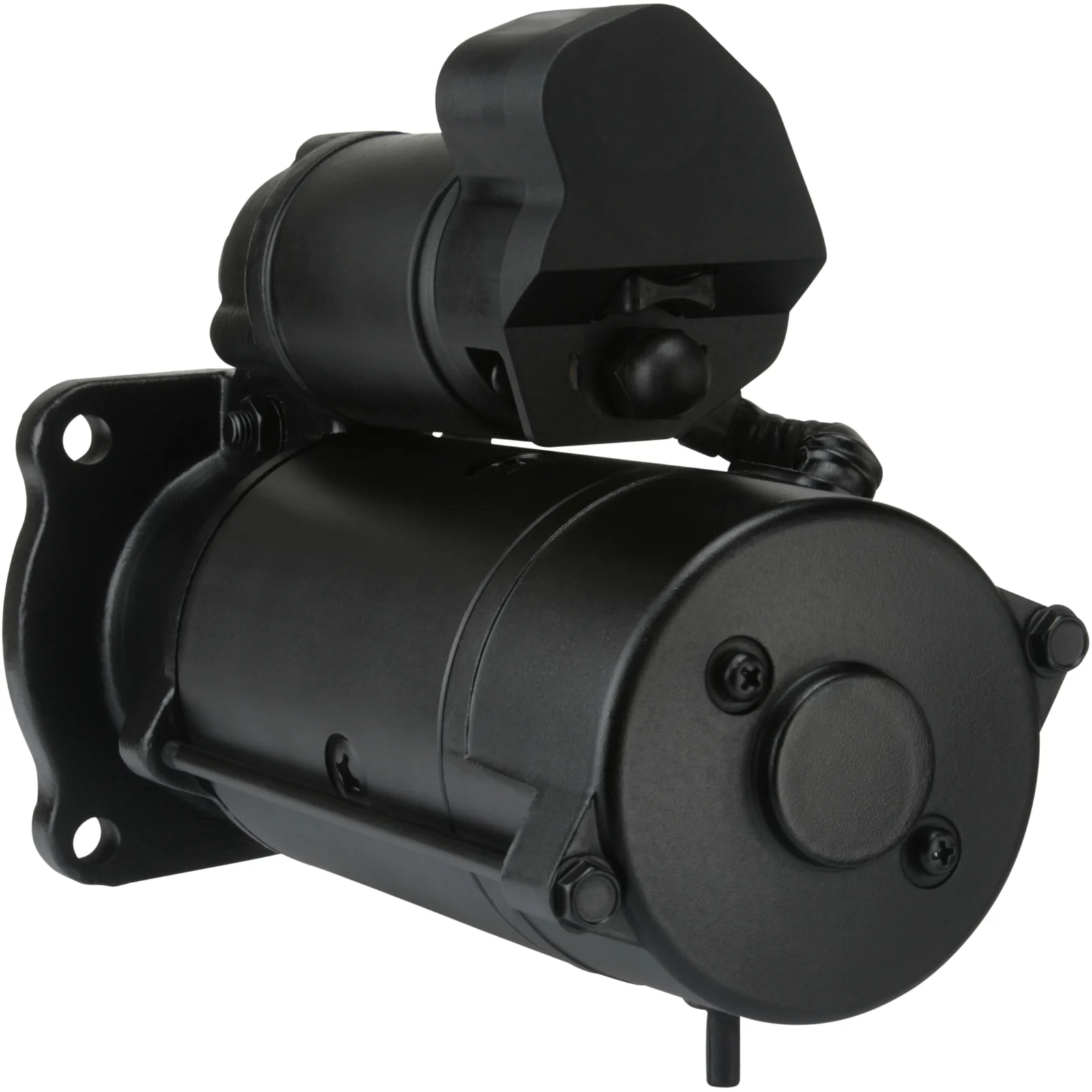

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.0
Mounting flange: 89.00
Drive distance: 29.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 245.00
Distance / front: 78.00
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M4-6.30
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 325.00
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4148, F032115393, 11.131.575, 714-29300R, 1160, 1447773R1

  • Normalised article numbler
    azf4148, cst21207, f032115393, ms295, s9199letrika, s9199s, 1160, 1447773r1, 11131575, 71429300r
  • Description
    Voltage: 12
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 29.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 245.00
    Distance / front: 78.00
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M4-6.30
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 325.00
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4148, F032115393, 11.131.575, 714-29300R, 1160, 1447773R1

    • Normalised article numbler
      azf4148, cst21207, f032115393, ms295, s9199letrika, s9199s, 1160, 1447773r1, 11131575, 71429300r
