HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115394

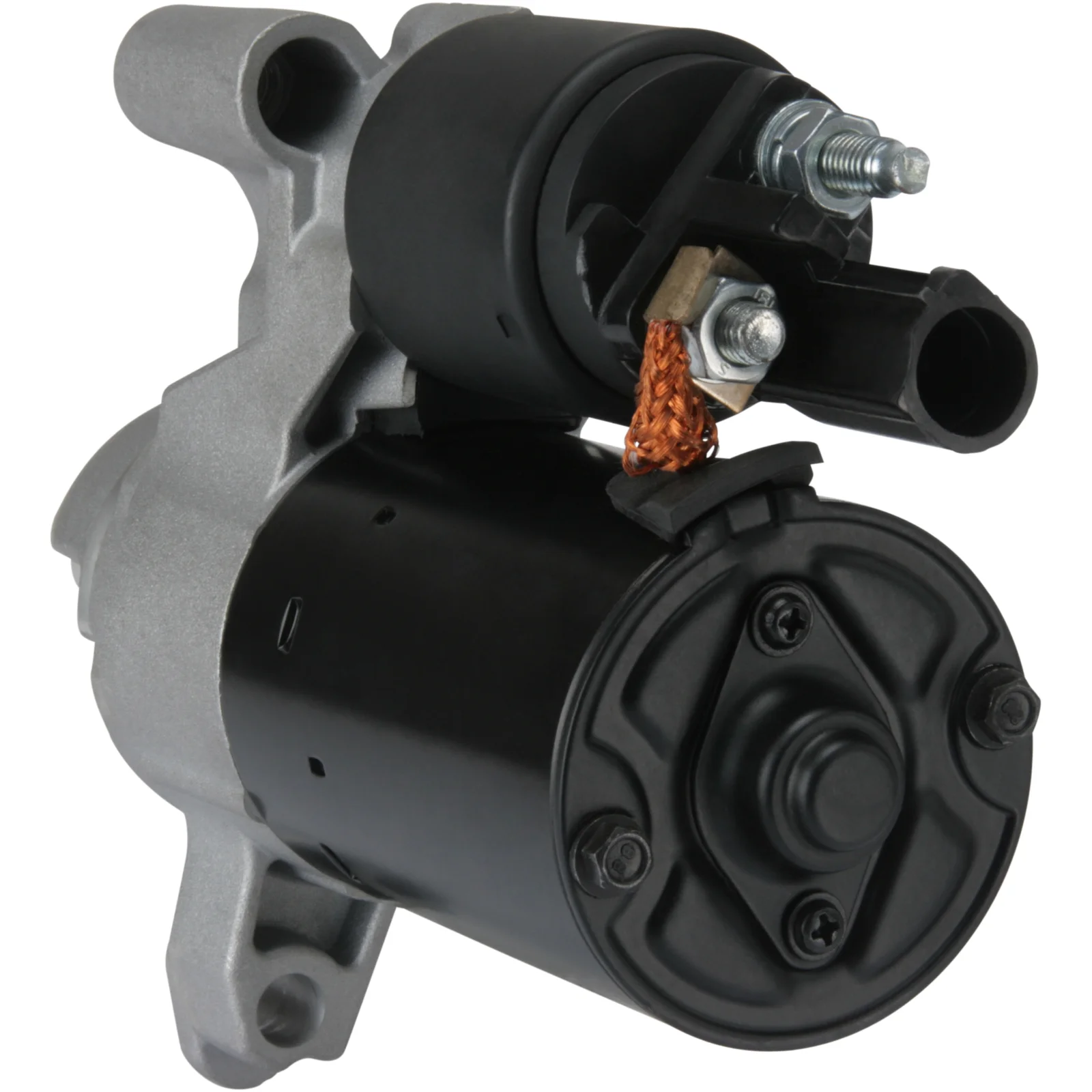

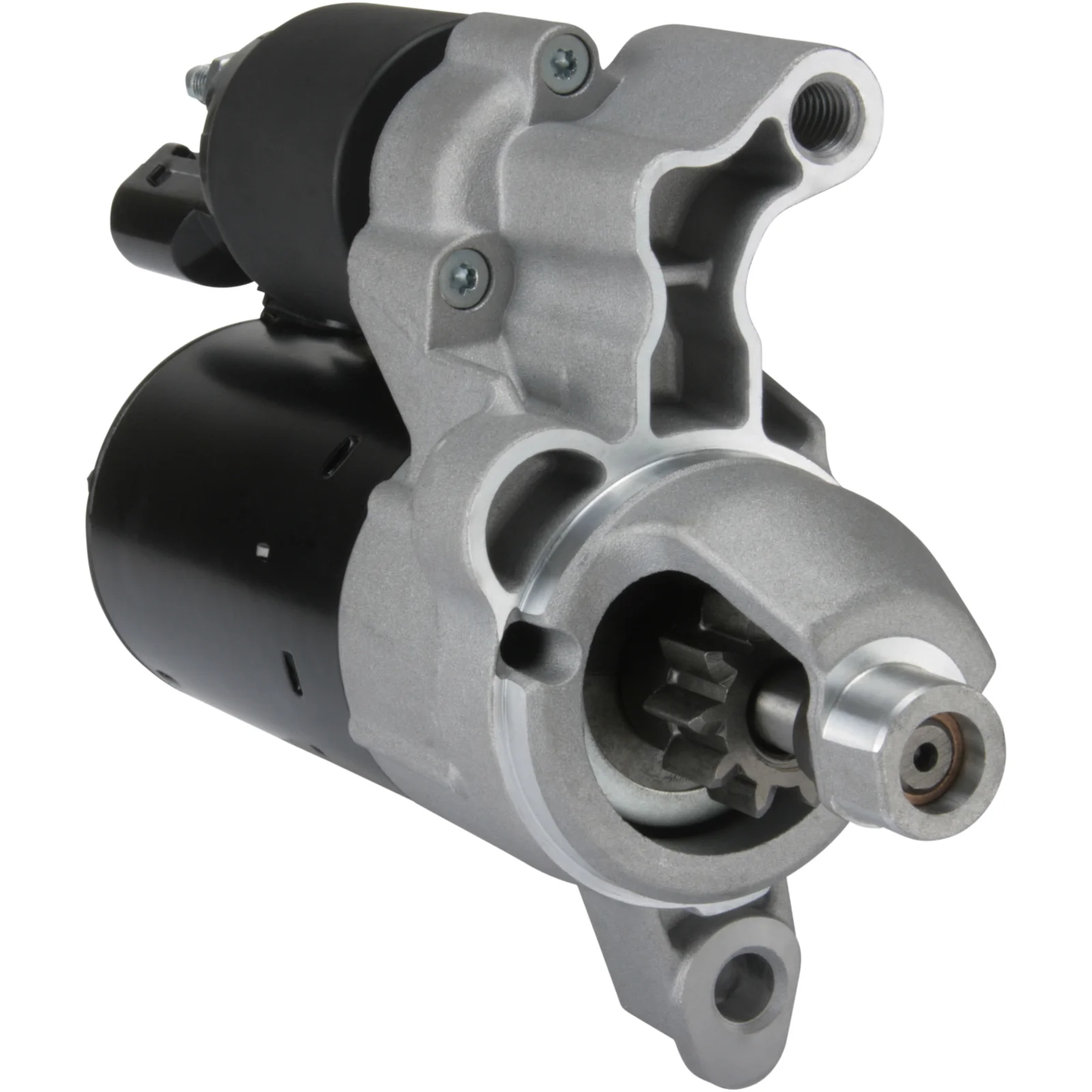

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 10, Rotation: CW

Description

HC-Cargo Starter motor 12V - 1.1kW, 10k

Voltage: 12
kW: 1.1
Mounting flange: 66.00
Drive distance: 24.00
Mounting hole 2 mm: 11.00
Distance / back: 148.00
Distance / front: 60.00
Number / teeth: 10
B+: M8
Position / 50: 20
Terminal 50: Plug
Gear type: GR
Distance in mm: 133.50
Rotation: CW
Total length in mm: 218.50
Prod. info: BN
Number / mounting holes: 2 (1)

Files

  • OEM
    CS1437, cs1437, F032115394, 0001 107 450, 0001 107 451, 0001 107 508, 06D 911 021B, 06D 911 021D, 06D 911 023B, 06d911021b, 06D911021BX, 06D911021D, 06d911023b, 06H 911 021A, 06h911021a, 06H911021AX, 06H911021B, 06H911021E, 06H911021EX, 1986S00011, 1986S00684, 1986S00689, 115394, 0001107450, 0001107451, 0001107508, 0001107509, 0001107534, 0001107535

  • Normalised article numbler
    cs1437, cst10438, drs0178, drs0188, f032115394, f042200175, lrs02443, ms684, s0319, s0319pr, s0599, 06d911021b, 06d911021bx, 06d911021d, 06d911023b, 06h911021a, 06h911021ax, 06h911021b, 06h911021e, 06h911021ex, 8ea011611311, 8ea738258951, 1986s00011, 1986s00684, 1986s00689, 3054, 33292, 33292n, 33292r, 106922, 115394, 220604, 220604a, 254115, 442188, 442275, 442505, 460275, 0001107450, 0001107451, 0001107508, 0001107509, 0001107534, 0001107535, 8080307, 11090181, 42024010, 311258102, 0986024010, 0986024017
  • Description
    HC-Cargo Starter motor 12V - 1.1kW, 10k

    Voltage: 12
    kW: 1.1
    Mounting flange: 66.00
    Drive distance: 24.00
    Mounting hole 2 mm: 11.00
    Distance / back: 148.00
    Distance / front: 60.00
    Number / teeth: 10
    B+: M8
    Position / 50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance in mm: 133.50
    Rotation: CW
    Total length in mm: 218.50
    Prod. info: BN
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      CS1437, cs1437, F032115394, 0001 107 450, 0001 107 451, 0001 107 508, 06D 911 021B, 06D 911 021D, 06D 911 023B, 06d911021b, 06D911021BX, 06D911021D, 06d911023b, 06H 911 021A, 06h911021a, 06H911021AX, 06H911021B, 06H911021E, 06H911021EX, 1986S00011, 1986S00684, 1986S00689, 115394, 0001107450, 0001107451, 0001107508, 0001107509, 0001107534, 0001107535

    • Normalised article numbler
      cs1437, cst10438, drs0178, drs0188, f032115394, f042200175, lrs02443, ms684, s0319, s0319pr, s0599, 06d911021b, 06d911021bx, 06d911021d, 06d911023b, 06h911021a, 06h911021ax, 06h911021b, 06h911021e, 06h911021ex, 8ea011611311, 8ea738258951, 1986s00011, 1986s00684, 1986s00689, 3054, 33292, 33292n, 33292r, 106922, 115394, 220604, 220604a, 254115, 442188, 442275, 442505, 460275, 0001107450, 0001107451, 0001107508, 0001107509, 0001107534, 0001107535, 8080307, 11090181, 42024010, 311258102, 0986024010, 0986024017
