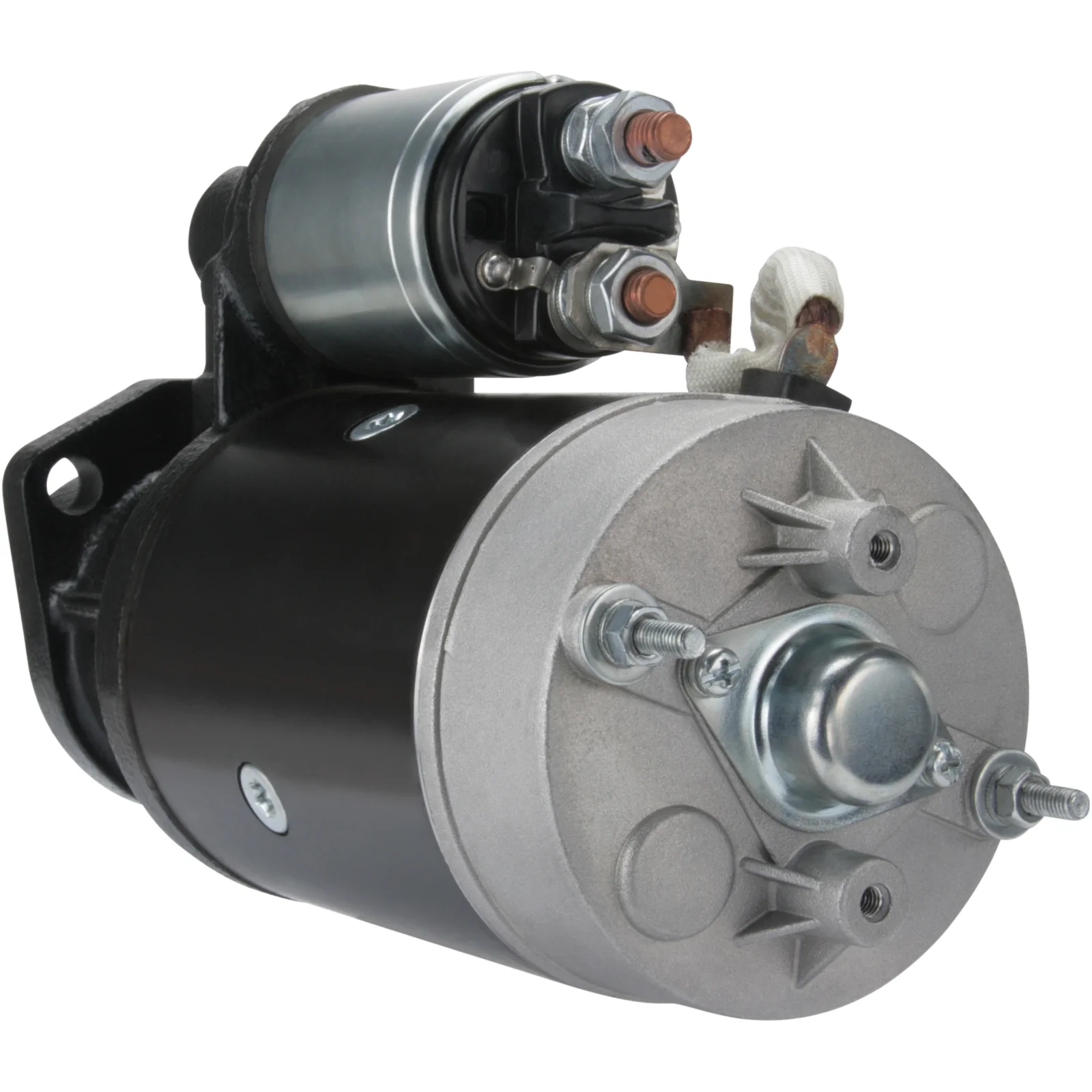

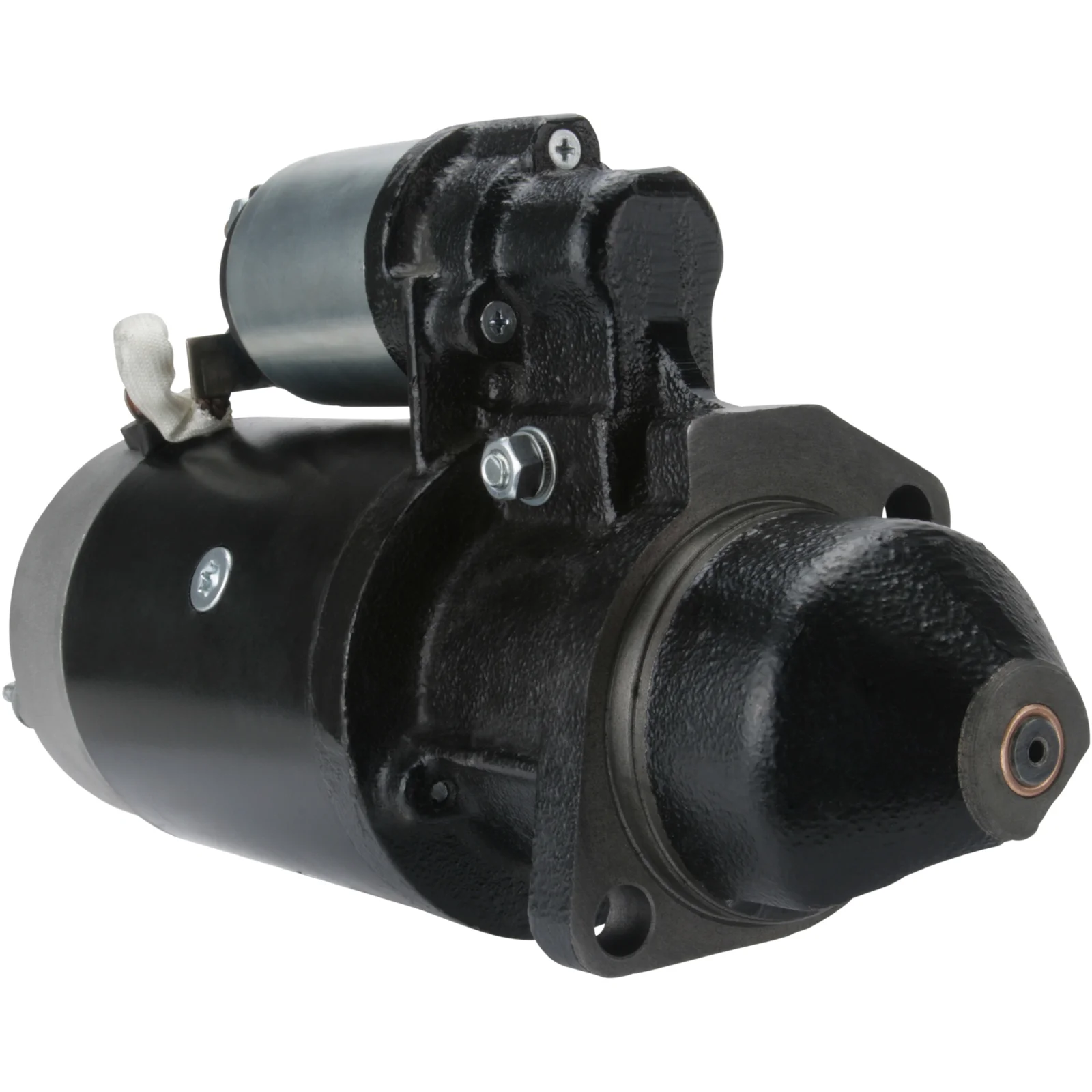

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115423

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CCW

Description

Voltage: 12
kW: 3.0
Mount. flange: 82.50
Drive distance: 21.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Distance / back: 255.00
Distance / front: 67.50
Number / teeth: 9
B+: M10
Thread length mm: 10.00
Position / 50: 15
Terminal 50: M4
Gear type: DD
Distance mm: 105.00
Rotation: CCW
Total length mm: 330.00
Prod. info: BN
Number / mount. holes: 2 (0)

Files

  • OEM
    azj0102, azj3138, azj3552, F032115423, mt71hb, mt74a, mtl12-10, 11.130.019, 11.130.248, 56308, 0001362058, 0001366003, 0001366029, 63217173, 63217180, 63217433, 66510522A, 1142510552

  • Normalised article numbler
    azj0102, azj3138, azj3552, cst10345, cst21101, drs3306, drs3329, f032115423, is0248, lrs00951, lrs00957, ms392, mt71hb, mt74a, mtl1210, s0560, s0563, 8598, 8755, 33463, 33591, 33807, 33894, 56308, 251455, 254092, 0001362058, 0001366003, 0001366029, 11130019, 11130248, 63217173, 63217180, 63217433, 66510522a, 681006092, 690534092, 943217112, 943217180, 1142510552
  • Description
    Voltage: 12
    kW: 3.0
    Mount. flange: 82.50
    Drive distance: 21.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Distance / back: 255.00
    Distance / front: 67.50
    Number / teeth: 9
    B+: M10
    Thread length mm: 10.00
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Distance mm: 105.00
    Rotation: CCW
    Total length mm: 330.00
    Prod. info: BN
    Number / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj0102, azj3138, azj3552, F032115423, mt71hb, mt74a, mtl12-10, 11.130.019, 11.130.248, 56308, 0001362058, 0001366003, 0001366029, 63217173, 63217180, 63217433, 66510522A, 1142510552

    • Normalised article numbler
      azj0102, azj3138, azj3552, cst10345, cst21101, drs3306, drs3329, f032115423, is0248, lrs00951, lrs00957, ms392, mt71hb, mt74a, mtl1210, s0560, s0563, 8598, 8755, 33463, 33591, 33807, 33894, 56308, 251455, 254092, 0001362058, 0001366003, 0001366029, 11130019, 11130248, 63217173, 63217180, 63217433, 66510522a, 681006092, 690534092, 943217112, 943217180, 1142510552
