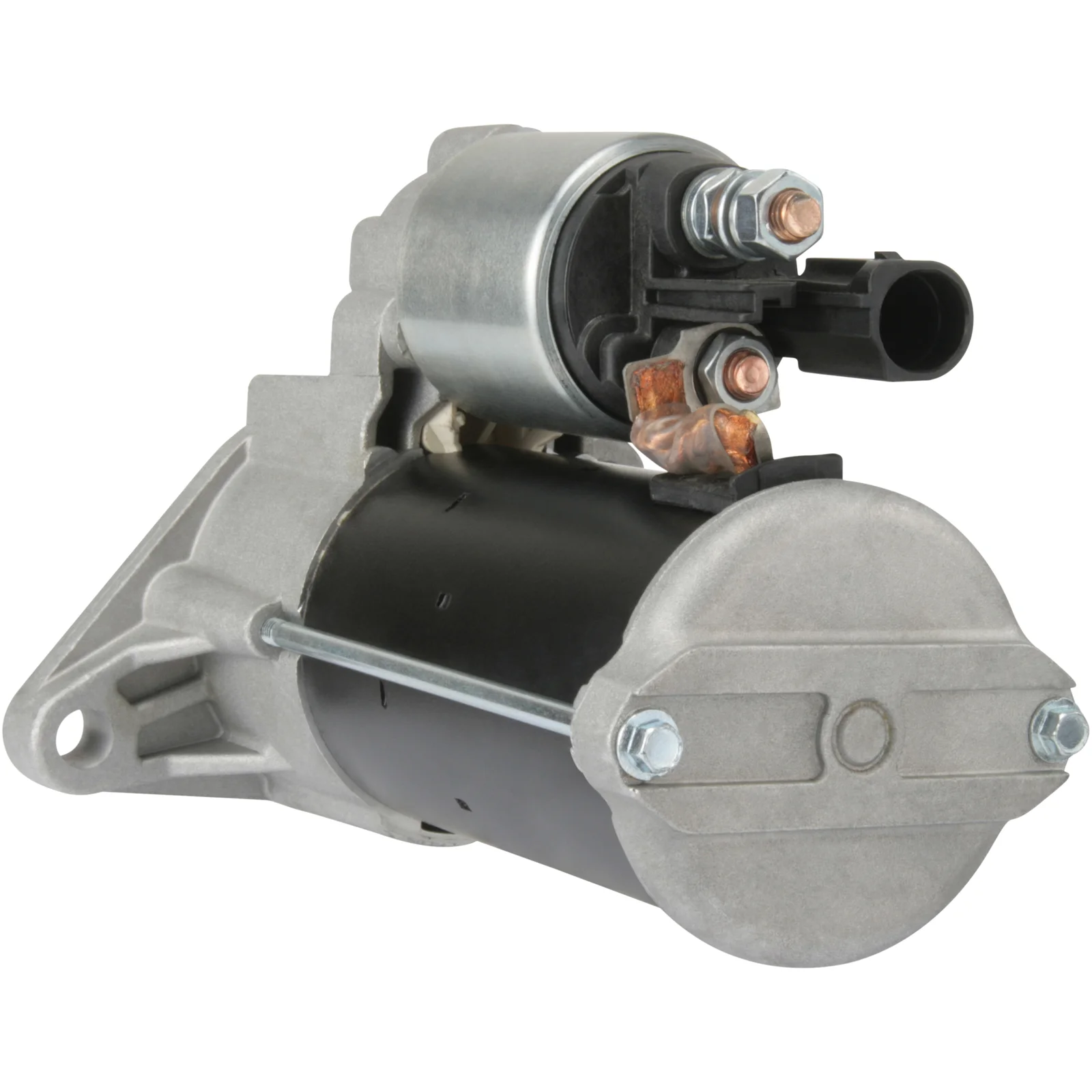

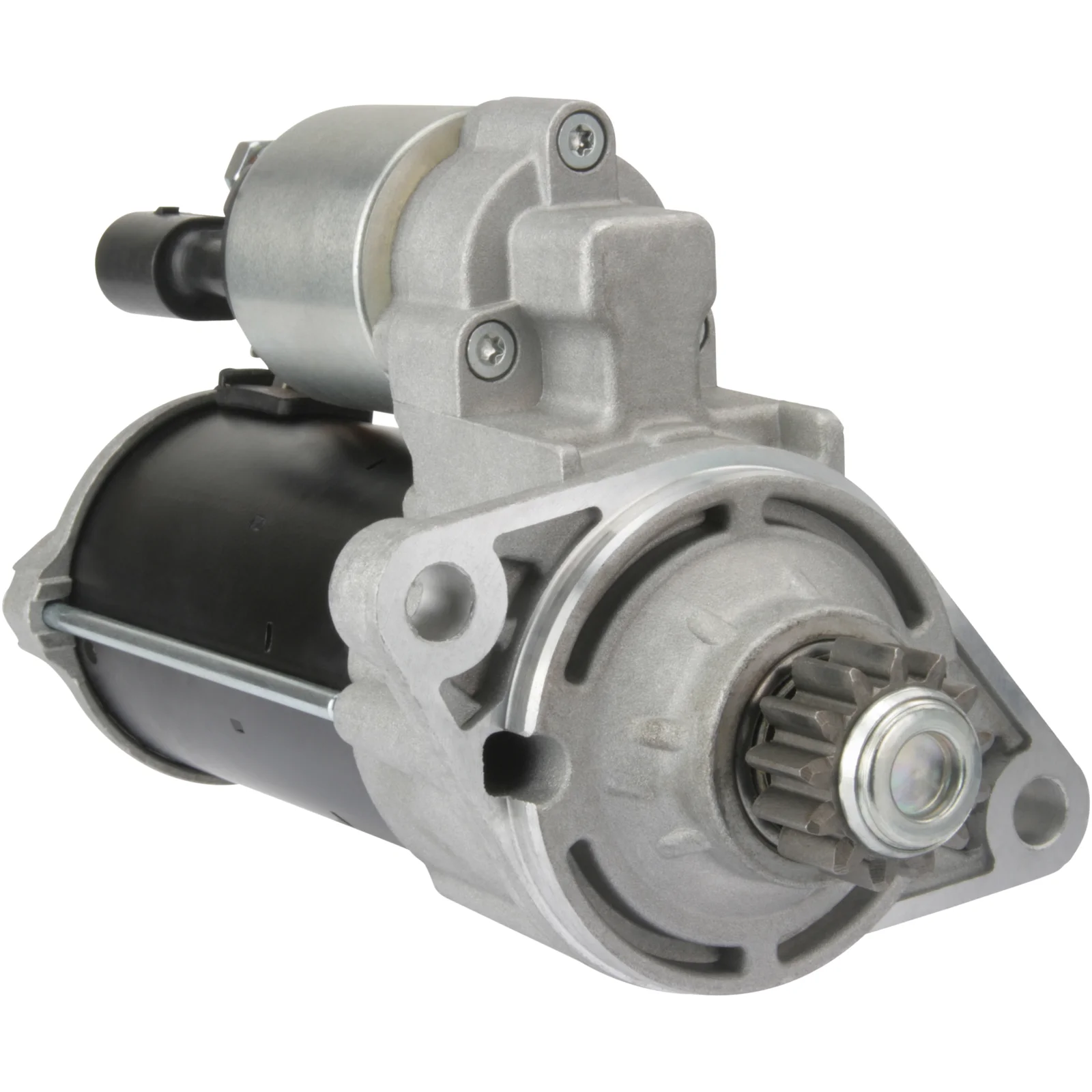

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115561

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 13, Rotation: CCW

Description

HC-Cargo Starter motor 12V - 1.7kW, 13

Voltage: 12
kW: 1.7
Mounting flange: 79.00
Drive distance: 43.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 176.50
Distance / front: 47.50
Number / teeth: 13
B+: M8
Terminal 50: Plug
Gear type: GR
Distance mm: 119.00
Rotation: CCW
Total length mm: 225.00
Starter type: Start/Stop
Product info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    CST10568, CST40481, DRS0832, DRS1097, DSN1464, F032115561, LRS04319, S0637(BOSCH), S0637PR, S0637S, S0638(BOSCH), S0638PR, S0638S, S0777S, S6343S, 0001 179 506, 0001 179 518, 0001 179 519, 0001 179 526, 0001 179 527, 0001 179 606, 0001 179 607, 02E 911 022H, 02E 911 024B, 02E 911 024M, 02E911022H, 02E911022HX, 02E911024B, 02E911024BX, 02E911024D, 02E911024M, 02E911024MX, 02E911024P, 25-5029, 25-5481, 300.922.132, 311.406.132, 1986 S00 886, 1986S00551, 1986S00886, 30235N-OE, 30236N, 31125N, 115561, 438000-0211, 438000-0212, 438524, 438606, 458969, 460234, 0001179506, 0001179507, 0001179508, 0001179509, 0001179518, 0001179519, 0001179526, 0001179527, 0001179606, 0001179607, 11090260, 42026150, 0986026150

  • Normalised article numbler
    cst10568, cst40481, drs0832, drs1097, dsn1464, f032115561, lrs04319, s0637bosch, s0637pr, s0637s, s0638bosch, s0638pr, s0638s, s0777s, s6343s, 02e911022h, 02e911022hx, 02e911024b, 02e911024bx, 02e911024d, 02e911024m, 02e911024mx, 02e911024p, 1986s00551, 1986s00886, 30235noe, 30236n, 31125n, 115561, 255029, 255481, 438524, 438606, 458969, 460234, 0001179506, 0001179507, 0001179508, 0001179509, 0001179518, 0001179519, 0001179526, 0001179527, 0001179606, 0001179607, 11090260, 42026150, 300922132, 311406132, 0986026150, 4380000211, 4380000212
  • Description
    HC-Cargo Starter motor 12V - 1.7kW, 13

    Voltage: 12
    kW: 1.7
    Mounting flange: 79.00
    Drive distance: 43.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 176.50
    Distance / front: 47.50
    Number / teeth: 13
    B+: M8
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 119.00
    Rotation: CCW
    Total length mm: 225.00
    Starter type: Start/Stop
    Product info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      CST10568, CST40481, DRS0832, DRS1097, DSN1464, F032115561, LRS04319, S0637(BOSCH), S0637PR, S0637S, S0638(BOSCH), S0638PR, S0638S, S0777S, S6343S, 0001 179 506, 0001 179 518, 0001 179 519, 0001 179 526, 0001 179 527, 0001 179 606, 0001 179 607, 02E 911 022H, 02E 911 024B, 02E 911 024M, 02E911022H, 02E911022HX, 02E911024B, 02E911024BX, 02E911024D, 02E911024M, 02E911024MX, 02E911024P, 25-5029, 25-5481, 300.922.132, 311.406.132, 1986 S00 886, 1986S00551, 1986S00886, 30235N-OE, 30236N, 31125N, 115561, 438000-0211, 438000-0212, 438524, 438606, 458969, 460234, 0001179506, 0001179507, 0001179508, 0001179509, 0001179518, 0001179519, 0001179526, 0001179527, 0001179606, 0001179607, 11090260, 42026150, 0986026150

    • Normalised article numbler
      cst10568, cst40481, drs0832, drs1097, dsn1464, f032115561, lrs04319, s0637bosch, s0637pr, s0637s, s0638bosch, s0638pr, s0638s, s0777s, s6343s, 02e911022h, 02e911022hx, 02e911024b, 02e911024bx, 02e911024d, 02e911024m, 02e911024mx, 02e911024p, 1986s00551, 1986s00886, 30235noe, 30236n, 31125n, 115561, 255029, 255481, 438524, 438606, 458969, 460234, 0001179506, 0001179507, 0001179508, 0001179509, 0001179518, 0001179519, 0001179526, 0001179527, 0001179606, 0001179607, 11090260, 42026150, 300922132, 311406132, 0986026150, 4380000211, 4380000212
