HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115567

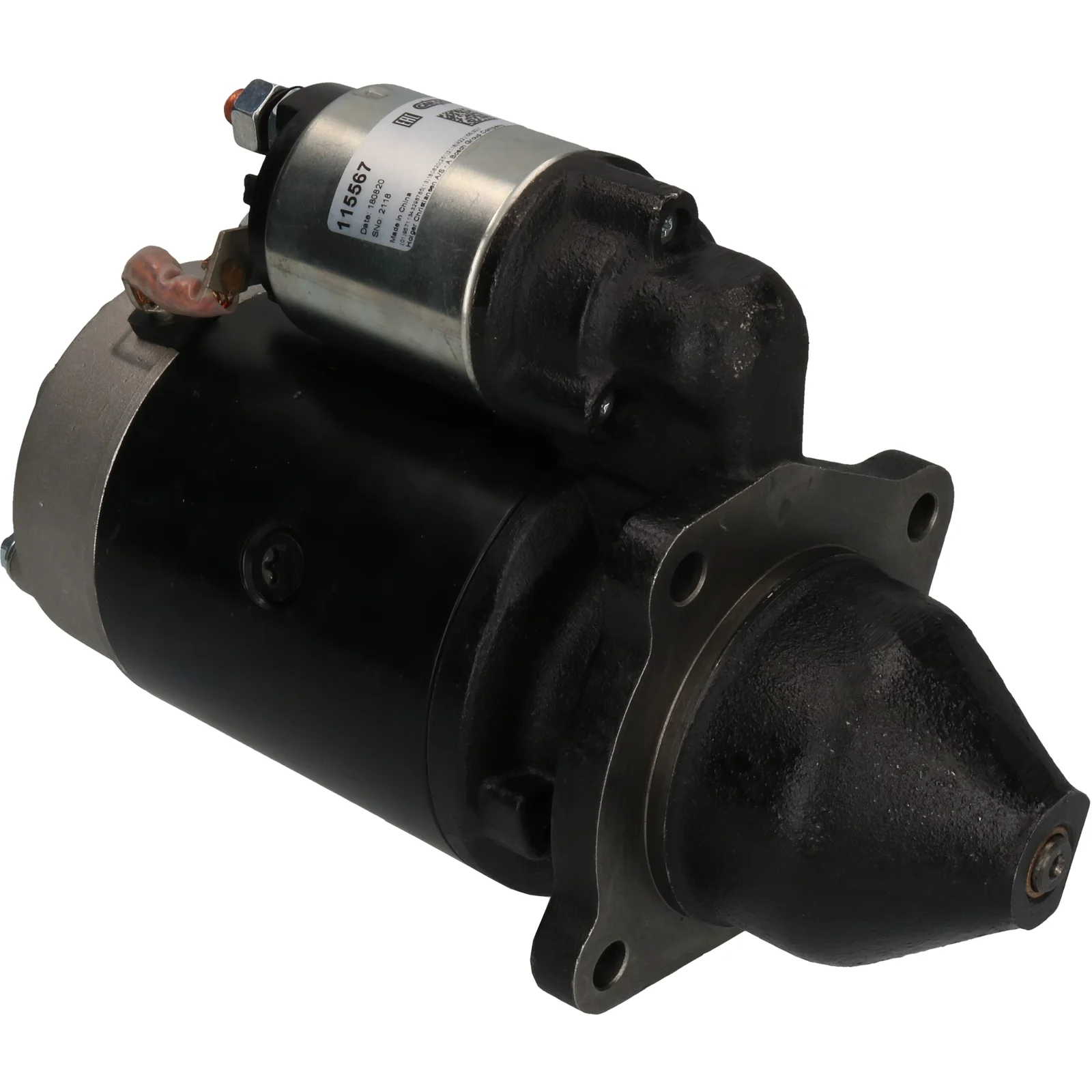

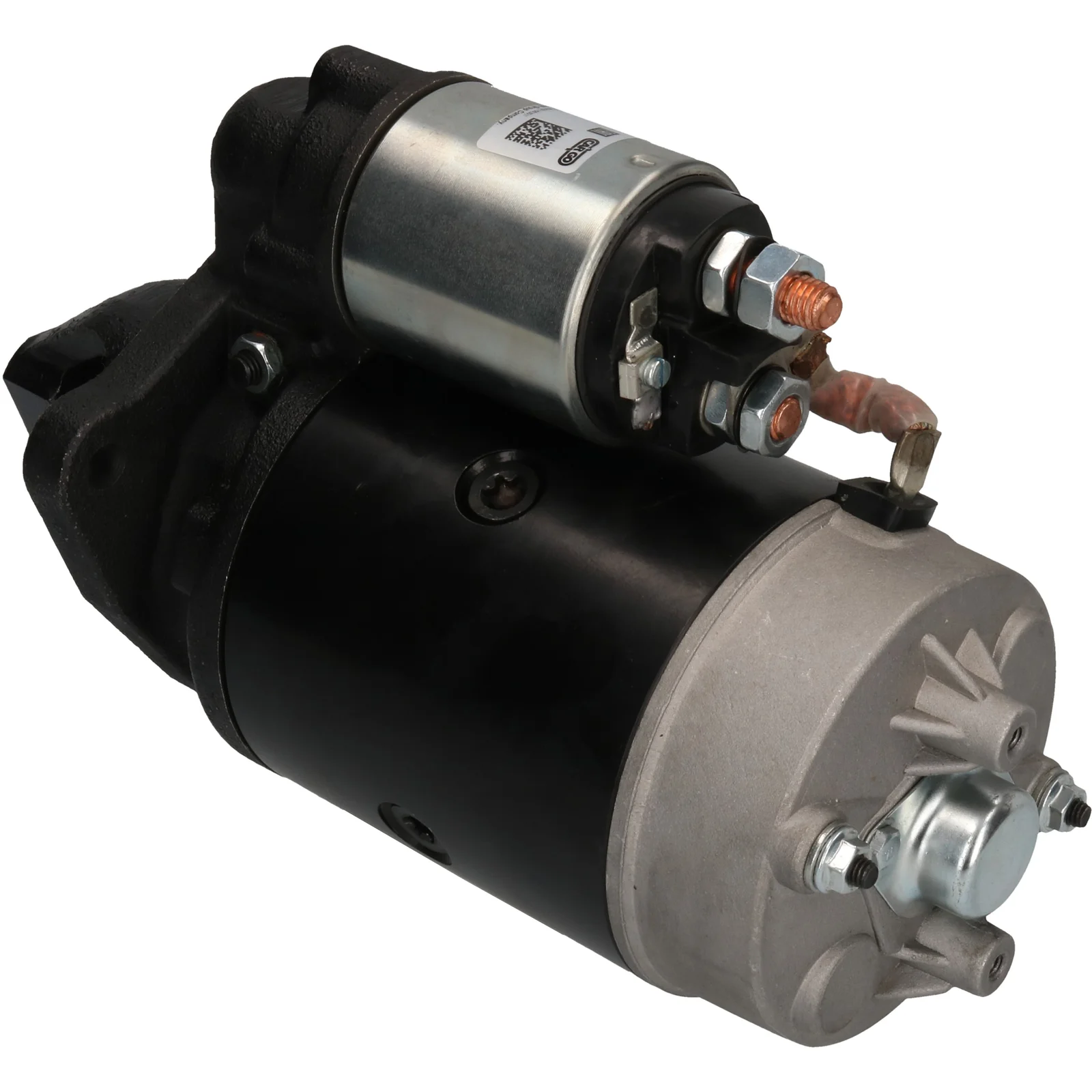

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.4, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.4
Mounting flange: 89.00
Drive distance: 30.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 220.00
Distance / front: 74.50
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance / 2: 90.00
Distance / 3: 90.00
Distance in mm: 127.00
Rotation: CW
Total length in mm: 294.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115567, 77200-0082, 0001362100, 0001362330

  • Normalised article numbler
    cst10232, drs0394, f032115567, lrs01682, s0808s, 9566, 30072, 253228, 0001362100, 0001362330, 063523621, 160540103, 627034102, 772000082, 063523621000
  • Description
    Voltage: 12
    kW: 2.4
    Mounting flange: 89.00
    Drive distance: 30.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 220.00
    Distance / front: 74.50
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance / 2: 90.00
    Distance / 3: 90.00
    Distance in mm: 127.00
    Rotation: CW
    Total length in mm: 294.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115567, 77200-0082, 0001362100, 0001362330

    • Normalised article numbler
      cst10232, drs0394, f032115567, lrs01682, s0808s, 9566, 30072, 253228, 0001362100, 0001362330, 063523621, 160540103, 627034102, 772000082, 063523621000
