HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115599

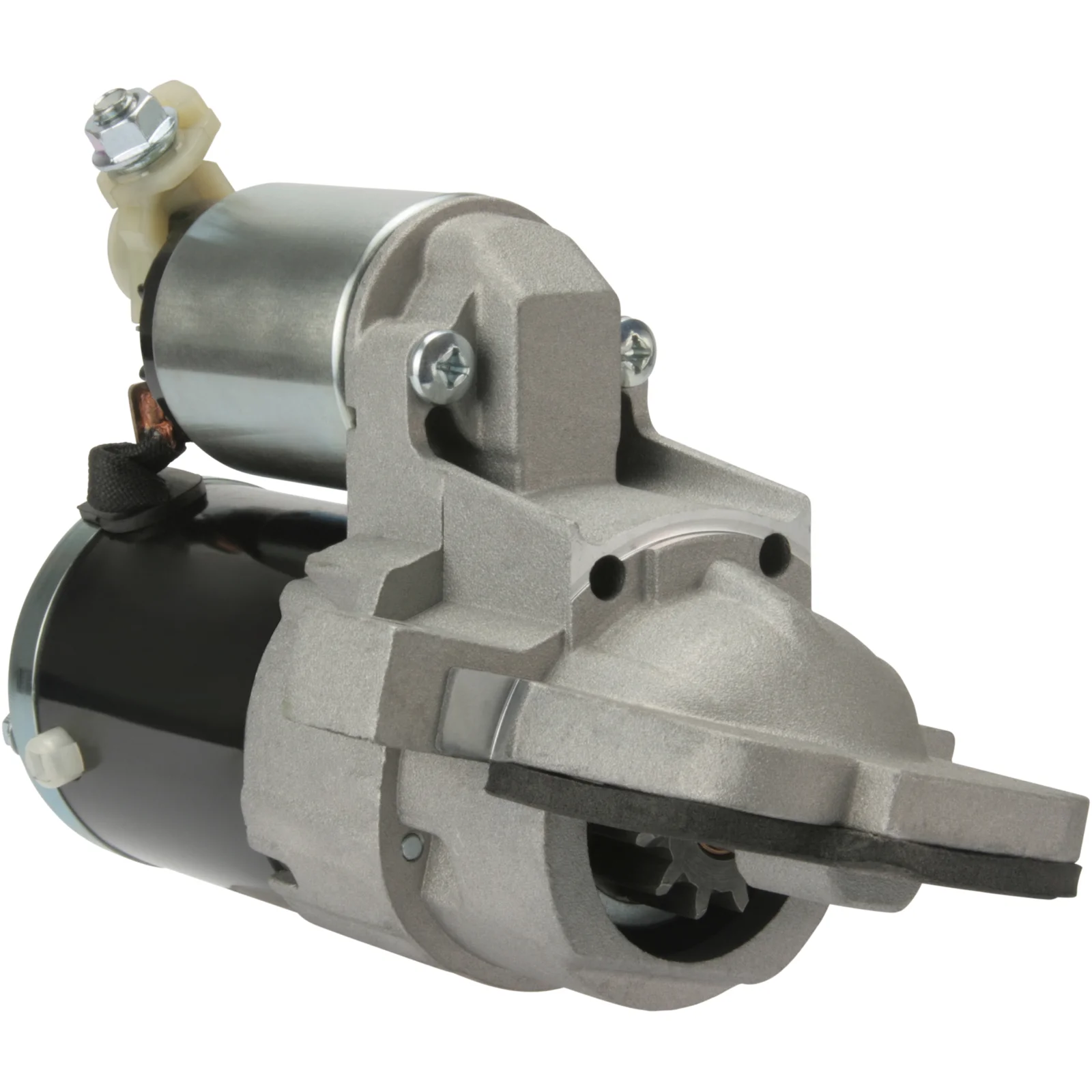

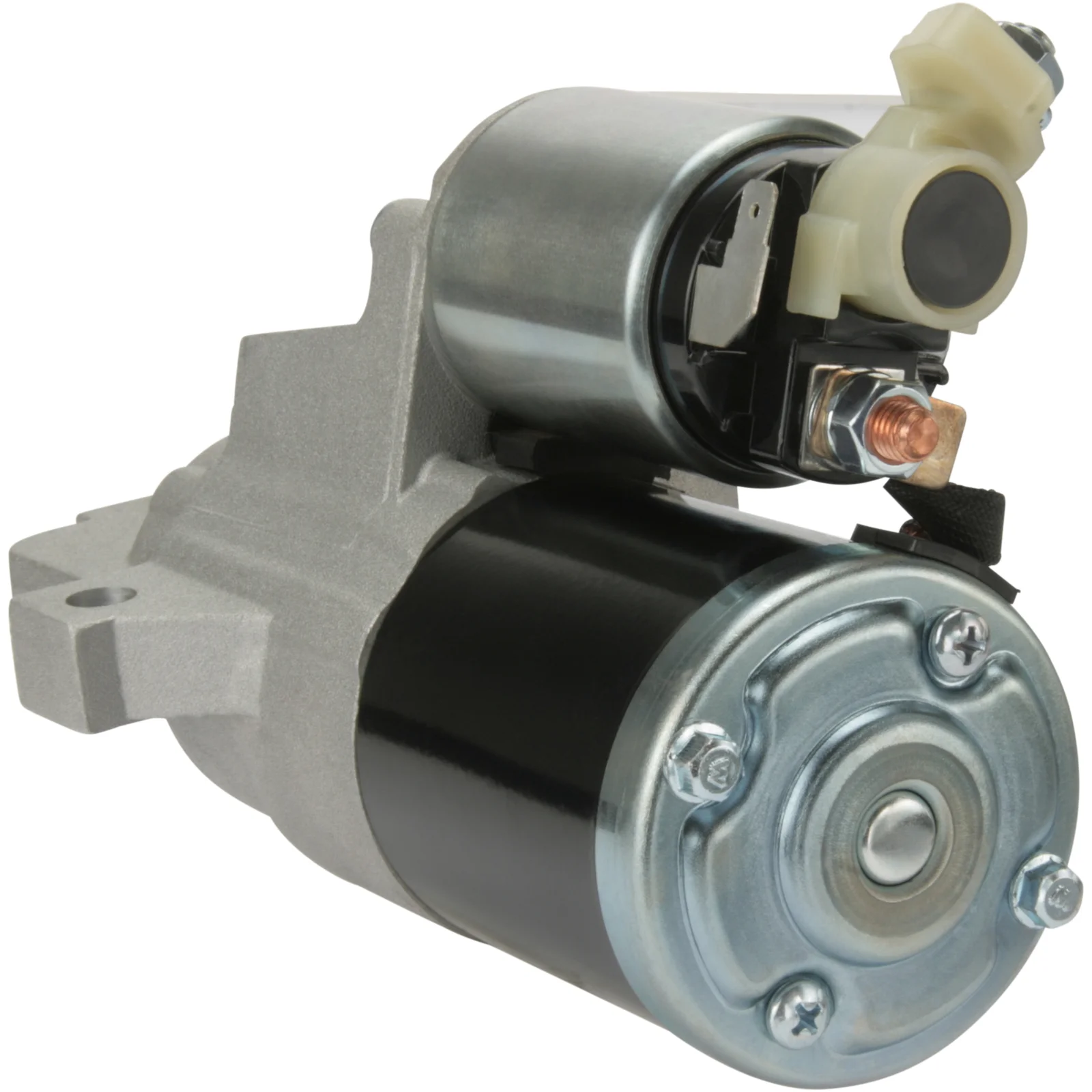

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.4
Drive distance: 22.00
Mounting hole 2 mm: 10.70
Mounting hole 1 mm: 10.70
Distance/backup: 136.00
Distance/front: 74.00
Number/teeth: 11
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance mm: 97.50
Rotation: CW
Total length mm: 210.00
Prod. info: BN
Number/mounting holes: 2 (0)

Files

  • OEM
    cs1493, F032115599, LFG1-18-400, M000T36371, M0T36371

  • Normalised article numbler
    cs1493, cst35231, drs0408, f032115599, j5213053, lfg118400, lrs02286, m000t36371, m0t36371, 19042n, 19042r, 107321, 253457, 254781, 11040964, 140534112, 324057112, 0986024760
  • Description
    Voltage: 12
    kW: 1.4
    Drive distance: 22.00
    Mounting hole 2 mm: 10.70
    Mounting hole 1 mm: 10.70
    Distance/backup: 136.00
    Distance/front: 74.00
    Number/teeth: 11
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 97.50
    Rotation: CW
    Total length mm: 210.00
    Prod. info: BN
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1493, F032115599, LFG1-18-400, M000T36371, M0T36371

    • Normalised article numbler
      cs1493, cst35231, drs0408, f032115599, j5213053, lfg118400, lrs02286, m000t36371, m0t36371, 19042n, 19042r, 107321, 253457, 254781, 11040964, 140534112, 324057112, 0986024760
