HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115609

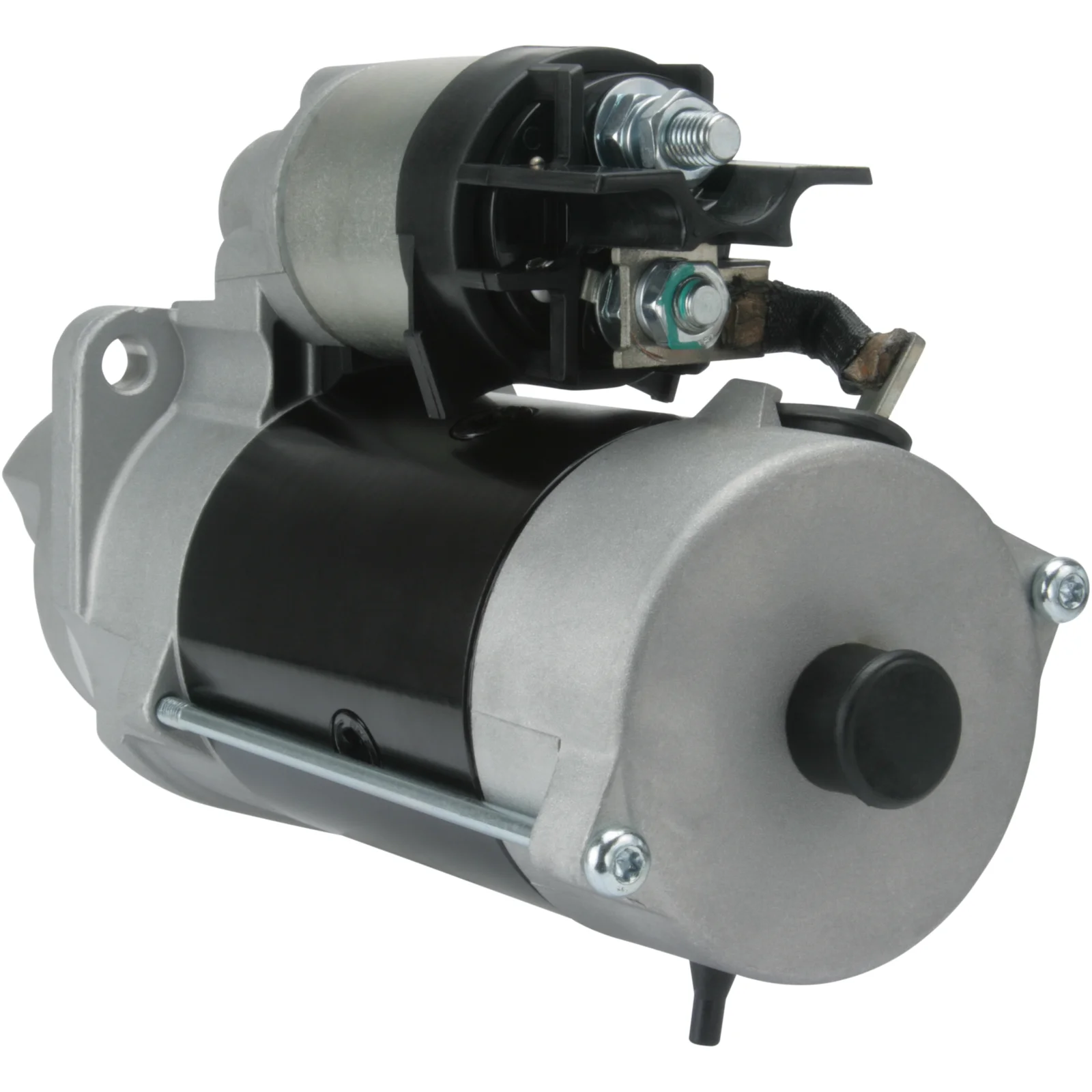

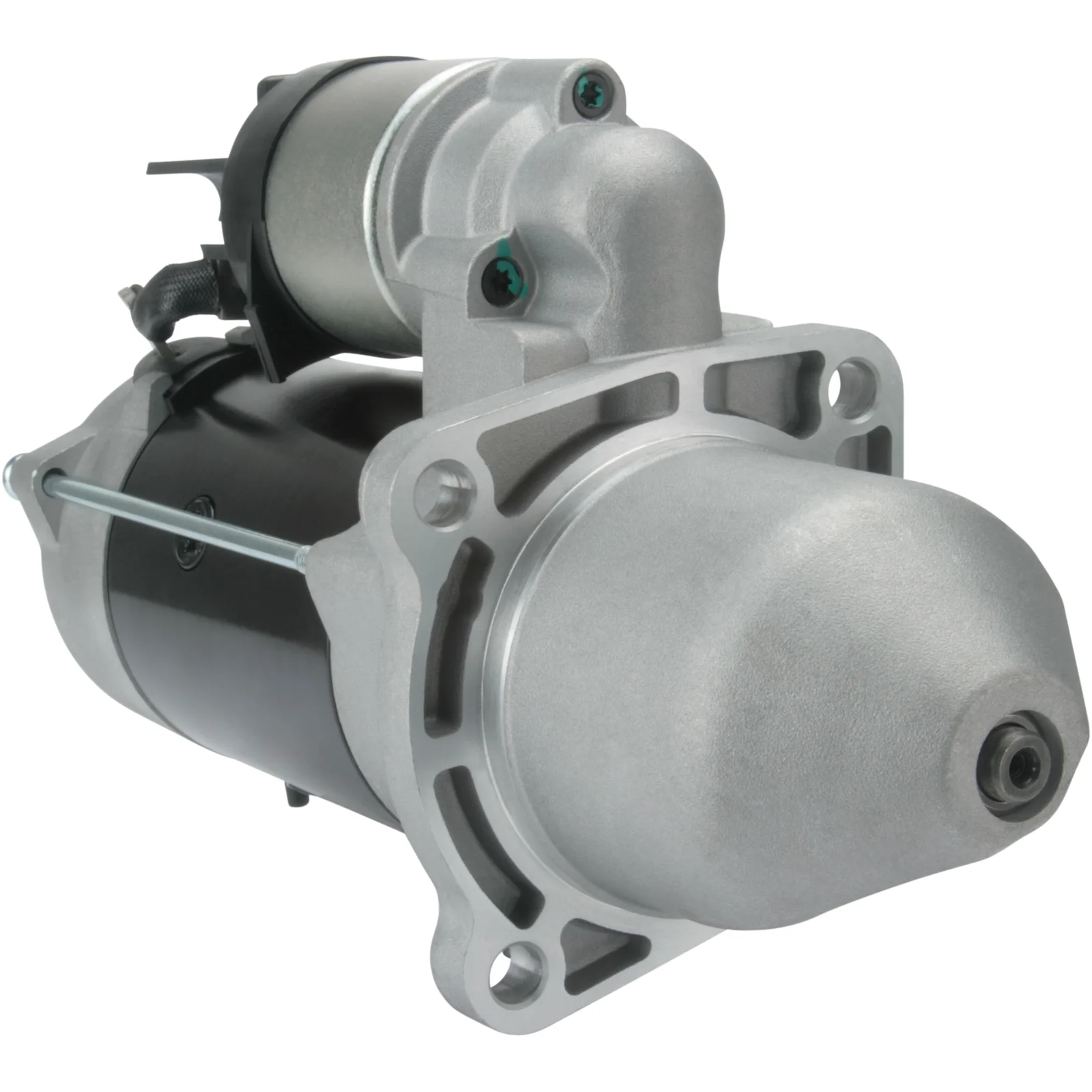

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 208.50
Distance / front: 95.00
Number / teeth: 11
B+: M10
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 315.50
Production info: BN
Info: Direct Drive Starter: HC-CARGO 112442.
Number / mounting holes: 3 (0)

Files

  • OEM
    cs1376, F032115609, RE503226, RE504807, 1986S10057, 0001230002, 87524725

  • Normalised article numbler
    cs1376, drs0067, f032115609, les0407, lrs01563, re503226, re504807, s0297, s9274letrika, 8ea015642251, 1986s10057, 18361n, 105469, 220915, 220915a, 0001230002, 11090152, 87524725, 0986023990, 0986023993
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 208.50
    Distance / front: 95.00
    Number / teeth: 11
    B+: M10
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 315.50
    Production info: BN
    Info: Direct Drive Starter: HC-CARGO 112442.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1376, F032115609, RE503226, RE504807, 1986S10057, 0001230002, 87524725

    • Normalised article numbler
      cs1376, drs0067, f032115609, les0407, lrs01563, re503226, re504807, s0297, s9274letrika, 8ea015642251, 1986s10057, 18361n, 105469, 220915, 220915a, 0001230002, 11090152, 87524725, 0986023990, 0986023993
