HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115681

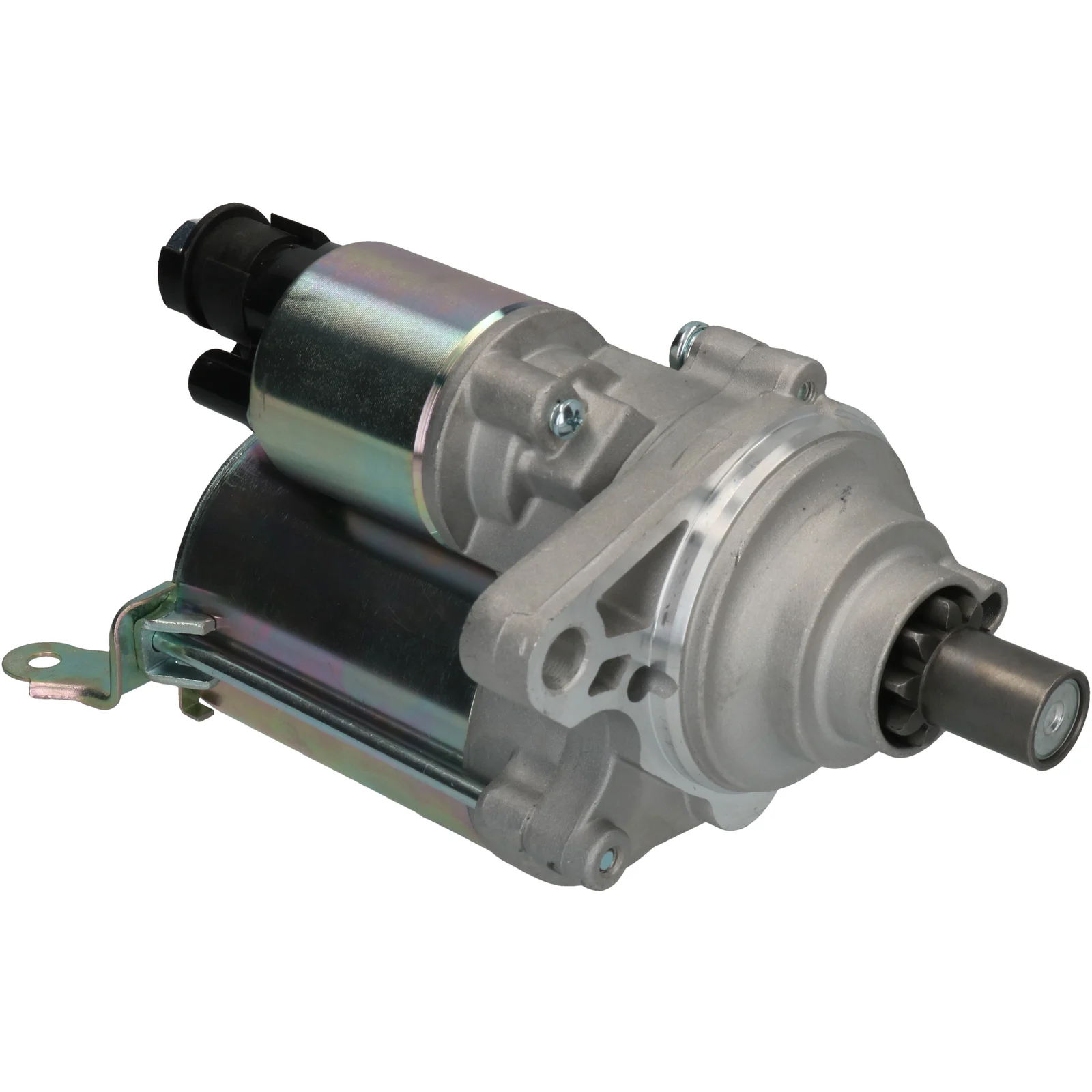

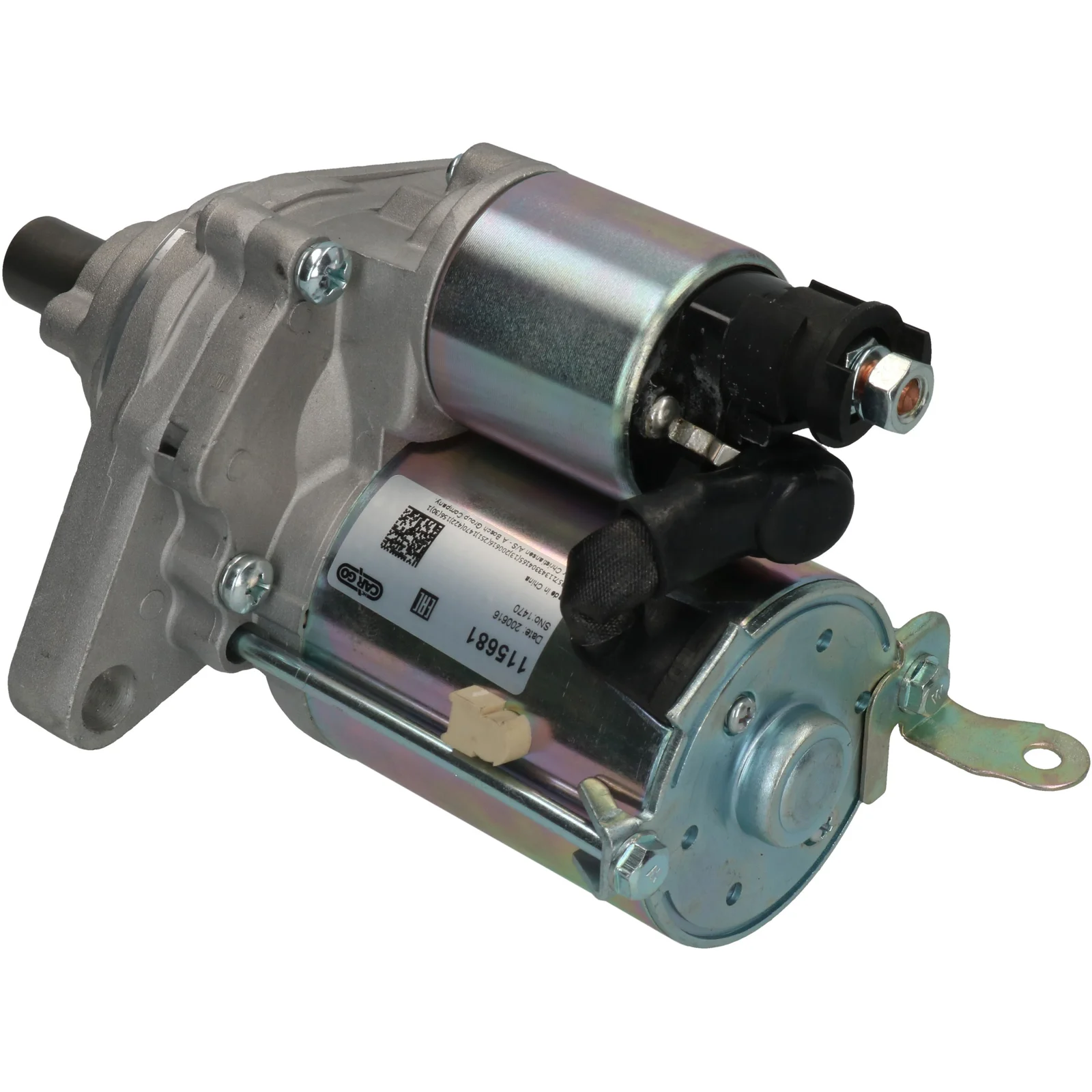

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 75.00
Drive distance: 40.00
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 13.50
Distance / back: 136.00
Distance / front: 64.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Mounting bracket: w/
Distance mm: 129.00
Rotation: CW
Total length mm: 240.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032115681, sm442-33, SM442-46, 31200-PSA-E01, 31200-RDB-A01, 31200-RJH-01, 31200-rjh-e01

  • Normalised article numbler
    cst33111, cst33112, drs0439, f032115681, lrs01734, s9304s, s9326s, sm44233, sm44246, 19016n, 31200psae01, 31200rdba01, 31200rjh01, 31200rjhe01, 32734, 32734r, 253291, 11040925, 120571092
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 75.00
    Drive distance: 40.00
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 13.50
    Distance / back: 136.00
    Distance / front: 64.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Mounting bracket: w/
    Distance mm: 129.00
    Rotation: CW
    Total length mm: 240.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115681, sm442-33, SM442-46, 31200-PSA-E01, 31200-RDB-A01, 31200-RJH-01, 31200-rjh-e01

    • Normalised article numbler
      cst33111, cst33112, drs0439, f032115681, lrs01734, s9304s, s9326s, sm44233, sm44246, 19016n, 31200psae01, 31200rdba01, 31200rjh01, 31200rjhe01, 32734, 32734r, 253291, 11040925, 120571092
