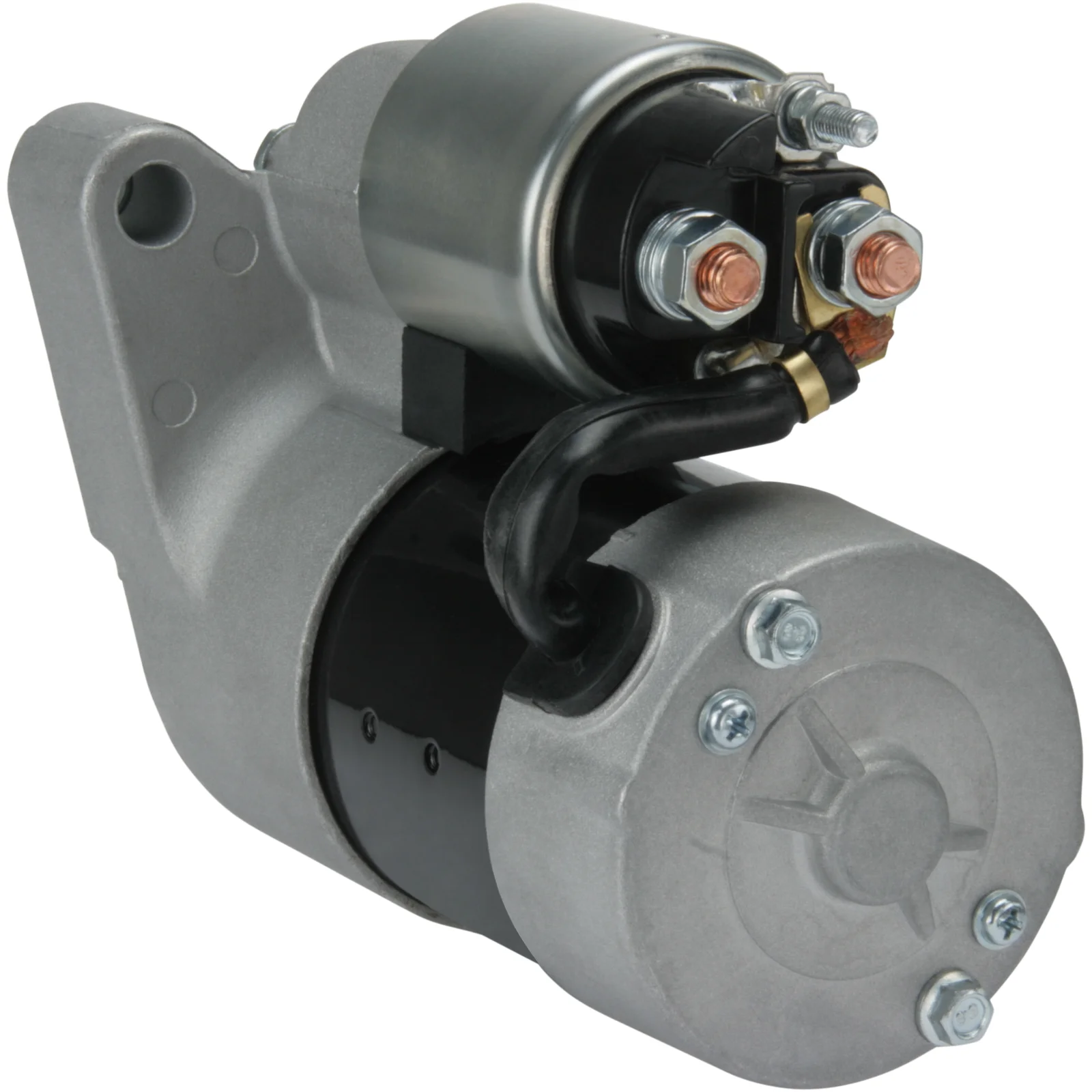

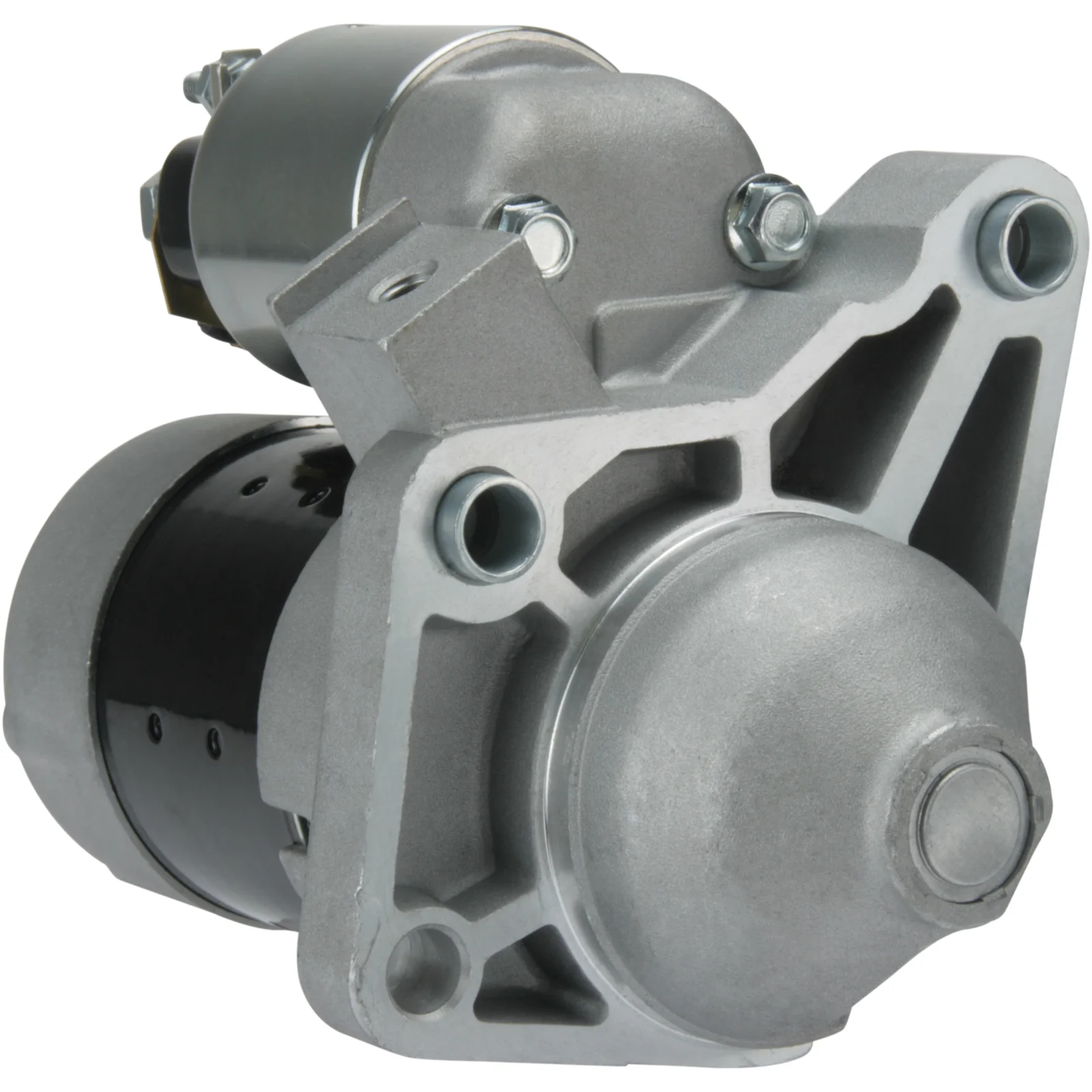

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115686

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 68.00
Drive distance: 9.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance/side: 150.00
Distance/front: 43.00
Number of teeth: 11
B+: M8
Position/50: 7
Terminal 50: M5
Gear type: GR
Distance 2: 54.50
Distance 3: 89.00
Distance mm: 125.50
Rotation: CW
Total length mm: 193.00
Product info: BN
Number of mounting holes: 3 (0)

Files

  • OEM
    F032115686, S114-877, S114-877A, s114-877b, S114-877C, S114-877D, 8200126298, 8200730813

  • Normalised article numbler
    cst20159, drs0739, f032115686, lrs02617, s114877, s114877a, s114877b, s114877c, s114877d, s2025, 254290, 458786, 11040823, 330064112, 570559113, 8200126298, 8200730813
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 68.00
    Drive distance: 9.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance/side: 150.00
    Distance/front: 43.00
    Number of teeth: 11
    B+: M8
    Position/50: 7
    Terminal 50: M5
    Gear type: GR
    Distance 2: 54.50
    Distance 3: 89.00
    Distance mm: 125.50
    Rotation: CW
    Total length mm: 193.00
    Product info: BN
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115686, S114-877, S114-877A, s114-877b, S114-877C, S114-877D, 8200126298, 8200730813

    • Normalised article numbler
      cst20159, drs0739, f032115686, lrs02617, s114877, s114877a, s114877b, s114877c, s114877d, s2025, 254290, 458786, 11040823, 330064112, 570559113, 8200126298, 8200730813
