HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115719

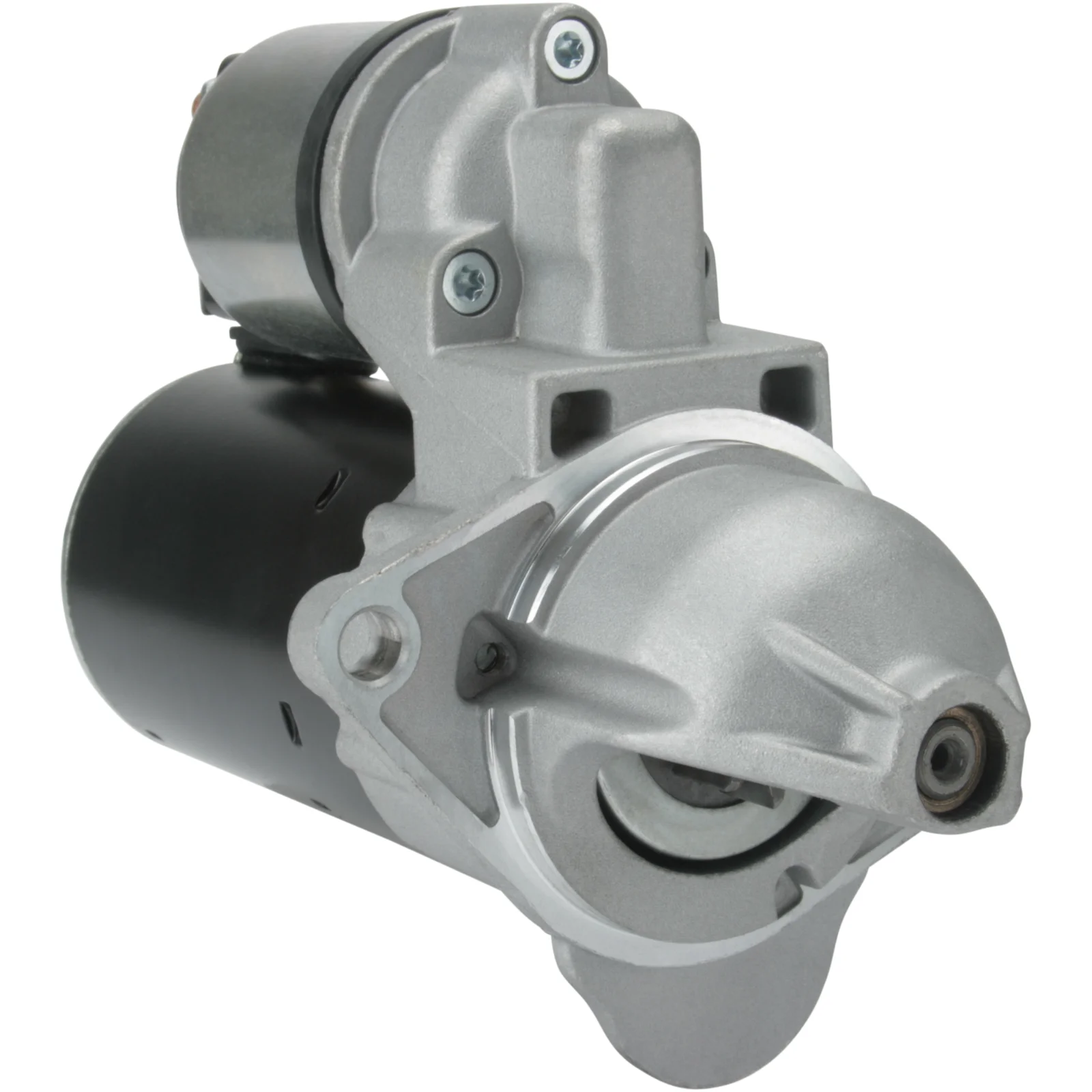

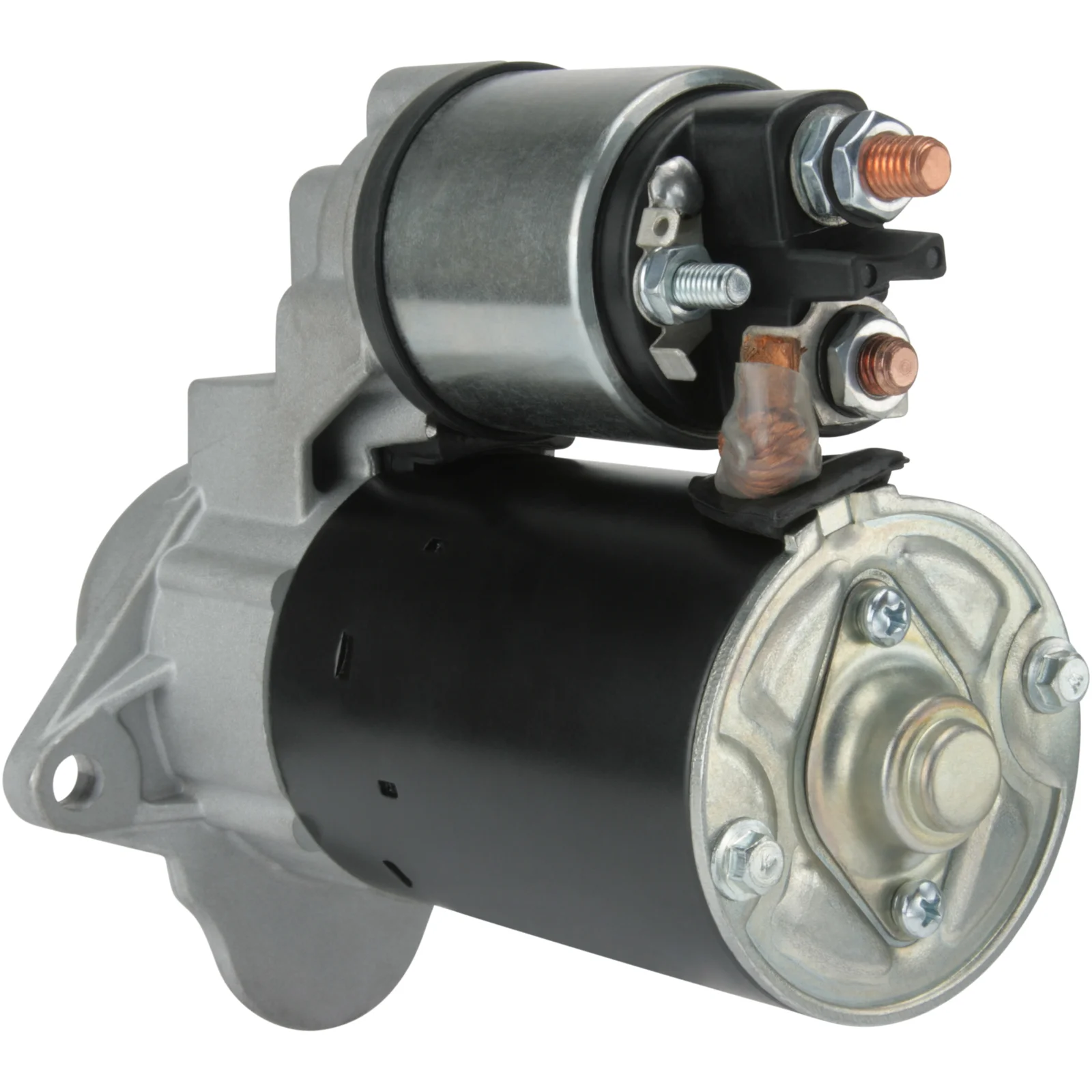

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 68.00
Drive distance: 19.00
Mounting hole 2 mm: 8.50
Mounting hole 1 mm: 8.50
Distance / back: 139.00
Distance / front: 53.50
Number / teeth: 9
B+: M8
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 199.50
Number / mounting holes: 2 (0)

Files

  • OEM
    F032115719, 0001107492, 0001107493, 0001107495, 1202110, 55566800, 55568572

  • Normalised article numbler
    f032115719, lrs02494, s0275, s0275bosch, s0617s, 3145, 19112n, 220028, 220028a, 220226, 220226a, 254166, 0001107492, 0001107493, 0001107495, 1202110, 11020870, 55566800, 55568572, 130568092, 130568102, 328067102
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 68.00
    Drive distance: 19.00
    Mounting hole 2 mm: 8.50
    Mounting hole 1 mm: 8.50
    Distance / back: 139.00
    Distance / front: 53.50
    Number / teeth: 9
    B+: M8
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 199.50
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115719, 0001107492, 0001107493, 0001107495, 1202110, 55566800, 55568572

    • Normalised article numbler
      f032115719, lrs02494, s0275, s0275bosch, s0617s, 3145, 19112n, 220028, 220028a, 220226, 220226a, 254166, 0001107492, 0001107493, 0001107495, 1202110, 11020870, 55566800, 55568572, 130568092, 130568102, 328067102
