HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115721

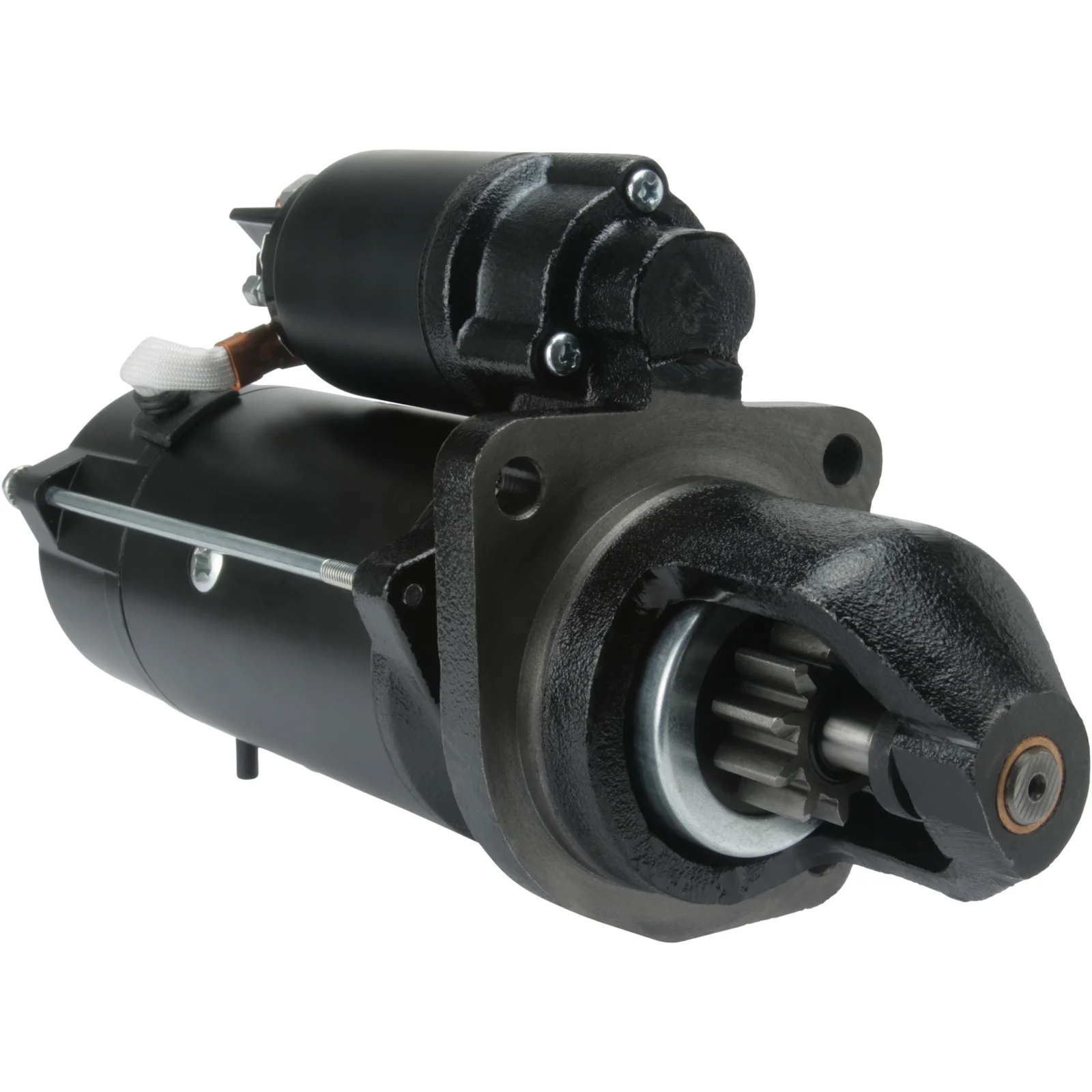

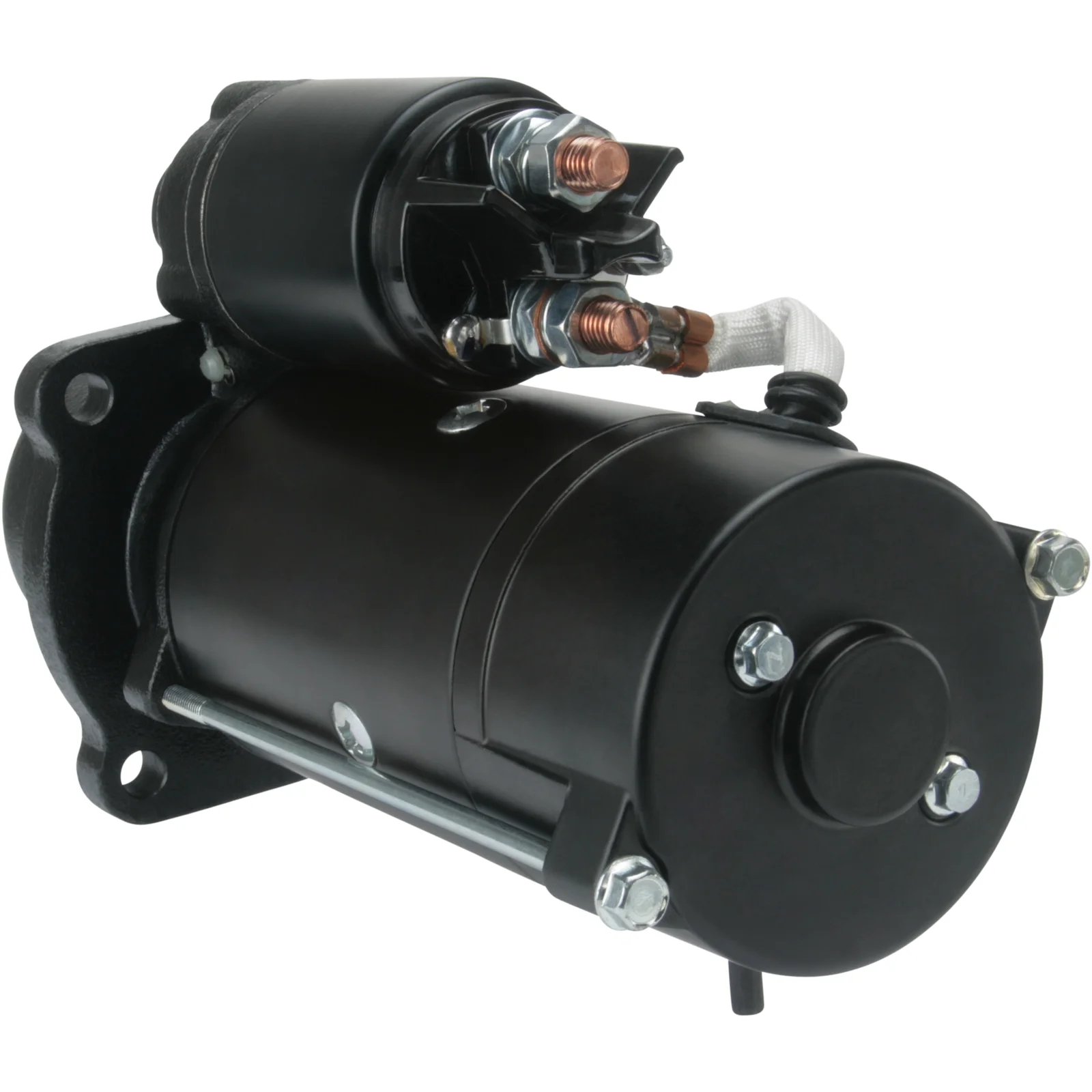

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.2
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 222.50
Distance / front: 96.50
Number / teeth: 10
B+: M10
Position / 50: 17
Terminal 50: M5
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 321.50
Manufacturing info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    azf4553, AZF4598, F032115721, RE504009, RE509856, RE523502, RE68783, 11.131.145, 11.131.382, 502632, 3114986, 46550710

  • Normalised article numbler
    azf4553, azf4598, cst21159, cst50104, f032115721, is1056, ms486, re504009, re509856, re523502, re68783, s9229, 6584r, 502632, 3114986, 11131145, 11131382, 46550710, 650502103
  • Description
    Voltage: 12
    kW: 4.2
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 222.50
    Distance / front: 96.50
    Number / teeth: 10
    B+: M10
    Position / 50: 17
    Terminal 50: M5
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 321.50
    Manufacturing info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azf4553, AZF4598, F032115721, RE504009, RE509856, RE523502, RE68783, 11.131.145, 11.131.382, 502632, 3114986, 46550710

    • Normalised article numbler
      azf4553, azf4598, cst21159, cst50104, f032115721, is1056, ms486, re504009, re509856, re523502, re68783, s9229, 6584r, 502632, 3114986, 11131145, 11131382, 46550710, 650502103
