HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115722

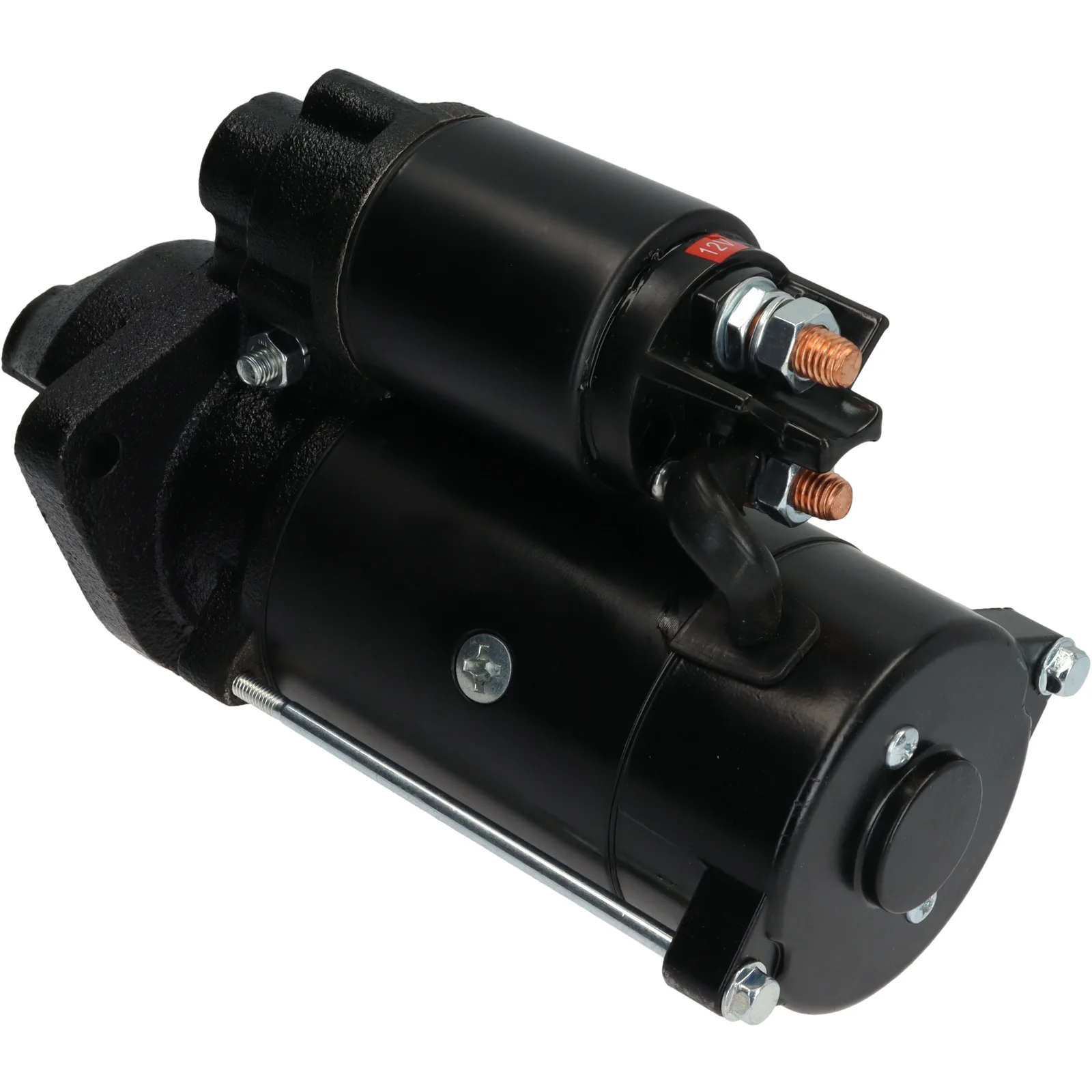

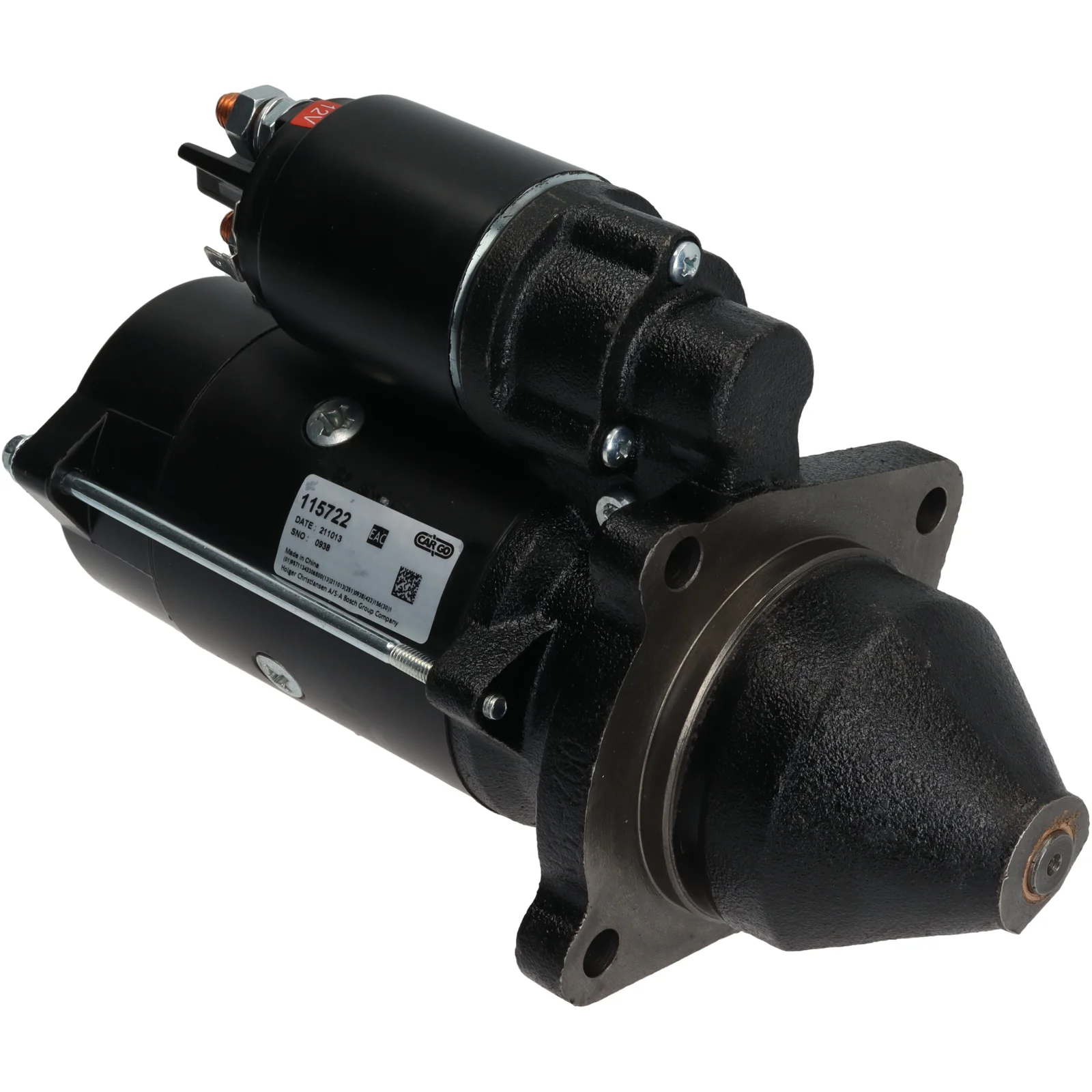

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.2
Mount. flange: 89.00
Drive distance: 29.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 203.00
Distance / front: 74.00
Number / teeth: 10
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance in mm: 127.00
Rotation: CW
Total length in mm: 277.00
Number / mount. holes: 3 (0)

Files

  • OEM
    AZE4167, F032115722, 11.131.731, 2873K627, 2873K633, 4213912M91

  • Normalised article numbler
    aze4167, cst21135, f032115722, is1233, ms299, 2873k627, 2873k633, 220701, 220701a, 4213912m91, 11131731, 650508103, 700536103
  • Description
    Voltage: 12
    kW: 3.2
    Mount. flange: 89.00
    Drive distance: 29.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 203.00
    Distance / front: 74.00
    Number / teeth: 10
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance in mm: 127.00
    Rotation: CW
    Total length in mm: 277.00
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4167, F032115722, 11.131.731, 2873K627, 2873K633, 4213912M91

    • Normalised article numbler
      aze4167, cst21135, f032115722, is1233, ms299, 2873k627, 2873k633, 220701, 220701a, 4213912m91, 11131731, 650508103, 700536103
