HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115757

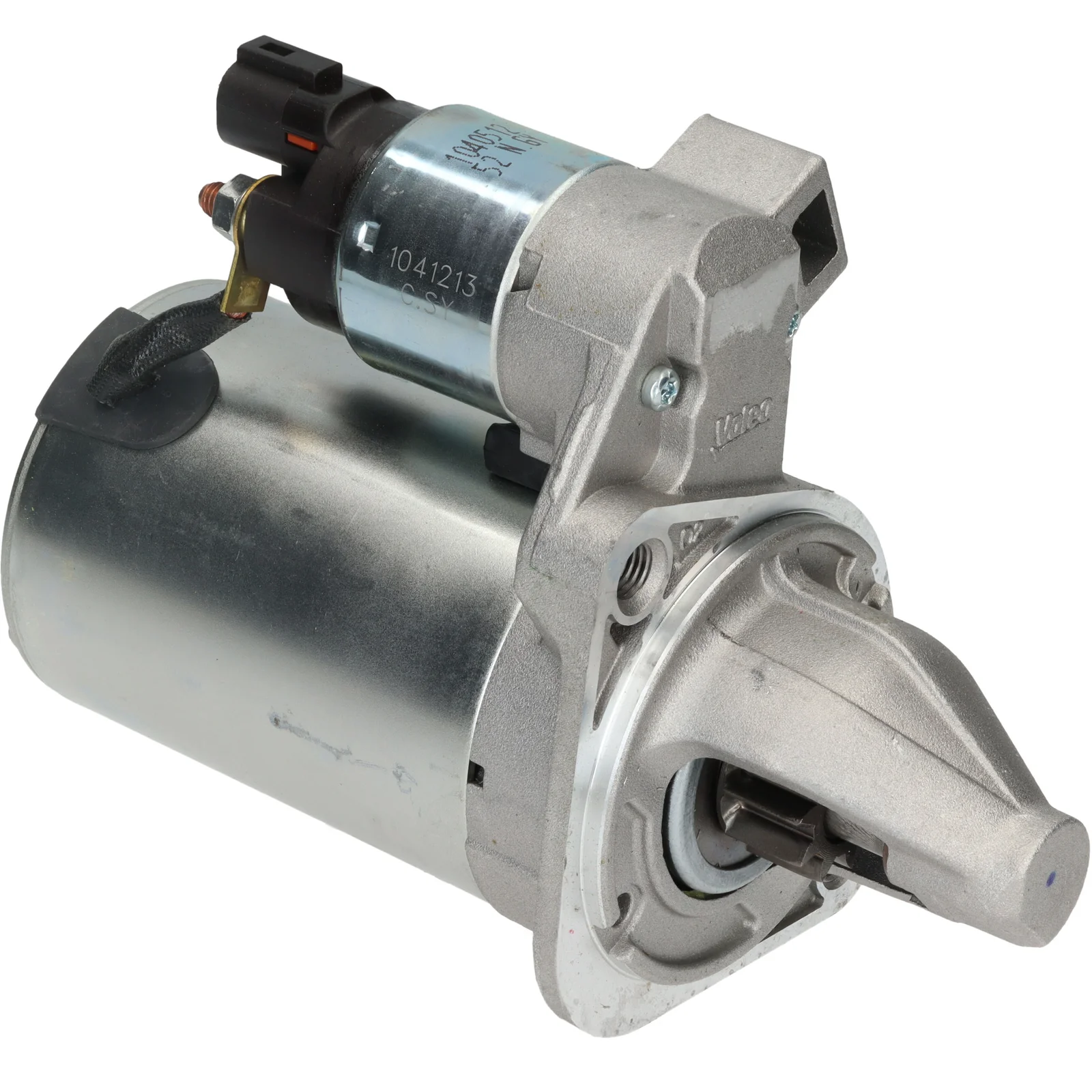

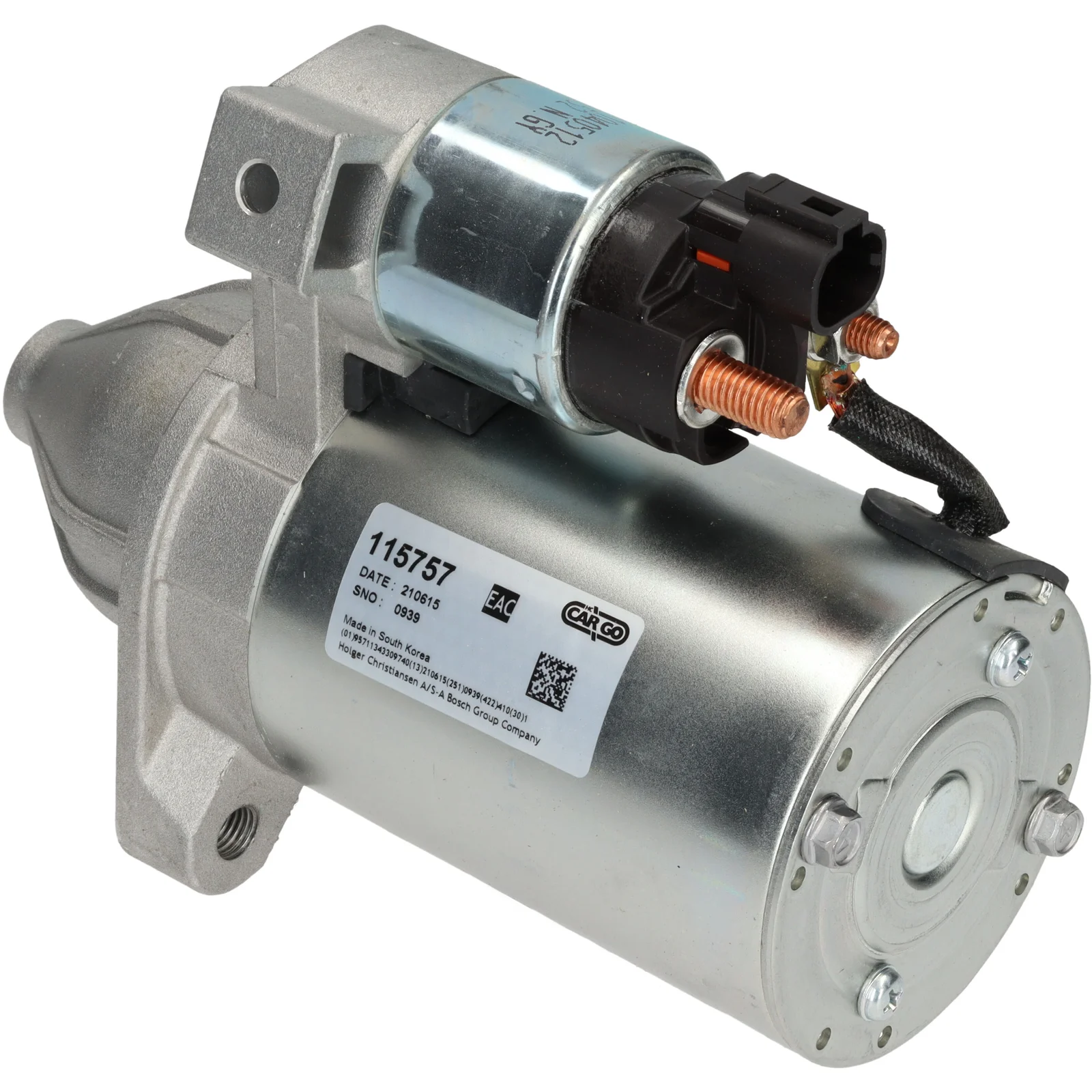

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 10, Rotation: CW

Description

HC-Cargo Starter motor 12V - 0.9 kW, 10k

Voltage: 12
kW: 0.9
Mounting flange: 77.00
Drive distance: 22.00
Distance/offset: 125.00
Distance/front: 57.50
Number of teeth: 10
B+: M8
Position/B+: 45
Position/50: 60
Terminal 50: Plug
Gear type: GR
Offset mm: 99.50
Rotation: CW
Total length mm: 185.00
Starter motor type: Start/Stop
Number of mounting holes: 2 (2)

Files

  • OEM
    A0001204960, F032115757, M000TD0271, M000TD0271ZE, M0T-D0271ZE, M0TD0271, m0td0271ze, 36100-2B110, 36100-2B220, 36100-2B614, 115757, 1204960, 8000708

  • Normalised article numbler
    a0001204960, cst35358, cst46132, drs0919, drs1019, f032115757, m000td0271, m000td0271ze, m0td0271, m0td0271ze, s1164delco, 115757, 255013, 255404, 361002b110, 361002b220, 361002b614, 600357, 600794, 1204960, 8000708, 11040999, 250517102, 324083102, 0986027530, 0986027610
  • Description
    HC-Cargo Starter motor 12V - 0.9 kW, 10k

    Voltage: 12
    kW: 0.9
    Mounting flange: 77.00
    Drive distance: 22.00
    Distance/offset: 125.00
    Distance/front: 57.50
    Number of teeth: 10
    B+: M8
    Position/B+: 45
    Position/50: 60
    Terminal 50: Plug
    Gear type: GR
    Offset mm: 99.50
    Rotation: CW
    Total length mm: 185.00
    Starter motor type: Start/Stop
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A0001204960, F032115757, M000TD0271, M000TD0271ZE, M0T-D0271ZE, M0TD0271, m0td0271ze, 36100-2B110, 36100-2B220, 36100-2B614, 115757, 1204960, 8000708

    • Normalised article numbler
      a0001204960, cst35358, cst46132, drs0919, drs1019, f032115757, m000td0271, m000td0271ze, m0td0271, m0td0271ze, s1164delco, 115757, 255013, 255404, 361002b110, 361002b220, 361002b614, 600357, 600794, 1204960, 8000708, 11040999, 250517102, 324083102, 0986027530, 0986027610
