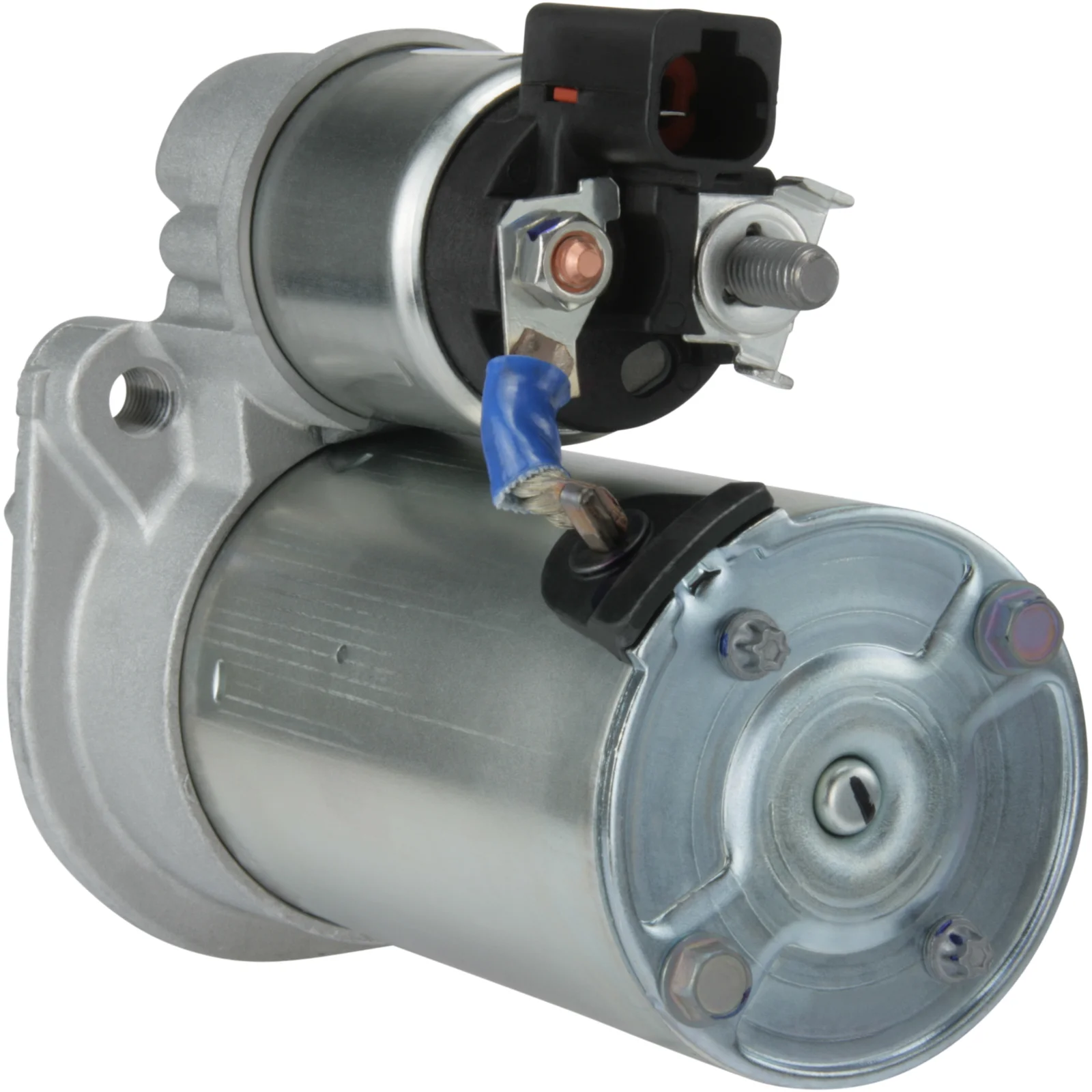

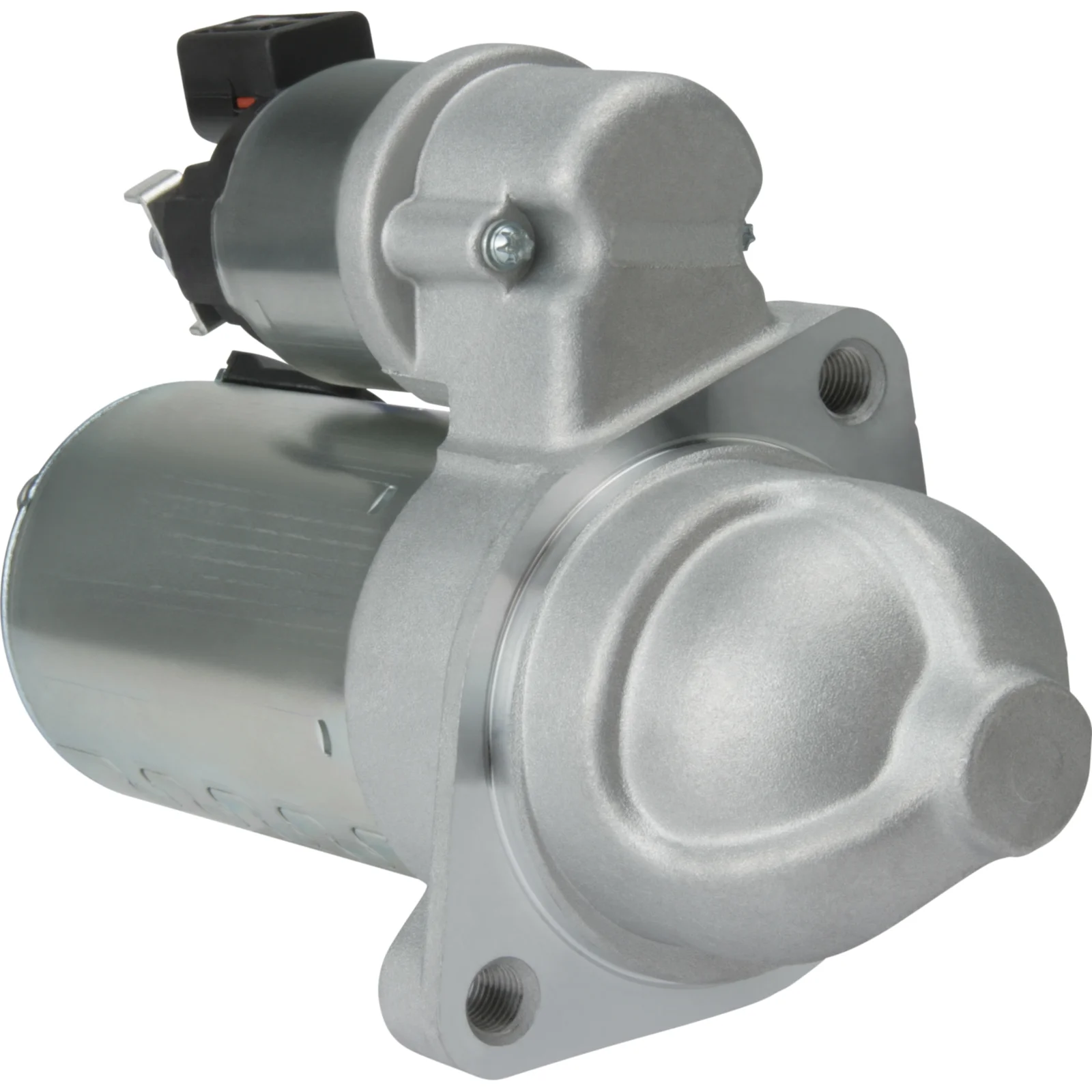

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115758

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 70.00
Drive distance: 28.00
Dist./back: 134.50
Dist./front: 64.50
No./teeth: 11
B+: M8
Position/50: 3
Terminal 50: Plug
Gear type: GR
Dist. mm: 93.50
Rotation: CW
Total length mm: 199.00
Prod. info: BN
No./mounting holes: 2 (2)

Files

  • OEM
    F032115758, 1986S01134, 36100-2g000, 36100-2G000, 36100-2G200, 36100-2G300, 36100-2G400, 36100-2GGA0, 1209422, 1219567, 8000285, 8000357, 8000621

  • Normalised article numbler
    cst32123, drs0618, f032115758, f042200053, f042s03139, lrs02641, s1068delco, s1068s, s1177p, 8ea011612891, 1986s01134, 6974, 6974n, 6975n, 220477, 220477a, 220619, 220619a, 254314, 361002g000, 361002g200, 361002g300, 361002g400, 361002gga0, 1209422, 1219567, 8000285, 8000357, 8000621, 8080376, 11040800, 11041021, 250508082, 250508112, 326066112, 0986029170
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 70.00
    Drive distance: 28.00
    Dist./back: 134.50
    Dist./front: 64.50
    No./teeth: 11
    B+: M8
    Position/50: 3
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 93.50
    Rotation: CW
    Total length mm: 199.00
    Prod. info: BN
    No./mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032115758, 1986S01134, 36100-2g000, 36100-2G000, 36100-2G200, 36100-2G300, 36100-2G400, 36100-2GGA0, 1209422, 1219567, 8000285, 8000357, 8000621

    • Normalised article numbler
      cst32123, drs0618, f032115758, f042200053, f042s03139, lrs02641, s1068delco, s1068s, s1177p, 8ea011612891, 1986s01134, 6974, 6974n, 6975n, 220477, 220477a, 220619, 220619a, 254314, 361002g000, 361002g200, 361002g300, 361002g400, 361002gga0, 1209422, 1219567, 8000285, 8000357, 8000621, 8080376, 11040800, 11041021, 250508082, 250508112, 326066112, 0986029170
