HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115779

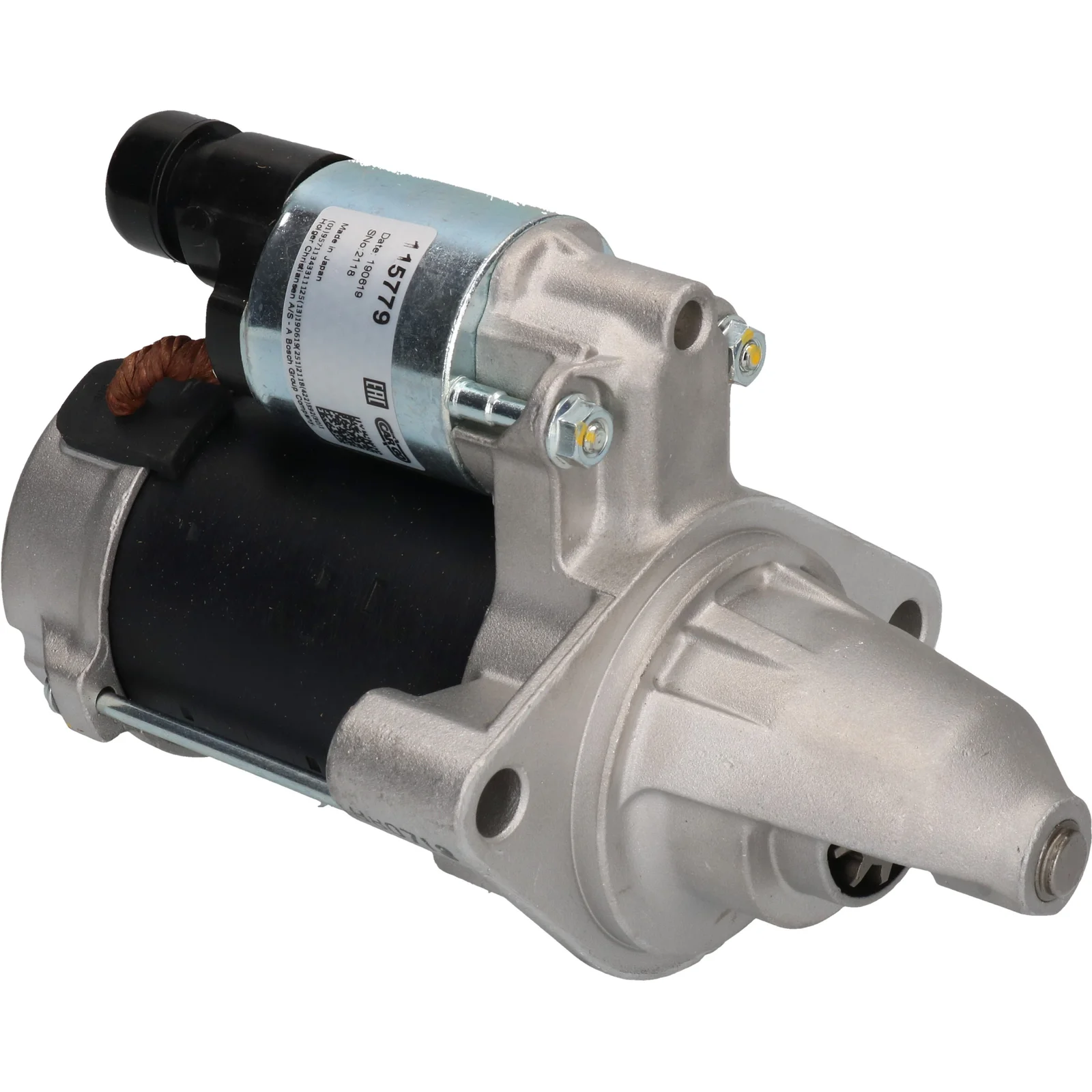

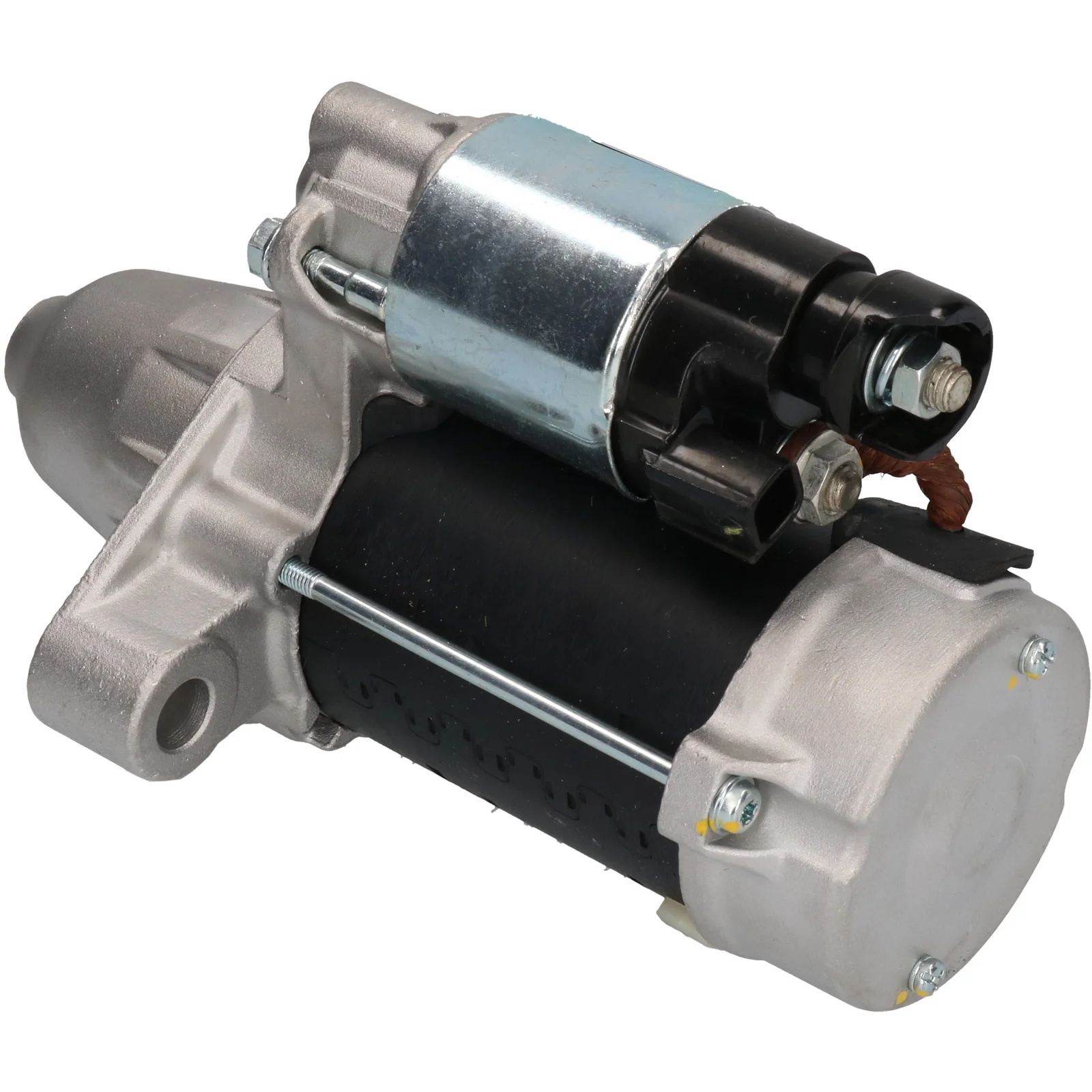

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.8
Mounting flange: 75.00
Drive distance: 38.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 13.00
Distance / back: 145.00
Distance / front: 72.50
Number / teeth: 10
B+: M8
Position / 50: 42
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 117.00
Rotation: CW
Total length in millimeters: 217.50
Number / mounting holes: 2 (0)

Files

  • OEM
    F032115779, 4v6, 31200-RL0-G01, 428000-5670

  • Normalised article numbler
    cst40393, drs0696, dsn1387, f032115779, lrs02692, 4v6, 30566os, 31200rl0g01, 254364, 458988, 11040952, 120561102, 322069092, 4280005670
  • Description
    Voltage: 12
    kW: 1.8
    Mounting flange: 75.00
    Drive distance: 38.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 13.00
    Distance / back: 145.00
    Distance / front: 72.50
    Number / teeth: 10
    B+: M8
    Position / 50: 42
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 117.00
    Rotation: CW
    Total length in millimeters: 217.50
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115779, 4v6, 31200-RL0-G01, 428000-5670

    • Normalised article numbler
      cst40393, drs0696, dsn1387, f032115779, lrs02692, 4v6, 30566os, 31200rl0g01, 254364, 458988, 11040952, 120561102, 322069092, 4280005670
