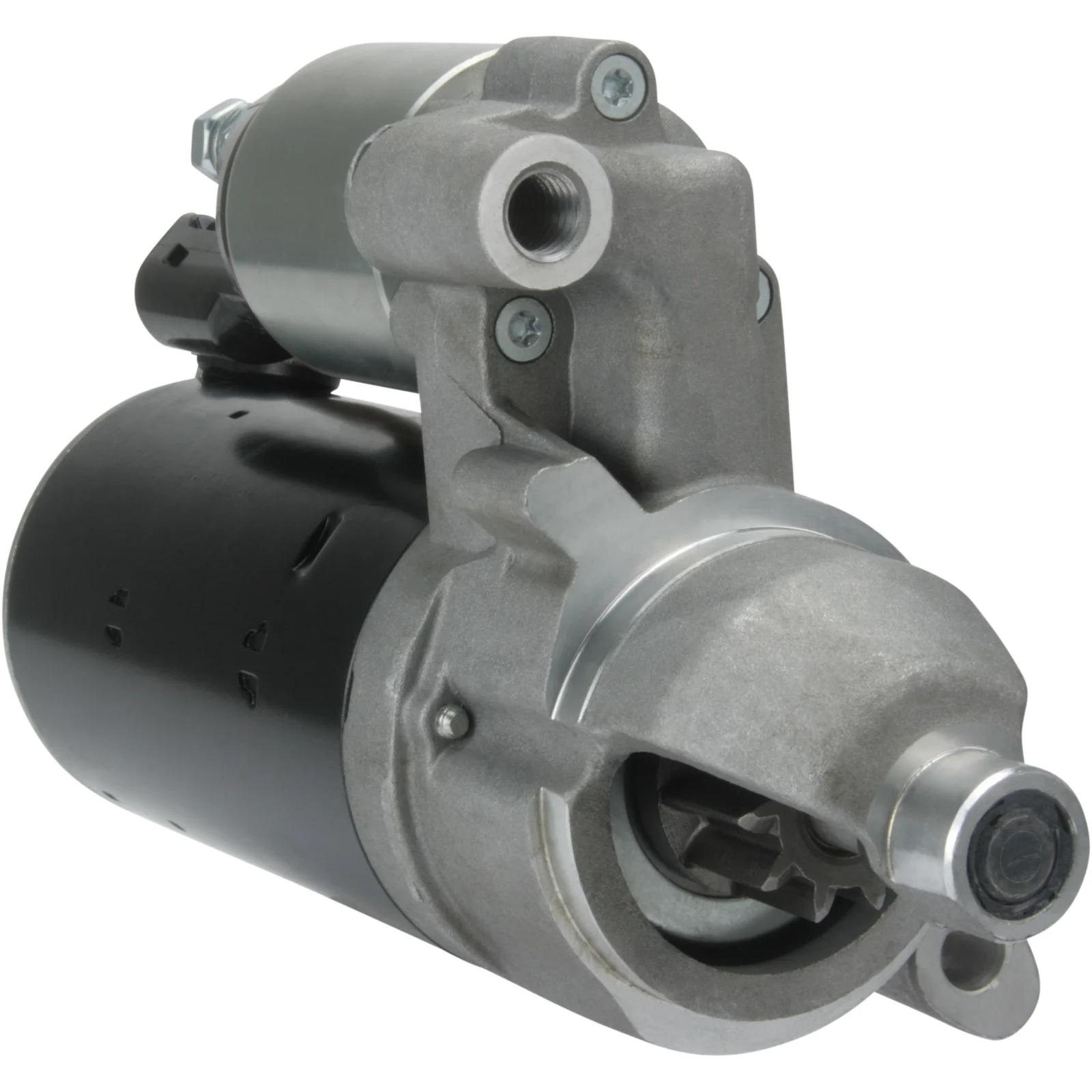

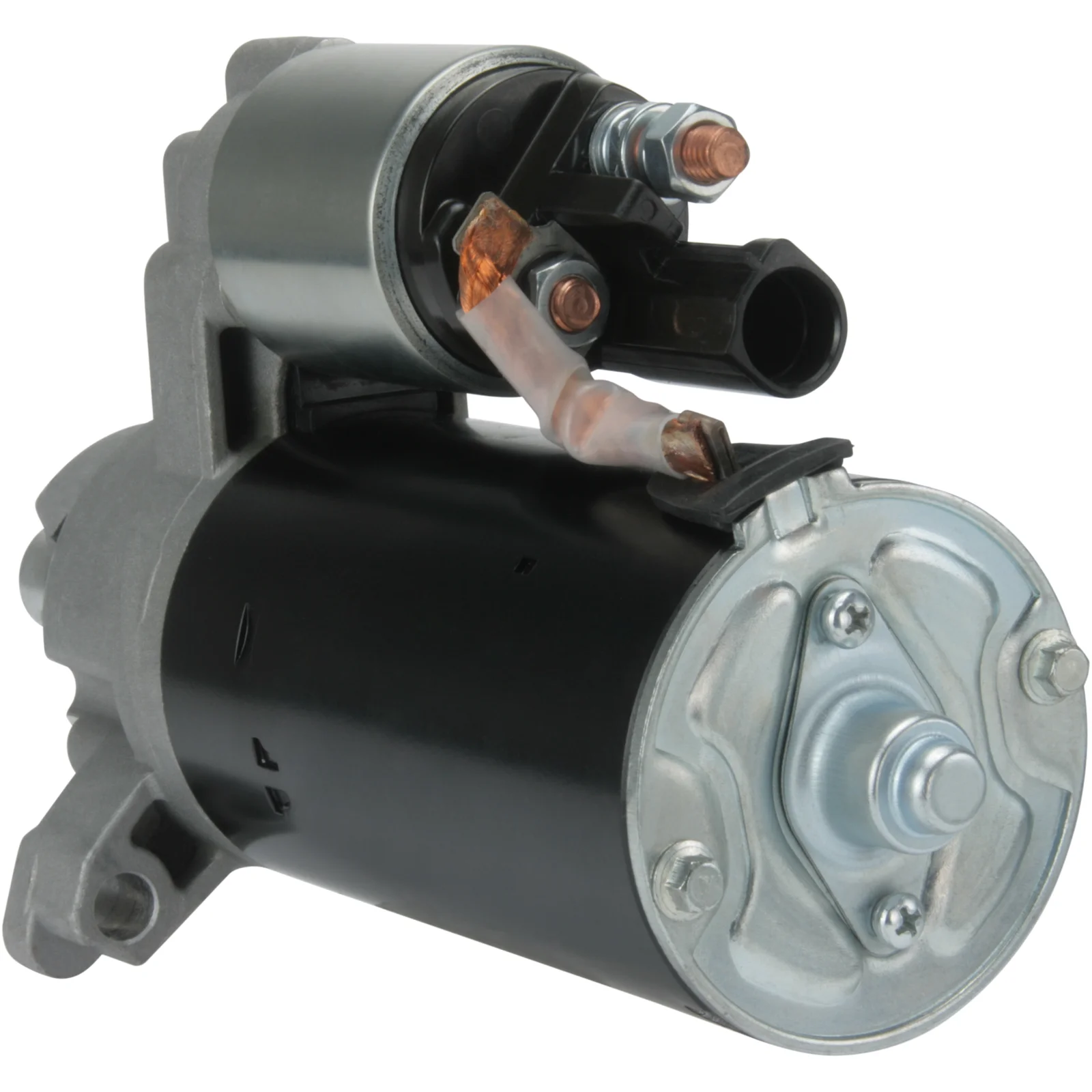

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115948

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Description

HC-Cargo Starter motor 12V - 2.2kW, 10k

Voltage: 12
kW: 2.2
Mounting flange: 66.00
Drive distance: 24.00
Mounting hole 2 mm: M12-1.75
Mounting hole 1 mm: 11.00
Distance / back: 176.50
Distance / front: 59.50
Number / teeth: 10
B+: M8
Position / 50: 22
Terminal 50: Plug
Gear type: GR
Distance mm: 134.00
Rotation: CW
Total length mm: 249.00
Production info: BN
Number / mounting holes: 2 (1)

Files

  • OEM
    CS1538, cs1538, F032115948, TS22E45, 0001 109 275, 0001 109 276, 0001 109 280, 0001 109 315, 0001 109 316, 0001 109 361, 0001 109 362, 0001 109 421, 0001 109 422, 059 911 021C, 059 911 021D, 059 911 021M, 059 911 022, 1986S00748, 115948, 0001109275, 0001109276, 0001109280, 0001109281, 0001109315, 0001109316, 0001109361, 0001109362, 0001109421, 0001109422, 057911021, 057911021X, 059911021, 059911021B, 059911021C, 059911021CX, 059911021D, 059911021DX, 059911021M, 059911021MX, 059911022, 059911022X

  • Normalised article numbler
    cs1538, cst10436, cst15247, drs0182, drs0833, f032115948, lrs02468, s0536, s0536pr, s3077, ts22e45, 8ea012140111, 8ea012528981, 1986s00748, 3089, 3110, 30209n, 115948, 220531, 220531a, 254140, 438232, 458397, 0001109275, 0001109276, 0001109280, 0001109281, 0001109315, 0001109316, 0001109361, 0001109362, 0001109421, 0001109422, 11090201, 42025400, 057911021, 057911021x, 059911021, 059911021b, 059911021c, 059911021cx, 059911021d, 059911021dx, 059911021m, 059911021mx, 059911022, 059911022x, 200535102, 300904102, 311263102, 0986025400
  • Description
    HC-Cargo Starter motor 12V - 2.2kW, 10k

    Voltage: 12
    kW: 2.2
    Mounting flange: 66.00
    Drive distance: 24.00
    Mounting hole 2 mm: M12-1.75
    Mounting hole 1 mm: 11.00
    Distance / back: 176.50
    Distance / front: 59.50
    Number / teeth: 10
    B+: M8
    Position / 50: 22
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 134.00
    Rotation: CW
    Total length mm: 249.00
    Production info: BN
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      CS1538, cs1538, F032115948, TS22E45, 0001 109 275, 0001 109 276, 0001 109 280, 0001 109 315, 0001 109 316, 0001 109 361, 0001 109 362, 0001 109 421, 0001 109 422, 059 911 021C, 059 911 021D, 059 911 021M, 059 911 022, 1986S00748, 115948, 0001109275, 0001109276, 0001109280, 0001109281, 0001109315, 0001109316, 0001109361, 0001109362, 0001109421, 0001109422, 057911021, 057911021X, 059911021, 059911021B, 059911021C, 059911021CX, 059911021D, 059911021DX, 059911021M, 059911021MX, 059911022, 059911022X

    • Normalised article numbler
      cs1538, cst10436, cst15247, drs0182, drs0833, f032115948, lrs02468, s0536, s0536pr, s3077, ts22e45, 8ea012140111, 8ea012528981, 1986s00748, 3089, 3110, 30209n, 115948, 220531, 220531a, 254140, 438232, 458397, 0001109275, 0001109276, 0001109280, 0001109281, 0001109315, 0001109316, 0001109361, 0001109362, 0001109421, 0001109422, 11090201, 42025400, 057911021, 057911021x, 059911021, 059911021b, 059911021c, 059911021cx, 059911021d, 059911021dx, 059911021m, 059911021mx, 059911022, 059911022x, 200535102, 300904102, 311263102, 0986025400
