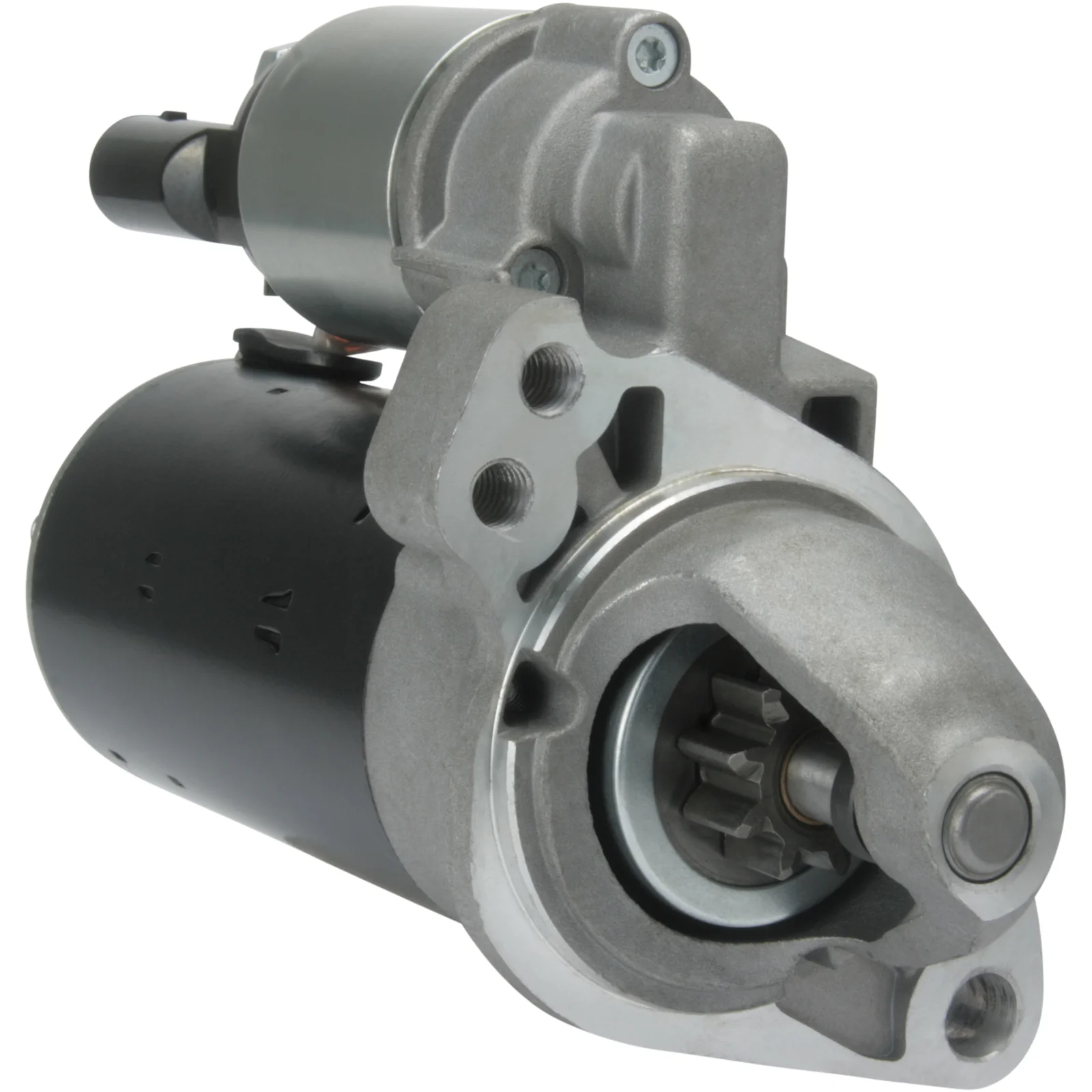

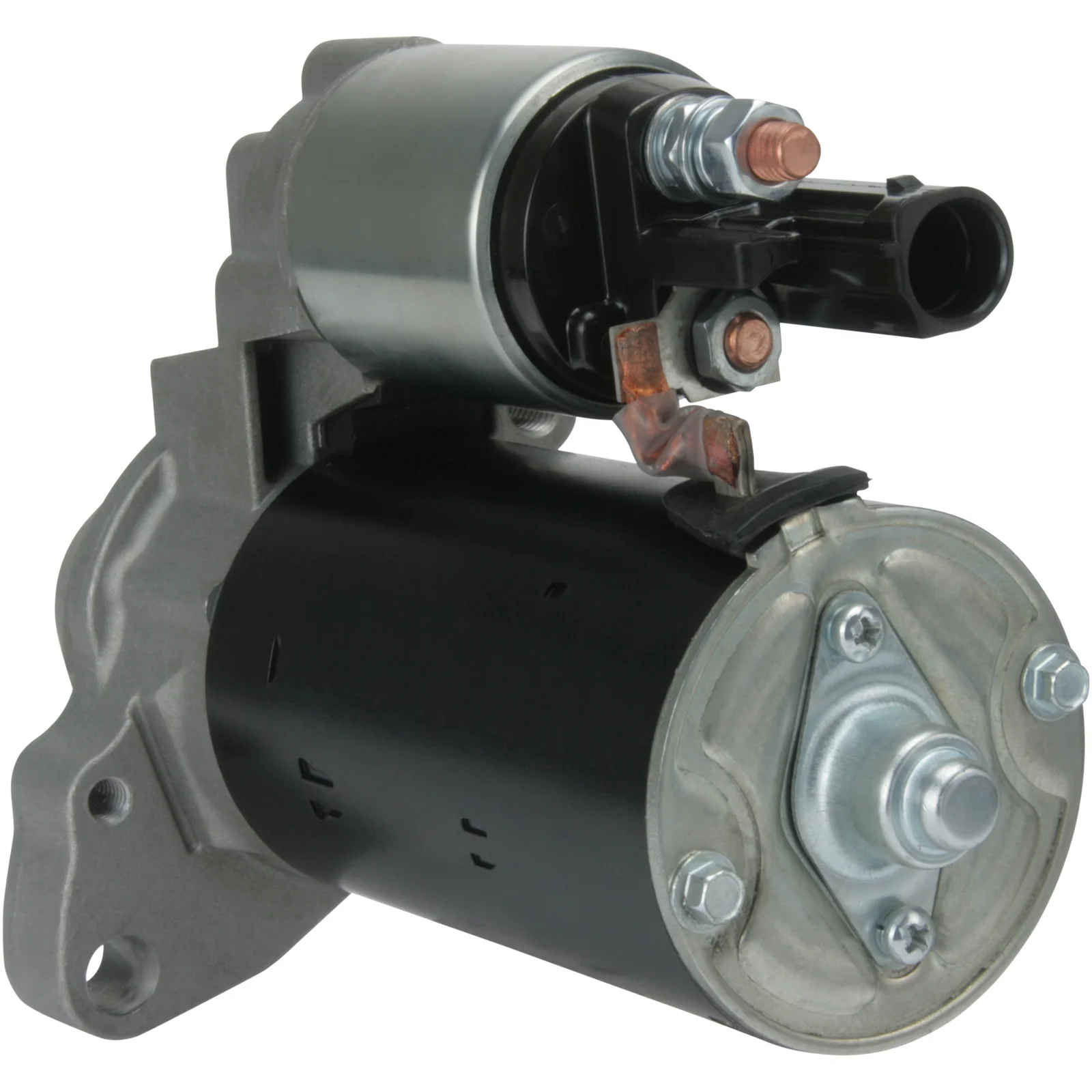

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115996

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 74.00
Drive dist.: 24.00
Mount. hole 4 mm: M10
Mount. hole 3 mm: M10
Mount. hole 2 mm: M10
Mount. hole 1 mm: 11.00
Dist./back: 155.00
Dist./front: 59.00
No./teeth: 9
B+: M8
Position/50: 17
Terminal 50: Plug
Gear type: GR
Dist. 2: 16.50
Dist. 3: 121.00
Dist. mm: 114.50
Rotation: CW
Total length mm: 226.00
Prod. info: BN
No./mounting holes: 3 (2)

Files

  • OEM
    F00E100577, F032115996, 07c911023g, 07C911023H, 07C911023HX, 1986S00698, 0001108237, 0001108238

  • Normalised article numbler
    cst10495, f00e100577, f032115996, lrs02461, s0545bosch, s0545s, 07c911023g, 07c911023h, 07c911023hx, 1986s00698, 19004n, 19004r, 254133, 0001108237, 0001108238, 11090271, 200529092
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 74.00
    Drive dist.: 24.00
    Mount. hole 4 mm: M10
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: M10
    Mount. hole 1 mm: 11.00
    Dist./back: 155.00
    Dist./front: 59.00
    No./teeth: 9
    B+: M8
    Position/50: 17
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 16.50
    Dist. 3: 121.00
    Dist. mm: 114.50
    Rotation: CW
    Total length mm: 226.00
    Prod. info: BN
    No./mounting holes: 3 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F00E100577, F032115996, 07c911023g, 07C911023H, 07C911023HX, 1986S00698, 0001108237, 0001108238

    • Normalised article numbler
      cst10495, f00e100577, f032115996, lrs02461, s0545bosch, s0545s, 07c911023g, 07c911023h, 07c911023hx, 1986s00698, 19004n, 19004r, 254133, 0001108237, 0001108238, 11090271, 200529092
