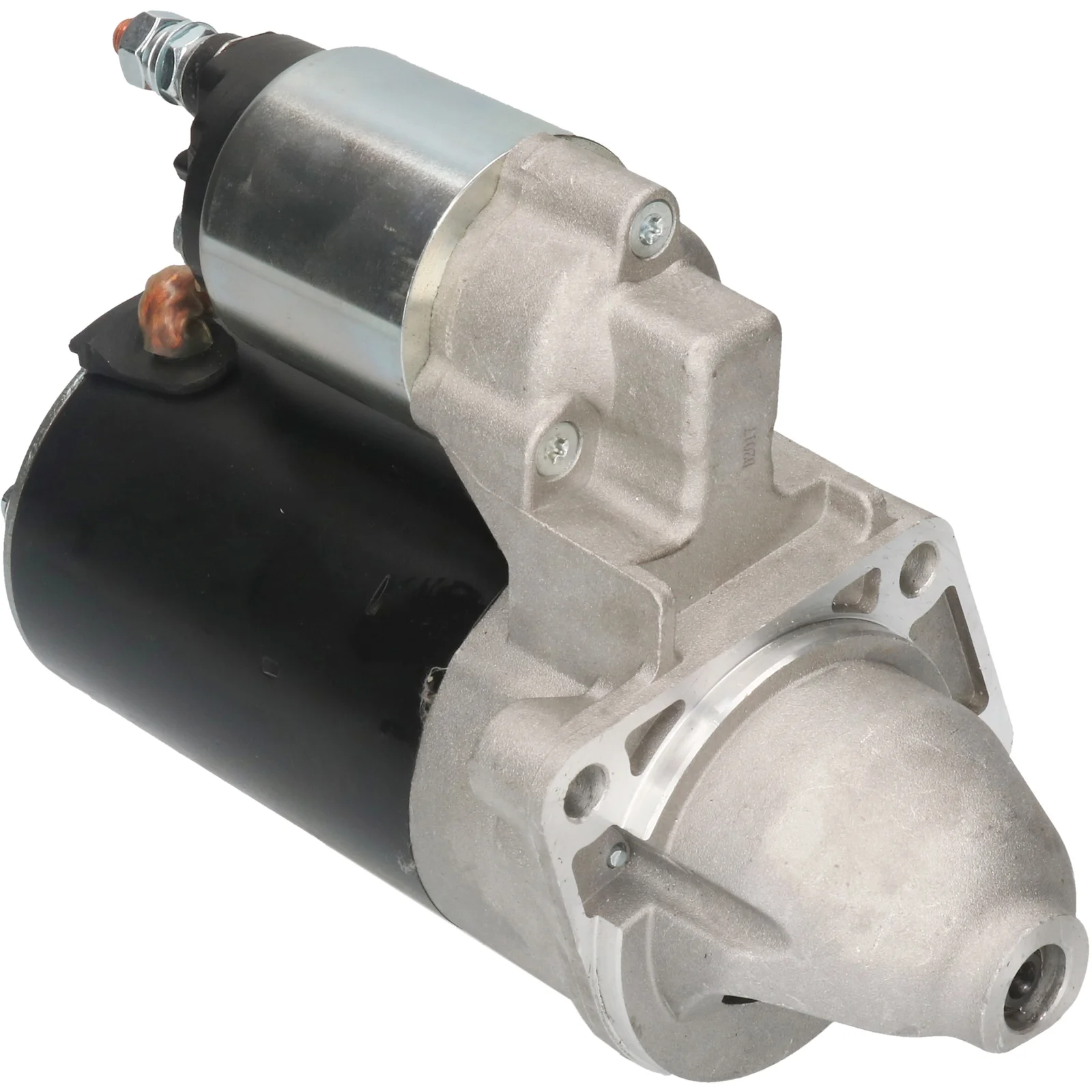

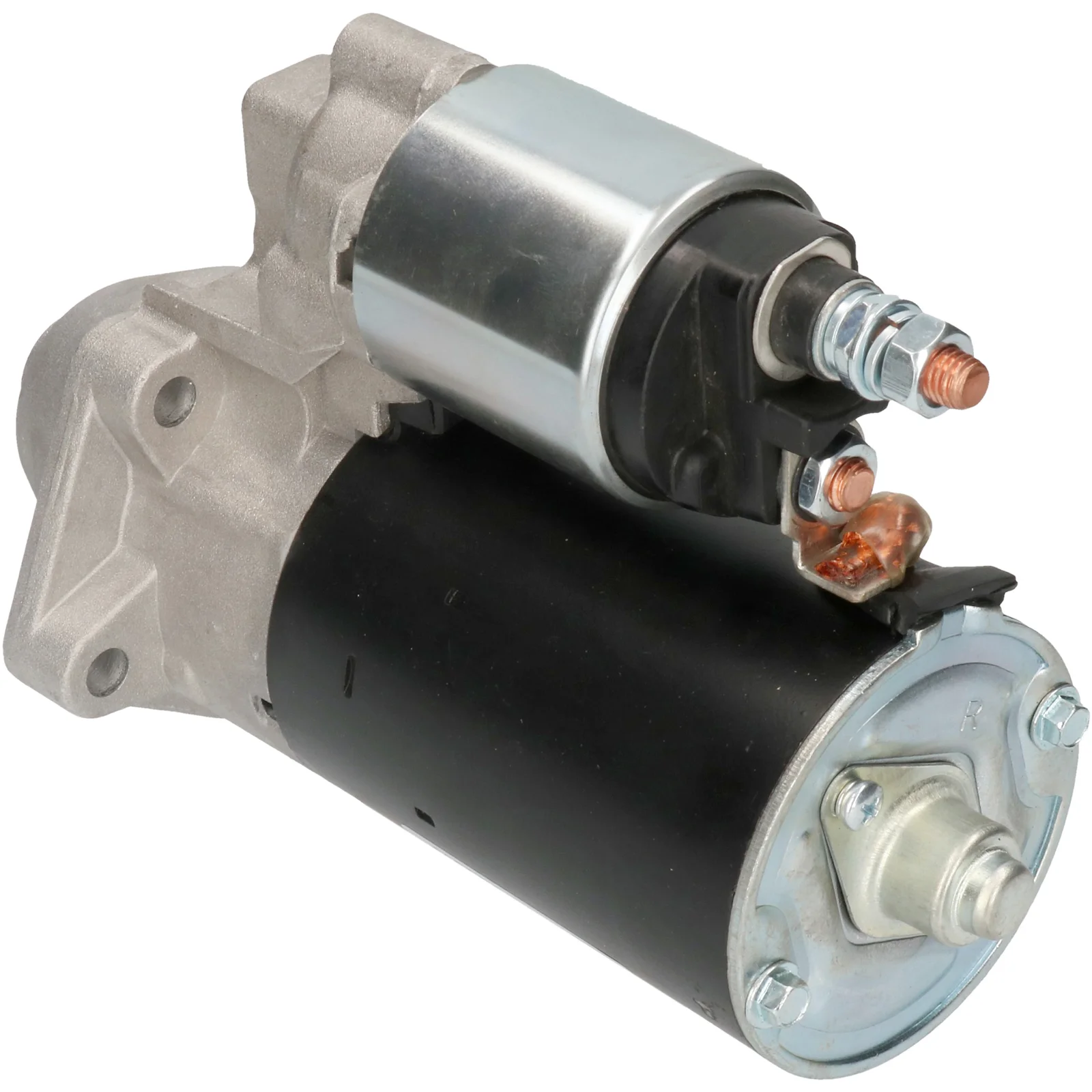

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116024

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 10, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 12
kW: 1.1
Mounting flange: 76.20
Drive distance: 20.00
Mounting hole 3 mm: 8.50
Mounting hole 2 mm: 8.50
Mounting hole 1 mm: 8.50
Distance/rear: 151.00
Distance/front: 53.50
Number/teeth: 10
B+: M8
Position/50: 60
Terminal 50: M6
Gear type: GR
Distance 2: 95.50
Distance 3: 72.00
Distance mm: 46.50
Rotation: CW
Total length mm: 216.50
Start/Stop type: Starter motor
Production info: BN
Number/mounting holes: 3 (0)

Files

  • OEM
    F032116024, 1986S00647, 1986S00826, 0001137003, 0001137004, 0001170406, 0001170407, 51829380, 51938439

  • Normalised article numbler
    cst10526, drs0656, dsn975, f032116024, lrs02506, s0609s, s6056denso, 8ea011611801, 1986s00647, 1986s00826, 30244, 30244r, 31249n, 220672, 220672a, 254178, 254621, 0001137003, 0001137004, 0001170406, 0001170407, 11029150, 51829380, 51938439, 318219102, 500538103, 500567103, 500568103, 0986029150
  • Description
    HC-Cargo Starter motor

    Voltage: 12
    kW: 1.1
    Mounting flange: 76.20
    Drive distance: 20.00
    Mounting hole 3 mm: 8.50
    Mounting hole 2 mm: 8.50
    Mounting hole 1 mm: 8.50
    Distance/rear: 151.00
    Distance/front: 53.50
    Number/teeth: 10
    B+: M8
    Position/50: 60
    Terminal 50: M6
    Gear type: GR
    Distance 2: 95.50
    Distance 3: 72.00
    Distance mm: 46.50
    Rotation: CW
    Total length mm: 216.50
    Start/Stop type: Starter motor
    Production info: BN
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116024, 1986S00647, 1986S00826, 0001137003, 0001137004, 0001170406, 0001170407, 51829380, 51938439

    • Normalised article numbler
      cst10526, drs0656, dsn975, f032116024, lrs02506, s0609s, s6056denso, 8ea011611801, 1986s00647, 1986s00826, 30244, 30244r, 31249n, 220672, 220672a, 254178, 254621, 0001137003, 0001137004, 0001170406, 0001170407, 11029150, 51829380, 51938439, 318219102, 500538103, 500567103, 500568103, 0986029150
