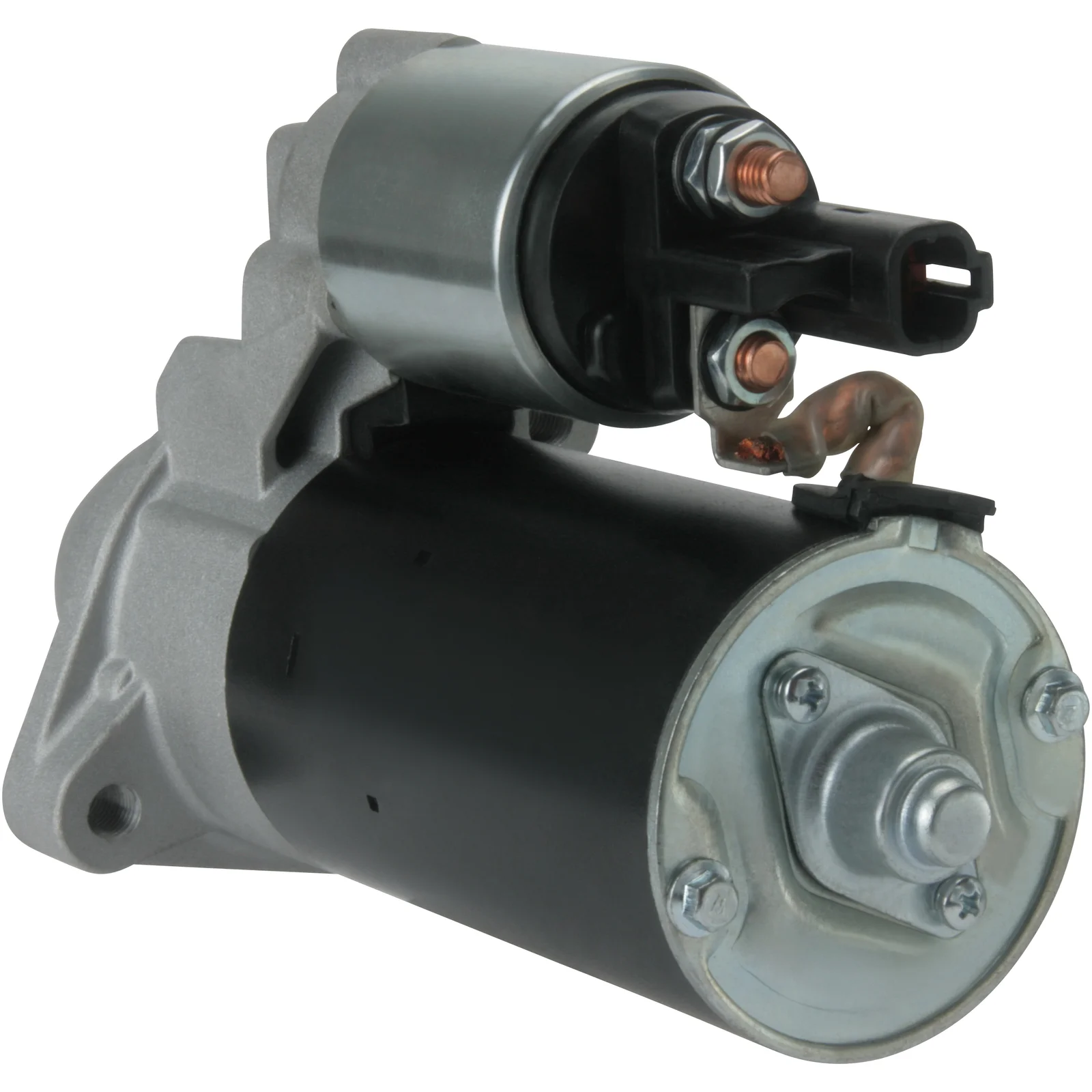

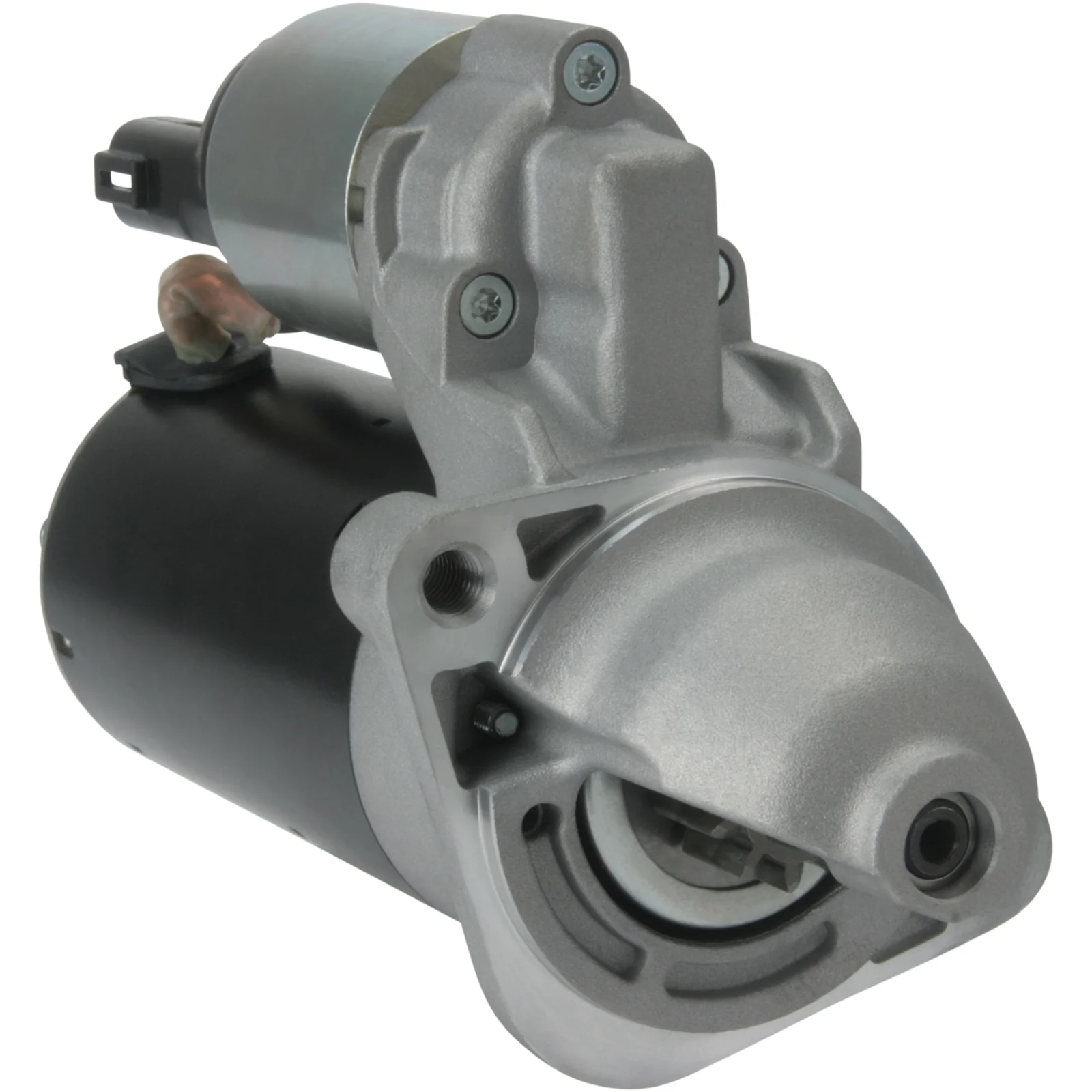

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116026

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor 12V - 1.4kW, 11 teeth Vehicles WITH stop/start

Voltage: 12
kW: 1.4
Mounting flange: 77.00
Drive distance: 22.00
Distance/back: 162.00
Distance/front: 54.50
Number/teeth: 11
B+: M8
Position/50: 15
Terminal 50: Plug
Gear type: GR
Distance mm: 99.50
Rotation: CW
Total length mm: 229.00
Starter type: Start/Stop
Production info: BN
Number/mounting holes: 2 (2)

Files

  • OEM
    F00E100574, F032116026, 0001 138 051, 0986 029 130, 1986S00834, 36100-2B302, 116026, 0001138051, 0001138055, 0001138056

  • Normalised article numbler
    cst10008, drs0984, f00e100574, f032116026, lrs04152, s0565, s0611s, 8ea011611571, 1986s00834, 32671n, 116026, 220779, 220779a, 255315, 361002b302, 608399, 0001138051, 0001138055, 0001138056, 11040794, 150587112, 0986029130
  • Description
    HC-Cargo Starter motor 12V - 1.4kW, 11 teeth Vehicles WITH stop/start

    Voltage: 12
    kW: 1.4
    Mounting flange: 77.00
    Drive distance: 22.00
    Distance/back: 162.00
    Distance/front: 54.50
    Number/teeth: 11
    B+: M8
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 99.50
    Rotation: CW
    Total length mm: 229.00
    Starter type: Start/Stop
    Production info: BN
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F00E100574, F032116026, 0001 138 051, 0986 029 130, 1986S00834, 36100-2B302, 116026, 0001138051, 0001138055, 0001138056

    • Normalised article numbler
      cst10008, drs0984, f00e100574, f032116026, lrs04152, s0565, s0611s, 8ea011611571, 1986s00834, 32671n, 116026, 220779, 220779a, 255315, 361002b302, 608399, 0001138051, 0001138055, 0001138056, 11040794, 150587112, 0986029130
