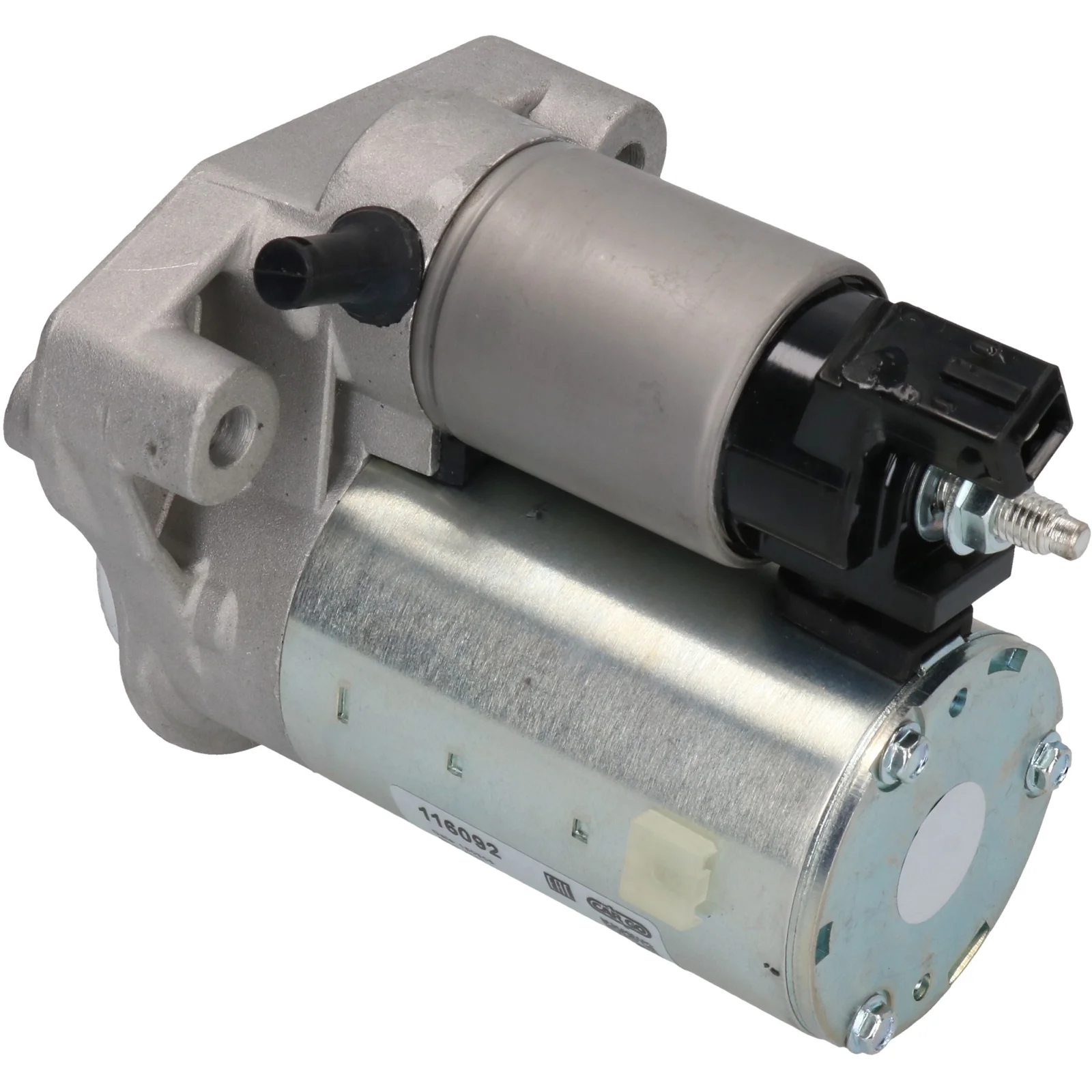

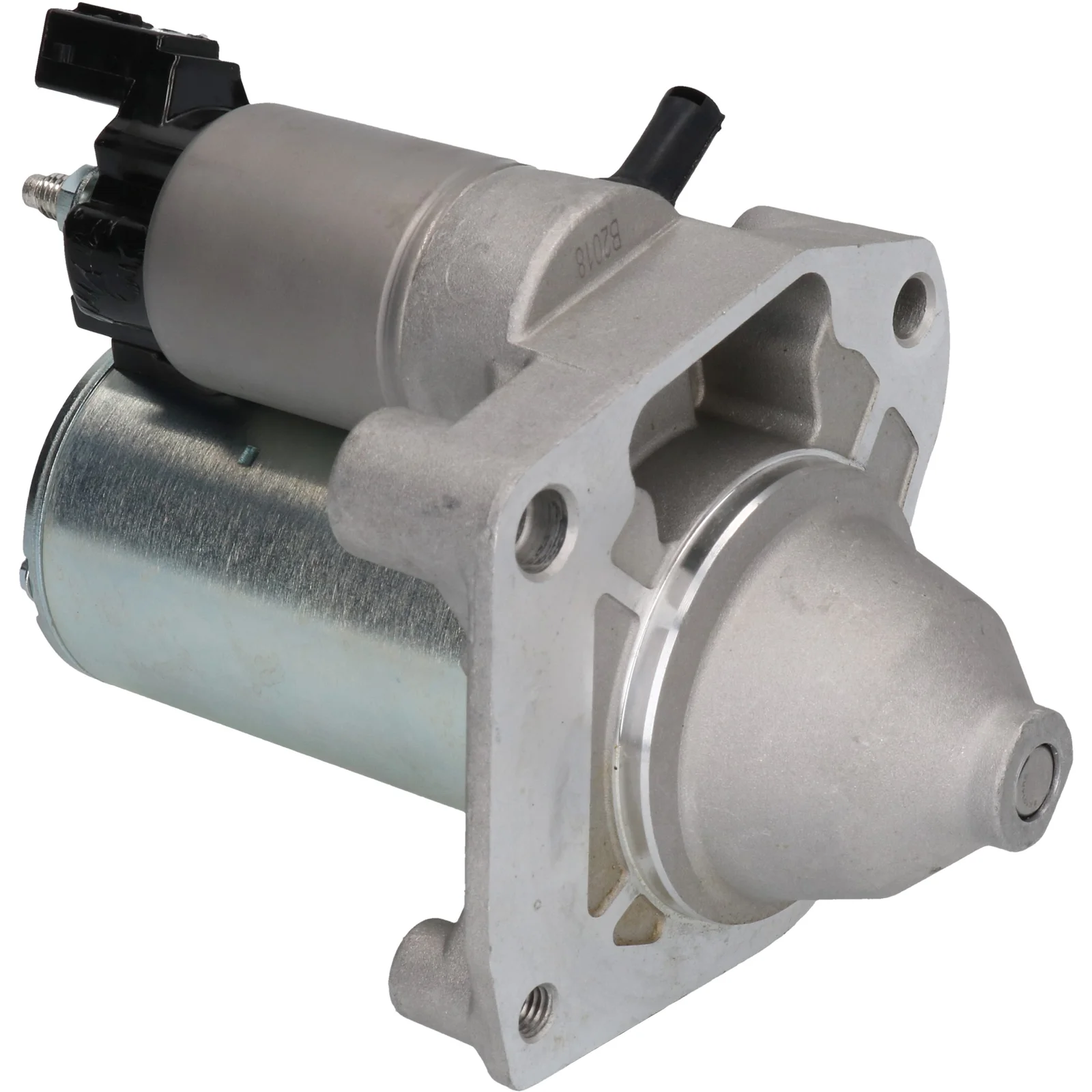

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116092

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mounting flange: 72.00
Drive distance: 14.00
Mounting hole 3 mm: 9.00
Mounting hole 1 mm: 9.00
Distance/back: 132.00
Distance/front: 46.50
Number/teeth: 10
B+: M8
Position/50: 55
Terminal 50: Plug
Gear type: GR
Distance 2: 75.00
Distance 3: 91.50
Distance mm: 124.00
Rotation: CW
Total length mm: 190.50
Production info: BN
Number/mounting holes: 3 (1)

Files

  • OEM
    F032116092, 1986S00985, 1986S01294, 428000-8331, 428000-8332, 3639503, 1608064680, 9671530880, 9688477380, 967153088002

  • Normalised article numbler
    cst40419, drs0931, dsn1368, f032116092, s6188denso, s6235s, 8ea011611611, 1986s00985, 1986s01294, 31233nos, 220970, 220970a, 255011, 255320, 457404, 458995, 3639503, 11090338, 42118817, 220536103, 0986027370, 1608064680, 4280008331, 4280008332, 9671530880, 9688477380, 967153088002
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 72.00
    Drive distance: 14.00
    Mounting hole 3 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance/back: 132.00
    Distance/front: 46.50
    Number/teeth: 10
    B+: M8
    Position/50: 55
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 75.00
    Distance 3: 91.50
    Distance mm: 124.00
    Rotation: CW
    Total length mm: 190.50
    Production info: BN
    Number/mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116092, 1986S00985, 1986S01294, 428000-8331, 428000-8332, 3639503, 1608064680, 9671530880, 9688477380, 967153088002

    • Normalised article numbler
      cst40419, drs0931, dsn1368, f032116092, s6188denso, s6235s, 8ea011611611, 1986s00985, 1986s01294, 31233nos, 220970, 220970a, 255011, 255320, 457404, 458995, 3639503, 11090338, 42118817, 220536103, 0986027370, 1608064680, 4280008331, 4280008332, 9671530880, 9688477380, 967153088002
