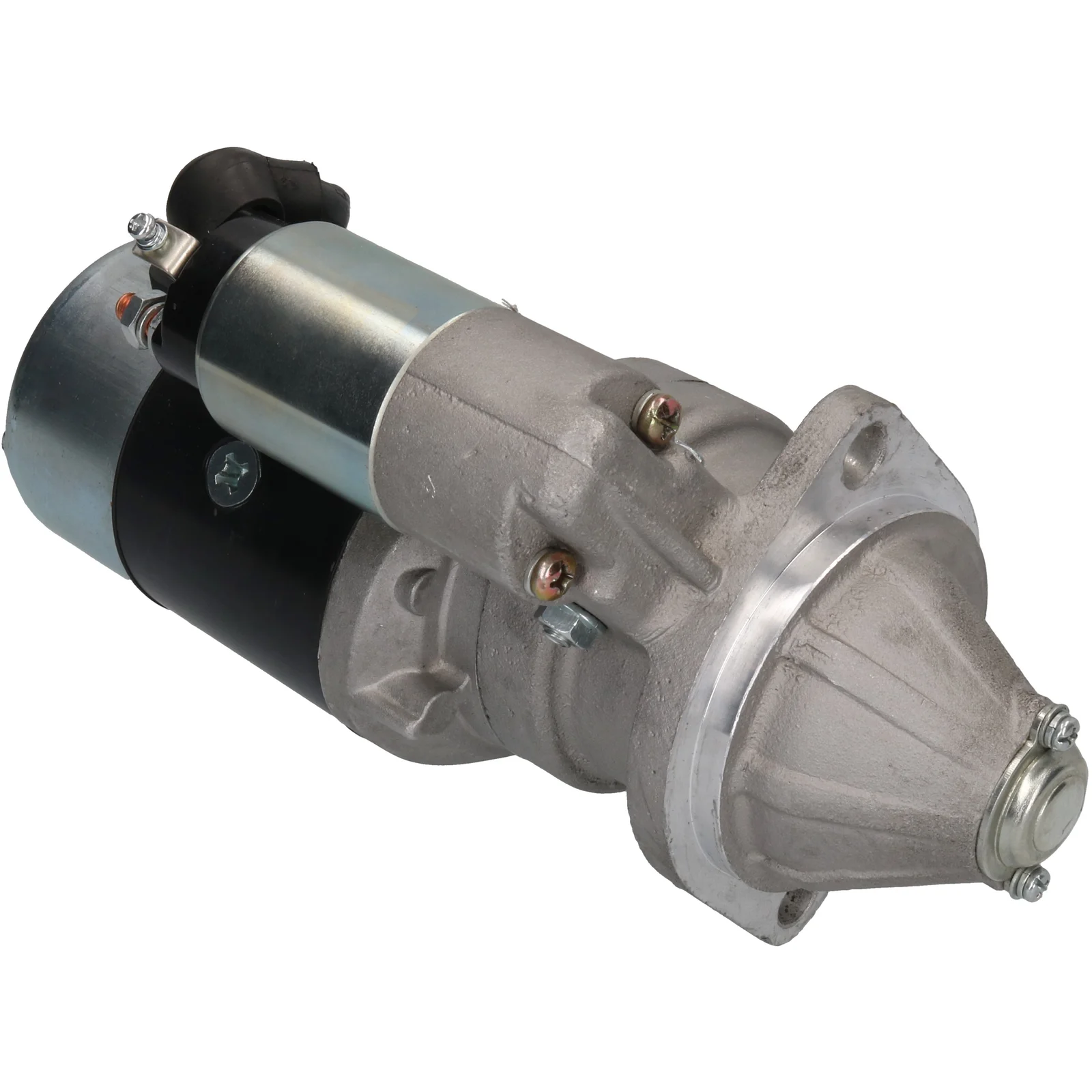

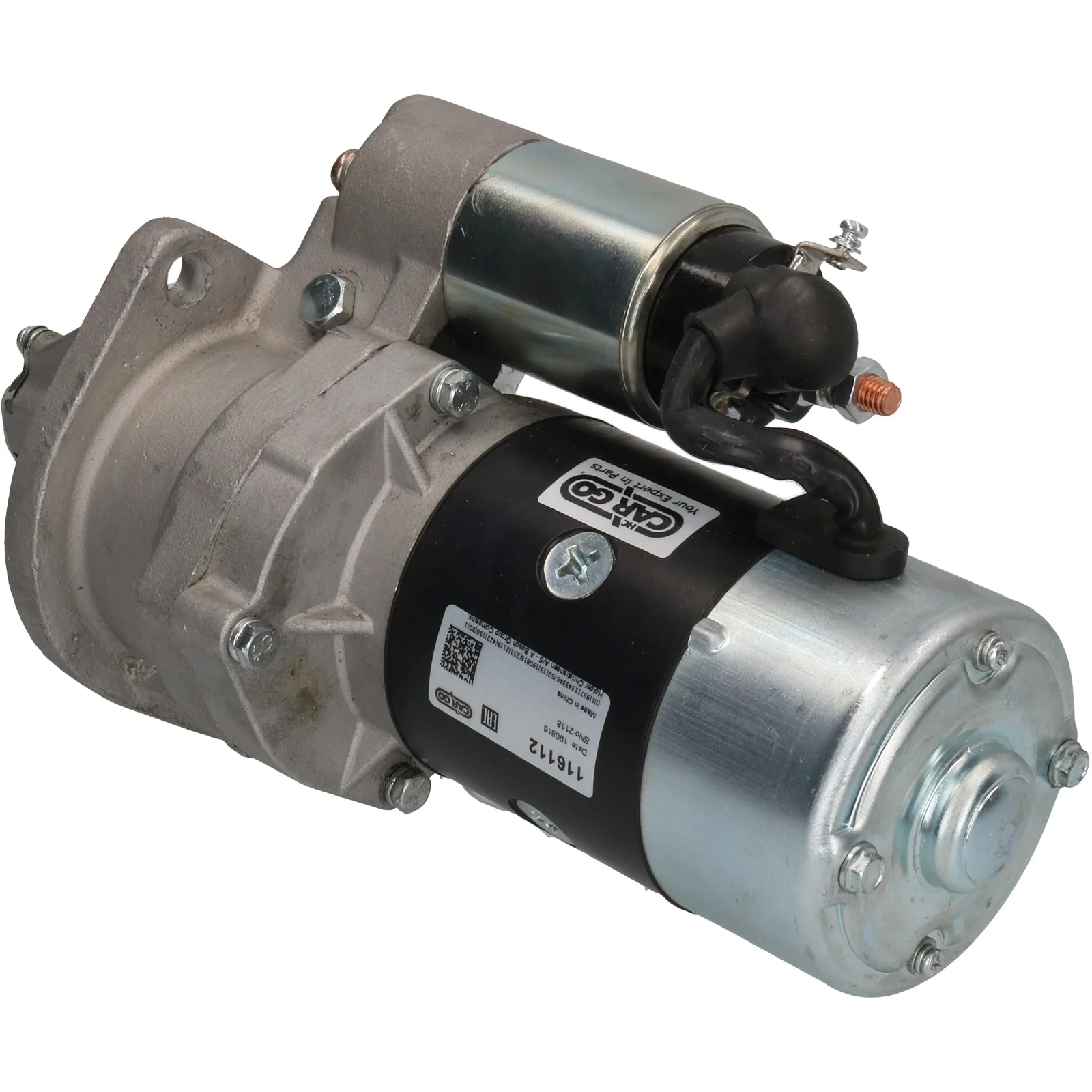

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116112

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 15, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 95.00
Drive distance: 19.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 234.00
Distance / front: 63.50
Number / teeth: 15
B+: M8
Position / B+: 20
Position / 50: 5
Terminal 50: M4
Gear type: GR
Distance mm: 120.00
Rotation: CW
Total length mm: 297.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032116112, MG120558, s13-41, s13-41a, s13-41b, s13-41c, s13-41d, 121254-77010, 121254-77011, 121254-77012, 121254-77019

  • Normalised article numbler
    cst20134, cst20148, drs0052, drs0106, f032116112, les0113, lrs01206, lrs01308, mg120558, s1341, s1341a, s1341b, s1341c, s1341d, s2044, 19839n, 220578, 220578a, 251273, 254032, 11040698, 682012152, 12125477010, 12125477011, 12125477012, 12125477019
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 95.00
    Drive distance: 19.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 234.00
    Distance / front: 63.50
    Number / teeth: 15
    B+: M8
    Position / B+: 20
    Position / 50: 5
    Terminal 50: M4
    Gear type: GR
    Distance mm: 120.00
    Rotation: CW
    Total length mm: 297.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116112, MG120558, s13-41, s13-41a, s13-41b, s13-41c, s13-41d, 121254-77010, 121254-77011, 121254-77012, 121254-77019

    • Normalised article numbler
      cst20134, cst20148, drs0052, drs0106, f032116112, les0113, lrs01206, lrs01308, mg120558, s1341, s1341a, s1341b, s1341c, s1341d, s2044, 19839n, 220578, 220578a, 251273, 254032, 11040698, 682012152, 12125477010, 12125477011, 12125477012, 12125477019
