HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116136

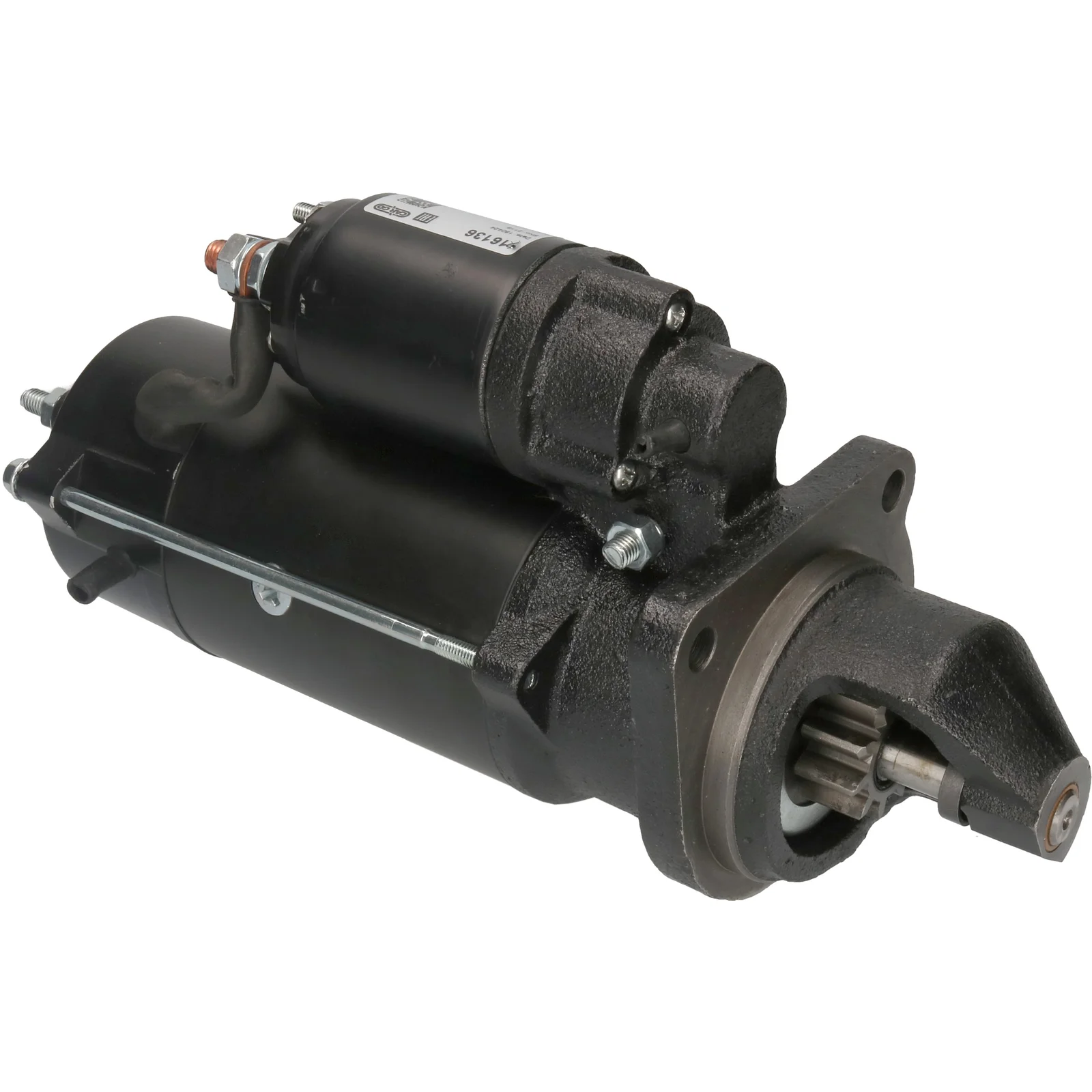

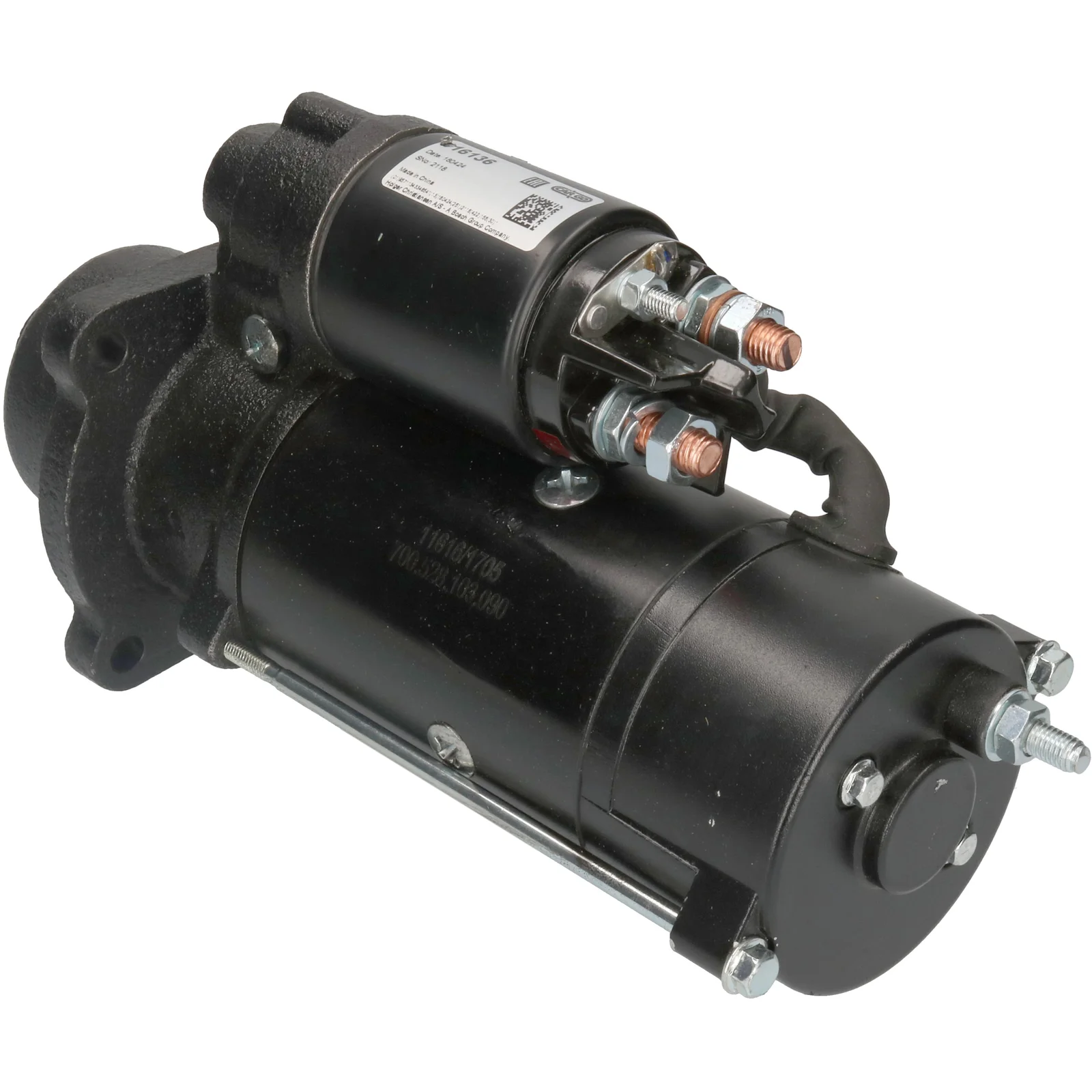

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.2
Mounting flange: 89.00
Drive distance: 29.50
Mounting hole 3 mm: 11.30
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 268.00
Distance/front: 77.50
Number/teeth: 10
B+: M10
Position/50: 55
Terminal 50: M6
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Position/b-: 10
B-: M8
Total length mm: 345.00
Number/mounting holes: 3 (0)

Files

  • OEM
    AZF4205, F032116136, 11.131.783, 2873k607, 2873K608, 2873K612

  • Normalised article numbler
    azf4205, cst21149, f032116136, is1194, ms401, s9234, 2873k607, 2873k608, 2873k612, 33408n, 11131783, 700528103
  • Description
    Voltage: 12
    kW: 4.2
    Mounting flange: 89.00
    Drive distance: 29.50
    Mounting hole 3 mm: 11.30
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 268.00
    Distance/front: 77.50
    Number/teeth: 10
    B+: M10
    Position/50: 55
    Terminal 50: M6
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Position/b-: 10
    B-: M8
    Total length mm: 345.00
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4205, F032116136, 11.131.783, 2873k607, 2873K608, 2873K612

    • Normalised article numbler
      azf4205, cst21149, f032116136, is1194, ms401, s9234, 2873k607, 2873k608, 2873k612, 33408n, 11131783, 700528103
