HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116261

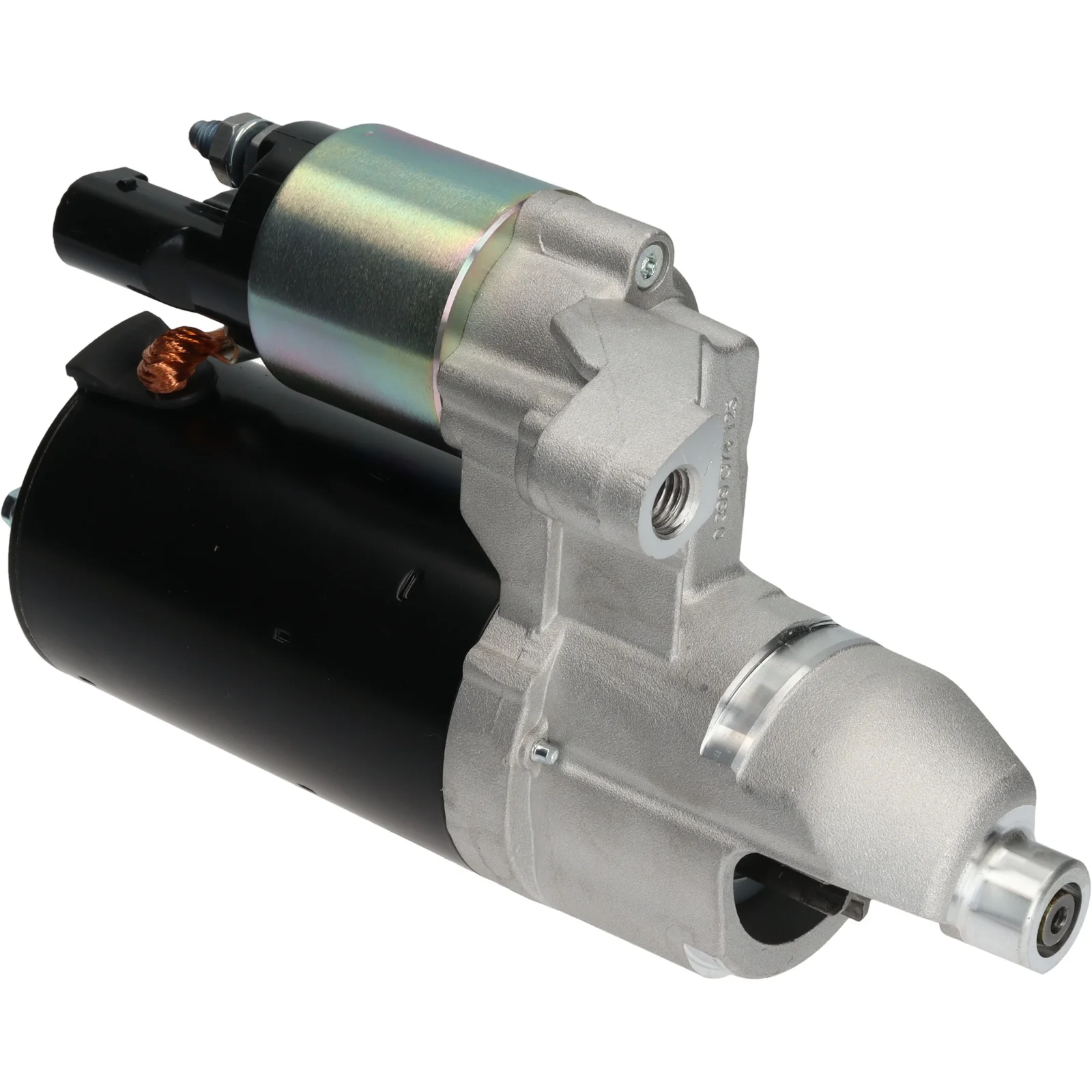

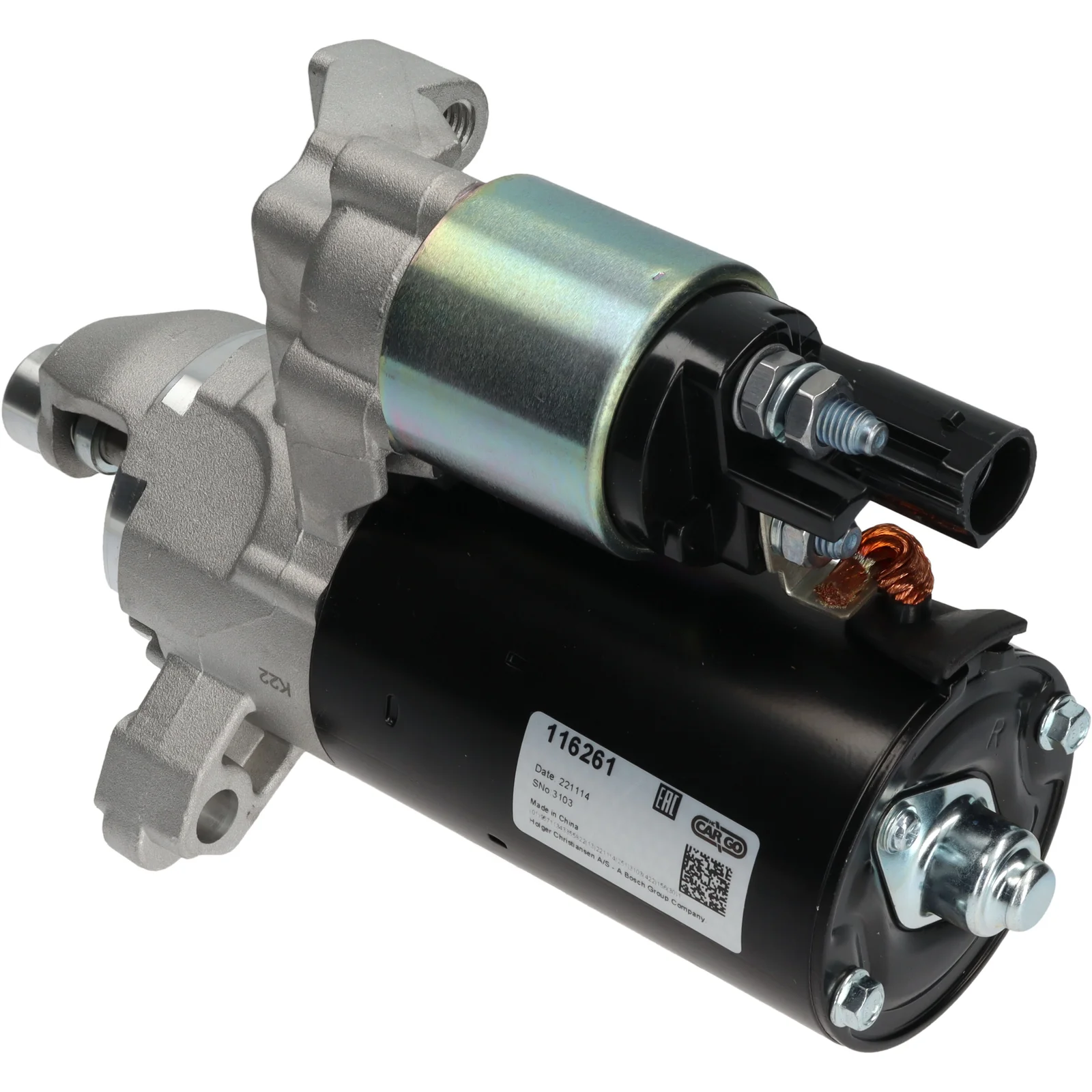

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mounting flange: 66.00
Drive distance: 22.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: M12
Distance / back: 182.00
Distance / front: 59.50
Number / teeth: 10
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 138.50
Rotation: CW
Total length in millimeters: 242.00
Drive type: Steel
Number / mounting holes: 2 (1)

Files

  • OEM
    F032116261, 04L911021, 04L911021X, 1986S01347, 0001174404, 0001174405

  • Normalised article numbler
    cst10a02, drs0936, f032116261, s0624pr, s0624s, 04l911021, 04l911021x, 1986s01347, 30858ntba, 30858os, 0001174404, 0001174405, 11090362, 0986026520
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 66.00
    Drive distance: 22.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: M12
    Distance / back: 182.00
    Distance / front: 59.50
    Number / teeth: 10
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 138.50
    Rotation: CW
    Total length in millimeters: 242.00
    Drive type: Steel
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116261, 04L911021, 04L911021X, 1986S01347, 0001174404, 0001174405

    • Normalised article numbler
      cst10a02, drs0936, f032116261, s0624pr, s0624s, 04l911021, 04l911021x, 1986s01347, 30858ntba, 30858os, 0001174404, 0001174405, 11090362, 0986026520
