HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116267

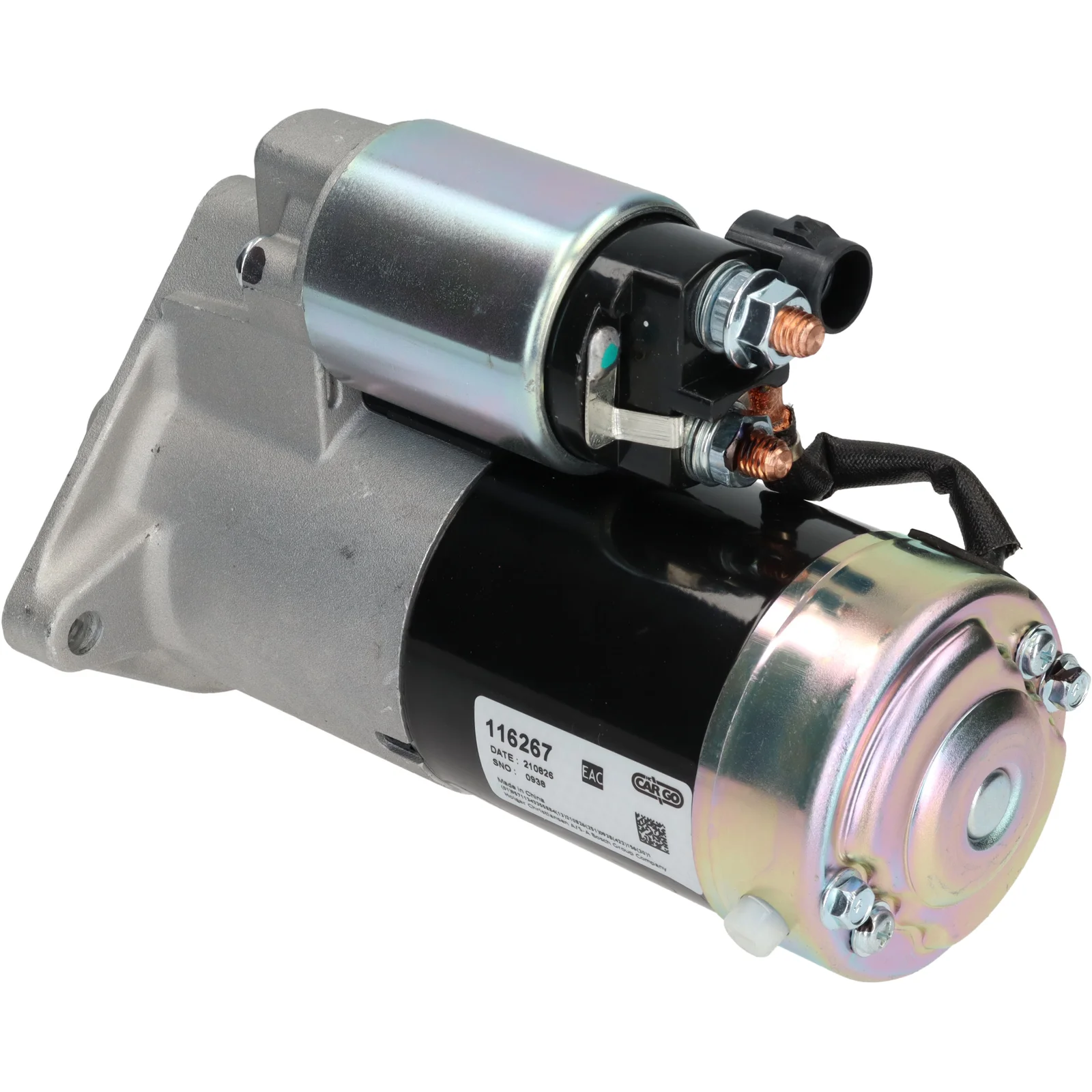

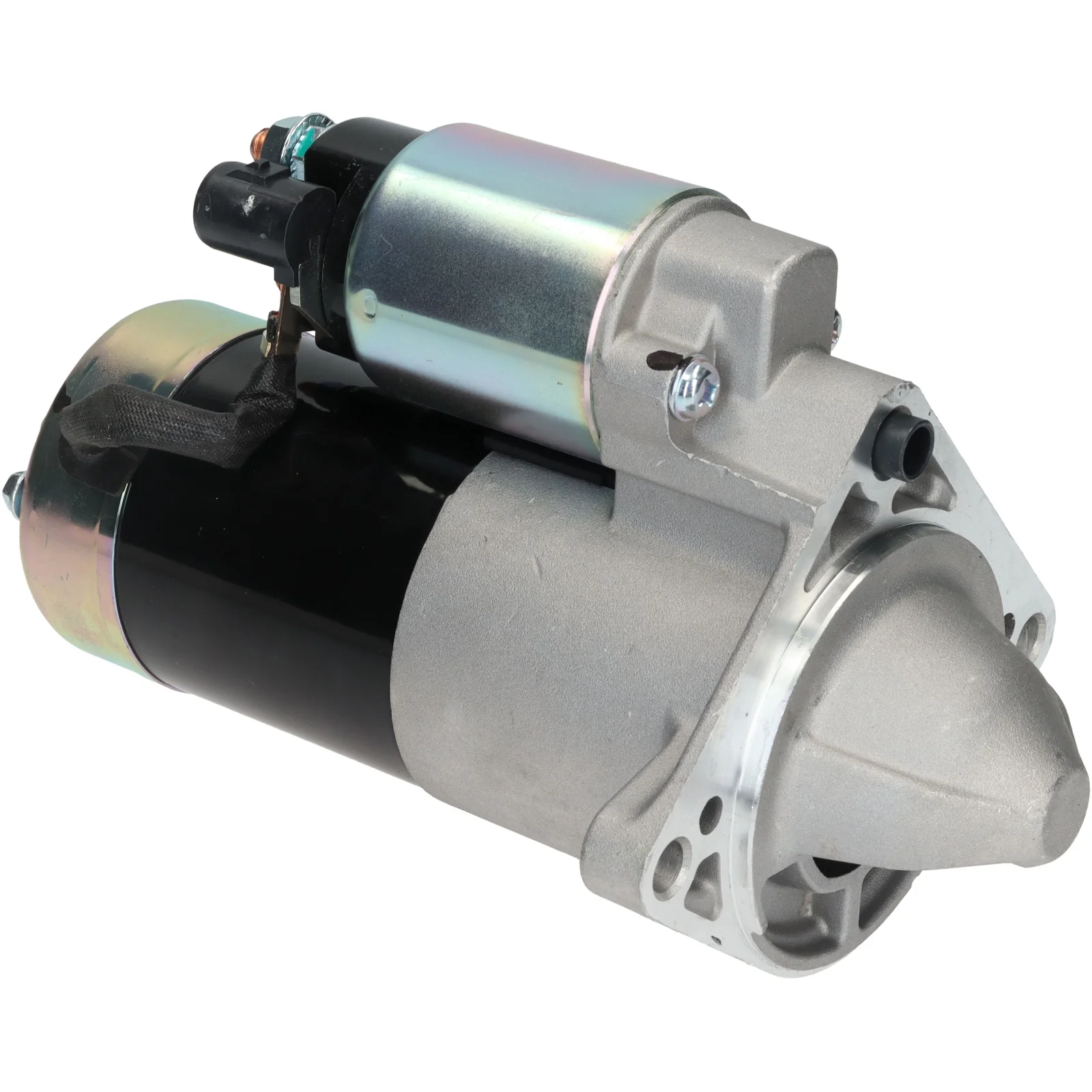

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.8
Mounting flange: 82.00
Drive distance: 3.50
Mounting hole 2 mm: 8.80
Mounting hole 1 mm: 8.80
Distance / back: 182.00
Distance / front: 41.00
Number / teeth: 10
B+: M8
Position / B+: 60
Position / 50: 10
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 116.00
Rotation: CW
Total length in millimeters: 223.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032116267, K56029591AB, M001T31171, M001T31171ZC, M1T31171, M1T31171ZC, 56029591AB

  • Normalised article numbler
    drs0926, f032116267, k56029591ab, lrs02708, m001t31171, m001t31171zc, m1t31171, m1t31171zc, s5377s, 220855, 220855a, 11040876, 56029591ab, 830937102
  • Description
    Voltage: 12
    kW: 1.8
    Mounting flange: 82.00
    Drive distance: 3.50
    Mounting hole 2 mm: 8.80
    Mounting hole 1 mm: 8.80
    Distance / back: 182.00
    Distance / front: 41.00
    Number / teeth: 10
    B+: M8
    Position / B+: 60
    Position / 50: 10
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 116.00
    Rotation: CW
    Total length in millimeters: 223.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116267, K56029591AB, M001T31171, M001T31171ZC, M1T31171, M1T31171ZC, 56029591AB

    • Normalised article numbler
      drs0926, f032116267, k56029591ab, lrs02708, m001t31171, m001t31171zc, m1t31171, m1t31171zc, s5377s, 220855, 220855a, 11040876, 56029591ab, 830937102
