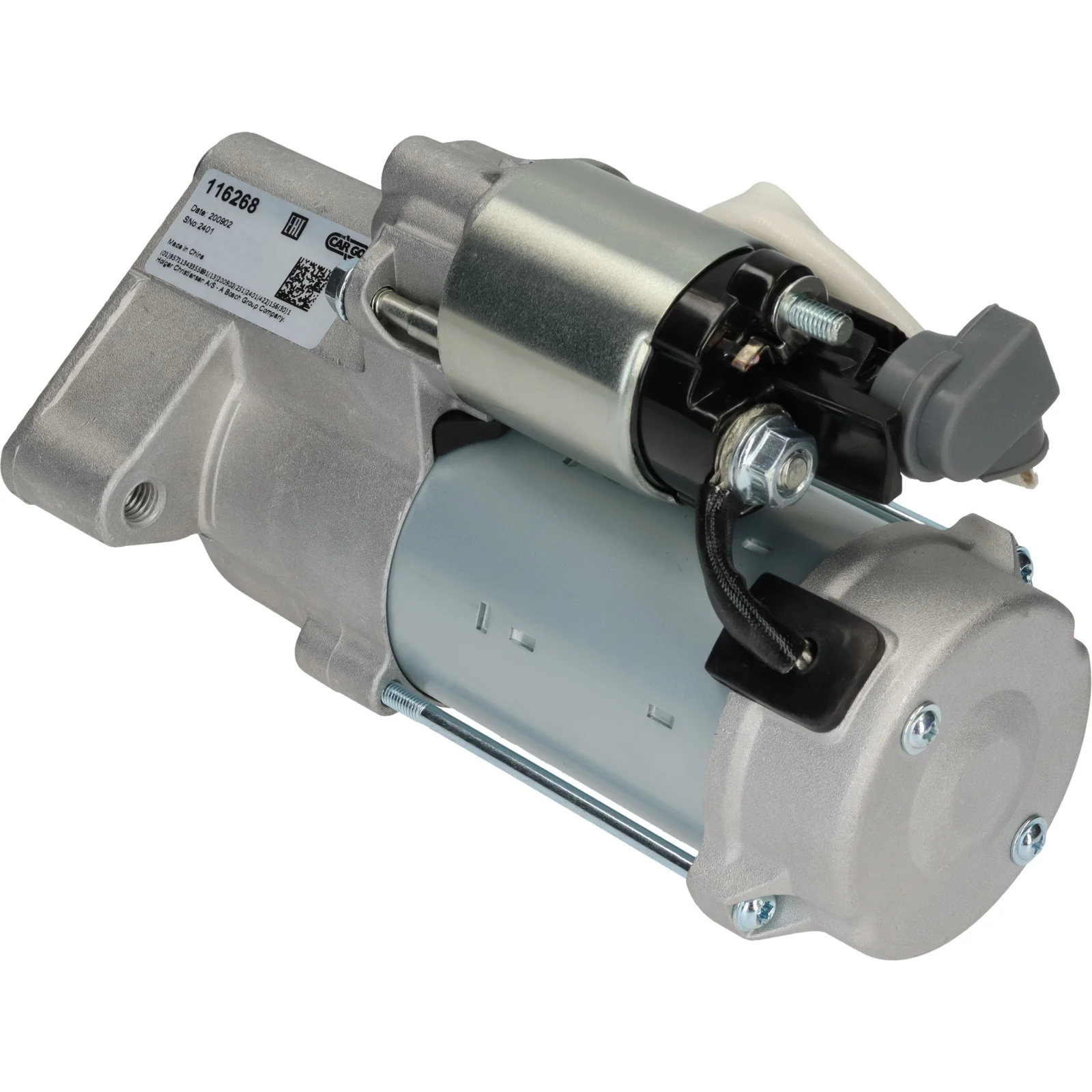

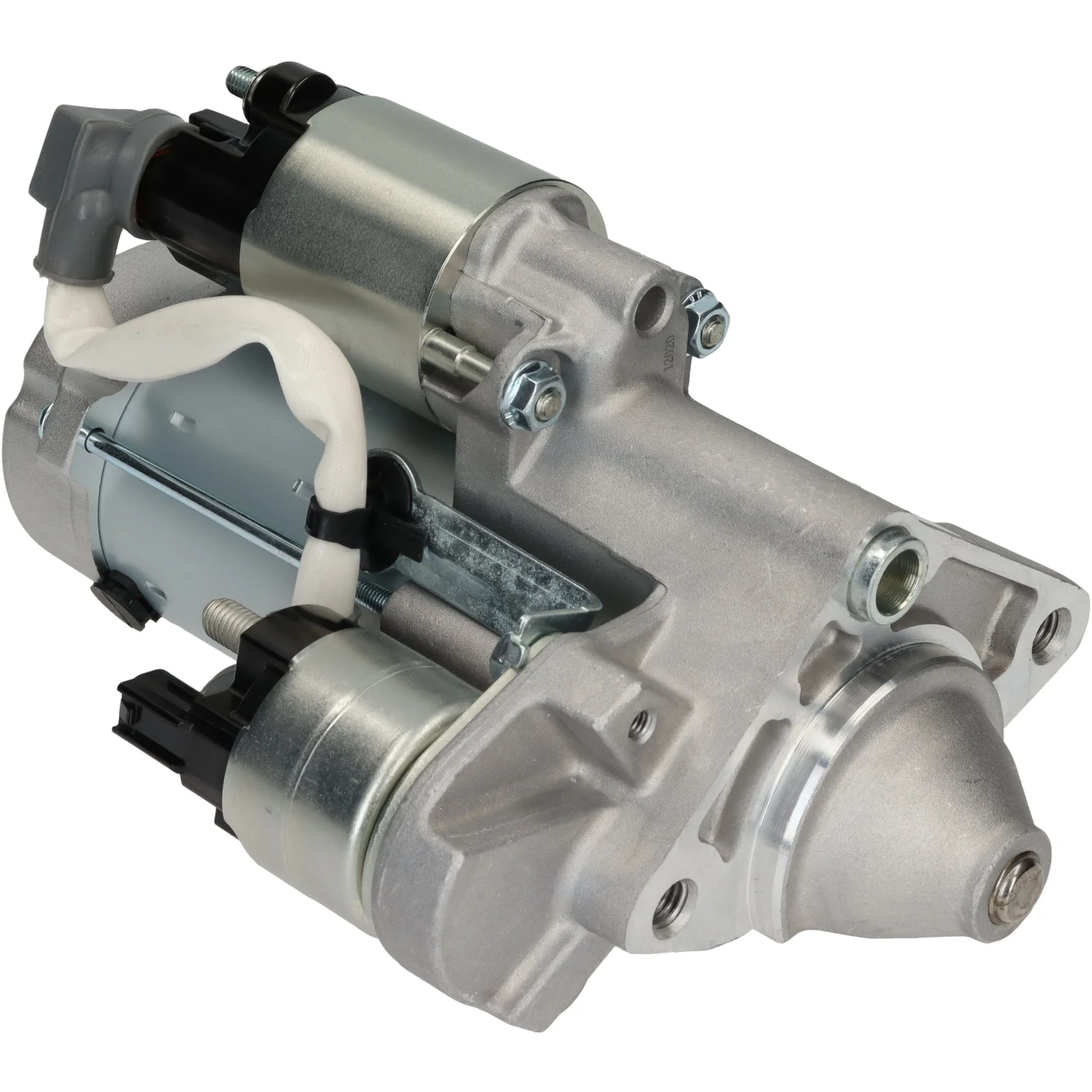

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116268

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 1.8
Mounting flange: 62.00
Drive distance: -5.00
Mounting hole 3 mm: M10
Distance/back: 197.00
Distance/front: 34.50
Number of teeth: 13
B+: M8
Position/50: 60
Terminal 50: M6
Gear type: GR
Distance 2: 66.50
Distance 3: 66.00
Distance mm: 103.00
Rotation: CW
Total length mm: 231.50
Number of mounting holes: 3 (3)

Files

  • OEM
    DS7T11000LD, DS7T11000LE, F032116268, 438000-0270, 1870892, 2415036

  • Normalised article numbler
    cst40521, ds7t11000ld, ds7t11000le, f032116268, lrs02755, s6435s, 8ea011612831, 220835, 220835a, 254428, 1870892, 2415036, 11090376, 42003003, 590590133, 0986026620, 4380000270
  • Description
    Voltage: 12
    kW: 1.8
    Mounting flange: 62.00
    Drive distance: -5.00
    Mounting hole 3 mm: M10
    Distance/back: 197.00
    Distance/front: 34.50
    Number of teeth: 13
    B+: M8
    Position/50: 60
    Terminal 50: M6
    Gear type: GR
    Distance 2: 66.50
    Distance 3: 66.00
    Distance mm: 103.00
    Rotation: CW
    Total length mm: 231.50
    Number of mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      DS7T11000LD, DS7T11000LE, F032116268, 438000-0270, 1870892, 2415036

    • Normalised article numbler
      cst40521, ds7t11000ld, ds7t11000le, f032116268, lrs02755, s6435s, 8ea011612831, 220835, 220835a, 254428, 1870892, 2415036, 11090376, 42003003, 590590133, 0986026620, 4380000270
