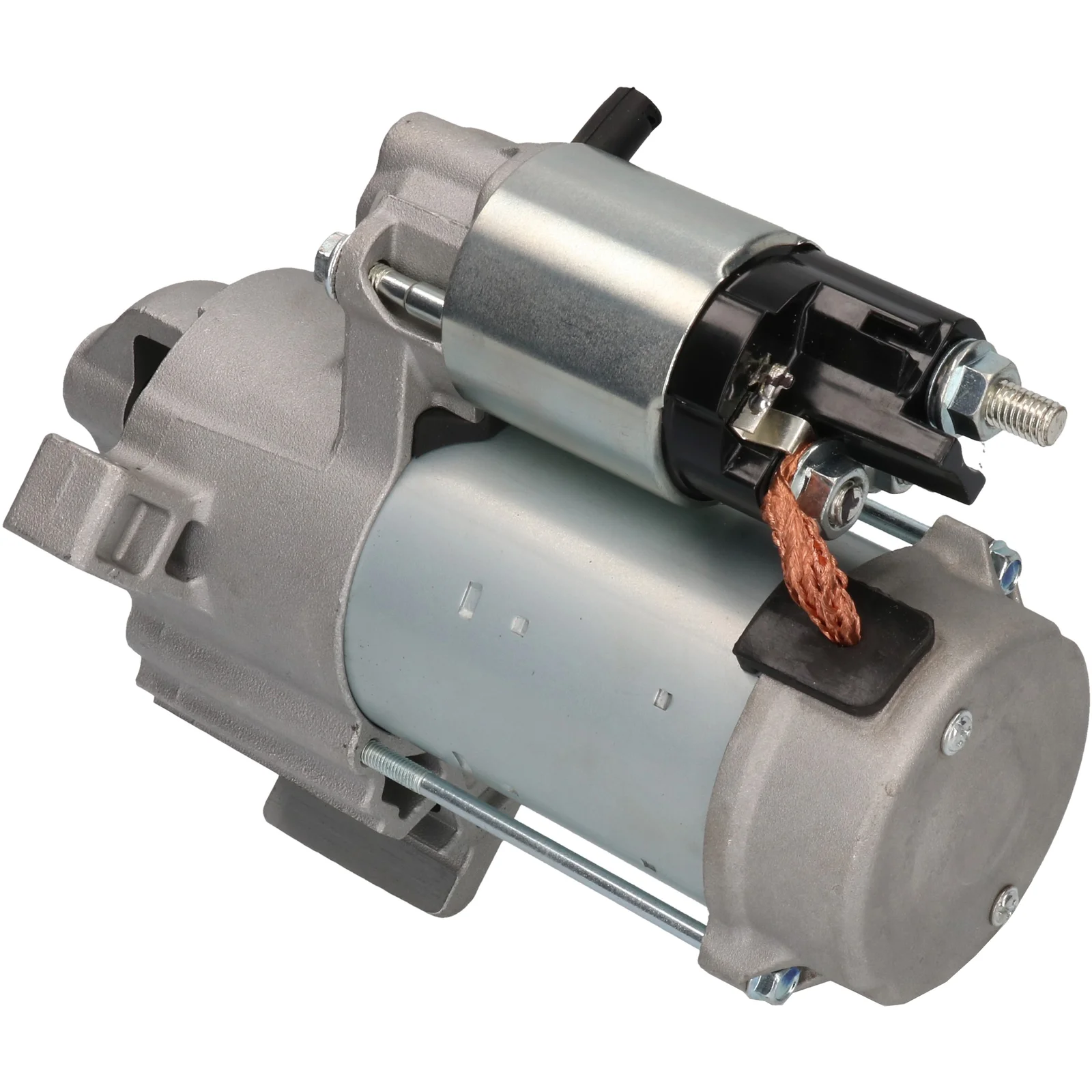

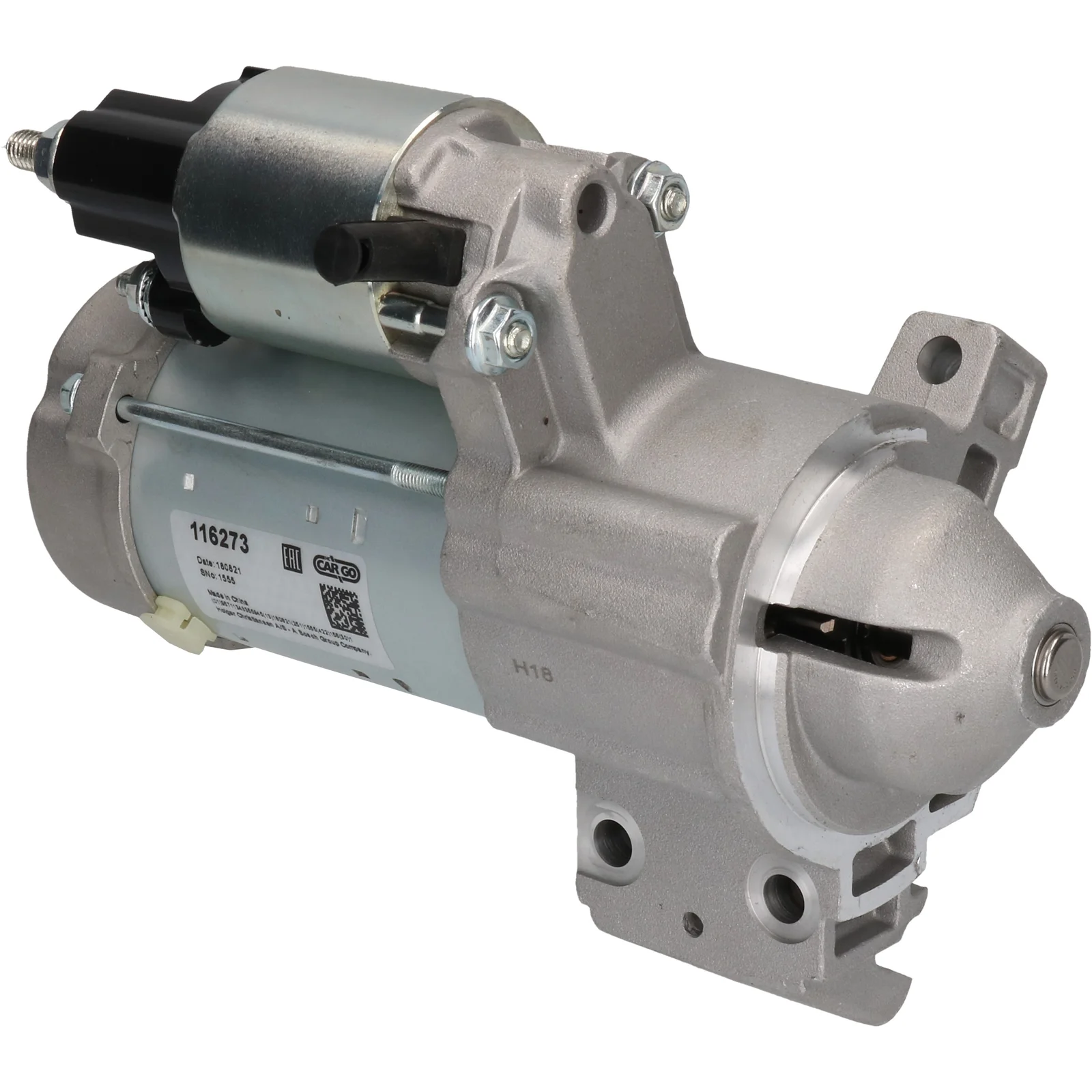

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116273

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 13, Rotation: CW

Description

HC-Cargo Starter motor 12V - 1.8kW, 13

Voltage: 12
kW: 1.8
Mounting flange: 68.00
Drive distance: 6.00
Mounting hole 3 mm: 9.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance/back: 176.00
Distance/front: 40.00
Number/teeth: 13
B+: M8
Position/50: 22
Terminal 50: M6
Gear type: GR
Rotation: CW
Total length mm: 216.00
Number/mounting holes: 3 (0)

Files

  • OEM
    F032116273, 1986S00612, 116273, 438000-0490, 438000-0491, 438000-0492, 438000-0493, 438000-0494, 438000-0496, 4380000-0491, 4380000-0494, 8570846, 857084602, 857084604, 12418570846, 12418577010

  • Normalised article numbler
    cst40502, f032116273, s6307s, 1986s00612, 30607os, 116273, 255044, 458939, 8570846, 11090373, 210557133, 315063132, 857084602, 857084604, 0986026320, 4380000490, 4380000491, 4380000492, 4380000493, 4380000494, 4380000496, 12418570846, 12418577010, 43800000491, 43800000494
  • Description
    HC-Cargo Starter motor 12V - 1.8kW, 13

    Voltage: 12
    kW: 1.8
    Mounting flange: 68.00
    Drive distance: 6.00
    Mounting hole 3 mm: 9.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance/back: 176.00
    Distance/front: 40.00
    Number/teeth: 13
    B+: M8
    Position/50: 22
    Terminal 50: M6
    Gear type: GR
    Rotation: CW
    Total length mm: 216.00
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116273, 1986S00612, 116273, 438000-0490, 438000-0491, 438000-0492, 438000-0493, 438000-0494, 438000-0496, 4380000-0491, 4380000-0494, 8570846, 857084602, 857084604, 12418570846, 12418577010

    • Normalised article numbler
      cst40502, f032116273, s6307s, 1986s00612, 30607os, 116273, 255044, 458939, 8570846, 11090373, 210557133, 315063132, 857084602, 857084604, 0986026320, 4380000490, 4380000491, 4380000492, 4380000493, 4380000494, 4380000496, 12418570846, 12418577010, 43800000491, 43800000494
