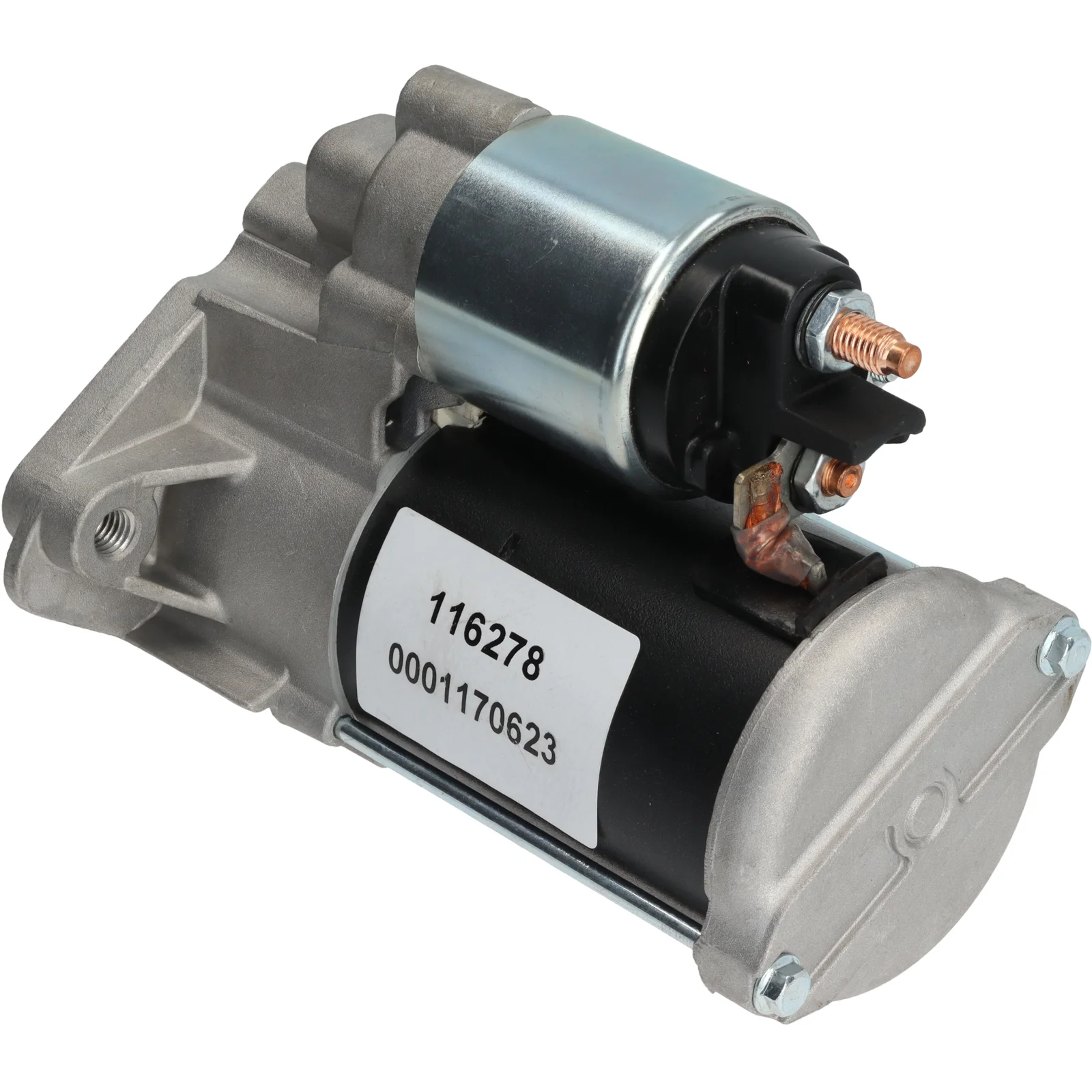

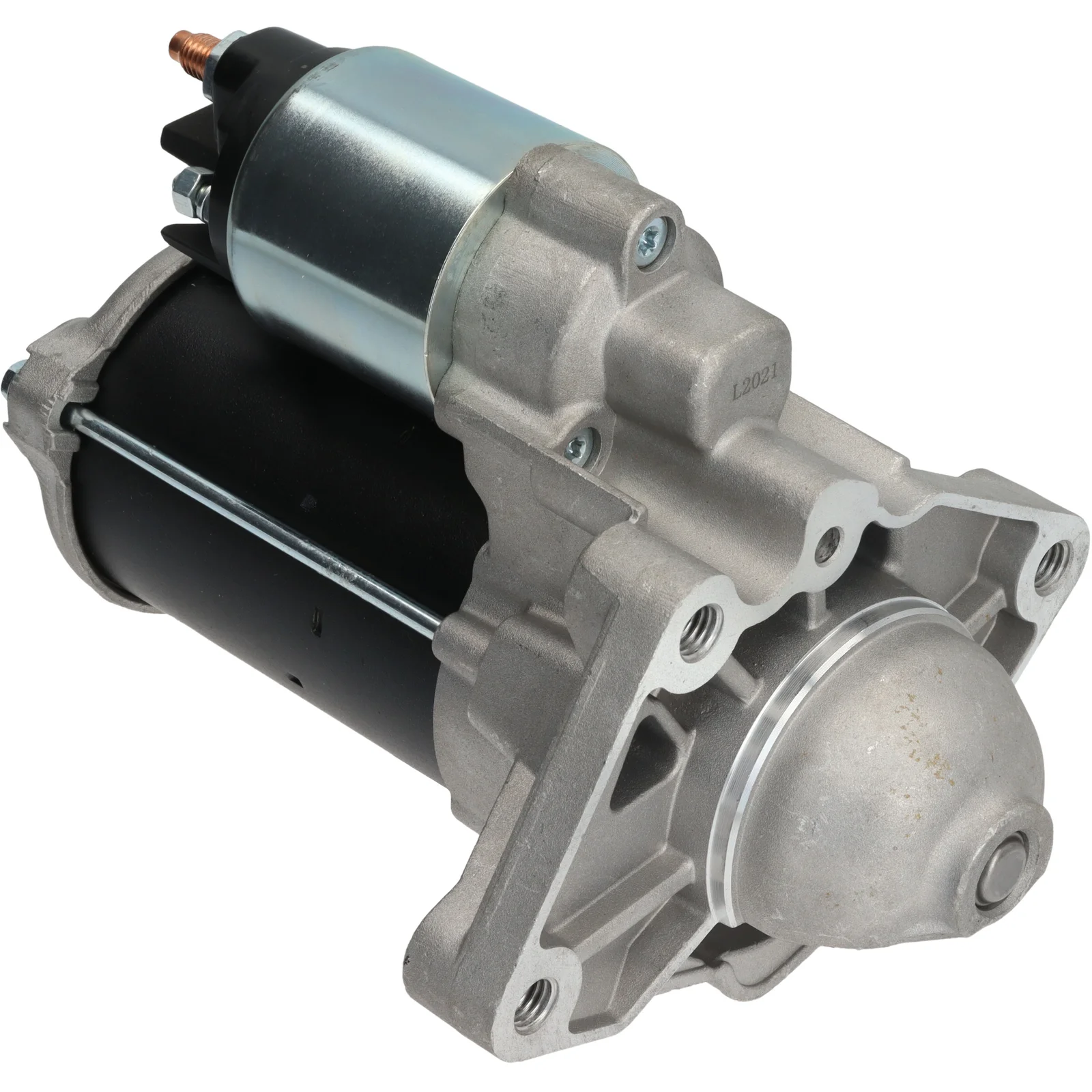

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116278

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.5, No./teeth: 12, Rotation: CW

Description

HC-Cargo Starter motor 12V - 1.5kW, 12k

Voltage: 12
kW: 1.5
Mounting flange: 64.00
Drive distance: 0.00
Mounting hole 3 mm: M10
Distance/back: 164.00
Distance/front: 34.50
Number/teeth: 12
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 63.00
Distance 3: 94.50
Distance mm: 126.00
Rotation: CW
Total length mm: 198.50
Number/mounting holes: 3 (3)

Files

  • OEM
    F032116278, M000T39371, M000T39372, M000T39373, M0T-39371, M0T-39372, M0T-39373, M0T39371, M0T39372, M0T39373, 0001 170 607, 1986S00998, 23300-00Q2E, 23300-00Q2K, 23300-00Q2M, 23300-00Q3A, 23300-00Q4L, 23300-00Q5G, 23300-1596R, 23300-1596RE, 23300-1596REW, 23300-3131R, 23300-3131RE, 23300-3131REW, 23300-3131RR, 23300-3131RRP, 23300-3248R, 23300-3359R, 23300-3359RE, 23300-3359REW, 23300-4263R, 23300-8131R, 23300-8131RE, 23300-8131REW, 23300-8131RR, 23300-8131RRP, 23300-9590R, 116278, 0001170606, 0001170607, 0001170616, 0001170617, 0001170620, 0001170621, 0001170622, 0001170623, 1202510, 93451976, 93460824, 95520343, 233003131R, 233003248, 233003248R, 233009590

  • Normalised article numbler
    drs1006, drs1108, f032116278, m000t39371, m000t39372, m000t39373, m0t39371, m0t39372, m0t39373, s0699s, s5444s, 8ea011612661, 1986s00998, 33340, 33340n, 116278, 220773, 220773a, 255070, 438534, 458974, 0001170606, 0001170607, 0001170616, 0001170617, 0001170620, 0001170621, 0001170622, 0001170623, 1202510, 2330000q2e, 2330000q2k, 2330000q2m, 2330000q3a, 2330000q4l, 2330000q5g, 11040911, 93451976, 93460824, 95520343, 160907123, 233001596r, 233001596re, 233001596rew, 233003131r, 233003131re, 233003131rew, 233003131rr, 233003131rrp, 233003248, 233003248r, 233003359r, 233003359re, 233003359rew, 233004263r, 233008131r, 233008131re, 233008131rew, 233008131rr, 233008131rrp, 233009590, 233009590r, 327229122, 570587123, 0986026790, 0986026940, 0986027140
  • Description
    HC-Cargo Starter motor 12V - 1.5kW, 12k

    Voltage: 12
    kW: 1.5
    Mounting flange: 64.00
    Drive distance: 0.00
    Mounting hole 3 mm: M10
    Distance/back: 164.00
    Distance/front: 34.50
    Number/teeth: 12
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 63.00
    Distance 3: 94.50
    Distance mm: 126.00
    Rotation: CW
    Total length mm: 198.50
    Number/mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      F032116278, M000T39371, M000T39372, M000T39373, M0T-39371, M0T-39372, M0T-39373, M0T39371, M0T39372, M0T39373, 0001 170 607, 1986S00998, 23300-00Q2E, 23300-00Q2K, 23300-00Q2M, 23300-00Q3A, 23300-00Q4L, 23300-00Q5G, 23300-1596R, 23300-1596RE, 23300-1596REW, 23300-3131R, 23300-3131RE, 23300-3131REW, 23300-3131RR, 23300-3131RRP, 23300-3248R, 23300-3359R, 23300-3359RE, 23300-3359REW, 23300-4263R, 23300-8131R, 23300-8131RE, 23300-8131REW, 23300-8131RR, 23300-8131RRP, 23300-9590R, 116278, 0001170606, 0001170607, 0001170616, 0001170617, 0001170620, 0001170621, 0001170622, 0001170623, 1202510, 93451976, 93460824, 95520343, 233003131R, 233003248, 233003248R, 233009590

    • Normalised article numbler
      drs1006, drs1108, f032116278, m000t39371, m000t39372, m000t39373, m0t39371, m0t39372, m0t39373, s0699s, s5444s, 8ea011612661, 1986s00998, 33340, 33340n, 116278, 220773, 220773a, 255070, 438534, 458974, 0001170606, 0001170607, 0001170616, 0001170617, 0001170620, 0001170621, 0001170622, 0001170623, 1202510, 2330000q2e, 2330000q2k, 2330000q2m, 2330000q3a, 2330000q4l, 2330000q5g, 11040911, 93451976, 93460824, 95520343, 160907123, 233001596r, 233001596re, 233001596rew, 233003131r, 233003131re, 233003131rew, 233003131rr, 233003131rrp, 233003248, 233003248r, 233003359r, 233003359re, 233003359rew, 233004263r, 233008131r, 233008131re, 233008131rew, 233008131rr, 233008131rrp, 233009590, 233009590r, 327229122, 570587123, 0986026790, 0986026940, 0986027140
