HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116286

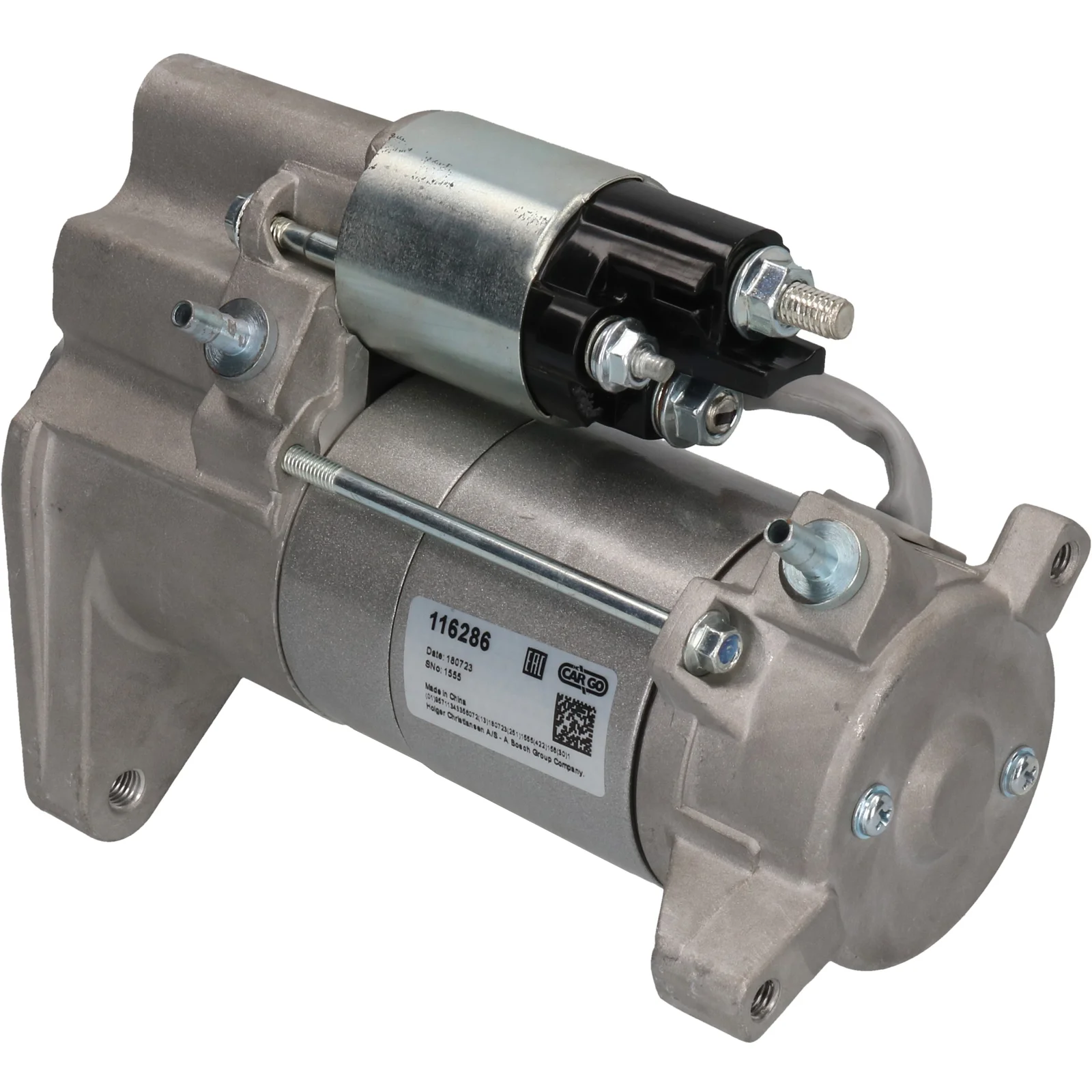

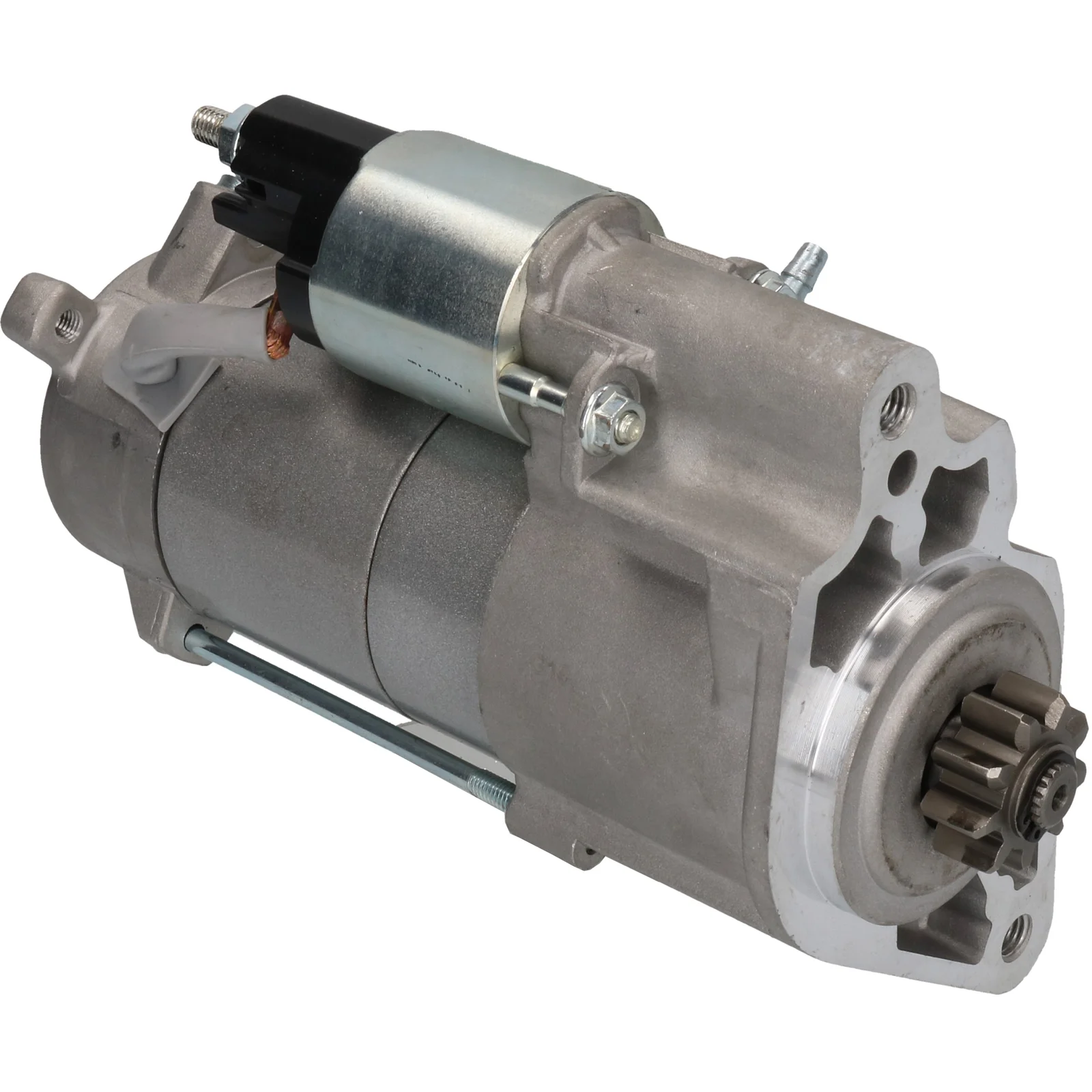

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 70.00
Drive distance: 25.50
Distance / back: 212.00
Distance / front: 30.00
Number / teeth: 9
B+: M8
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance in millimeters: 146.50
Rotation: CW
Total length in millimeters: 242.00
Number / mounting holes: 2 (2)

Files

  • OEM
    AH2211001AC, AH2211001AD, AH2211001AE, AH2211001AF, AH2211001AG, F032116286, LR013540, LR043924, LR052752, LR080299, 1986S00630, 428000-5950, 428000-5951, 428000-5952, 428000-5953

  • Normalised article numbler
    ah2211001ac, ah2211001ad, ah2211001ae, ah2211001af, ah2211001ag, cst40372, drs0918, dsn976, f032116286, lr013540, lr043924, lr052752, lr080299, lrs02616, 8ea011613141, 1986s00630, 30431n, 30431r, 220765, 220765a, 254289, 254467, 11040884, 314051092, 0986026550, 4280005950, 4280005951, 4280005952, 4280005953
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 70.00
    Drive distance: 25.50
    Distance / back: 212.00
    Distance / front: 30.00
    Number / teeth: 9
    B+: M8
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 146.50
    Rotation: CW
    Total length in millimeters: 242.00
    Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      AH2211001AC, AH2211001AD, AH2211001AE, AH2211001AF, AH2211001AG, F032116286, LR013540, LR043924, LR052752, LR080299, 1986S00630, 428000-5950, 428000-5951, 428000-5952, 428000-5953

    • Normalised article numbler
      ah2211001ac, ah2211001ad, ah2211001ae, ah2211001af, ah2211001ag, cst40372, drs0918, dsn976, f032116286, lr013540, lr043924, lr052752, lr080299, lrs02616, 8ea011613141, 1986s00630, 30431n, 30431r, 220765, 220765a, 254289, 254467, 11040884, 314051092, 0986026550, 4280005950, 4280005951, 4280005952, 4280005953
