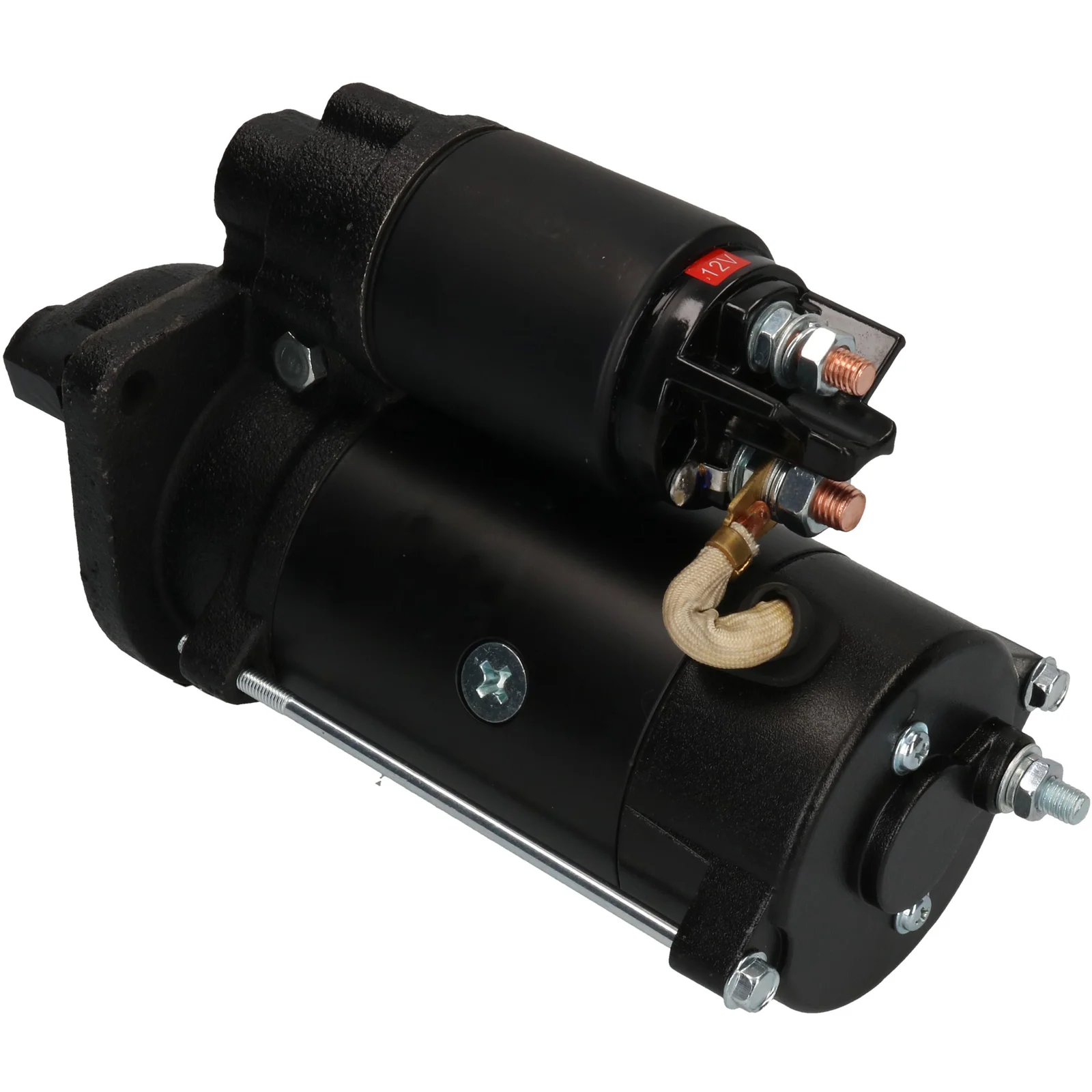

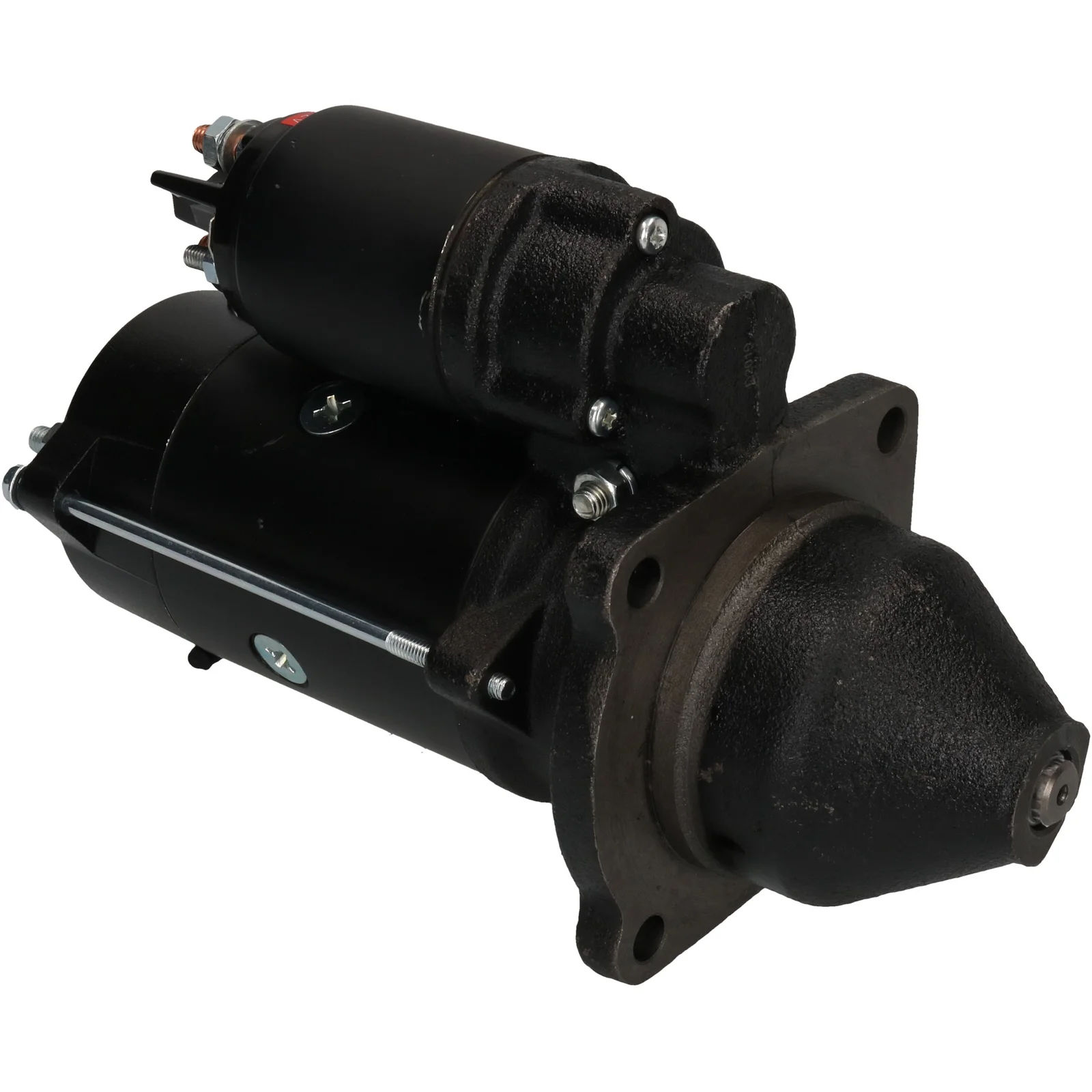

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116308

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.2
Mount. flange: 89.00
Drive distance: 29.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 200.00
Distance / front: 76.00
Number / teeth: 10
B+: M8
Position / B+: 60
Thread length mm: 15.00
Position / 50: 20
Terminal 50: M6
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Position / b-: 10
B-: M8
Total length mm: 296.50
Prod. info: BN
Remarks: Iskra version.
Number / mount holes: 3 (0)

Files

  • OEM
    AZE4150, AZE4170, AZE4173, AZE4175, AZE4197, AZE4201, AZE4220, AZF4545, F032116308, T410865, T412689, 9HM12008A6A, 11.131.077, 11.131.605, 11.131.761, 11.131.781, 11.131.793, 11.131.942, 11.131.947, 11.131.989, 11.132.036, 225-3149, 312-7540, 329-0290, 365-3422, 714-40159, 714-40231, 2873K624, 2873K625, 2873K626, 2873K634, 3873k625, 3873K627, 605002, 958579, 3542185M93, 3575203, 3821818M91, 26194600, 29194800, 63227479

  • Normalised article numbler
    aze4150, aze4170, aze4173, aze4175, aze4197, aze4201, aze4220, azf4545, cst21108, cst21187, drs3954, drs3954n, f032116308, is1201, isk1201, les0393, lrs02477, ms399, s9087, s9098, s9098letrika, s9364s, t410865, t412689, 9hm12008a6a, 2873k624, 2873k625, 2873k626, 2873k634, 3873k625, 3873k627, 18940nik, 18940r, 220702, 220702a, 254149, 254358, 605002, 958579, 2253149, 3127540, 3290290, 3542185m93, 3575203, 3653422, 3821818m91, 11131077, 11131605, 11131761, 11131781, 11131793, 11131942, 11131947, 11131989, 11132036, 26194600, 29194800, 63227479, 71440159, 71440231
  • Description
    Voltage: 12
    kW: 3.2
    Mount. flange: 89.00
    Drive distance: 29.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 200.00
    Distance / front: 76.00
    Number / teeth: 10
    B+: M8
    Position / B+: 60
    Thread length mm: 15.00
    Position / 50: 20
    Terminal 50: M6
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Position / b-: 10
    B-: M8
    Total length mm: 296.50
    Prod. info: BN
    Remarks: Iskra version.
    Number / mount holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4150, AZE4170, AZE4173, AZE4175, AZE4197, AZE4201, AZE4220, AZF4545, F032116308, T410865, T412689, 9HM12008A6A, 11.131.077, 11.131.605, 11.131.761, 11.131.781, 11.131.793, 11.131.942, 11.131.947, 11.131.989, 11.132.036, 225-3149, 312-7540, 329-0290, 365-3422, 714-40159, 714-40231, 2873K624, 2873K625, 2873K626, 2873K634, 3873k625, 3873K627, 605002, 958579, 3542185M93, 3575203, 3821818M91, 26194600, 29194800, 63227479

    • Normalised article numbler
      aze4150, aze4170, aze4173, aze4175, aze4197, aze4201, aze4220, azf4545, cst21108, cst21187, drs3954, drs3954n, f032116308, is1201, isk1201, les0393, lrs02477, ms399, s9087, s9098, s9098letrika, s9364s, t410865, t412689, 9hm12008a6a, 2873k624, 2873k625, 2873k626, 2873k634, 3873k625, 3873k627, 18940nik, 18940r, 220702, 220702a, 254149, 254358, 605002, 958579, 2253149, 3127540, 3290290, 3542185m93, 3575203, 3653422, 3821818m91, 11131077, 11131605, 11131761, 11131781, 11131793, 11131942, 11131947, 11131989, 11132036, 26194600, 29194800, 63227479, 71440159, 71440231
