HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116312

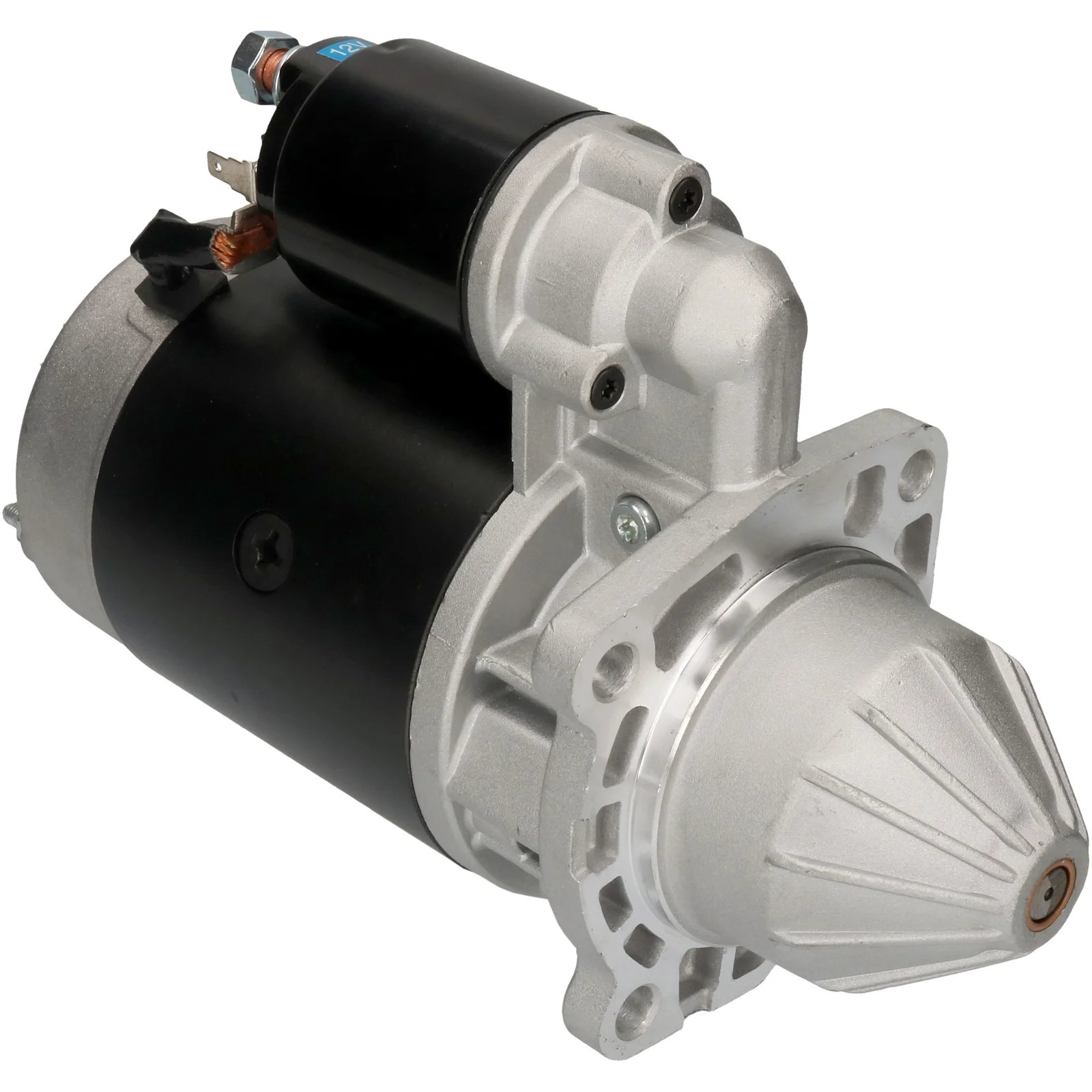

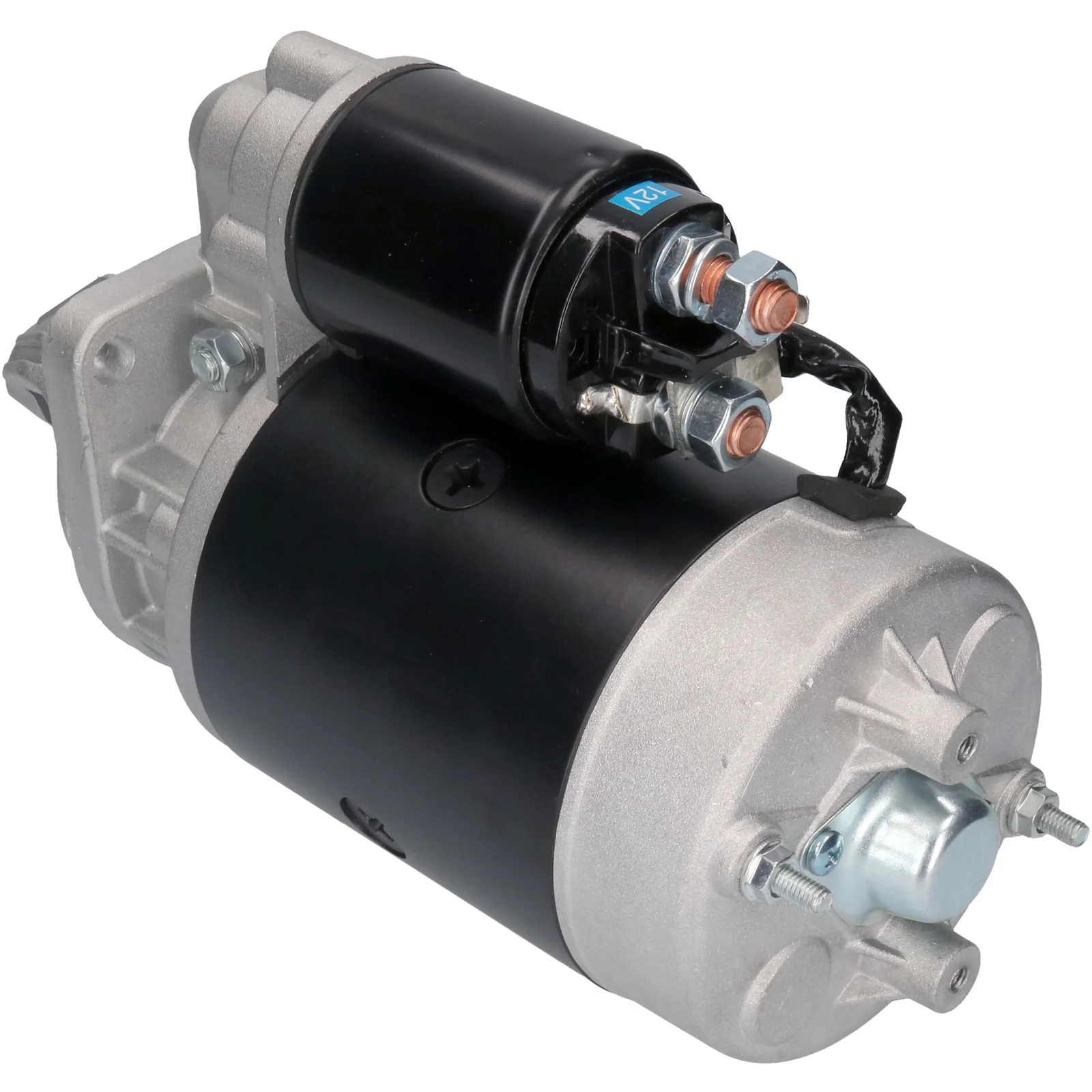

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 9, Rotation: CW

Description

Deutz Starter motor 12V-2.7kW 12V - 2.7kW, 9k Alternative: 91-273-1120 (3.0kW) 91-273-2014 (4.0kW) For Yourex product order 91-273-1099

Voltage: 12
kW: 2.7
Mounting flange: 89.00
Drive distance: 28.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 216.00
Distance / front: 72.00
No. / teeth: 9
B+: M10
Position / 50: 15
Terminal 50: 6.30
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 293.00
Remarks: Bosch type.
No. / mounting holes: 3 (0)

Files

  • OEM
    B5R12X4H7622, F032116312, M0041572, X830 100 001, X830100007, 0001 358 046, 0001 358 049, 0001 362 016, 0001 362 034, 0001 362 091, 0001 362 305, 116 4668, 117 5886, 0986 010 990, 1986S00992, 017769, 0001358027, 0001358044, 0001358046, 0001358049, 0001358073, 0001358305, 0001359003, 0001359012, 0001359027, 0001359046, 0001359049, 0001359073, 0001359078, 0001362016, 0001362034, 0001362091, 0001362305, 6104024, 9142803, 70756112, 6005030686

  • Normalised article numbler
    b5r12x4h7622, cst10449, cst21100, drs0990, drs1060, drs1140, drs1143, drs1200, drs3680, f032116312, is0551, is0552, les0038, lrs00762, lrs00921, lrs01057, m0041572, msr683, msr697, msr707, s0115, s4032, x830100001, x830100007, 8ea011610941, 8ea725962001, 8ea725967001, 1607, 1986s00992, 4004, 10103, 10114, 17074n, 17075n, 17075r, 017769, 33334, 33421, 33884, 220011, 220011a, 250037, 250155, 250157, 250282, 436077, 1164668, 1175886, 0001358027, 0001358044, 0001358046, 0001358049, 0001358073, 0001358305, 0001359003, 0001359012, 0001359027, 0001359046, 0001359049, 0001359073, 0001359078, 0001362016, 0001362034, 0001362091, 0001362305, 6104024, 8212960, 8810990, 8811140, 8813680, 9142803, 11010990, 11011140, 11011200, 11013680, 11016200, 20500762, 063523623, 70756112, 600002092, 600002112, 943252071, 943252204, 943252217, 0986010990, 0986011140, 0986011200, 0986013680, 0986019543, 0986019547, 0986019567, 6005030686, 063523623050, 943252071010, 943252204010
  • Description
    Deutz Starter motor 12V-2.7kW 12V - 2.7kW, 9k Alternative: 91-273-1120 (3.0kW) 91-273-2014 (4.0kW) For Yourex product order 91-273-1099

    Voltage: 12
    kW: 2.7
    Mounting flange: 89.00
    Drive distance: 28.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 216.00
    Distance / front: 72.00
    No. / teeth: 9
    B+: M10
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 293.00
    Remarks: Bosch type.
    No. / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      B5R12X4H7622, F032116312, M0041572, X830 100 001, X830100007, 0001 358 046, 0001 358 049, 0001 362 016, 0001 362 034, 0001 362 091, 0001 362 305, 116 4668, 117 5886, 0986 010 990, 1986S00992, 017769, 0001358027, 0001358044, 0001358046, 0001358049, 0001358073, 0001358305, 0001359003, 0001359012, 0001359027, 0001359046, 0001359049, 0001359073, 0001359078, 0001362016, 0001362034, 0001362091, 0001362305, 6104024, 9142803, 70756112, 6005030686

    • Normalised article numbler
      b5r12x4h7622, cst10449, cst21100, drs0990, drs1060, drs1140, drs1143, drs1200, drs3680, f032116312, is0551, is0552, les0038, lrs00762, lrs00921, lrs01057, m0041572, msr683, msr697, msr707, s0115, s4032, x830100001, x830100007, 8ea011610941, 8ea725962001, 8ea725967001, 1607, 1986s00992, 4004, 10103, 10114, 17074n, 17075n, 17075r, 017769, 33334, 33421, 33884, 220011, 220011a, 250037, 250155, 250157, 250282, 436077, 1164668, 1175886, 0001358027, 0001358044, 0001358046, 0001358049, 0001358073, 0001358305, 0001359003, 0001359012, 0001359027, 0001359046, 0001359049, 0001359073, 0001359078, 0001362016, 0001362034, 0001362091, 0001362305, 6104024, 8212960, 8810990, 8811140, 8813680, 9142803, 11010990, 11011140, 11011200, 11013680, 11016200, 20500762, 063523623, 70756112, 600002092, 600002112, 943252071, 943252204, 943252217, 0986010990, 0986011140, 0986011200, 0986013680, 0986019543, 0986019547, 0986019567, 6005030686, 063523623050, 943252071010, 943252204010
