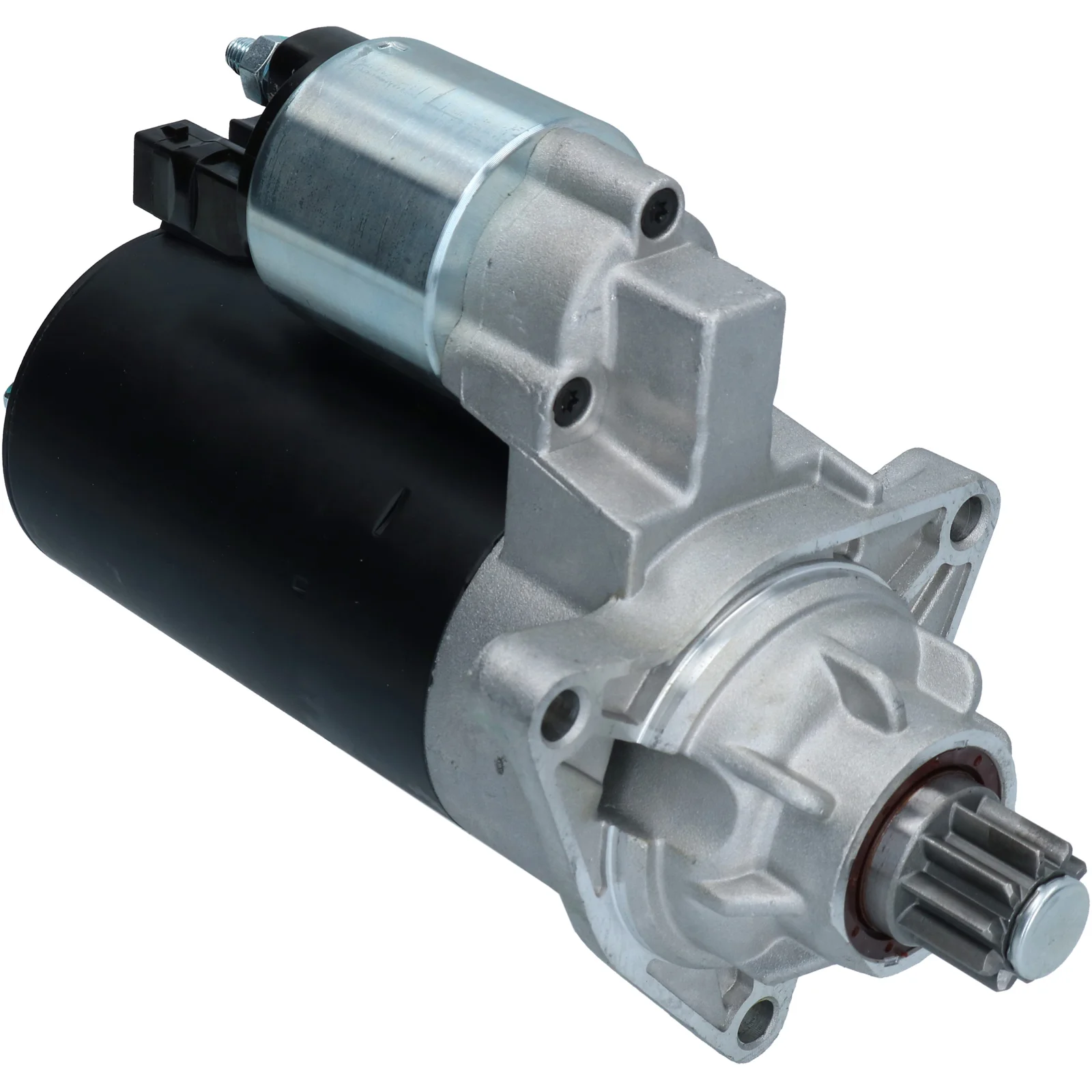

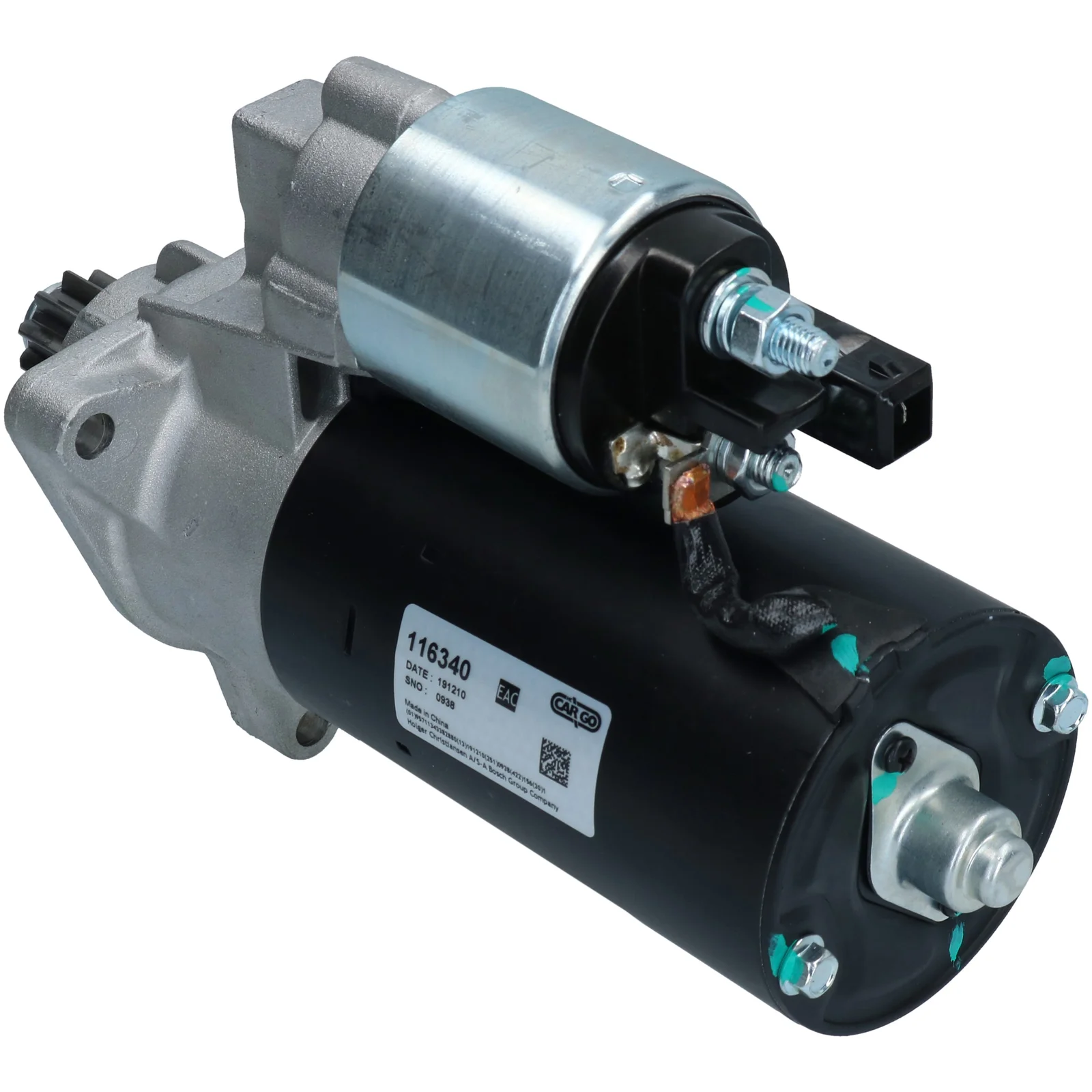

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116340

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CCW

Description

Voltage: 12
kW: 2.0
Mounting flange: 76.20
Drive distance: 62.00
Mounting hole 3 mm: 9.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance / back: 179.00
Distance / front: 66.00
Number / teeth: 10
B+: M8
Position / B+: 60
Position / 50: 20
Terminal 50: Plug
Gear type: GR
Distance 2: 106.00
Distance 3: 101.50
Distance mm: 101.50
Rotation: CCW
Total length mm: 255.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116340, 02b911023e, 02B911023EX, 02B911023M, 02B911023MX, 1986S00811, 0001125016, 0001125017, 0001125046, 0001125047, 1516691R

  • Normalised article numbler
    cst10286, drs3823, f032116340, lrs01564, s0212, 02b911023e, 02b911023ex, 02b911023m, 02b911023mx, 8ea737892001, 1986s00811, 3112, 32564n, 101209, 104785, 253063, 460223, 0001125016, 0001125017, 0001125046, 0001125047, 1516691r, 8080205, 8212530, 11090032, 42021870, 311070102, 0986021870
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 76.20
    Drive distance: 62.00
    Mounting hole 3 mm: 9.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance / back: 179.00
    Distance / front: 66.00
    Number / teeth: 10
    B+: M8
    Position / B+: 60
    Position / 50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 106.00
    Distance 3: 101.50
    Distance mm: 101.50
    Rotation: CCW
    Total length mm: 255.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116340, 02b911023e, 02B911023EX, 02B911023M, 02B911023MX, 1986S00811, 0001125016, 0001125017, 0001125046, 0001125047, 1516691R

    • Normalised article numbler
      cst10286, drs3823, f032116340, lrs01564, s0212, 02b911023e, 02b911023ex, 02b911023m, 02b911023mx, 8ea737892001, 1986s00811, 3112, 32564n, 101209, 104785, 253063, 460223, 0001125016, 0001125017, 0001125046, 0001125047, 1516691r, 8080205, 8212530, 11090032, 42021870, 311070102, 0986021870
