HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116342

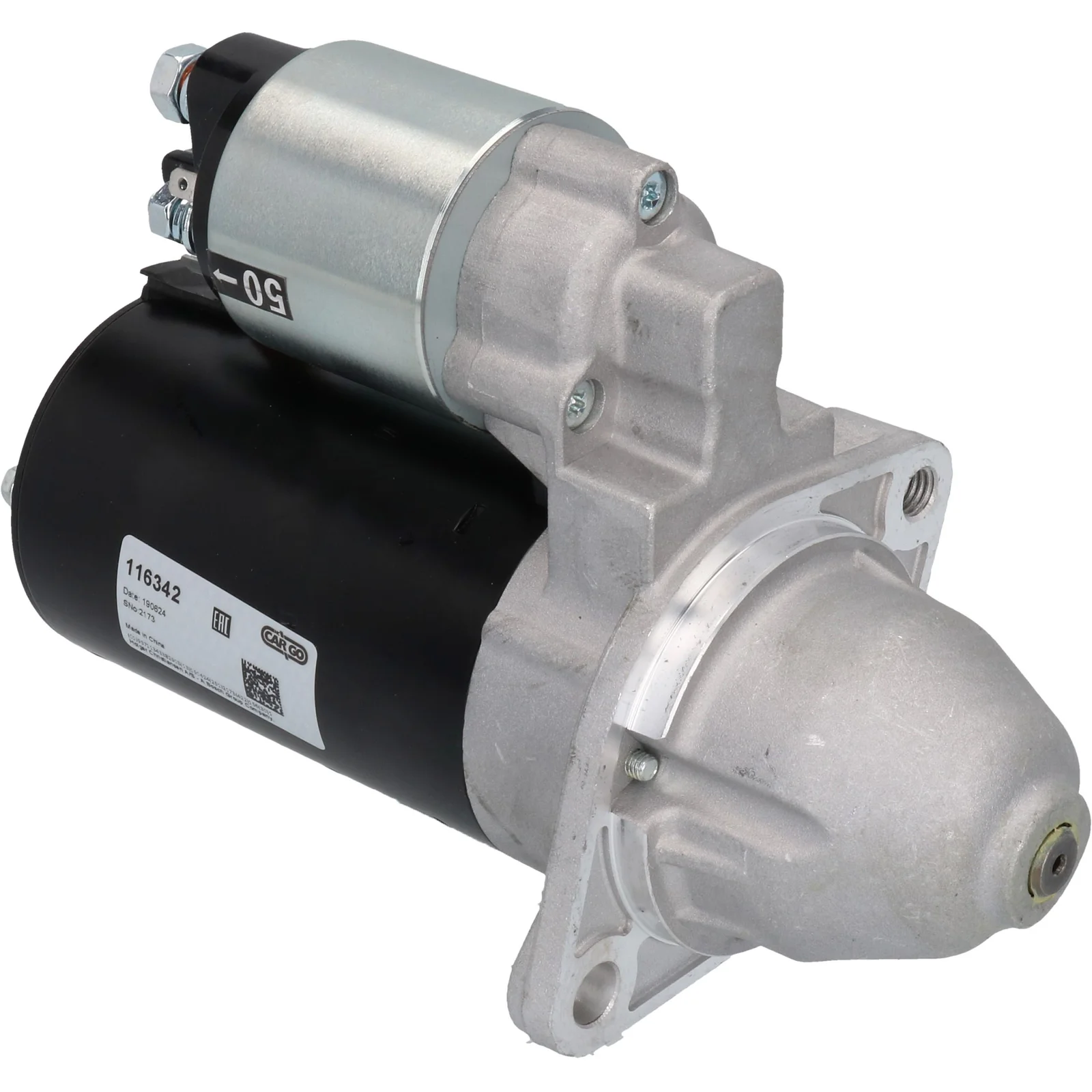

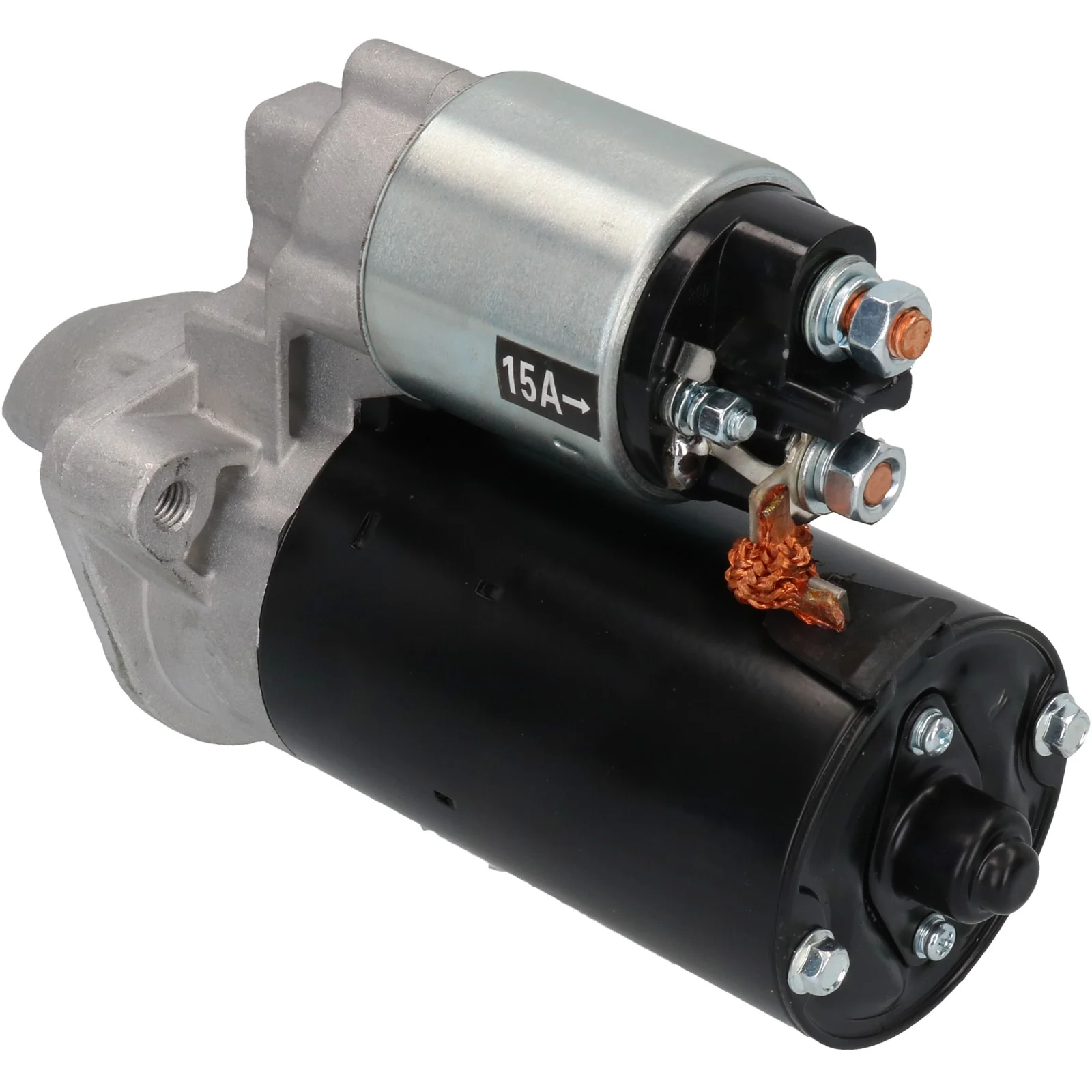

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 76.00
Drive distance: 26.00
Mounting hole 2 mm: 11.00
Distance/back: 166.50
Distance/front: 62.50
Number/teeth: 9
B+: M8
Position/B+: 60
Position/15a: 45
Terminal 15a: M5
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 229.00
Number/mounting holes: 2 (1)

Files

  • OEM
    F032116342, 1986S00700, 0001108196, 0001108245, 7505979, 12417505979

  • Normalised article numbler
    f032116342, s0707s, 8ea012527891, 8ea737979001, 1986s00700, 3180, 32799n, 32799r, 101256, 104729, 263147, 438498, 0001108196, 0001108245, 7505979, 11018890, 42018890, 210514092, 0986018890, 0986018893, 12417505979
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 76.00
    Drive distance: 26.00
    Mounting hole 2 mm: 11.00
    Distance/back: 166.50
    Distance/front: 62.50
    Number/teeth: 9
    B+: M8
    Position/B+: 60
    Position/15a: 45
    Terminal 15a: M5
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 229.00
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116342, 1986S00700, 0001108196, 0001108245, 7505979, 12417505979

    • Normalised article numbler
      f032116342, s0707s, 8ea012527891, 8ea737979001, 1986s00700, 3180, 32799n, 32799r, 101256, 104729, 263147, 438498, 0001108196, 0001108245, 7505979, 11018890, 42018890, 210514092, 0986018890, 0986018893, 12417505979
