HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116379

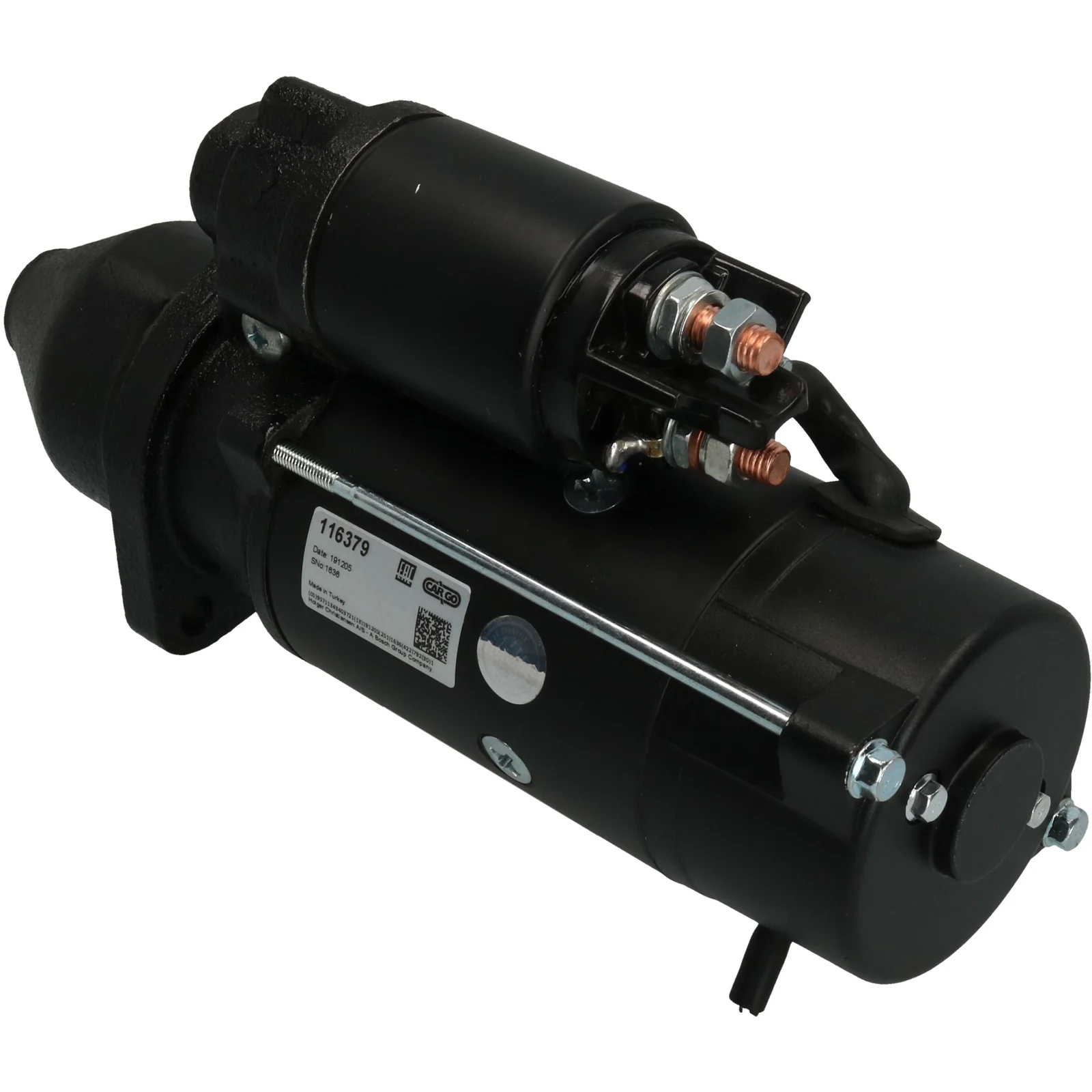

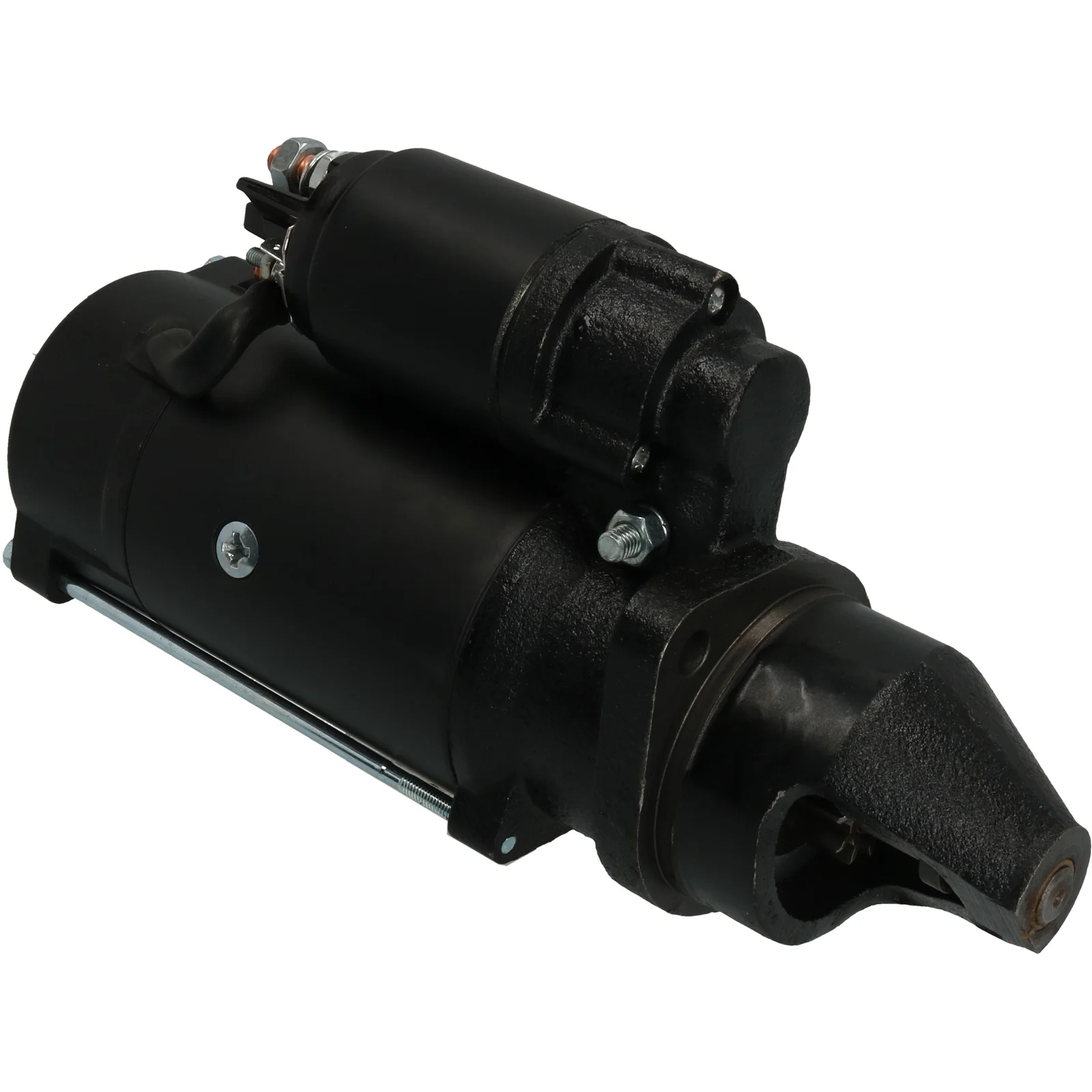

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatts: 3.2
Mounting flange: 82.50
Drive distance: 34.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 239.00
Distance / front: 82.00
Number / teeth: 10
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 321.00
Remarks: Alternative HC-CARGO 113478.
Number / mounting holes: 2 (0)

Files

  • OEM
    AZE4185, aze4534, F032116379, RE501713, re506589, RE508736, RE516455, RE519568, RE519975, RE551444, 11.131.108, 11.131.833, 501854, 501869, 0001230003

  • Normalised article numbler
    aze4185, aze4534, drs0152, f032116379, is1059, les0677, lrs02467, ms430, re501713, re506589, re508736, re516455, re519568, re519975, re551444, s3071, s9352s, 8ea015642561, 106258, 254139, 254242, 254364, 501854, 501869, 0001230003, 11090153, 11131108, 11131833, 630511112, 630538102, 686014112, 0986025803
  • Description
    Voltage: 12
    kilowatts: 3.2
    Mounting flange: 82.50
    Drive distance: 34.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 239.00
    Distance / front: 82.00
    Number / teeth: 10
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 321.00
    Remarks: Alternative HC-CARGO 113478.
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4185, aze4534, F032116379, RE501713, re506589, RE508736, RE516455, RE519568, RE519975, RE551444, 11.131.108, 11.131.833, 501854, 501869, 0001230003

    • Normalised article numbler
      aze4185, aze4534, drs0152, f032116379, is1059, les0677, lrs02467, ms430, re501713, re506589, re508736, re516455, re519568, re519975, re551444, s3071, s9352s, 8ea015642561, 106258, 254139, 254242, 254364, 501854, 501869, 0001230003, 11090153, 11131108, 11131833, 630511112, 630538102, 686014112, 0986025803
