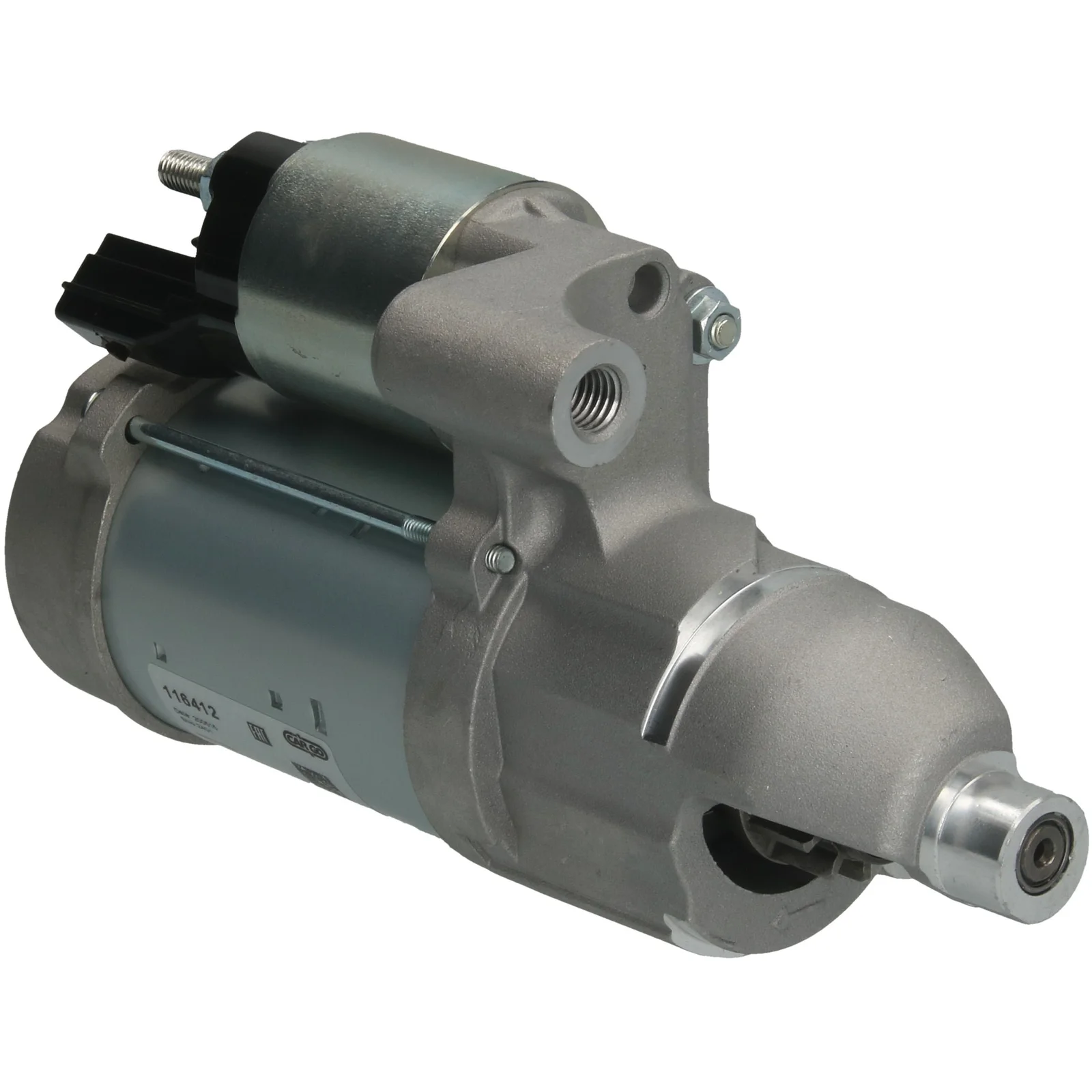

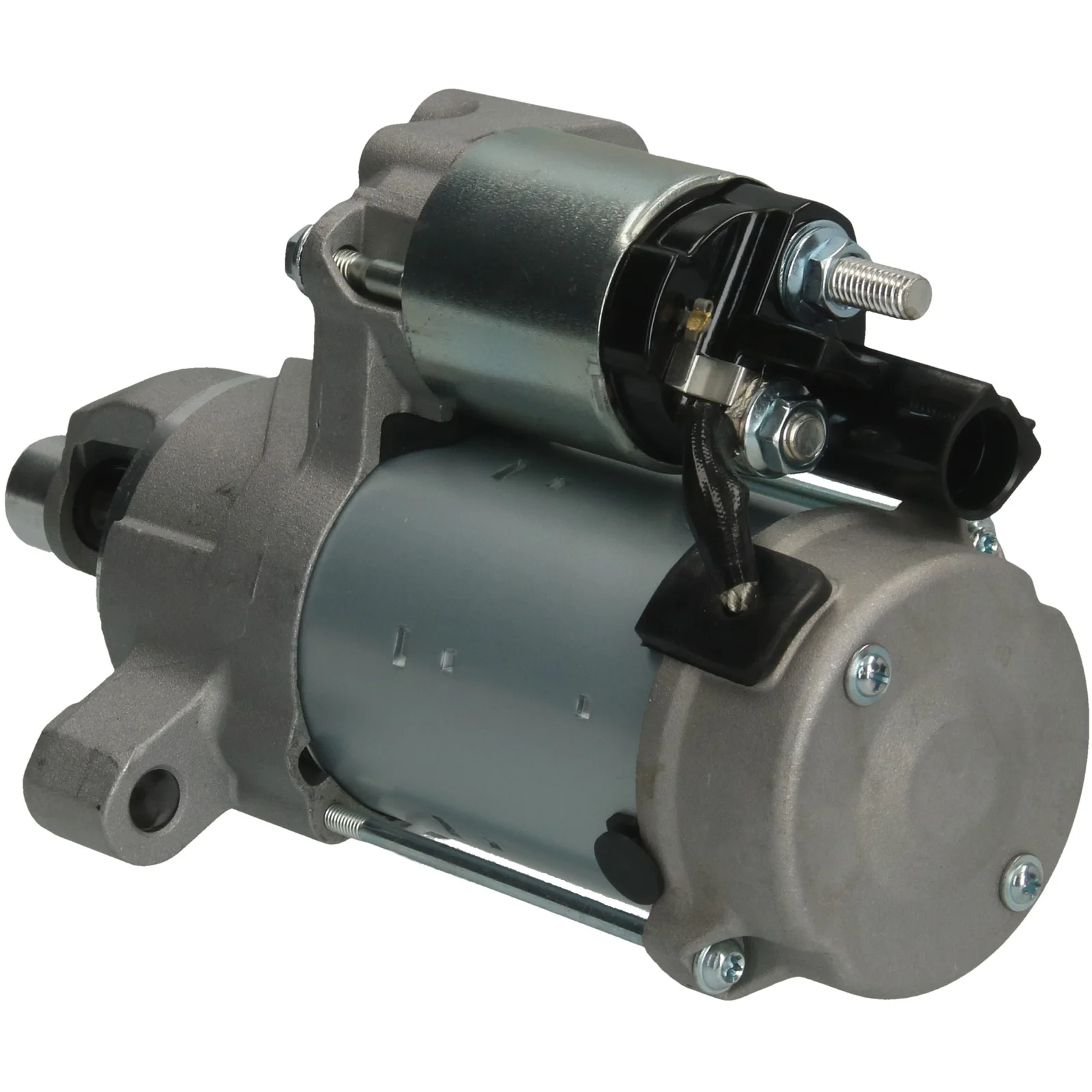

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116412

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor 12V - 1.7kW, 11r

Voltage: 12
kW: 1.7
Mounting flange: 66.00
Drive distance: 23.00
Mounting hole 1 mm: 11.00
Distance / back: 168.50
Distance / front: 61.00
Number / teeth: 11
B+: M8
Position / B+: 60
Position / 50: 18
Terminal 50: Plug
Gear type: GR
Distance mm: 133.50
Rotation: CW
Total length mm: 229.50
Number / mounting holes: 2 (1)

Files

  • OEM
    F032116412, 04L 911 024, 04L911024, 06E 911 024, 06E 911 024A, 06e911024, 06E911024A, 116412, 428000-7920, 428000-7921, 428000-7922, 428000-7923, 428000-7924, 428000-7925, 428000-7926, 428000-9530, 428000-9531, 428000-9532, 428000-9533, 428000-9534, 428000-9535, 438000-0980, 079911024

  • Normalised article numbler
    cst40403, dsn1204, f032116412, 04l911024, 06e911024, 06e911024a, 116412, 201299, 255019, 458915, 11090384, 079911024, 200542112, 311406112, 4280007920, 4280007921, 4280007922, 4280007923, 4280007924, 4280007925, 4280007926, 4280009530, 4280009531, 4280009532, 4280009533, 4280009534, 4280009535, 4380000980
  • Description
    HC-Cargo Starter motor 12V - 1.7kW, 11r

    Voltage: 12
    kW: 1.7
    Mounting flange: 66.00
    Drive distance: 23.00
    Mounting hole 1 mm: 11.00
    Distance / back: 168.50
    Distance / front: 61.00
    Number / teeth: 11
    B+: M8
    Position / B+: 60
    Position / 50: 18
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 133.50
    Rotation: CW
    Total length mm: 229.50
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116412, 04L 911 024, 04L911024, 06E 911 024, 06E 911 024A, 06e911024, 06E911024A, 116412, 428000-7920, 428000-7921, 428000-7922, 428000-7923, 428000-7924, 428000-7925, 428000-7926, 428000-9530, 428000-9531, 428000-9532, 428000-9533, 428000-9534, 428000-9535, 438000-0980, 079911024

    • Normalised article numbler
      cst40403, dsn1204, f032116412, 04l911024, 06e911024, 06e911024a, 116412, 201299, 255019, 458915, 11090384, 079911024, 200542112, 311406112, 4280007920, 4280007921, 4280007922, 4280007923, 4280007924, 4280007925, 4280007926, 4280009530, 4280009531, 4280009532, 4280009533, 4280009534, 4280009535, 4380000980
