HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116416

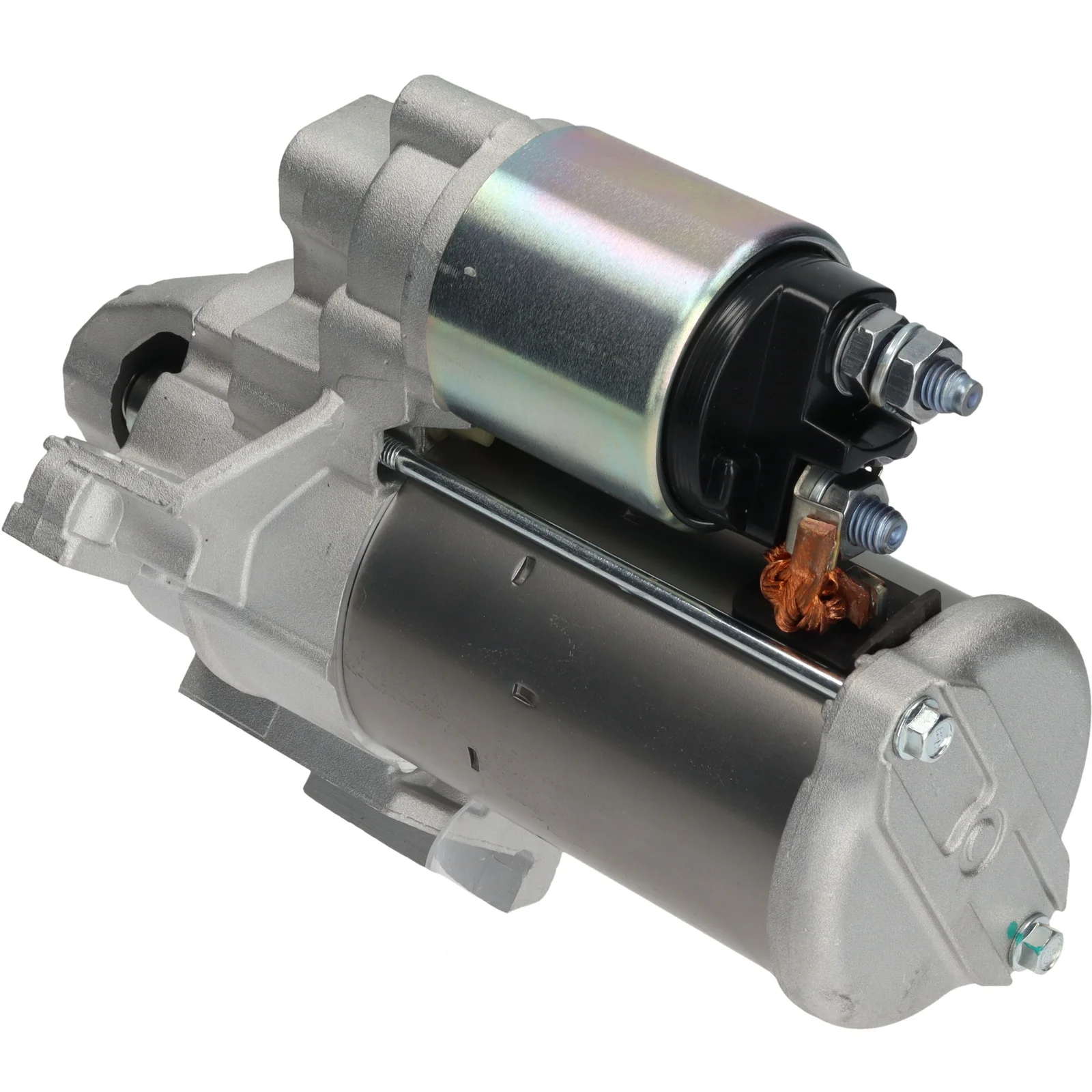

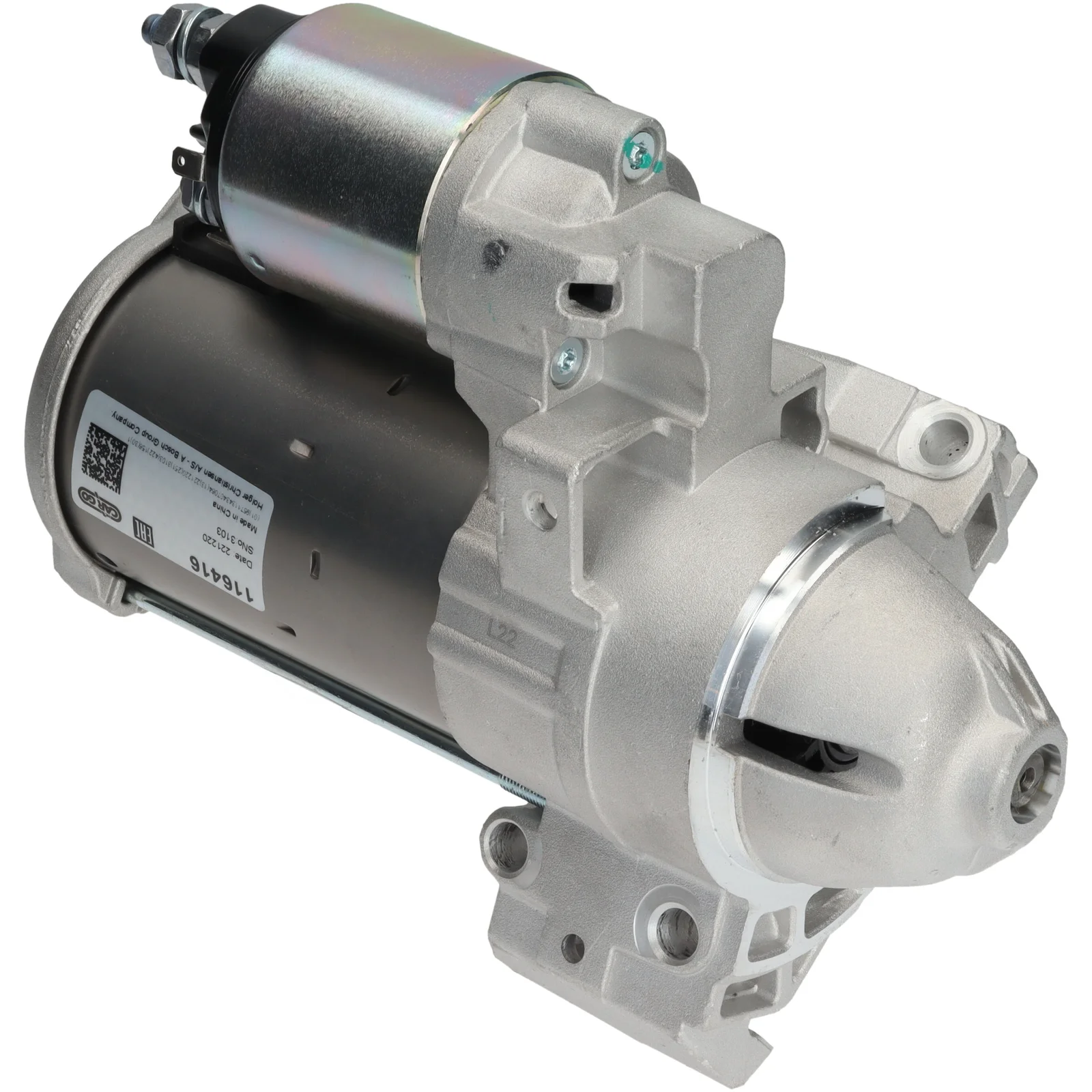

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor 12V - 1.7kW, 11k

Voltage: 12
kW: 1.7
Mounting flange: 66.00
Drive distance: 17.00
Mounting hole 3 mm: 9.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance / back: 171.00
Distance / front: 41.50
Number / teeth: 11
B+: M8
Position / B+: 2
Position / 50: 18
Terminal 50: M6
Gear type: GR
Rotation: CW
Total length mm: 213.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116416, 0001 170 602, 0001 170 603, 1241 8621839, 1241 8621866, 1986S01169, 116416, 0001170602, 0001170603, 8621839, 8621866, 862183904, 862183905, 12418621839, 12418621866, 12418625995

  • Normalised article numbler
    cst10593, f032116416, 1986s01169, 116416, 255242, 0001170602, 0001170603, 8621839, 8621866, 11090438, 42025577, 210561113, 315070112, 862183904, 862183905, 0986025570, 0986025573, 0986025577, 12418621839, 12418621866, 12418625995
  • Description
    HC-Cargo Starter motor 12V - 1.7kW, 11k

    Voltage: 12
    kW: 1.7
    Mounting flange: 66.00
    Drive distance: 17.00
    Mounting hole 3 mm: 9.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance / back: 171.00
    Distance / front: 41.50
    Number / teeth: 11
    B+: M8
    Position / B+: 2
    Position / 50: 18
    Terminal 50: M6
    Gear type: GR
    Rotation: CW
    Total length mm: 213.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116416, 0001 170 602, 0001 170 603, 1241 8621839, 1241 8621866, 1986S01169, 116416, 0001170602, 0001170603, 8621839, 8621866, 862183904, 862183905, 12418621839, 12418621866, 12418625995

    • Normalised article numbler
      cst10593, f032116416, 1986s01169, 116416, 255242, 0001170602, 0001170603, 8621839, 8621866, 11090438, 42025577, 210561113, 315070112, 862183904, 862183905, 0986025570, 0986025573, 0986025577, 12418621839, 12418621866, 12418625995
