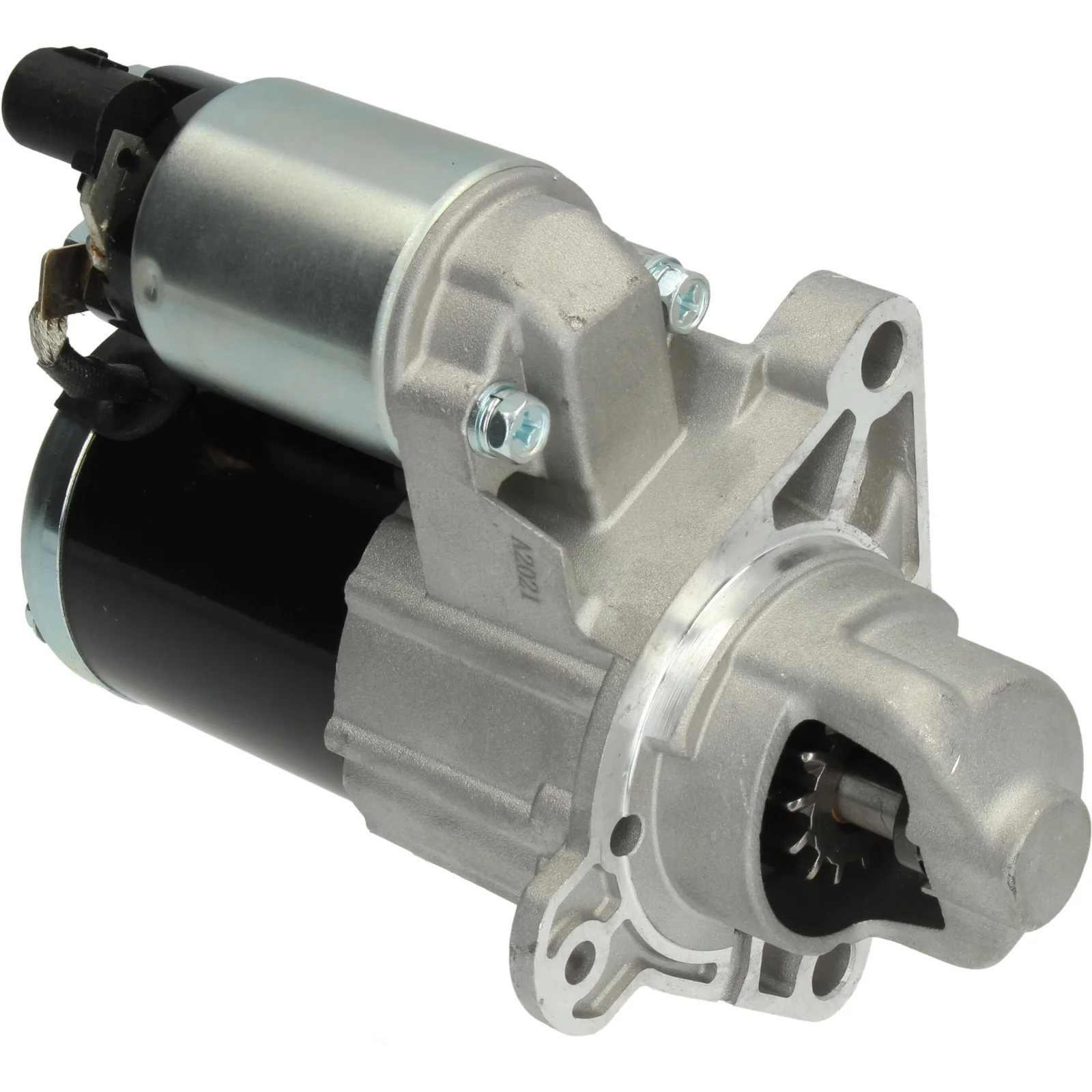

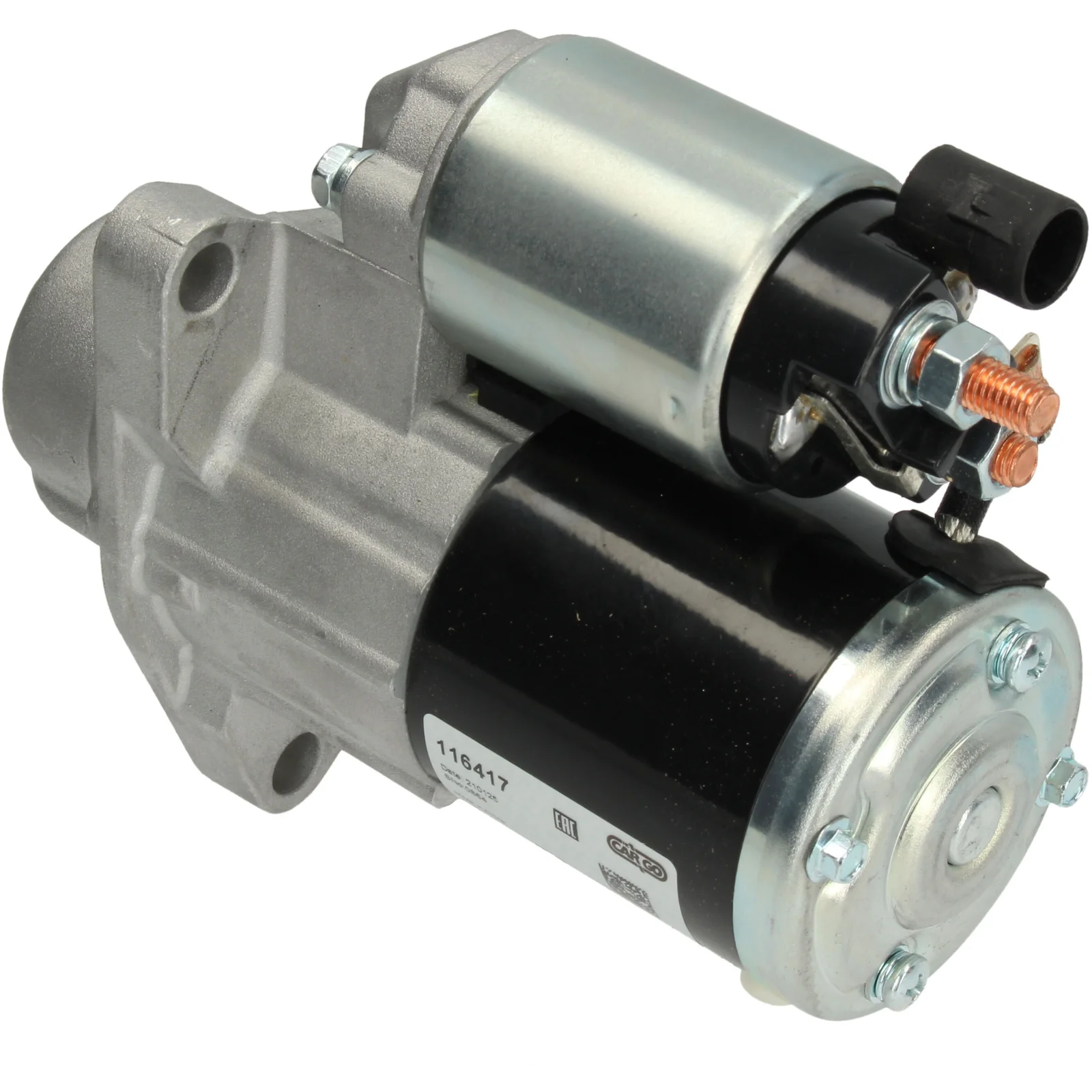

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116417

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 68.00
Drive dist.: 20.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
No./teeth: 13
B+: M8
Position/B+: 52
Position/50: 7
Terminal 50: Plug
Gear type: GR
Dist. mm: 107.50
Rotation: CW
Total length mm: 195.00
No./mount. holes: 2 (0)

Files

  • OEM
    F032116417, M000TD5271ZC, M0TD5271, M0TD5271ZC, 12638691, 12653611, 12680618

  • Normalised article numbler
    f032116417, m000td5271zc, m0td5271, m0td5271zc, 220766, 220766a, 255130, 11090409, 12638691, 12653611, 12680618, 130579132
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 68.00
    Drive dist.: 20.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    No./teeth: 13
    B+: M8
    Position/B+: 52
    Position/50: 7
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 107.50
    Rotation: CW
    Total length mm: 195.00
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116417, M000TD5271ZC, M0TD5271, M0TD5271ZC, 12638691, 12653611, 12680618

    • Normalised article numbler
      f032116417, m000td5271zc, m0td5271, m0td5271zc, 220766, 220766a, 255130, 11090409, 12638691, 12653611, 12680618, 130579132
