HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116421

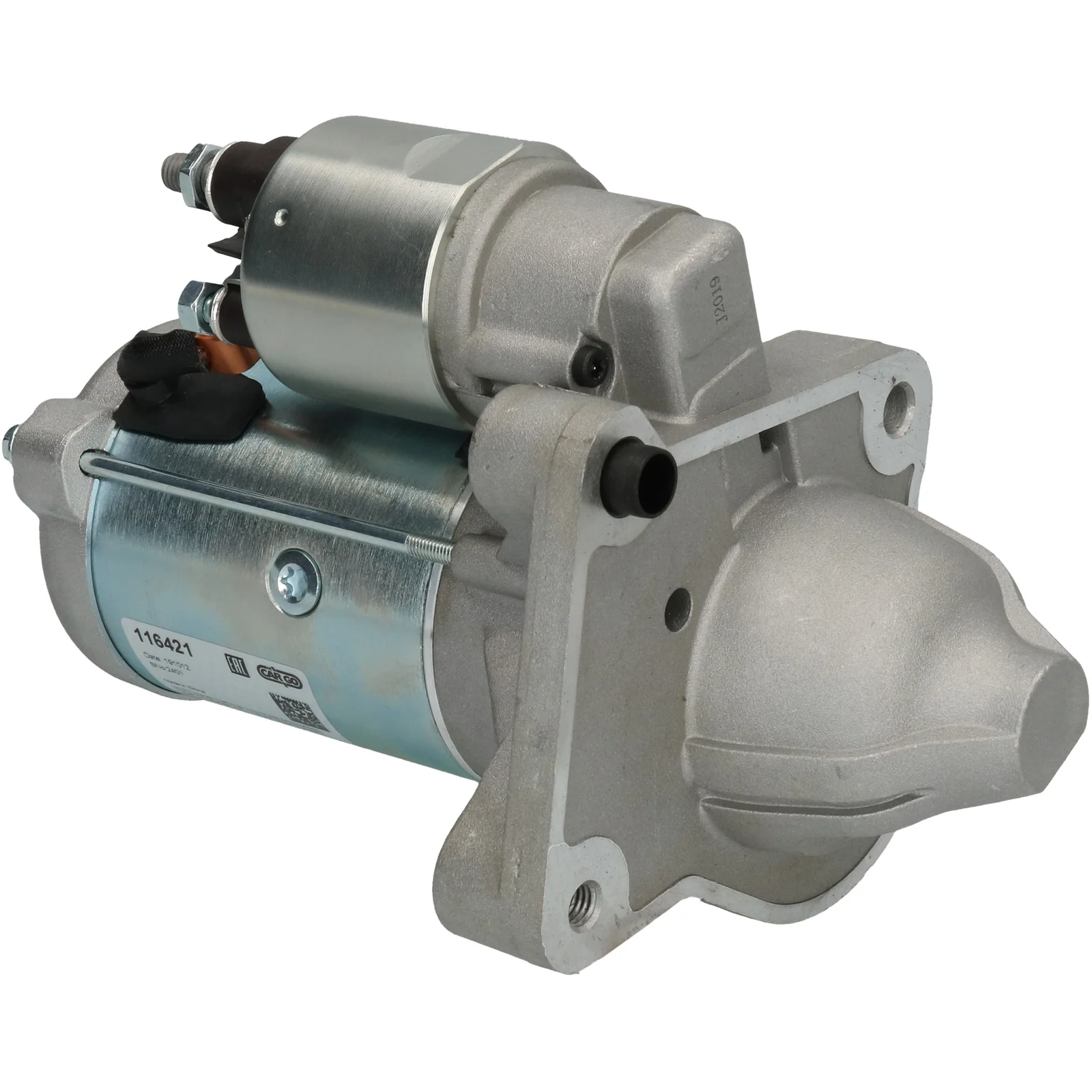

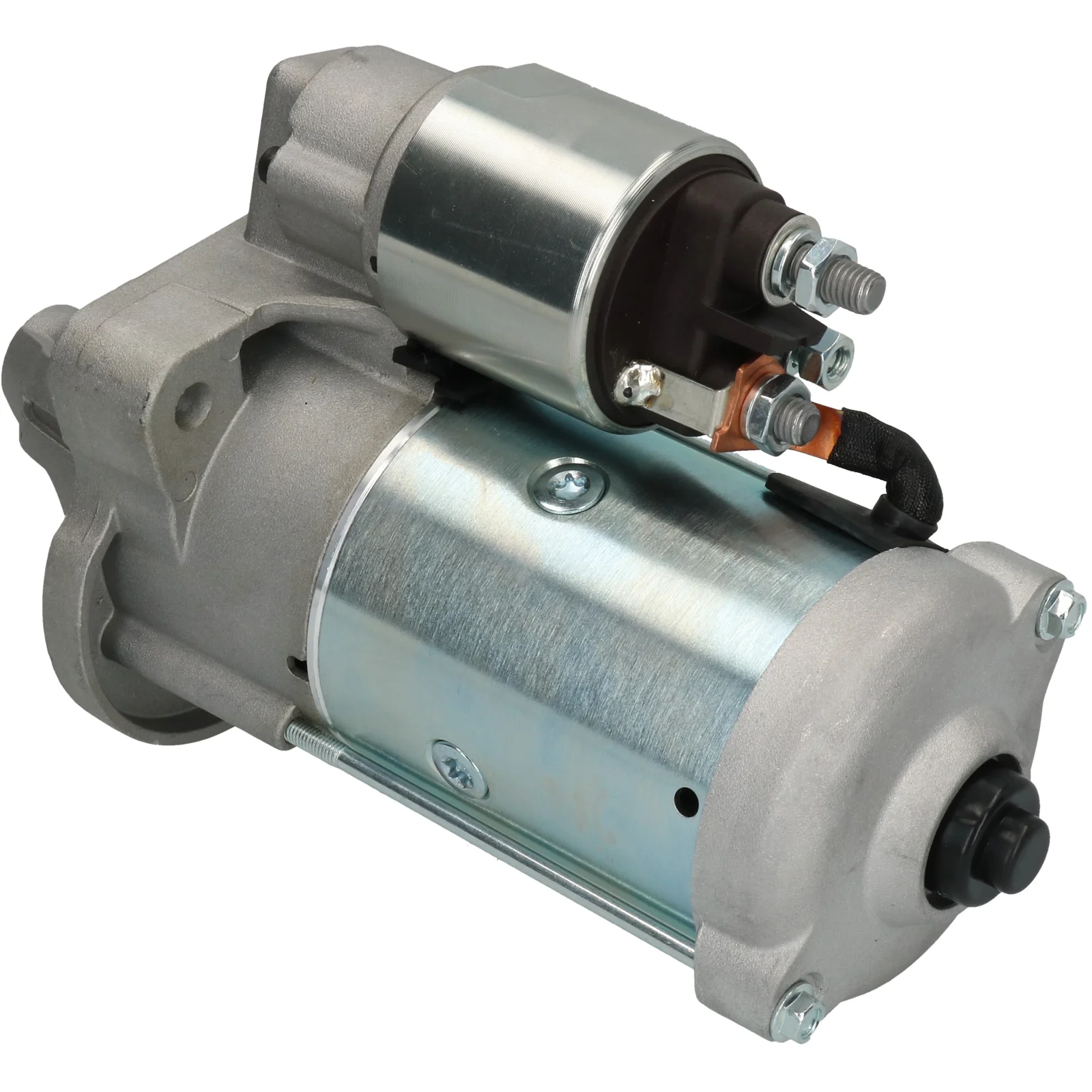

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 2.0
Drive distance: 14.00
Mounting hole 3 mm: M8
Mounting hole 1 mm: 9.00
Distance / rear: 182.00
Distance / front: 53.00
Number / teeth: 13
B+: M8
Position / B+: 60
Position / 50: 18
Terminal 50: M6
Gear type: Gavel
Distance 2: 74.50
Distance 3: 84.00
Distance mm: 116.00
Rotation: CW
Total length mm: 235.00
Number / mounting holes: 3 (2)

Files

  • OEM
    CV2T11000AA, CV2T11000AB, CV2T11000AC, ESW2023, ESW20E-18, ESW20E18, F032116421, 1902473, 2033252

  • Normalised article numbler
    cst15283, cv2t11000aa, cv2t11000ab, cv2t11000ac, drs1009, esw2023, esw20e18, f032116421, s3158s, 33240n, 220901, 220901a, 254452, 1902473, 2033252, 11090289, 319095132, 590579133
  • Description
    Voltage: 12
    kW: 2.0
    Drive distance: 14.00
    Mounting hole 3 mm: M8
    Mounting hole 1 mm: 9.00
    Distance / rear: 182.00
    Distance / front: 53.00
    Number / teeth: 13
    B+: M8
    Position / B+: 60
    Position / 50: 18
    Terminal 50: M6
    Gear type: Gavel
    Distance 2: 74.50
    Distance 3: 84.00
    Distance mm: 116.00
    Rotation: CW
    Total length mm: 235.00
    Number / mounting holes: 3 (2)

    Files

  • Suitable for these vehicles

    • OEM
      CV2T11000AA, CV2T11000AB, CV2T11000AC, ESW2023, ESW20E-18, ESW20E18, F032116421, 1902473, 2033252

    • Normalised article numbler
      cst15283, cv2t11000aa, cv2t11000ab, cv2t11000ac, drs1009, esw2023, esw20e18, f032116421, s3158s, 33240n, 220901, 220901a, 254452, 1902473, 2033252, 11090289, 319095132, 590579133
