HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116426

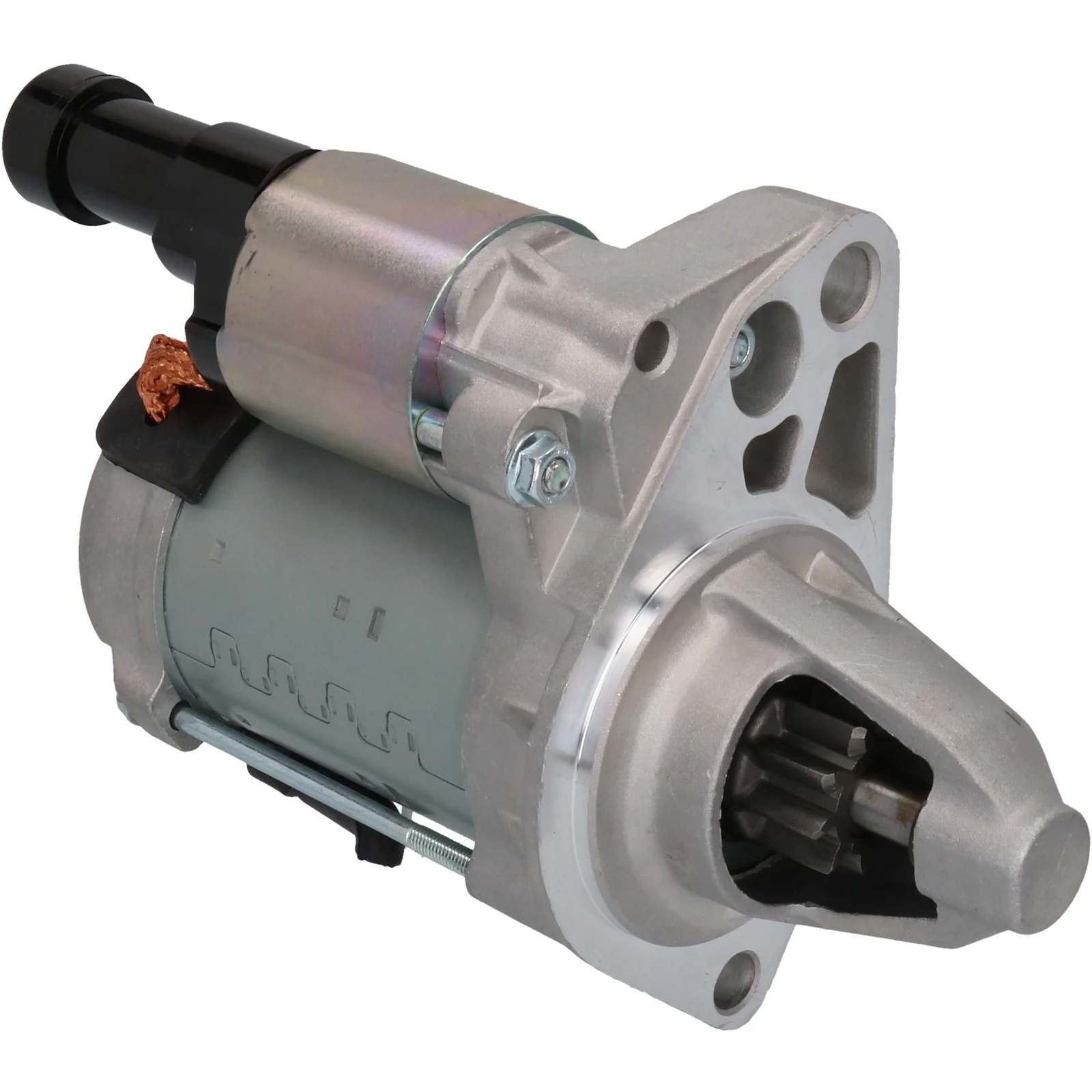

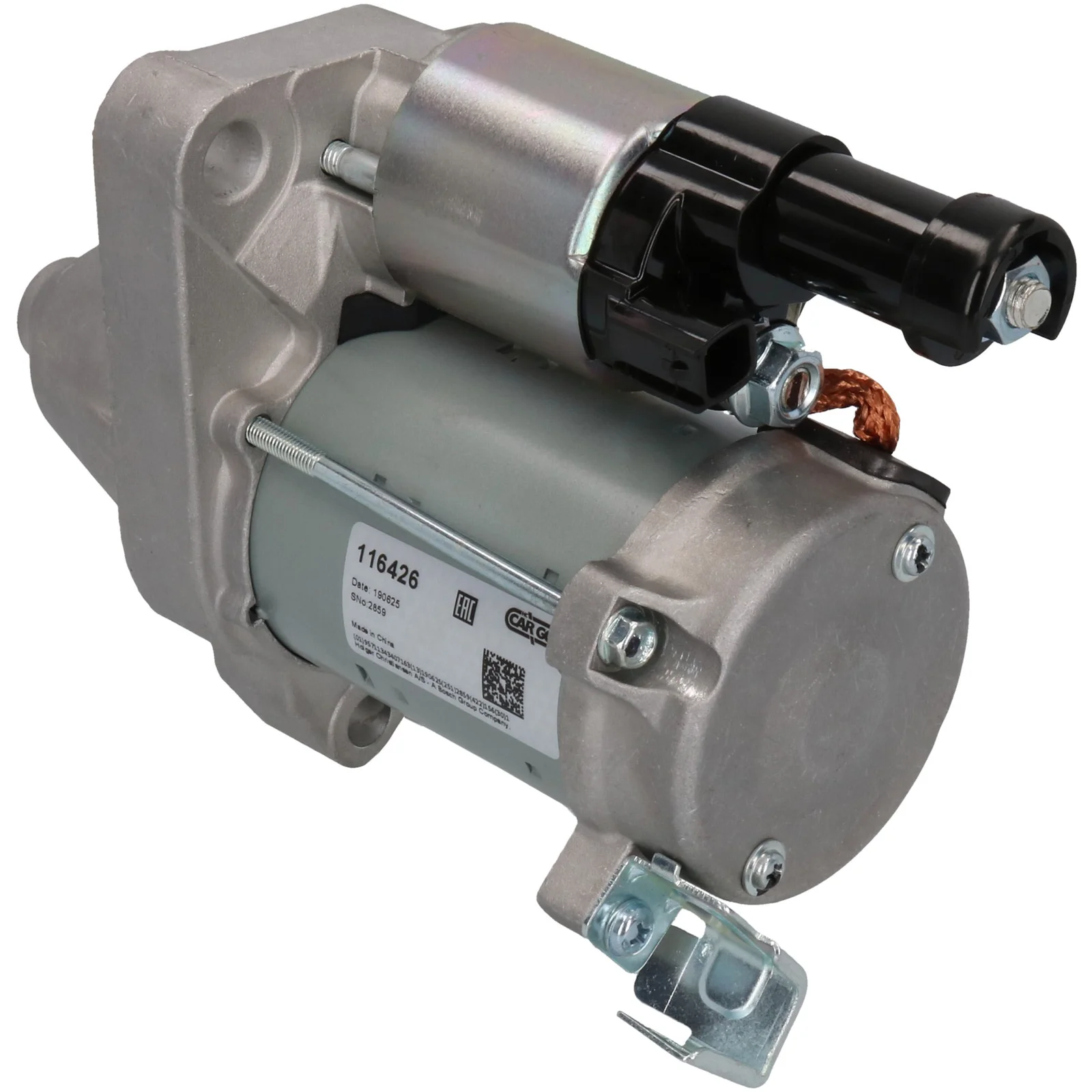

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.3, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.3
Mount. flange: 75.00
Drive dist.: 33.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 13.00
Dist./back: 130.00
Dist./front: 68.00
No./teeth: 9
B+: M8
Position/B+: 59
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 125.50
Rotation: CW
Total length mm: 220.00
No./mount. holes: 2 (0)

Files

  • OEM
    F032116426, 31200-R1A-G51, 31200-R1P-H01, 428000-8170

  • Normalised article numbler
    cst40525, dsn1492, f032116426, lrs03953, s6280s, 31200r1ag51, 31200r1ph01, 255115, 11040940, 120597092, 322076092, 4280008170
  • Description
    Voltage: 12
    kW: 1.3
    Mount. flange: 75.00
    Drive dist.: 33.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 13.00
    Dist./back: 130.00
    Dist./front: 68.00
    No./teeth: 9
    B+: M8
    Position/B+: 59
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 125.50
    Rotation: CW
    Total length mm: 220.00
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116426, 31200-R1A-G51, 31200-R1P-H01, 428000-8170

    • Normalised article numbler
      cst40525, dsn1492, f032116426, lrs03953, s6280s, 31200r1ag51, 31200r1ph01, 255115, 11040940, 120597092, 322076092, 4280008170
