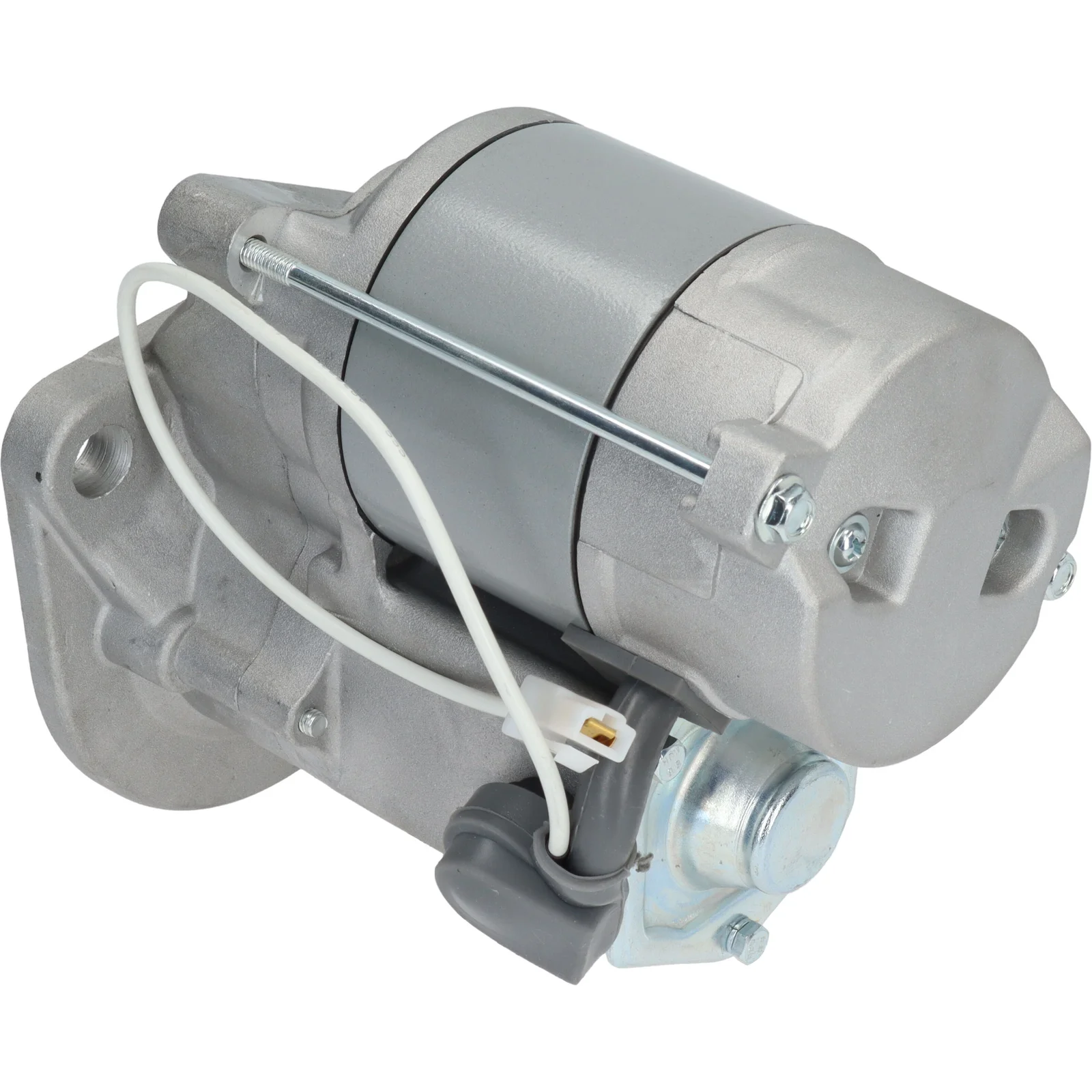

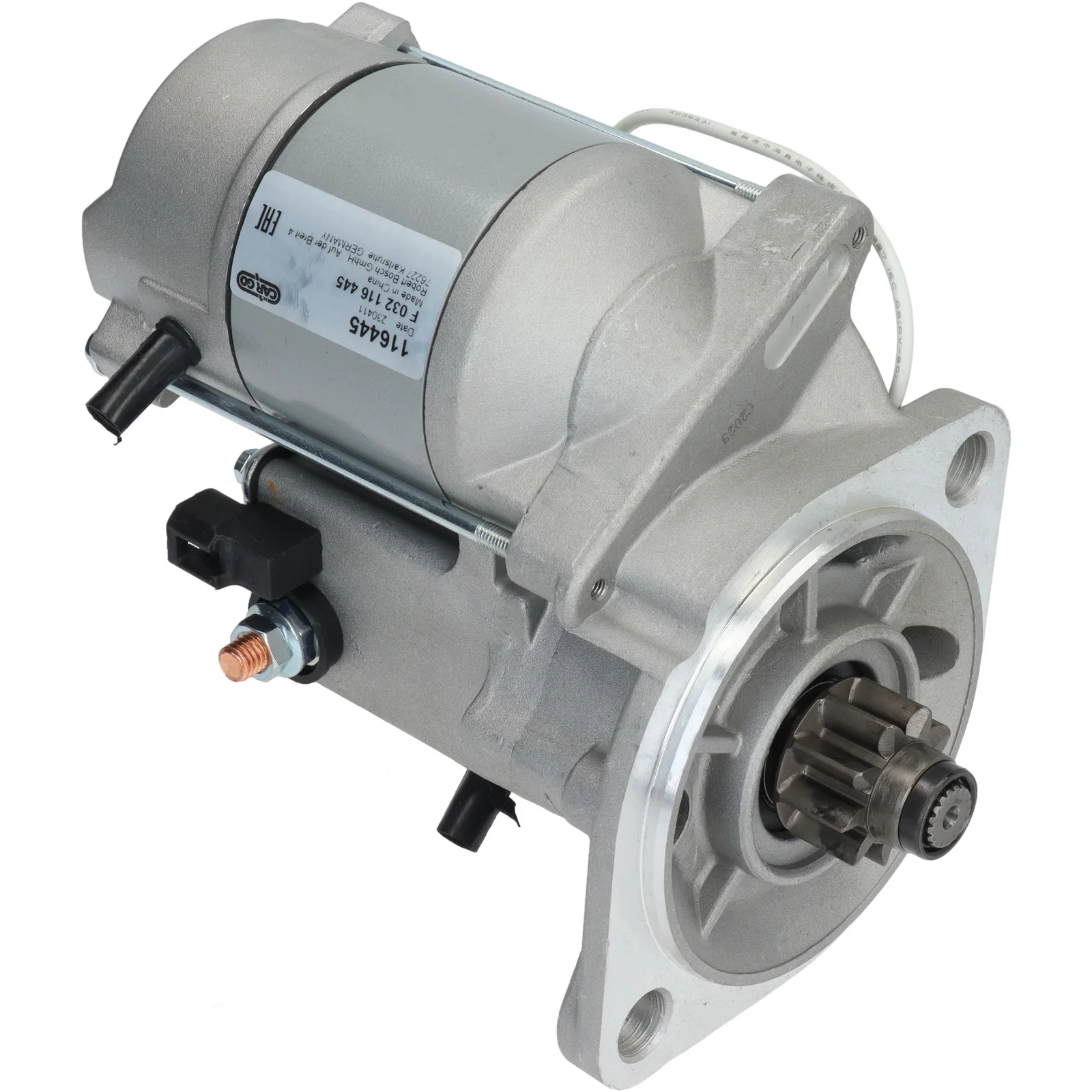

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116445

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 12
kW: 1.4
Mounting flange: 95.00
Drive distance: 20.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 124.50
Distance / front: 32.50
Number / teeth: 9
B+: M8
Position / B+: 15
Position / 50: 10
Terminal 50: Plug
Gear type: GR
Distance mm: 120.00
Rotation: CW
Total length mm: 187.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032116445, 228000-1130, 228000-1131, 228000-1132, 228000-1133, 8970489660, 8970489661, 8970489662, 8970489663

  • Normalised article numbler
    dsn2129, f032116445, lrs01299, 19512n, 105395, 251050, 252038, 130552092, 2280001130, 2280001131, 2280001132, 2280001133, 8970489660, 8970489661, 8970489662, 8970489663
  • Description
    HC-Cargo Starter motor

    Voltage: 12
    kW: 1.4
    Mounting flange: 95.00
    Drive distance: 20.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 124.50
    Distance / front: 32.50
    Number / teeth: 9
    B+: M8
    Position / B+: 15
    Position / 50: 10
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 120.00
    Rotation: CW
    Total length mm: 187.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116445, 228000-1130, 228000-1131, 228000-1132, 228000-1133, 8970489660, 8970489661, 8970489662, 8970489663

    • Normalised article numbler
      dsn2129, f032116445, lrs01299, 19512n, 105395, 251050, 252038, 130552092, 2280001130, 2280001131, 2280001132, 2280001133, 8970489660, 8970489661, 8970489662, 8970489663
