HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116630

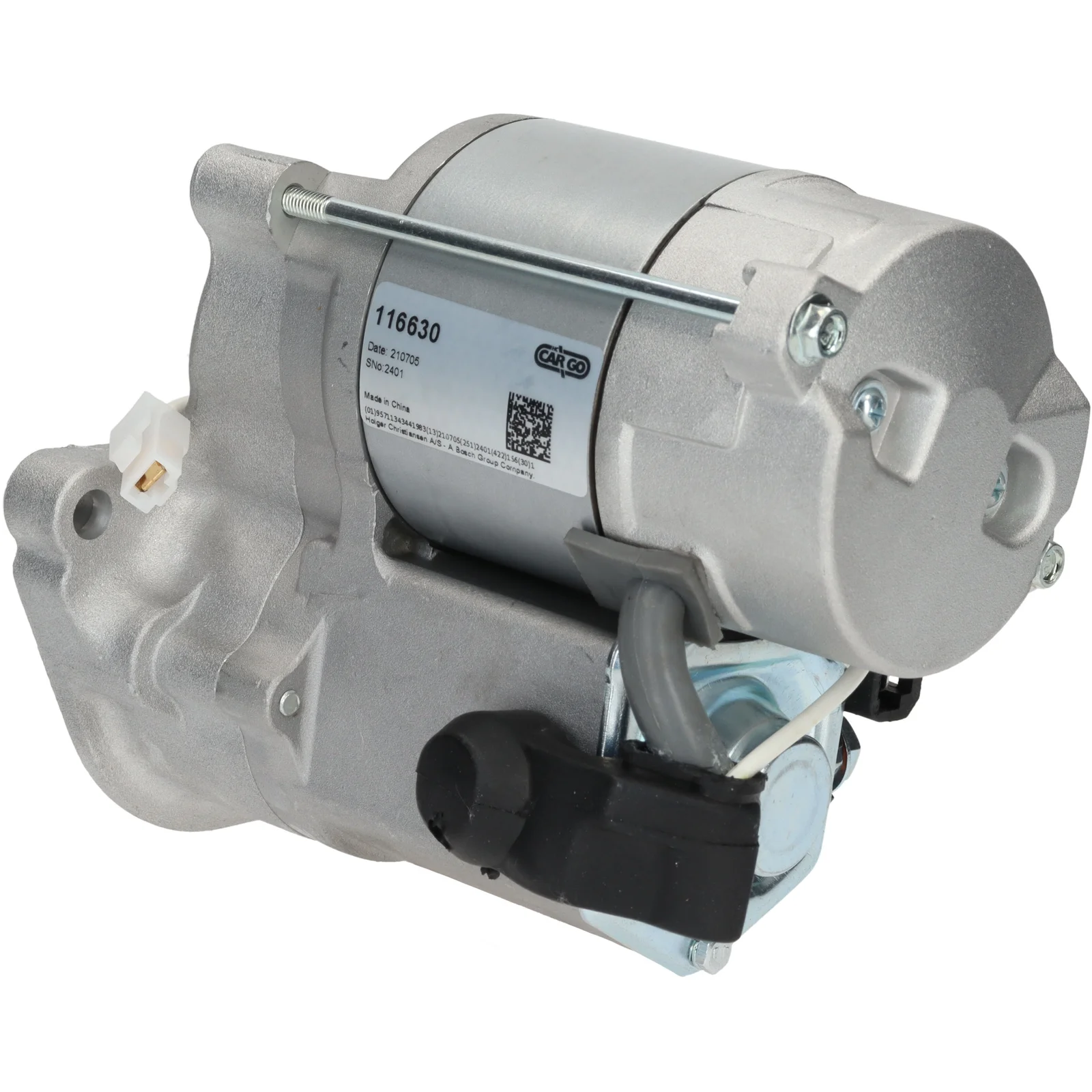

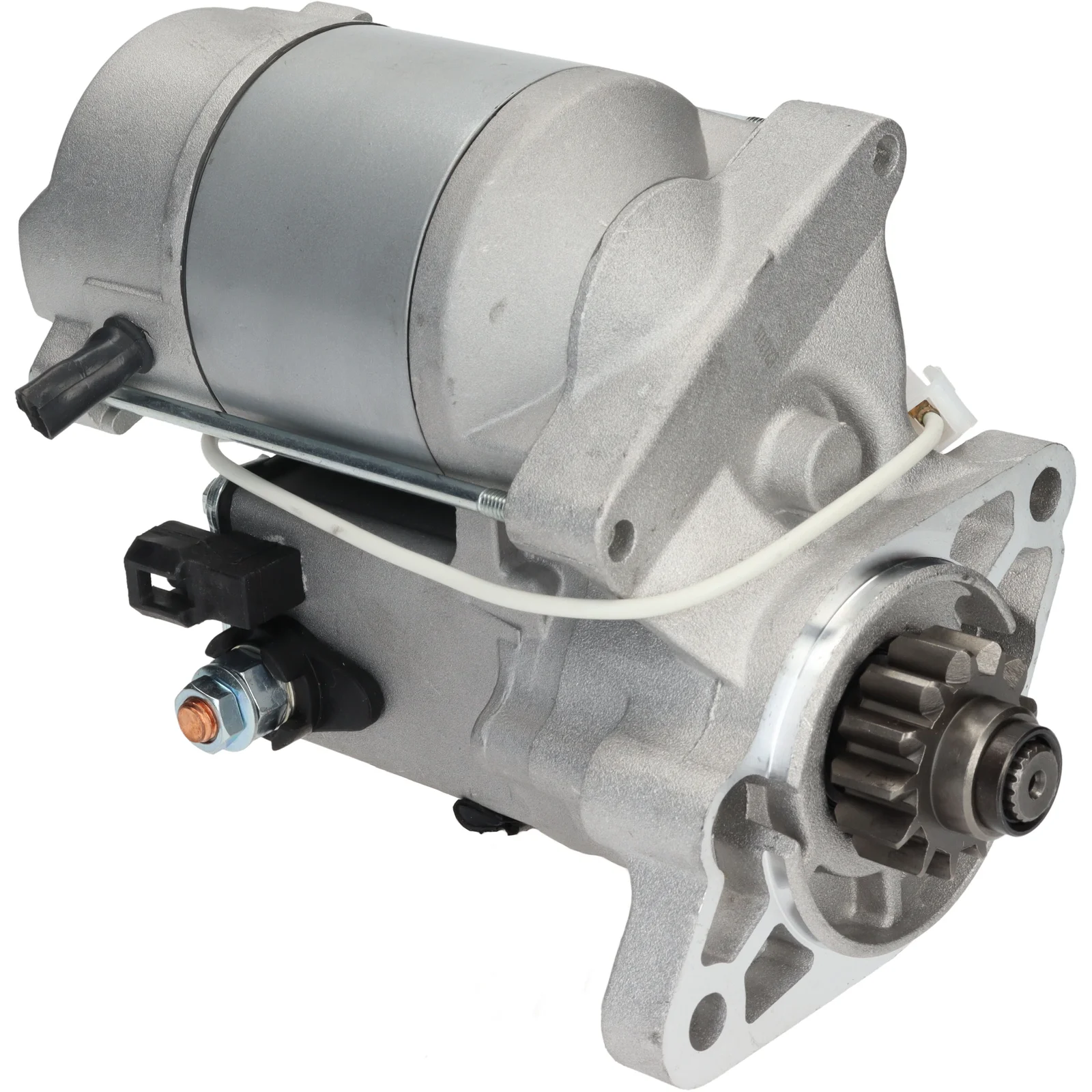

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 13, Rotation: CW

Description

Kubota starter motor 12V-1.4kW, 13k 12V - 1.4kW, 13k Alternative: 91-293-8320 = (9 gears) For Yourex product order 91-293-6320

Voltage: 12
kW: 1.4
Mounting flange: 66.00
Drive distance: 18.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance/back: 158.00
Distance/front: 31.00
Number/teeth: 13
B+: M8
Position/B+: 15
Position/50: 10
Terminal 50: Plug
Gear type: GR
Distance mm: 110.00
Rotation: CW
Total length mm: 189.00
Terminal 30h: Plug
Position/30h: 45
Number/mounting holes: 2 (0)

Files

  • OEM
    F032116630, 16235-63010, 16235-63011, 16235-63012, 16235-63013, 16235-63014, 16235-63015, 17423-63010, 17423-63012, 228000-6320, 228000-6321, 228000-7610, 228000-7611

  • Normalised article numbler
    cst40185, cst40506, dsn2087, f032116630, lrs02308, s6277denso, s6277s, 8ea015642161, 253480, 254151, 11090220, 1623563010, 1623563011, 1623563012, 1623563013, 1623563014, 1623563015, 1742363010, 1742363012, 2280006320, 2280006321, 2280007610, 2280007611
  • Description
    Kubota starter motor 12V-1.4kW, 13k 12V - 1.4kW, 13k Alternative: 91-293-8320 = (9 gears) For Yourex product order 91-293-6320

    Voltage: 12
    kW: 1.4
    Mounting flange: 66.00
    Drive distance: 18.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance/back: 158.00
    Distance/front: 31.00
    Number/teeth: 13
    B+: M8
    Position/B+: 15
    Position/50: 10
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 189.00
    Terminal 30h: Plug
    Position/30h: 45
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116630, 16235-63010, 16235-63011, 16235-63012, 16235-63013, 16235-63014, 16235-63015, 17423-63010, 17423-63012, 228000-6320, 228000-6321, 228000-7610, 228000-7611

    • Normalised article numbler
      cst40185, cst40506, dsn2087, f032116630, lrs02308, s6277denso, s6277s, 8ea015642161, 253480, 254151, 11090220, 1623563010, 1623563011, 1623563012, 1623563013, 1623563014, 1623563015, 1742363010, 1742363012, 2280006320, 2280006321, 2280007610, 2280007611
