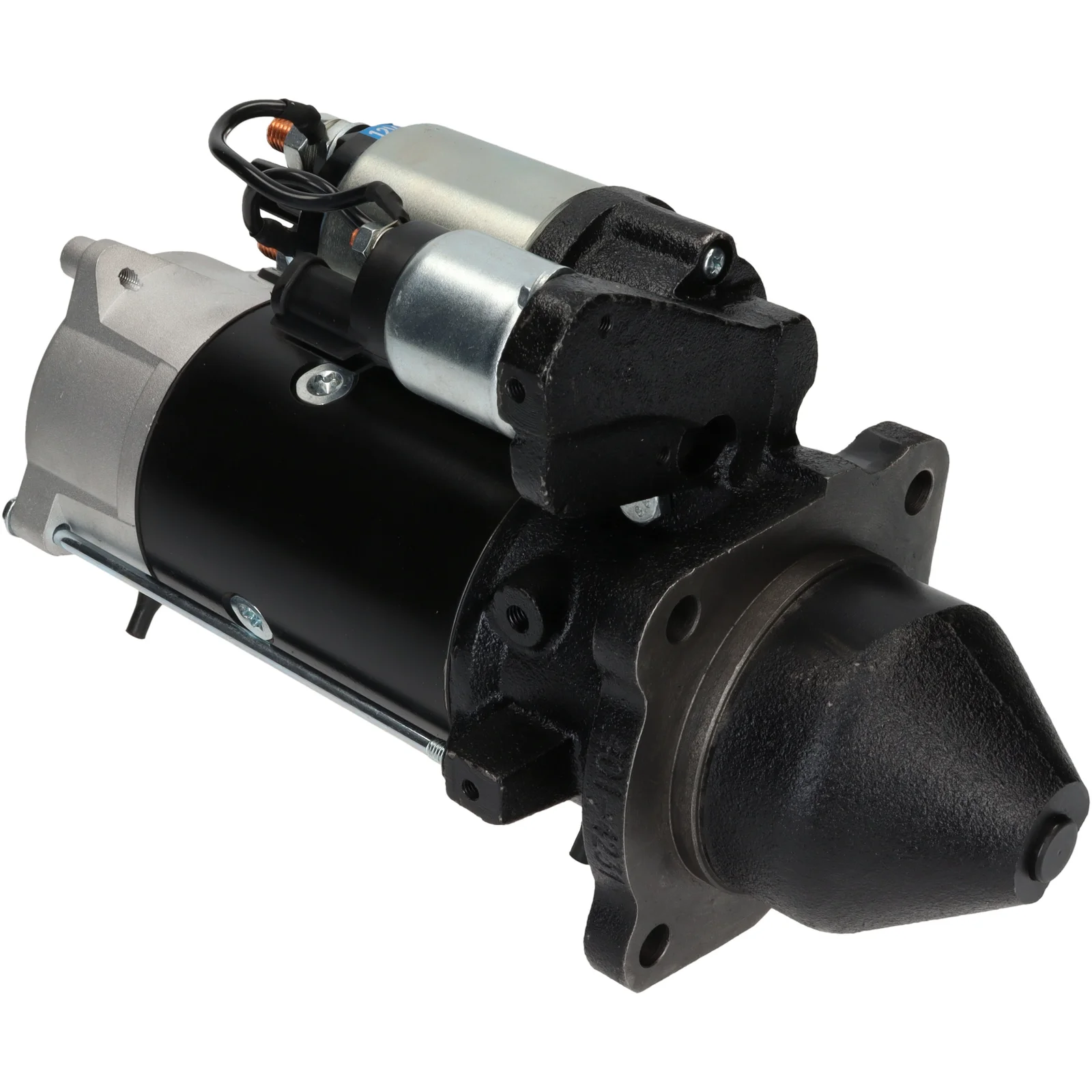

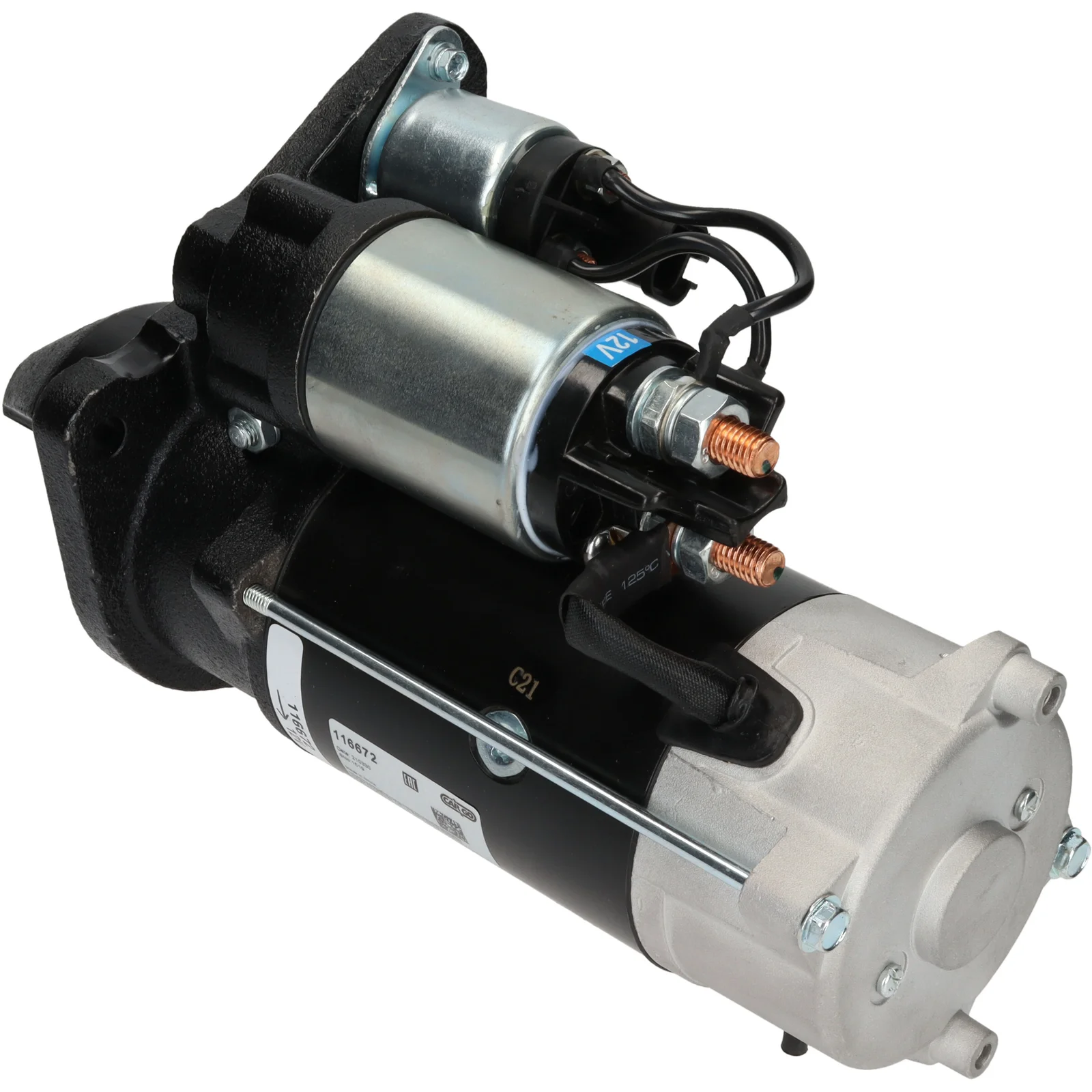

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116672

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 4.0
Mounting flange: 89.00
Drive distance: 28.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 248.00
Distance / front: 73.50
Number / teeth: 9
B+: M10
Terminal 50: Plug
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 321.50
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4178, AZF4231, AZF4310, F032116672, F340900060010, F716900060010, f836900060010, f836900060060, F842900060010, F934900060060, 11.131.686, 11.131.864, 11.132.138, 01182974, 1182974, 01183237, 1183237, 001183284, 01183284, 01183679, 1183679, 01183714, 1183714, 01853162, 1853162, 08820245, 090021540

  • Normalised article numbler
    azf4178, azf4231, azf4310, cst21195, f032116672, f340900060010, f716900060010, f836900060010, f836900060060, f842900060010, f934900060060, is1239, lrs04191, ms69, s9294letrika, s9294s, 8ea015642271, 113169, 255311, 255353, 01182974, 1182974, 01183237, 1183237, 001183284, 01183284, 01183679, 1183679, 01183714, 1183714, 01853162, 1853162, 08820245, 11131686, 11131864, 11132138, 090021540, 510517093
  • Description
    Voltage: 12
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 28.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 248.00
    Distance / front: 73.50
    Number / teeth: 9
    B+: M10
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 321.50
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4178, AZF4231, AZF4310, F032116672, F340900060010, F716900060010, f836900060010, f836900060060, F842900060010, F934900060060, 11.131.686, 11.131.864, 11.132.138, 01182974, 1182974, 01183237, 1183237, 001183284, 01183284, 01183679, 1183679, 01183714, 1183714, 01853162, 1853162, 08820245, 090021540

    • Normalised article numbler
      azf4178, azf4231, azf4310, cst21195, f032116672, f340900060010, f716900060010, f836900060010, f836900060060, f842900060010, f934900060060, is1239, lrs04191, ms69, s9294letrika, s9294s, 8ea015642271, 113169, 255311, 255353, 01182974, 1182974, 01183237, 1183237, 001183284, 01183284, 01183679, 1183679, 01183714, 1183714, 01853162, 1853162, 08820245, 11131686, 11131864, 11132138, 090021540, 510517093
