HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116712

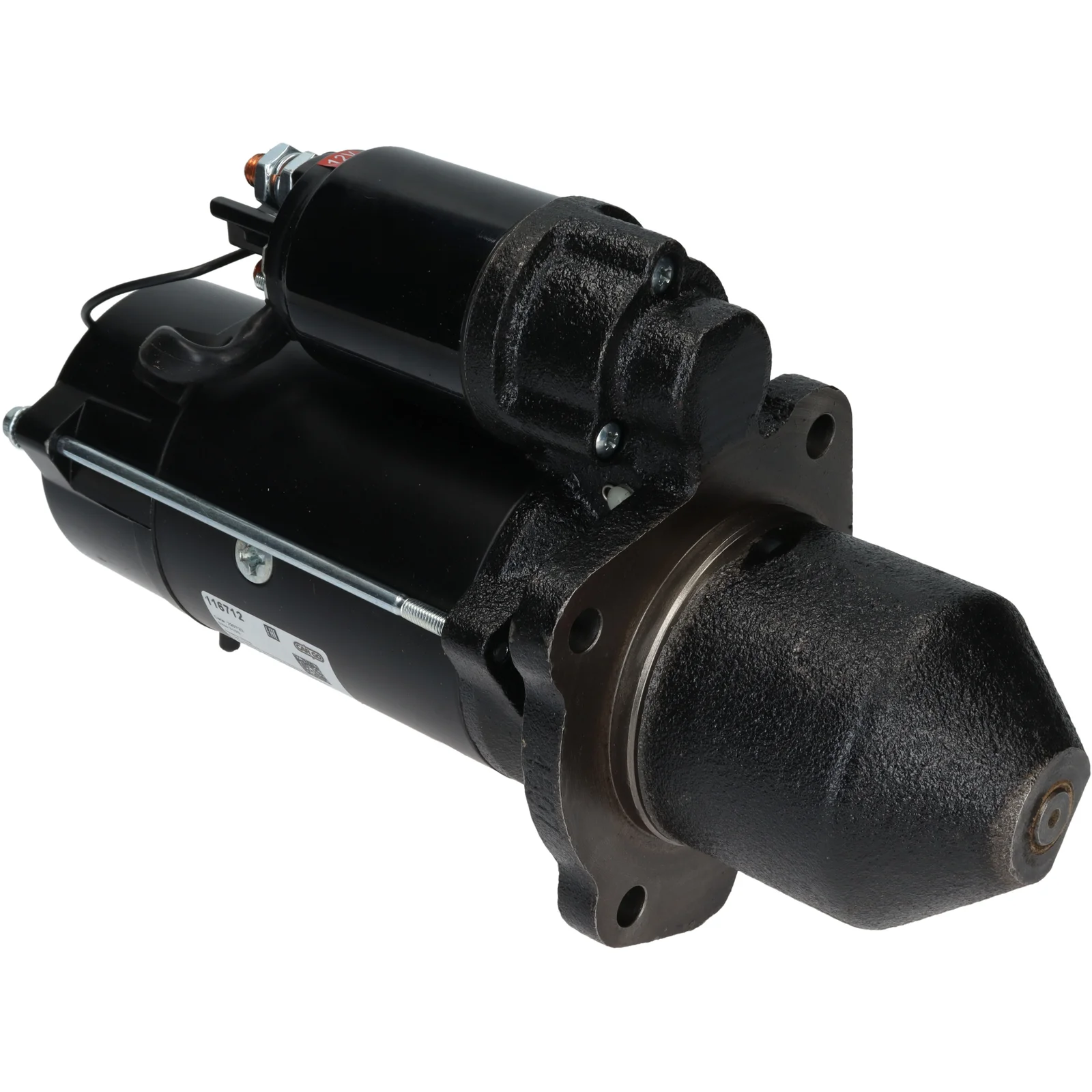

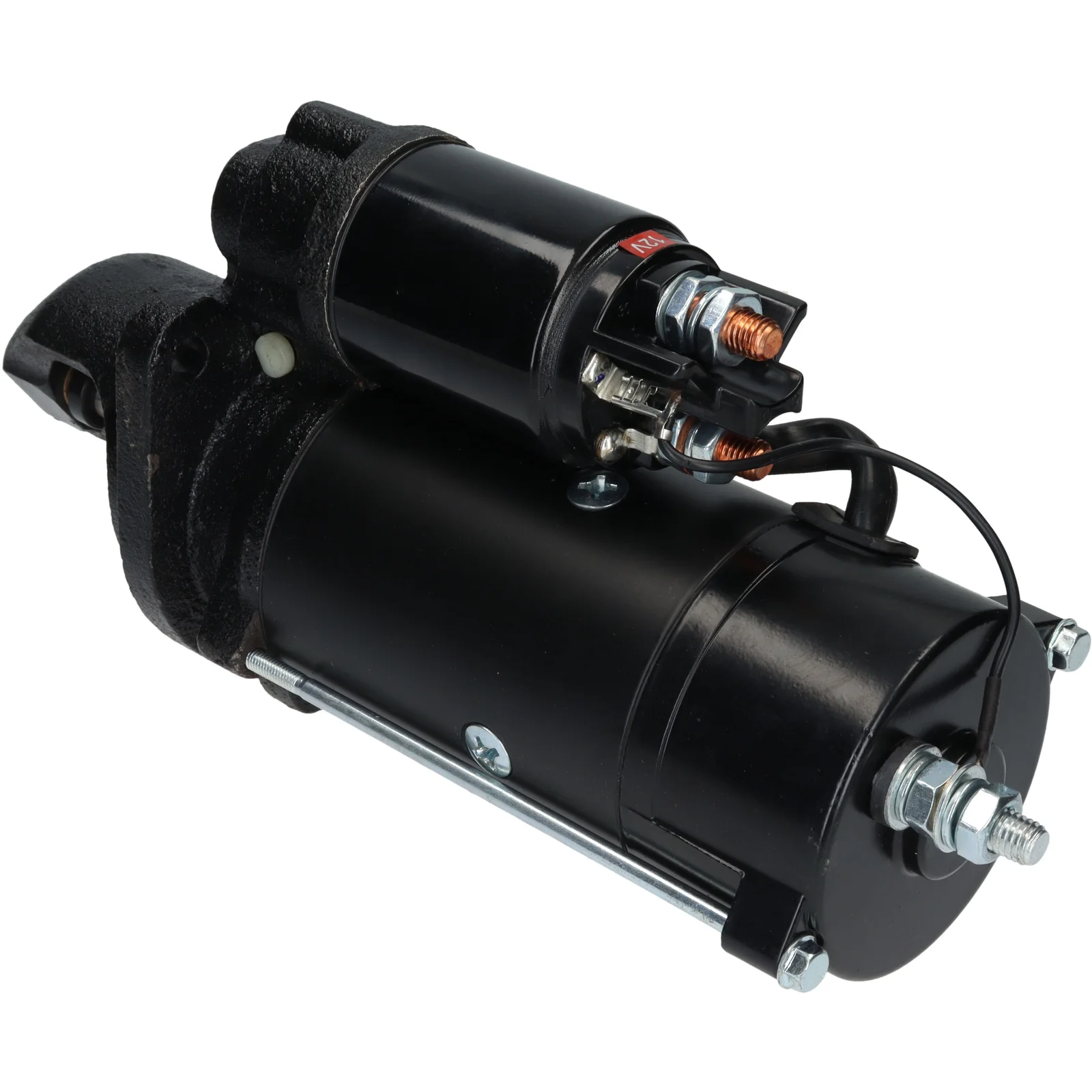

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.2
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 255.00
Distance / front: 96.00
Number / teeth: 10
B+: M10-1.25
Position / B+: 60
Position / 50: 20
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 351.00
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4187, azf4592, F032116712, re536008, RE536490, 11.131.356, 11.131.723, 0191-2363, 116712

  • Normalised article numbler
    azf4187, azf4592, cst21612, f032116712, is1118, les0695, ms402, re536008, re536490, s9365s, 116712, 254586, 01912363, 11131356, 11131723, 700550103, 701521103
  • Description
    Voltage: 12
    kW: 4.2
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 255.00
    Distance / front: 96.00
    Number / teeth: 10
    B+: M10-1.25
    Position / B+: 60
    Position / 50: 20
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 351.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4187, azf4592, F032116712, re536008, RE536490, 11.131.356, 11.131.723, 0191-2363, 116712

    • Normalised article numbler
      azf4187, azf4592, cst21612, f032116712, is1118, les0695, ms402, re536008, re536490, s9365s, 116712, 254586, 01912363, 11131356, 11131723, 700550103, 701521103
