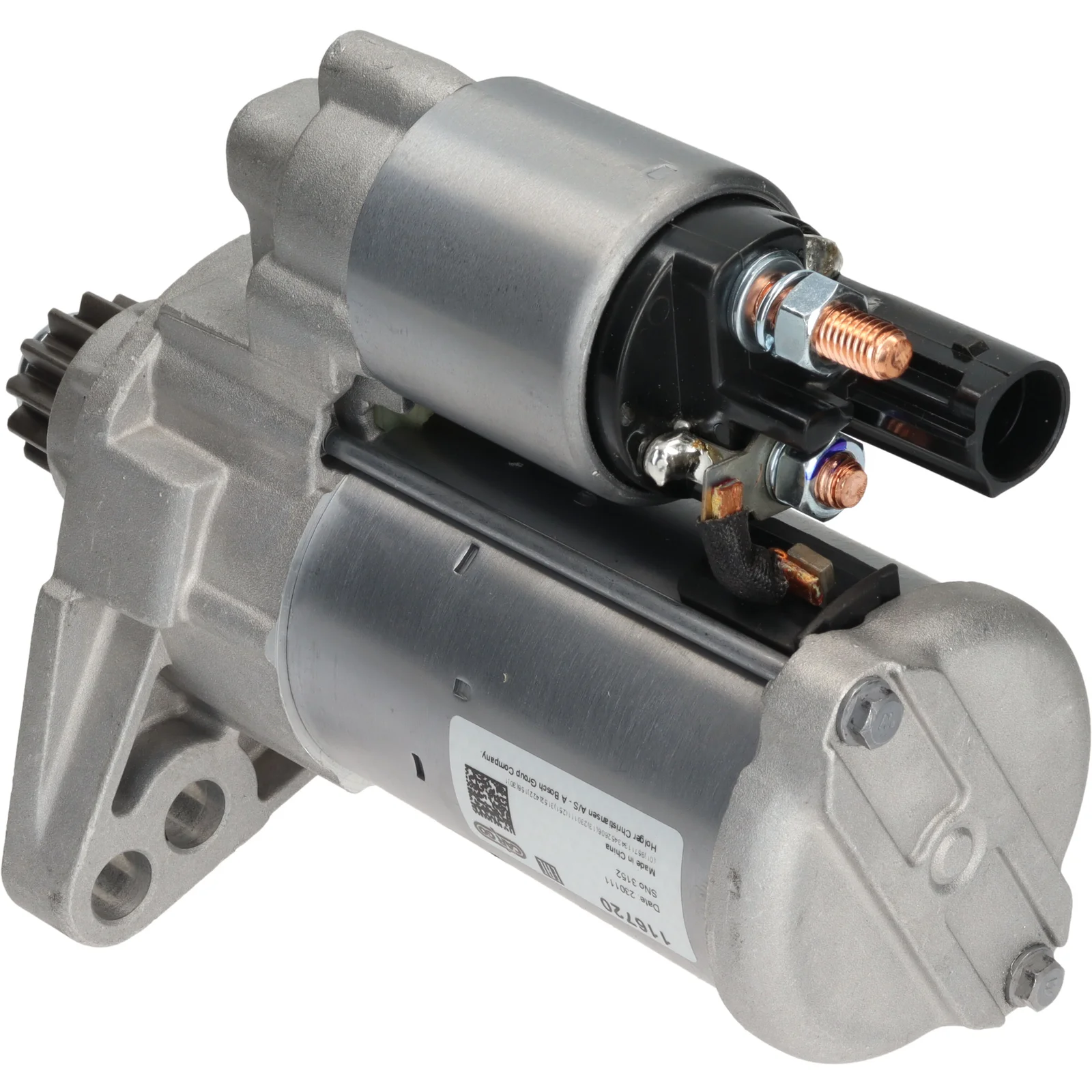

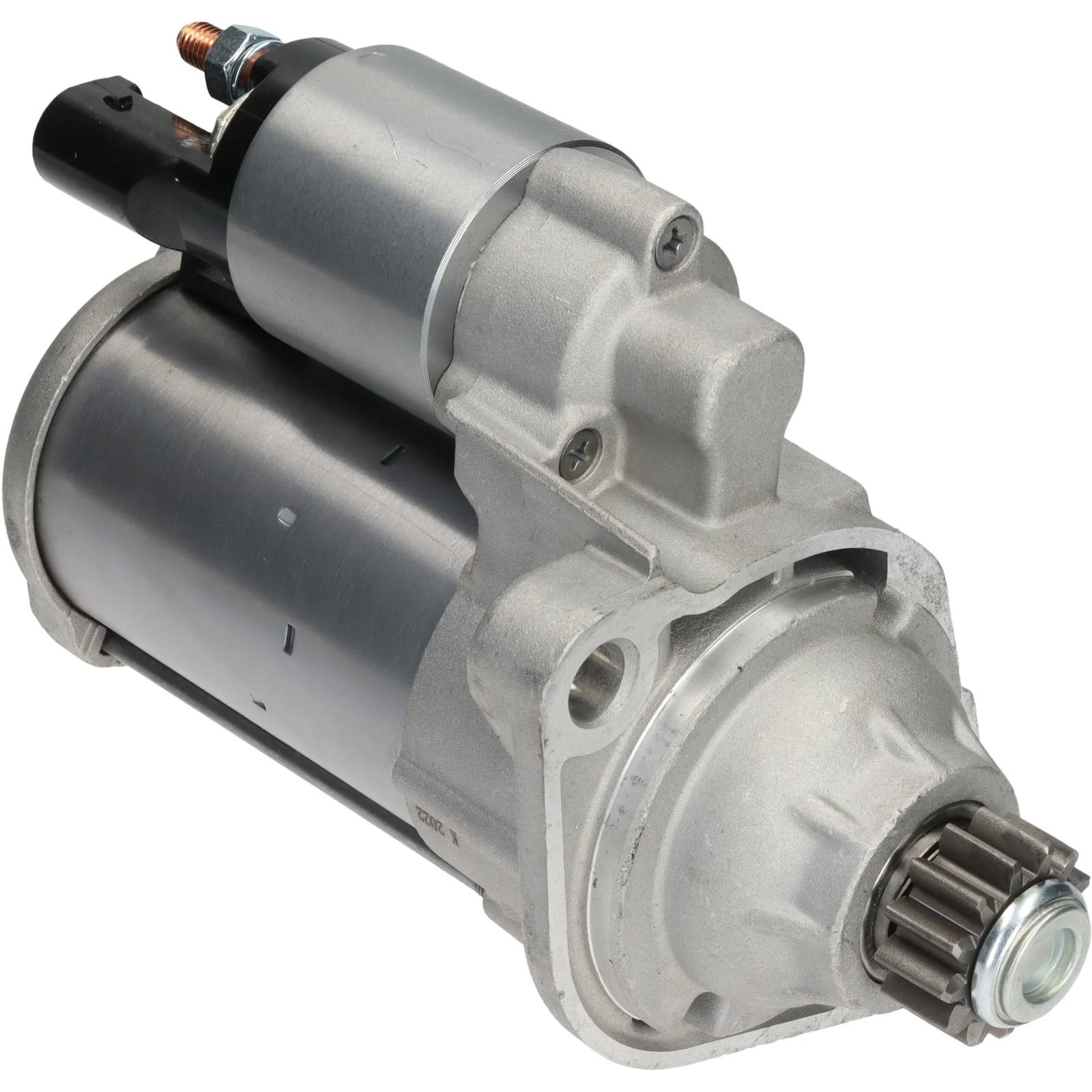

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116720

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 13, Rotation: CCW

Description

HC-Cargo Starter motor 12V - 1.4kW, 13

Voltage: 12
kW: 1.4
Mounting flange: 79.00
Drive distance: 52.50
Mounting hole 3 mm: 12.70
Mounting hole 2 mm: 12.70
Mounting hole 1 mm: 12.70
Distance/back: 161.50
Distance/front: 58.00
Number/teeth: 13
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Rotation: CCW
Total length mm: 219.50
Number/mounting holes: 3 (0)

Files

  • OEM
    F00E100575, F032116720, RSW20R11, 0001 177 004, 0001 177 012, 02Z 911 024F, 02Z911021E, 02Z911024F, 02Z911024FX, 1986S00882, 116720, 0001177004, 0001177005, 0001177012, 0001177013

  • Normalised article numbler
    cst10585, drs0805, f00e100575, f032116720, rsw20r11, s0655s, 02z911021e, 02z911024f, 02z911024fx, 8ea011612941, 1986s00882, 3253, 19310os, 116720, 255027, 438512, 442387, 458924, 0001177004, 0001177005, 0001177012, 0001177013, 11090247, 42177012, 88214578, 200550133, 311405132, 0986026870
  • Description
    HC-Cargo Starter motor 12V - 1.4kW, 13

    Voltage: 12
    kW: 1.4
    Mounting flange: 79.00
    Drive distance: 52.50
    Mounting hole 3 mm: 12.70
    Mounting hole 2 mm: 12.70
    Mounting hole 1 mm: 12.70
    Distance/back: 161.50
    Distance/front: 58.00
    Number/teeth: 13
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 4.80
    Gear type: GR
    Rotation: CCW
    Total length mm: 219.50
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F00E100575, F032116720, RSW20R11, 0001 177 004, 0001 177 012, 02Z 911 024F, 02Z911021E, 02Z911024F, 02Z911024FX, 1986S00882, 116720, 0001177004, 0001177005, 0001177012, 0001177013

    • Normalised article numbler
      cst10585, drs0805, f00e100575, f032116720, rsw20r11, s0655s, 02z911021e, 02z911024f, 02z911024fx, 8ea011612941, 1986s00882, 3253, 19310os, 116720, 255027, 438512, 442387, 458924, 0001177004, 0001177005, 0001177012, 0001177013, 11090247, 42177012, 88214578, 200550133, 311405132, 0986026870
