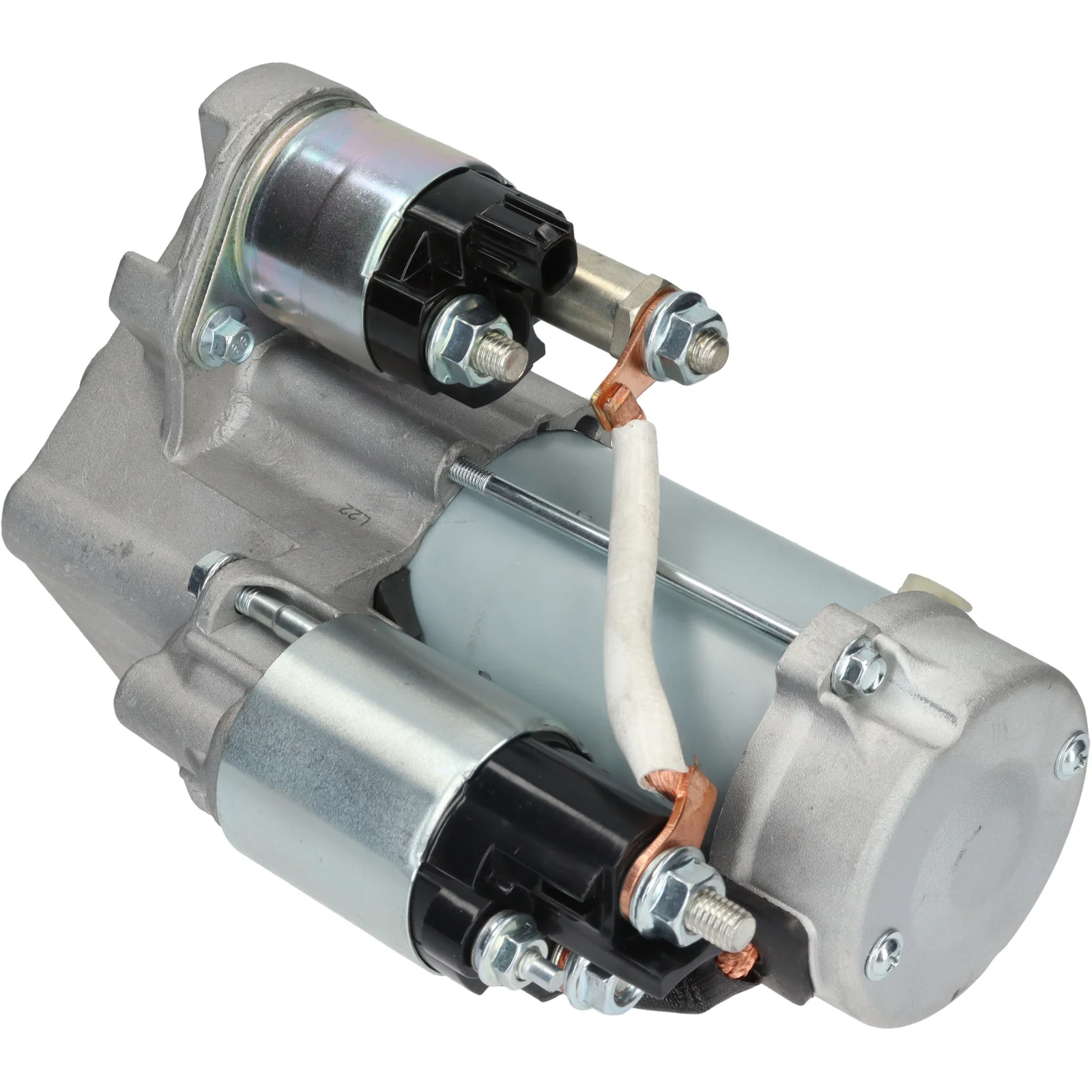

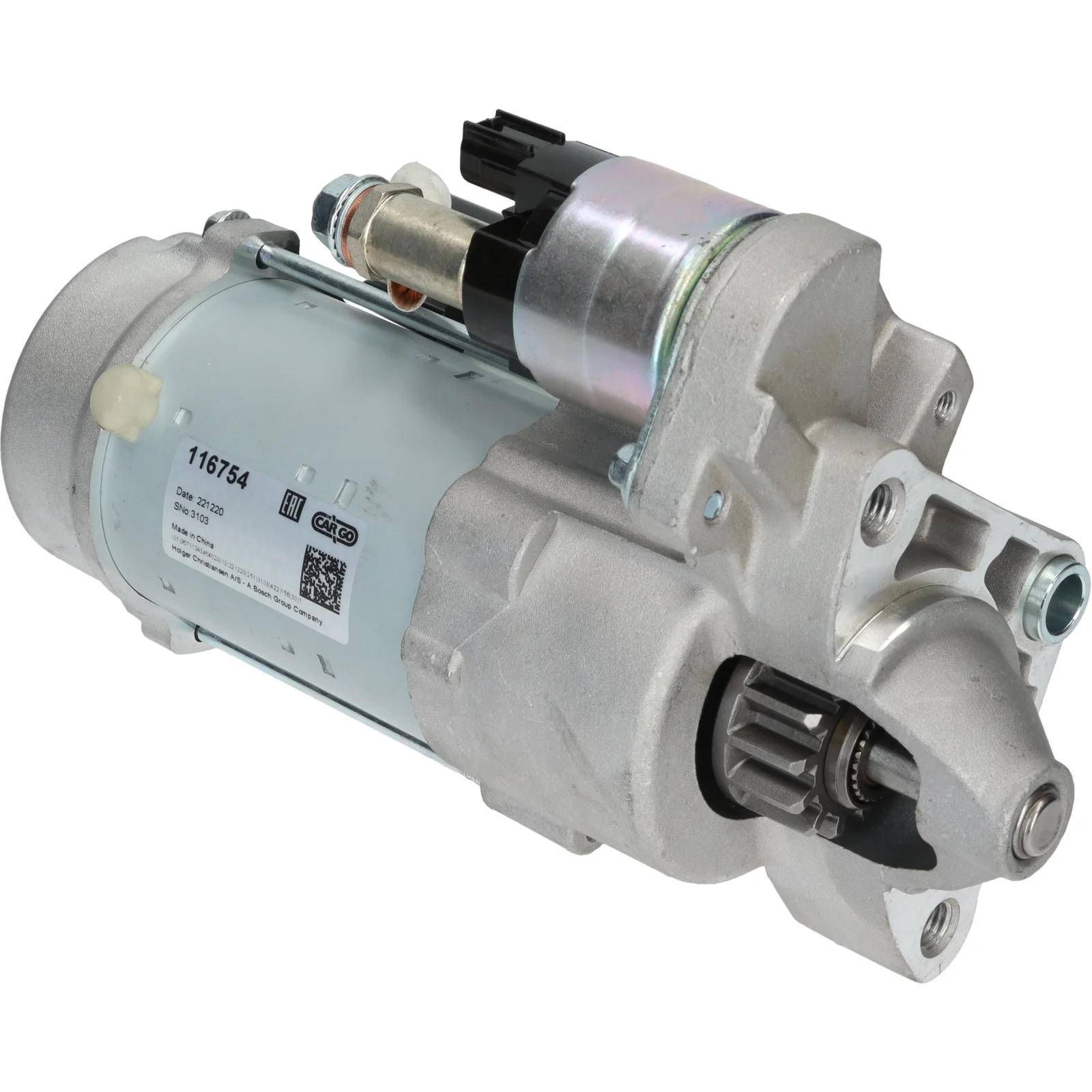

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116754

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 62.00
Drive distance: -5.00
Mounting hole 3 mm: M10
Mounting hole 2 mm: 16.00
Mounting hole 1 mm: M10
Distance / back: 197.50
Distance / front: 34.00
Number / teeth: 13
B+: M8
Position / B+: 2
Terminal 50: Plug
Gear type: GR
Distance 2: 67.00
Distance 3: 66.00
Distance mm: 102.50
Rotation: CW
Total length mm: 231.50
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116754, F1FT11000LA, F1FT11000LB, 438000-2240, 438000-2241, 1873443, 2001714

  • Normalised article numbler
    drs1059, f032116754, f1ft11000la, f1ft11000lb, lrs02780, 3238, 220840, 220840a, 254453, 256030d, 1873443, 2001714, 11090357, 11090358, 88214672, 4380002240, 4380002241
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 62.00
    Drive distance: -5.00
    Mounting hole 3 mm: M10
    Mounting hole 2 mm: 16.00
    Mounting hole 1 mm: M10
    Distance / back: 197.50
    Distance / front: 34.00
    Number / teeth: 13
    B+: M8
    Position / B+: 2
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 67.00
    Distance 3: 66.00
    Distance mm: 102.50
    Rotation: CW
    Total length mm: 231.50
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116754, F1FT11000LA, F1FT11000LB, 438000-2240, 438000-2241, 1873443, 2001714

    • Normalised article numbler
      drs1059, f032116754, f1ft11000la, f1ft11000lb, lrs02780, 3238, 220840, 220840a, 254453, 256030d, 1873443, 2001714, 11090357, 11090358, 88214672, 4380002240, 4380002241
