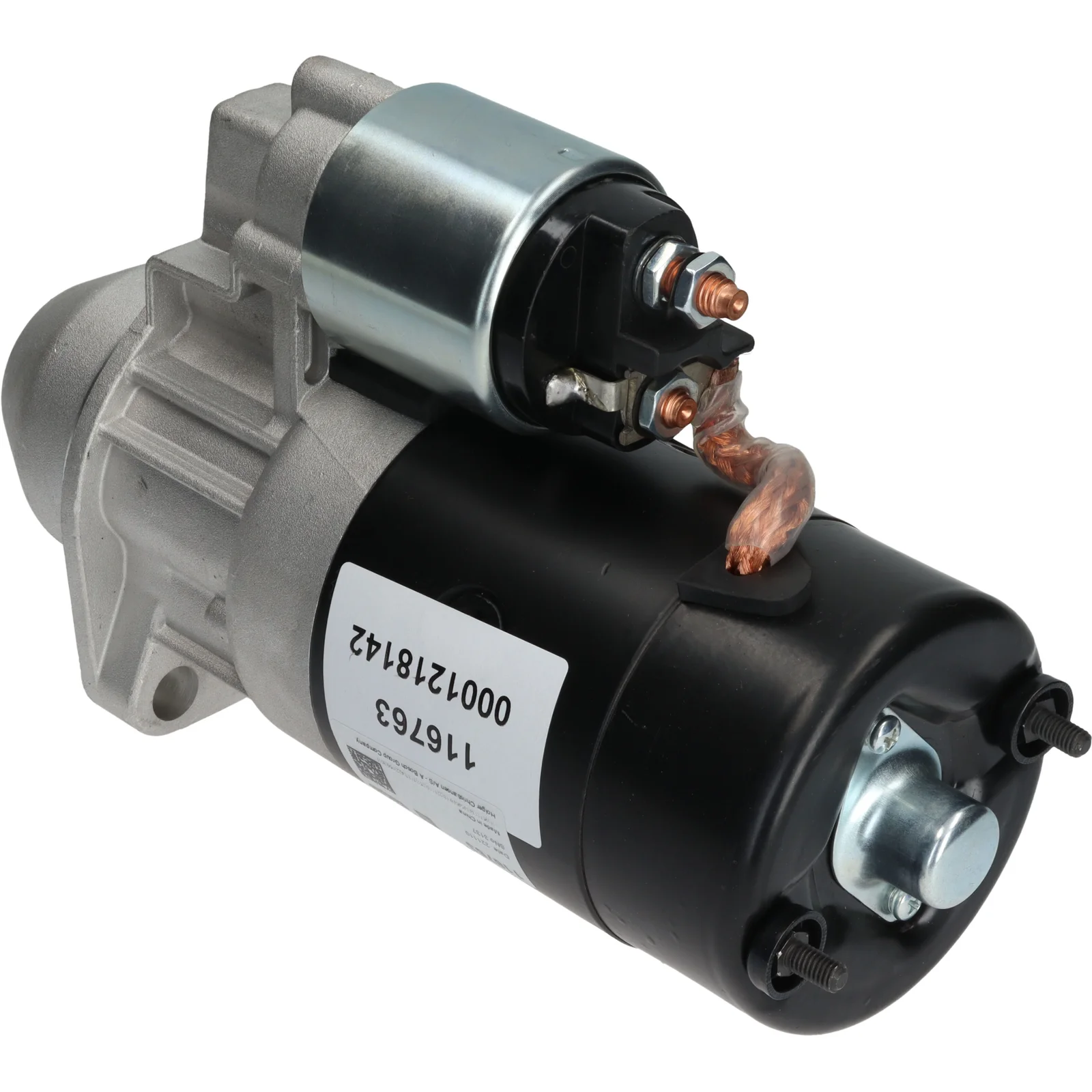

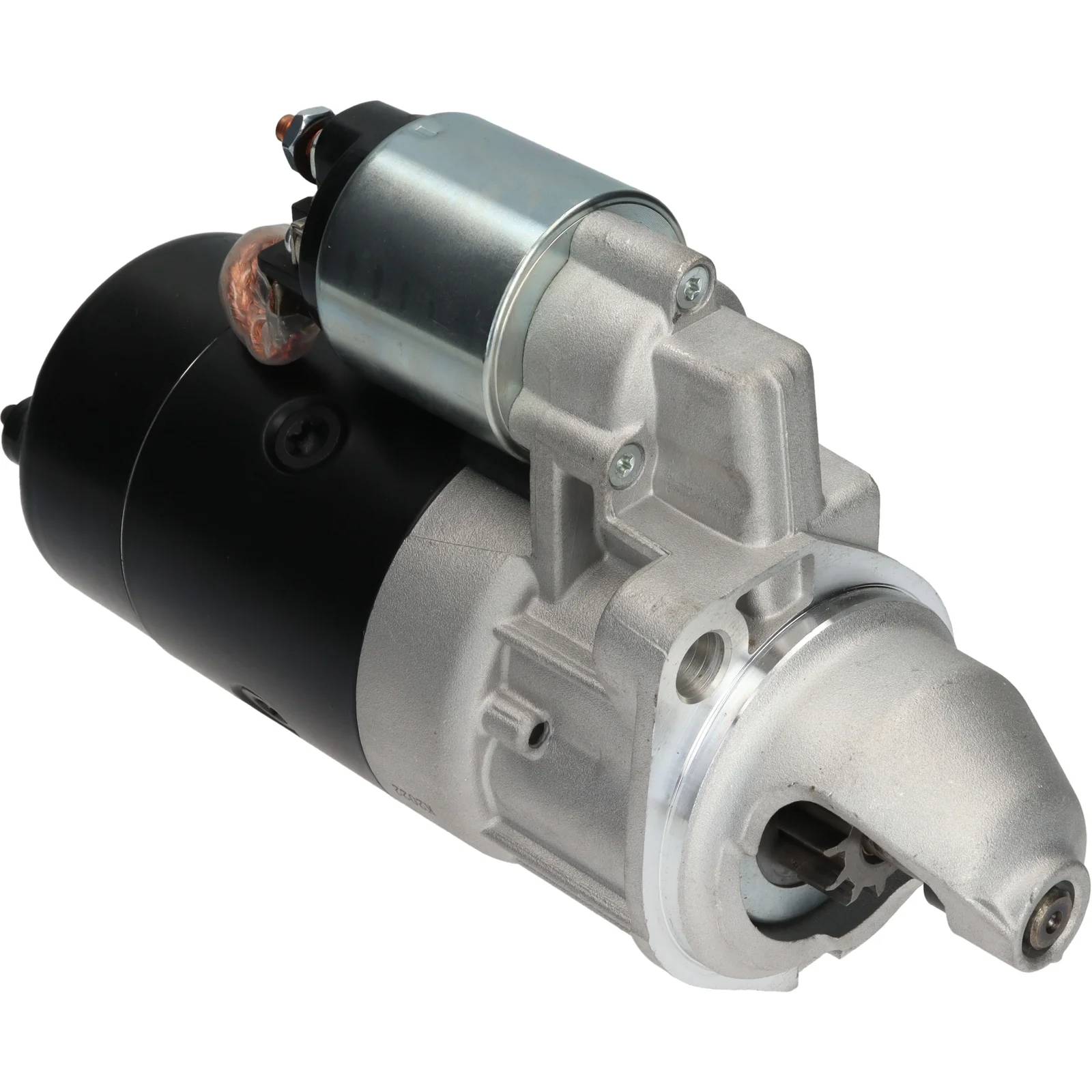

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116763

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.3
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 211.50
Dist./front: 61.00
No./teeth: 11
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 272.50
No./mount. holes: 2 (0)

Files

  • OEM
    F032116763, 11.131.718, 0001218142, 0001218742, 2177655, 2177655/0

  • Normalised article numbler
    f032116763, is1220, lrs03892, ms298, s9237letrika, 255056, 255208, 0001218142, 0001218742, 2177655, 11131718, 21776550, 510510112
  • Description
    Voltage: 12
    kW: 2.3
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 211.50
    Dist./front: 61.00
    No./teeth: 11
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 272.50
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116763, 11.131.718, 0001218142, 0001218742, 2177655, 2177655/0

    • Normalised article numbler
      f032116763, is1220, lrs03892, ms298, s9237letrika, 255056, 255208, 0001218142, 0001218742, 2177655, 11131718, 21776550, 510510112
