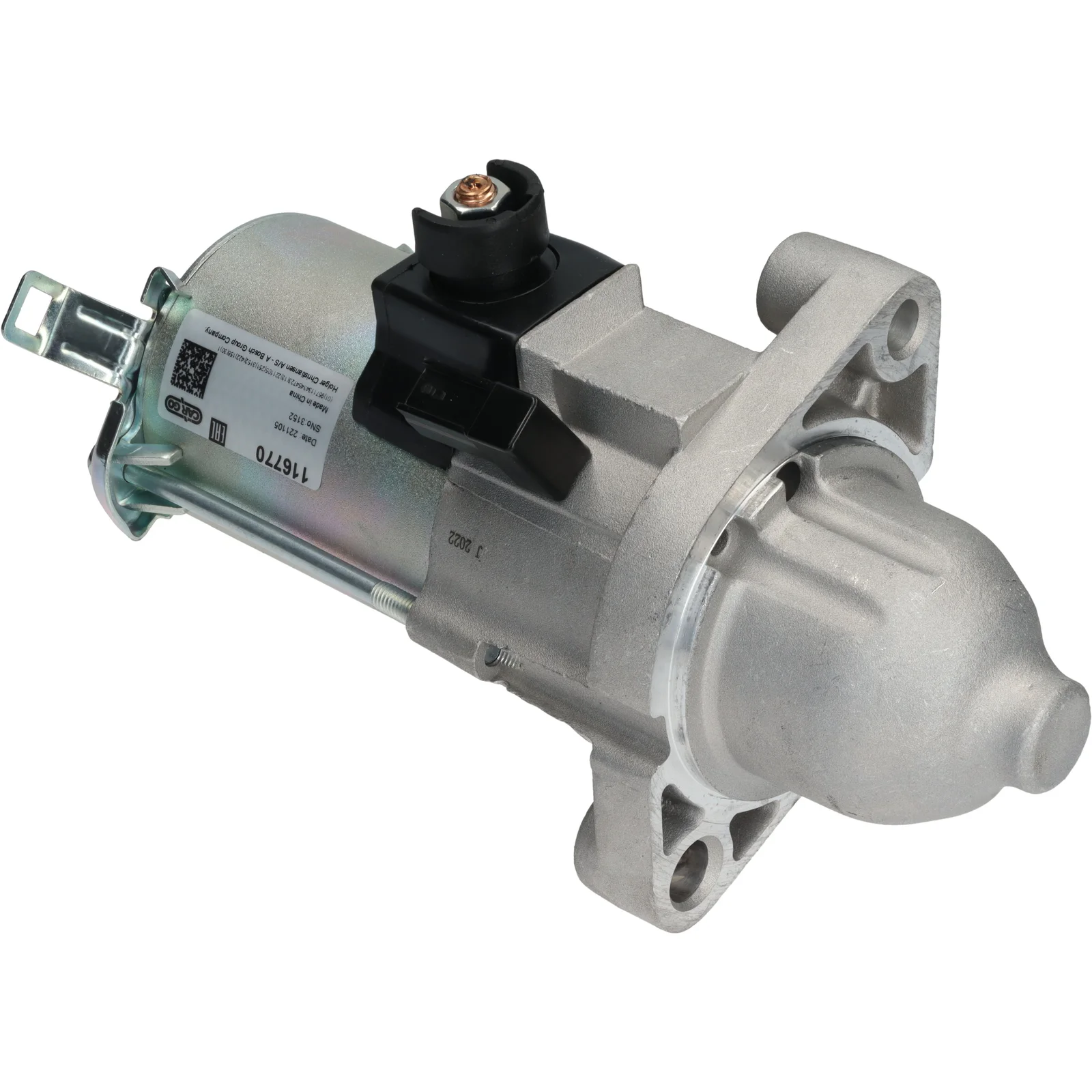

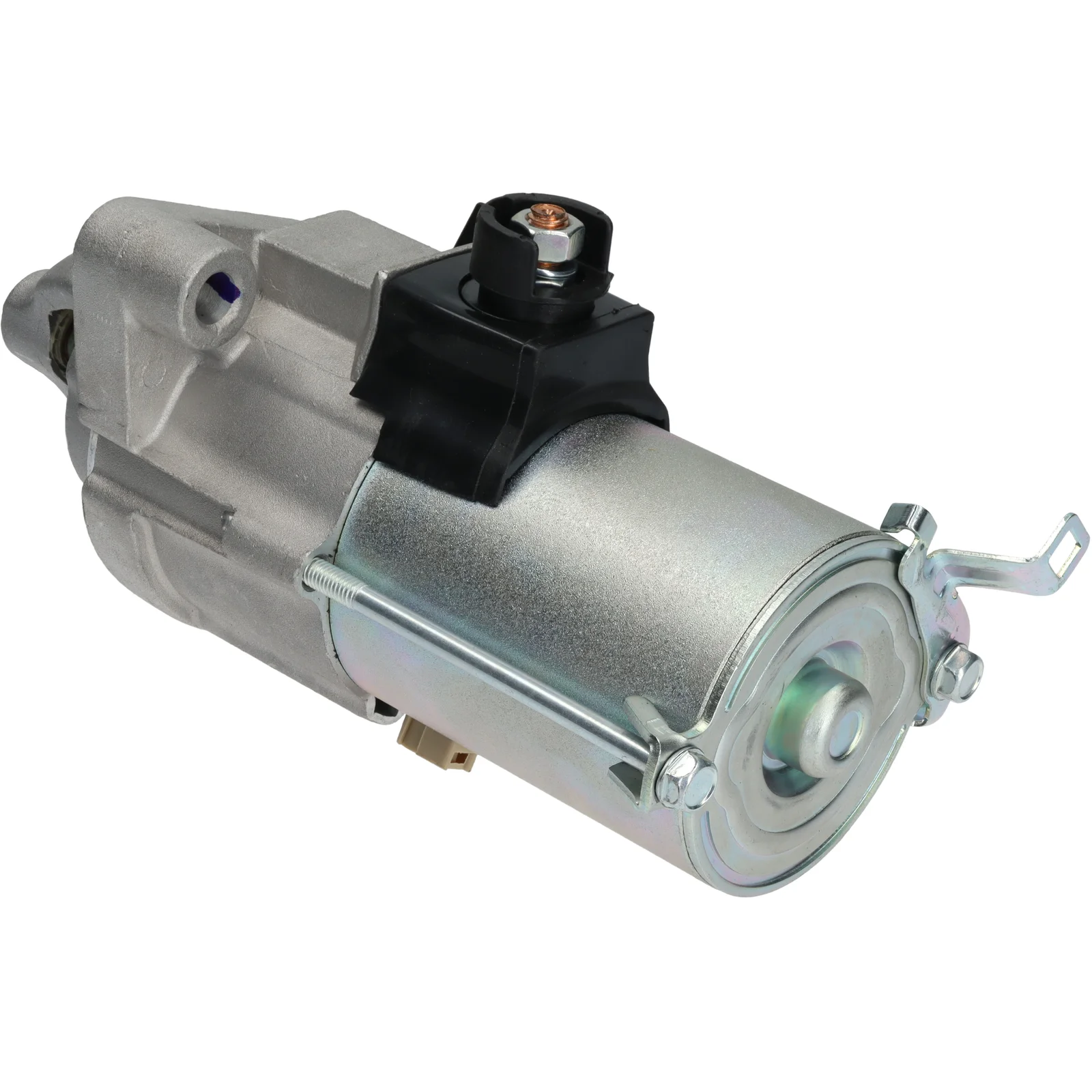

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116770

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.6
Mount. flange: 75.00
Drive distance: 33.50
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 10.50
Distance / back: 163.00
Distance / front: 64.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 55
Terminal 50: 4.80
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 227.00
Number / mount. holes: 2 (0)
