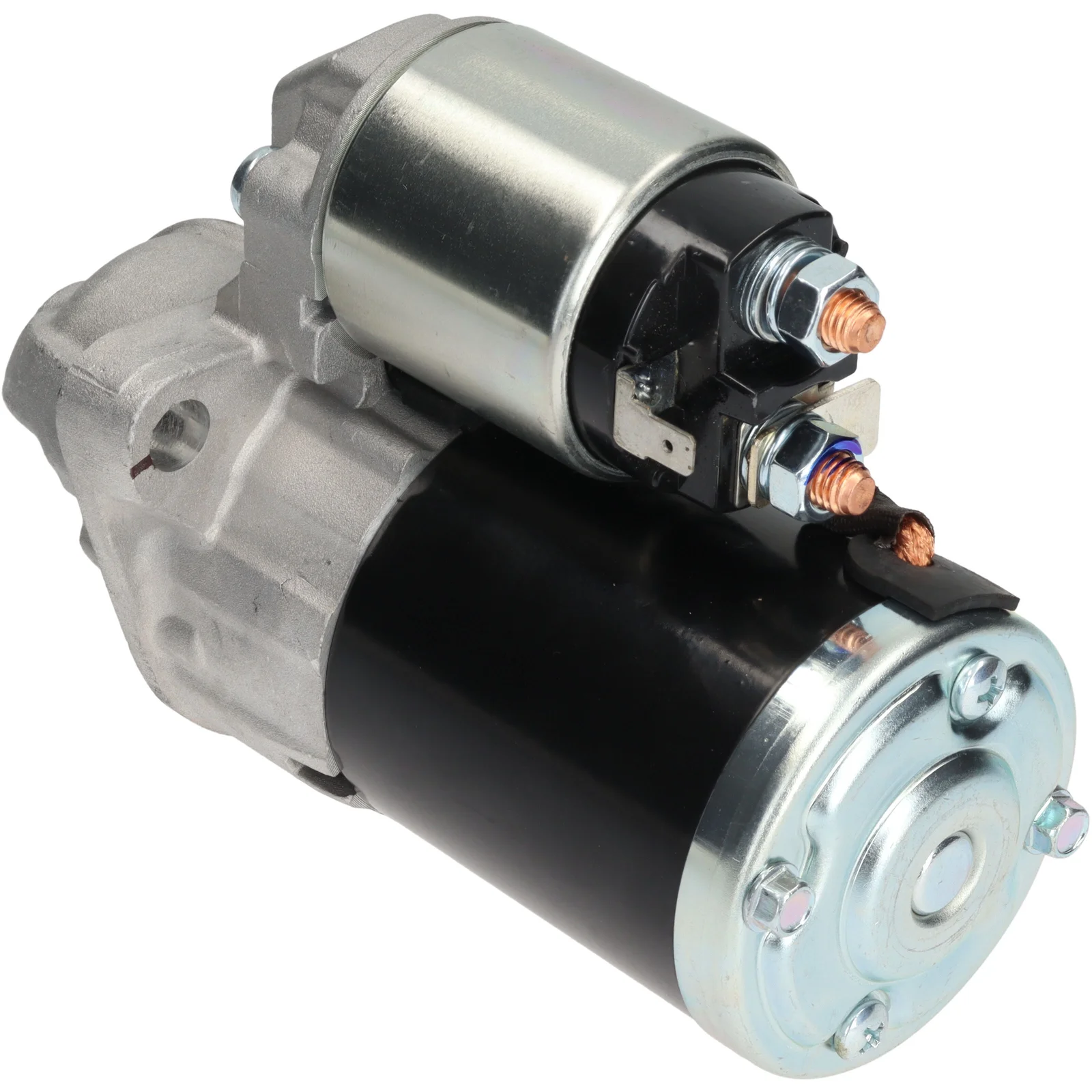

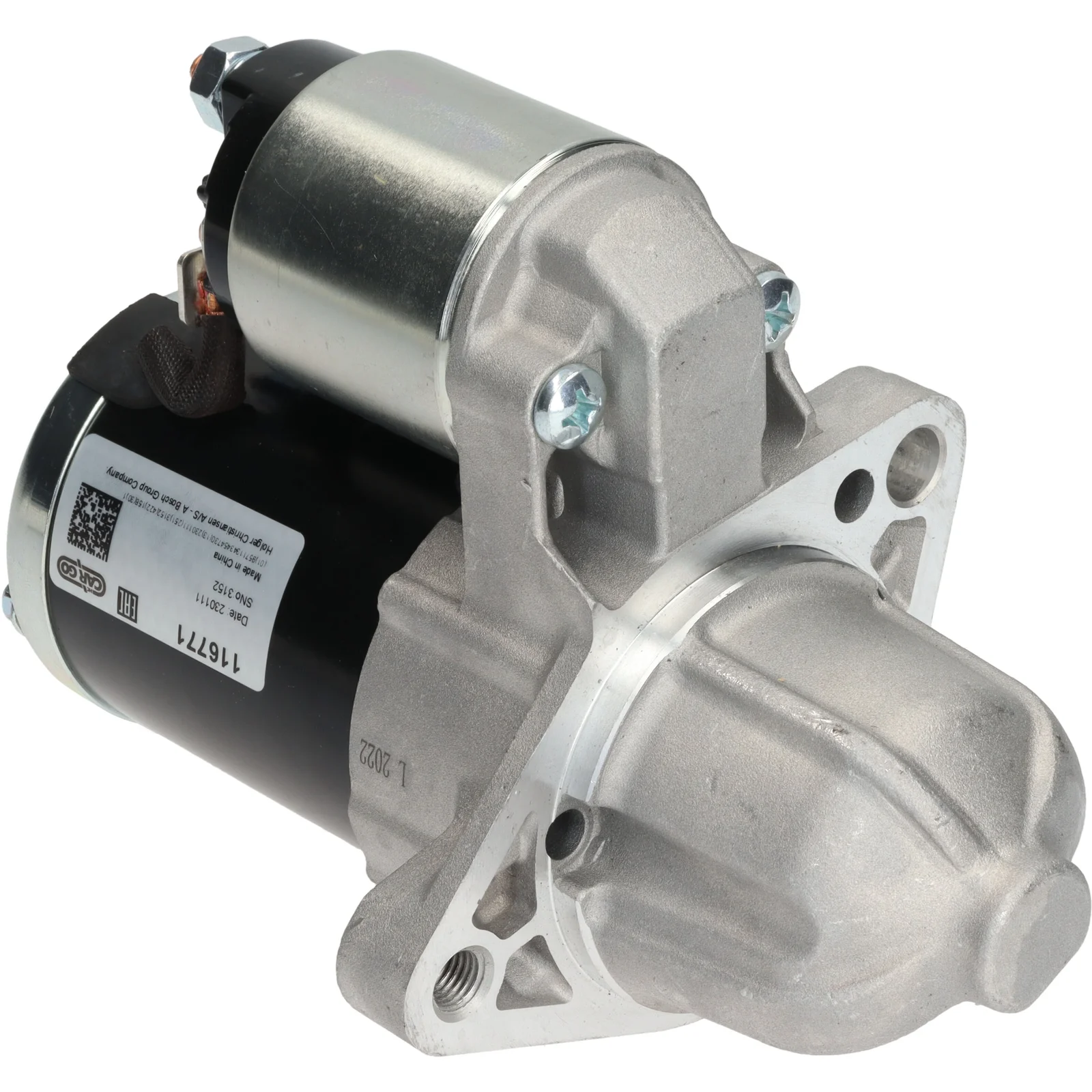

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116771

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 8, Mount. flange: 70.00

Description

Voltage: 12
kW: 1.4
Mounting flange: 70.00
Drive distance: 27.50
Mounting hole 2 mm: M10-1.25
Mounting hole 1 mm: 11.30
Distance / back: 129.00
Distance / front: 60.00
Number / teeth: 8
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance mm: 102.00
Total length mm: 189.00
Number / mounting holes: 2 (1)

Files

  • OEM
    F032116771, M000T23171, M0T23171, 31100-78K0, 31100-78K00, 31100-78k00

  • Normalised article numbler
    cst35307, drs0927, f032116771, m000t23171, m0t23171, 19066, 255023, 460238, 3110078k0, 3110078k00, 11040867, 180016082
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 70.00
    Drive distance: 27.50
    Mounting hole 2 mm: M10-1.25
    Mounting hole 1 mm: 11.30
    Distance / back: 129.00
    Distance / front: 60.00
    Number / teeth: 8
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 102.00
    Total length mm: 189.00
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116771, M000T23171, M0T23171, 31100-78K0, 31100-78K00, 31100-78k00

    • Normalised article numbler
      cst35307, drs0927, f032116771, m000t23171, m0t23171, 19066, 255023, 460238, 3110078k0, 3110078k00, 11040867, 180016082
