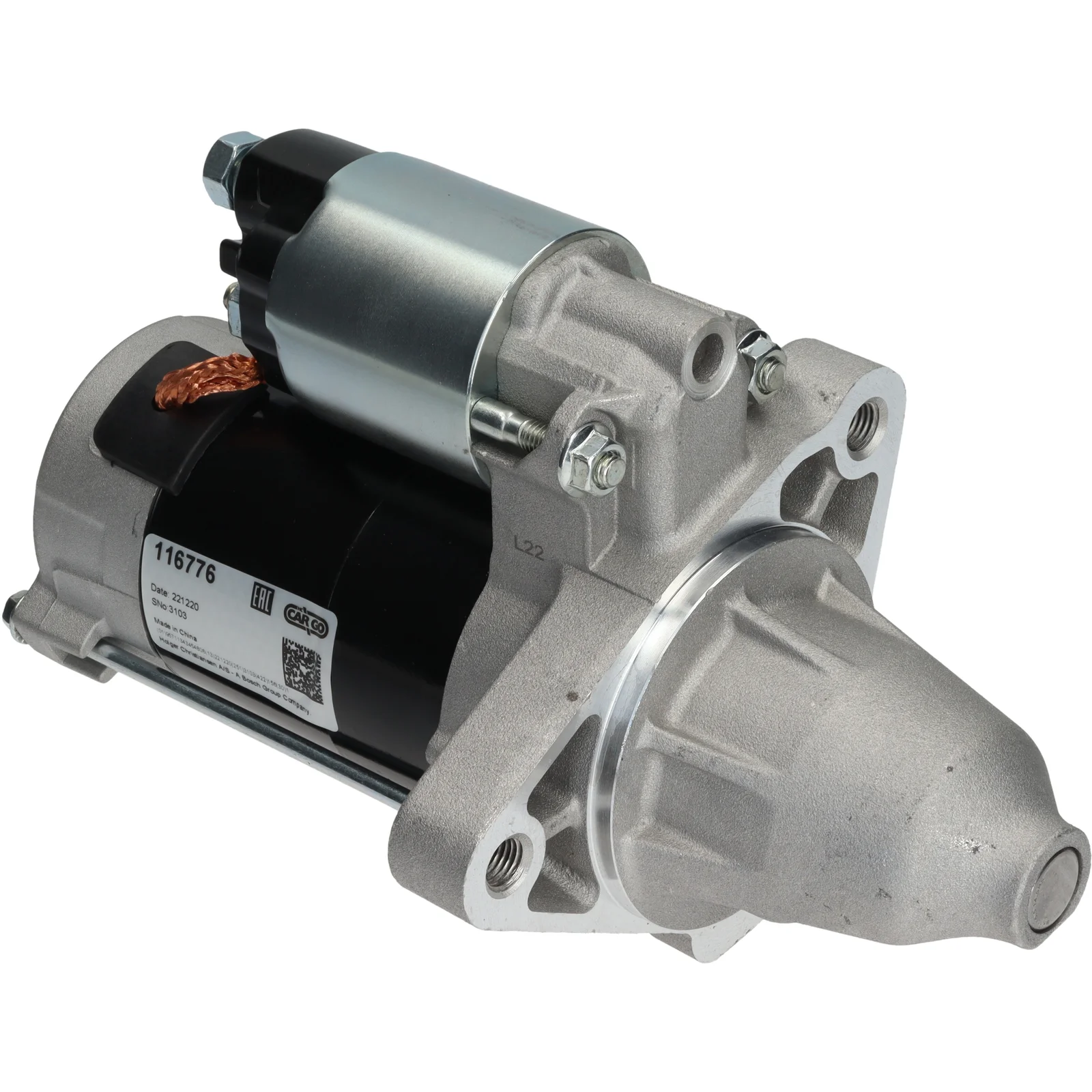

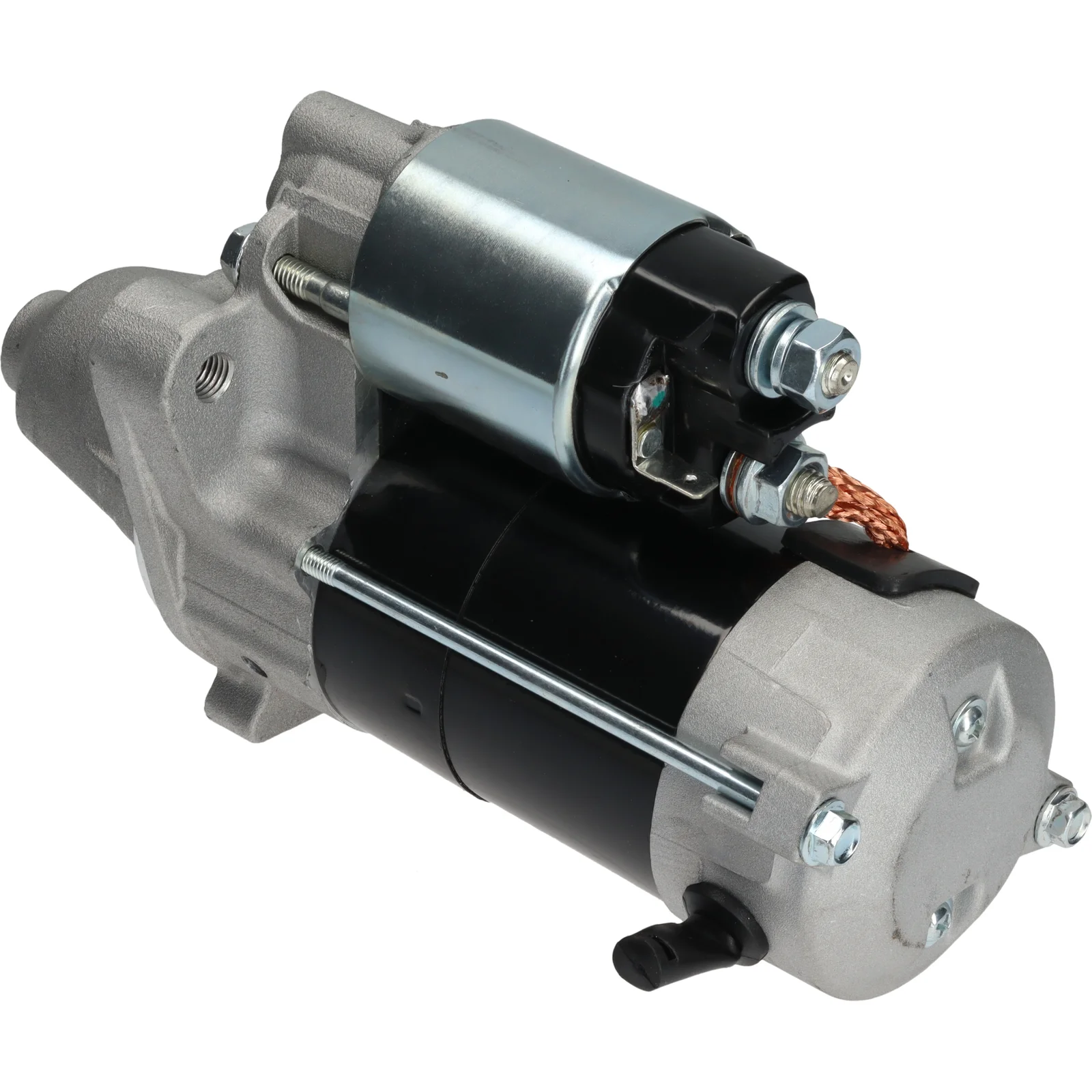

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116776

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mount. flange: 74.00
Drive distance: 36.00
Mount. hole 2 mm: M10-1.25
Mount. hole 1 mm: M10-1.25
Distance / back: 153.50
Distance / front: 69.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 104.00
Rotation: CW
Total length in millimeters: 222.50
Drive type: Steel
Number / mount. holes: 2 (2)

Files

  • OEM
    F032116776, 28100-B1020, 28100-B2110, 28100-B2120, 428000-2560

  • Normalised article numbler
    f032116776, 28100b1020, 28100b2110, 28100b2120, 254177, 11040864, 317033092, 4280002560
  • Description
    Voltage: 12
    kW: 1.0
    Mount. flange: 74.00
    Drive distance: 36.00
    Mount. hole 2 mm: M10-1.25
    Mount. hole 1 mm: M10-1.25
    Distance / back: 153.50
    Distance / front: 69.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 104.00
    Rotation: CW
    Total length in millimeters: 222.50
    Drive type: Steel
    Number / mount. holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032116776, 28100-B1020, 28100-B2110, 28100-B2120, 428000-2560

    • Normalised article numbler
      f032116776, 28100b1020, 28100b2110, 28100b2120, 254177, 11040864, 317033092, 4280002560
